Maintenance Manual > Operating Principle > Maintenance Function > NOZZLE WASH
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

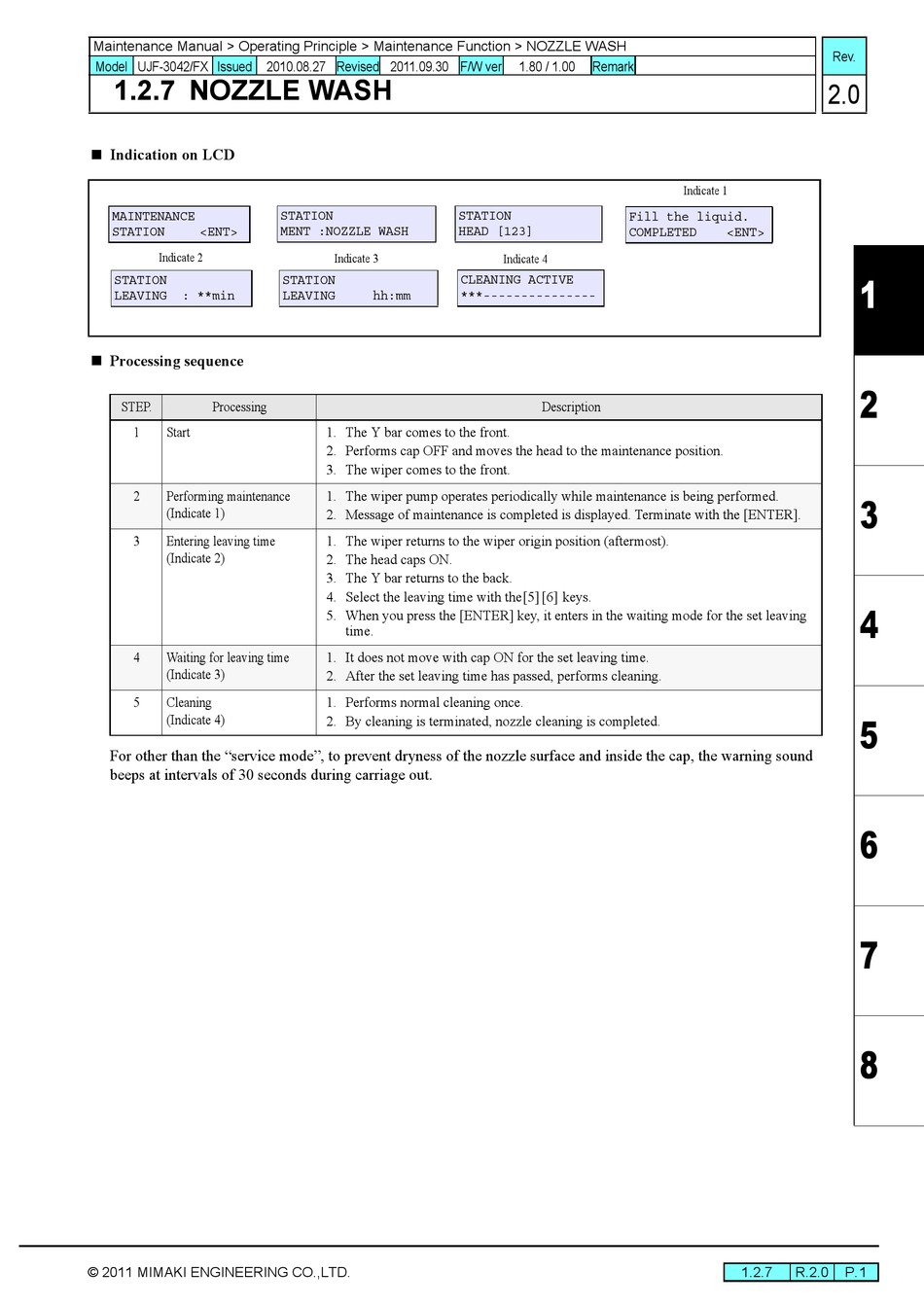

1.2.7 NOZZLE WASH
 Indication on LCD
MAINTENANCE
STATION <ENT>
Indicate 2
STATION
LEAVING : **min
 Processing sequence
STEP. Processing
1 Start
2 Performing maintenance
(Indicate 1)
3 Entering leaving time
(Indicate 2)
4 Waiting for leaving time
(Indicate 3)
5 Cleaning
(Indicate 4)
For other than the "service mode", to prevent dryness of the nozzle surface and inside the cap, the warning sound
beeps at intervals of 30 seconds during carriage out.
© 2011 MIMAKI ENGINEERING CO.,LTD.
STATION
MENT :NOZZLE WASH
Indicate 3
STATION
LEAVING hh:mm
1. The Y bar comes to the front.
2. Performs cap OFF and moves the head to the maintenance position.
3. The wiper comes to the front.
1. The wiper pump operates periodically while maintenance is being performed.
2. Message of maintenance is completed is displayed. Terminate with the [ENTER].
1. The wiper returns to the wiper origin position (aftermost).
2. The head caps ON.
3. The Y bar returns to the back.
4. Select the leaving time with the[5] [6] keys.
5. When you press the [ENTER] key, it enters in the waiting mode for the set leaving
time.
1. It does not move with cap ON for the set leaving time.
2. After the set leaving time has passed, performs cleaning.
1. Performs normal cleaning once.
2. By cleaning is terminated, nozzle cleaning is completed.
1.80 / 1.00 Remark
STATION
Fill the liquid.
HEAD [123]
COMPLETED
Indicate 4
CLEANING ACTIVE
***---------------
Description
Rev.
2.0
Indicate 1
<ENT>
1.2.7 R.2.0 P.1
