MIMAKI UJF-3042 Maintenance Manual page 19

Maintenance Manual > Operating Principle > Maintenance Function > Filter Check
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

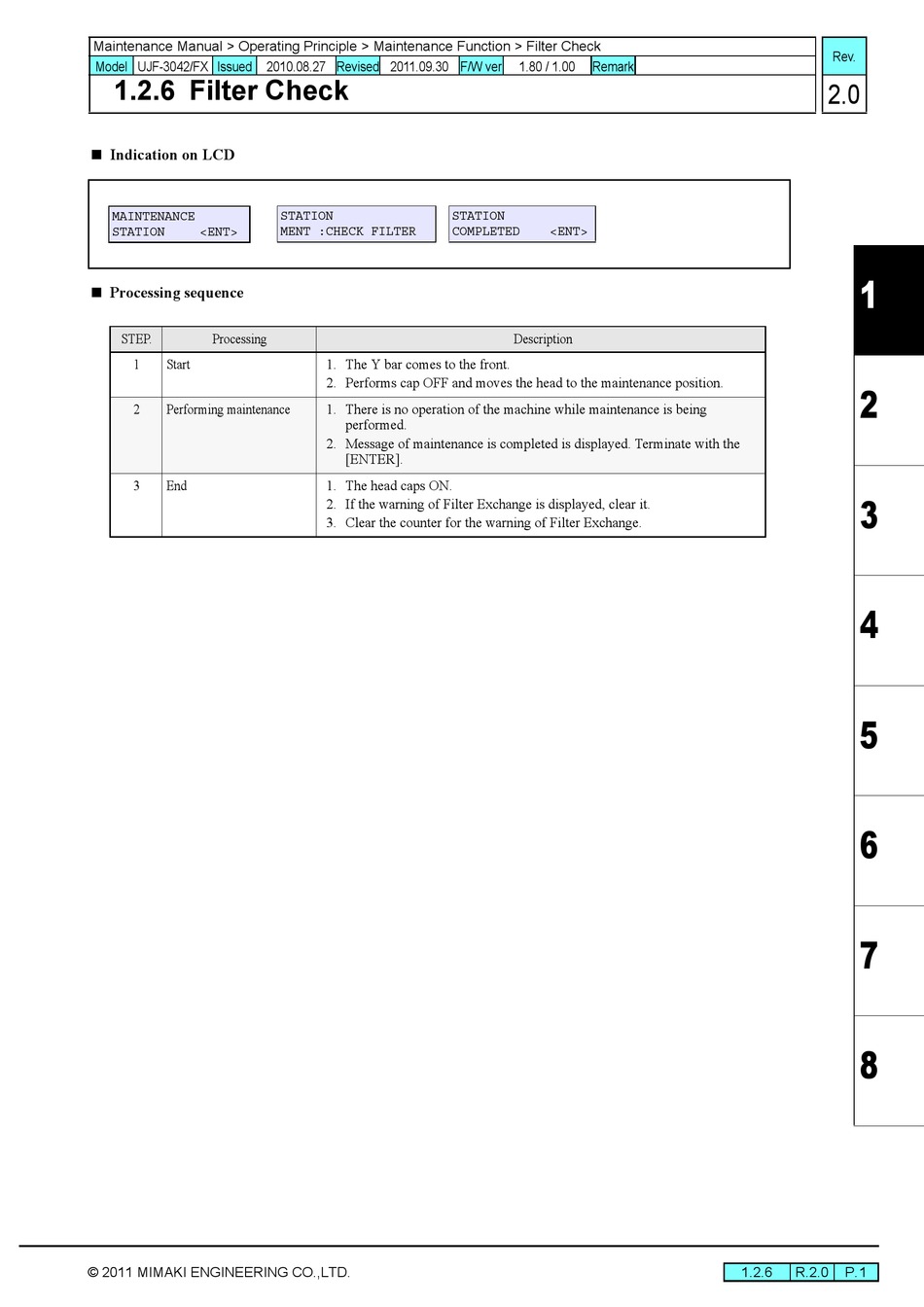

1.2.6 Filter Check
 Indication on LCD
MAINTENANCE
STATION <ENT>
 Processing sequence
STEP. Processing
1 Start
2 Performing maintenance
3 End
© 2011 MIMAKI ENGINEERING CO.,LTD.
STATION
STATION
COMPLETED
MENT :CHECK FILTER
1. The Y bar comes to the front.
2. Performs cap OFF and moves the head to the maintenance position.
1. There is no operation of the machine while maintenance is being
performed.
2. Message of maintenance is completed is displayed. Terminate with the
[ENTER].
1. The head caps ON.
2. If the warning of Filter Exchange is displayed, clear it.
3. Clear the counter for the warning of Filter Exchange.
1.80 / 1.00 Remark
<ENT>
Description
Rev.
2.0
1
2
3
4
5
6
7
8
1.2.6 R.2.0 P.1
