MIMAKI UJF-3042 Maintenance Manual page 16

Maintenance Manual > Operating Principle > Maintenance Function > Wiper Bottle
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

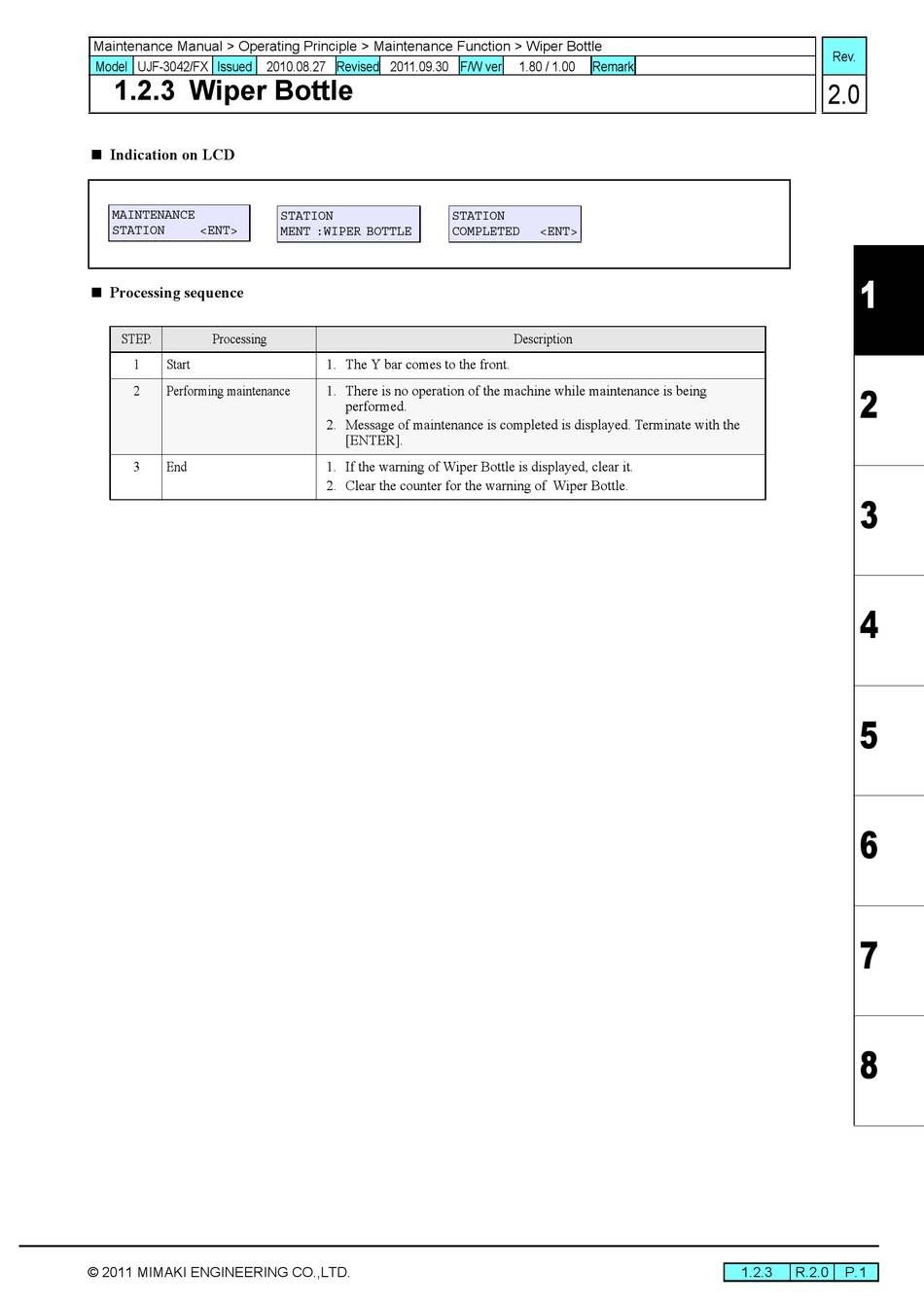

1.2.3 Wiper Bottle
 Indication on LCD
MAINTENANCE
STATION <ENT>
 Processing sequence
STEP. Processing
1 Start
2 Performing maintenance
3 End
© 2011 MIMAKI ENGINEERING CO.,LTD.
STATION
STATION
COMPLETED
MENT :WIPER BOTTLE
1. The Y bar comes to the front.
1. There is no operation of the machine while maintenance is being
performed.
2. Message of maintenance is completed is displayed. Terminate with the
[ENTER].
1. If the warning of Wiper Bottle is displayed, clear it.
2. Clear the counter for the warning of Wiper Bottle.
1.80 / 1.00 Remark
<ENT>
Description
Rev.
2.0
1
2
3
4
5
6
7
8
1.2.3 R.2.0 P.1
