MIMAKI UJF-3042 Maintenance Manual page 15

Maintenance Manual > Operating Principle > Maintenance Function > Wiper Cleaning
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

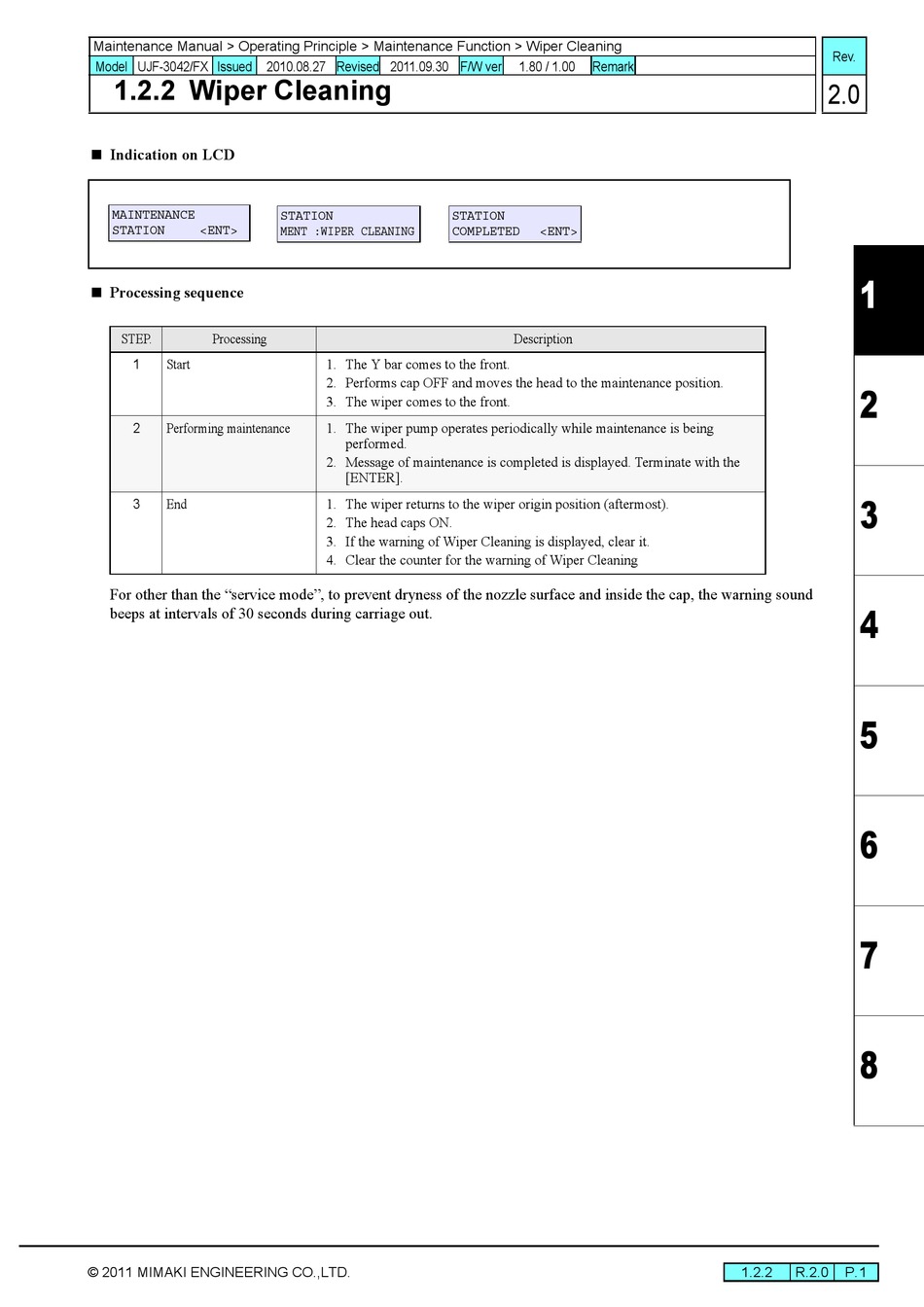

1.2.2 Wiper Cleaning
 Indication on LCD
MAINTENANCE
STATION <ENT>
 Processing sequence
STEP. Processing
1 Start
2
Performing maintenance
3 End
For other than the "service mode", to prevent dryness of the nozzle surface and inside the cap, the warning sound
beeps at intervals of 30 seconds during carriage out.
© 2011 MIMAKI ENGINEERING CO.,LTD.
STATION
STATION
COMPLETED
MENT :WIPER CLEANING
1. The Y bar comes to the front.
2. Performs cap OFF and moves the head to the maintenance position.
3. The wiper comes to the front.
1. The wiper pump operates periodically while maintenance is being
performed.
2. Message of maintenance is completed is displayed. Terminate with the
[ENTER].
1. The wiper returns to the wiper origin position (aftermost).
2. The head caps ON.
3. If the warning of Wiper Cleaning is displayed, clear it.
4. Clear the counter for the warning of Wiper Cleaning
1.80 / 1.00 Remark
<ENT>
Description
Rev.
2.0
1
2
3
4
5
6
7
8
1.2.2 R.2.0 P.1
