Maintenance Manual > Test > Test Items > AGEING
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

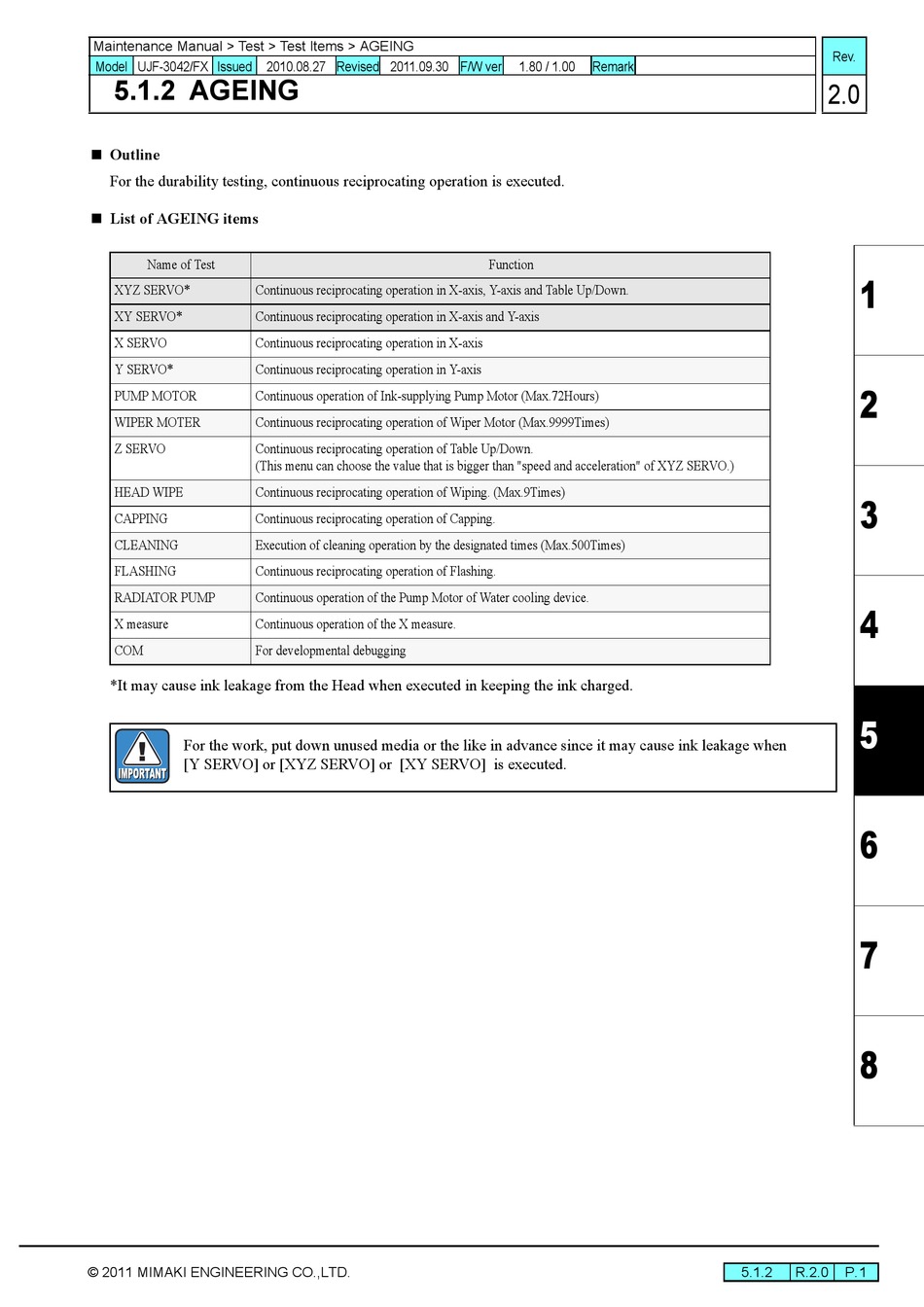

5.1.2 AGEING
 Outline
For the durability testing, continuous reciprocating operation is executed.
 List of AGEING items
Name of Test
XYZ SERVO* Continuous reciprocating operation in X-axis, Y-axis and Table Up/Down.
XY SERVO* Continuous reciprocating operation in X-axis and Y-axis
X SERVO Continuous reciprocating operation in X-axis
Y SERVO* Continuous reciprocating operation in Y-axis
PUMP MOTOR Continuous operation of Ink-supplying Pump Motor (Max.72Hours)
WIPER MOTER Continuous reciprocating operation of Wiper Motor (Max.9999Times)
Z SERVO Continuous reciprocating operation of Table Up/Down.
(This menu can choose the value that is bigger than "speed and acceleration" of XYZ SERVO.)
HEAD WIPE Continuous reciprocating operation of Wiping. (Max.9Times)
CAPPING Continuous reciprocating operation of Capping.
CLEANING Execution of cleaning operation by the designated times (Max.500Times)
FLASHING Continuous reciprocating operation of Flashing.
RADIATOR PUMP Continuous operation of the Pump Motor of Water cooling device.
X measure Continuous operation of the X measure.
COM For developmental debugging
*It may cause ink leakage from the Head when executed in keeping the ink charged.
For the work, put down unused media or the like in advance since it may cause ink leakage when
[Y SERVO] or [XYZ SERVO] or [XY SERVO] is executed.
© 2011 MIMAKI ENGINEERING CO.,LTD.
1.80 / 1.00 Remark
Function
Rev.
2.0
1
2
3
4
5
6
7
8
5.1.2 R.2.0 P.1
