Maintenance Manual > Test > Test Items > CHECK PATTERN
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

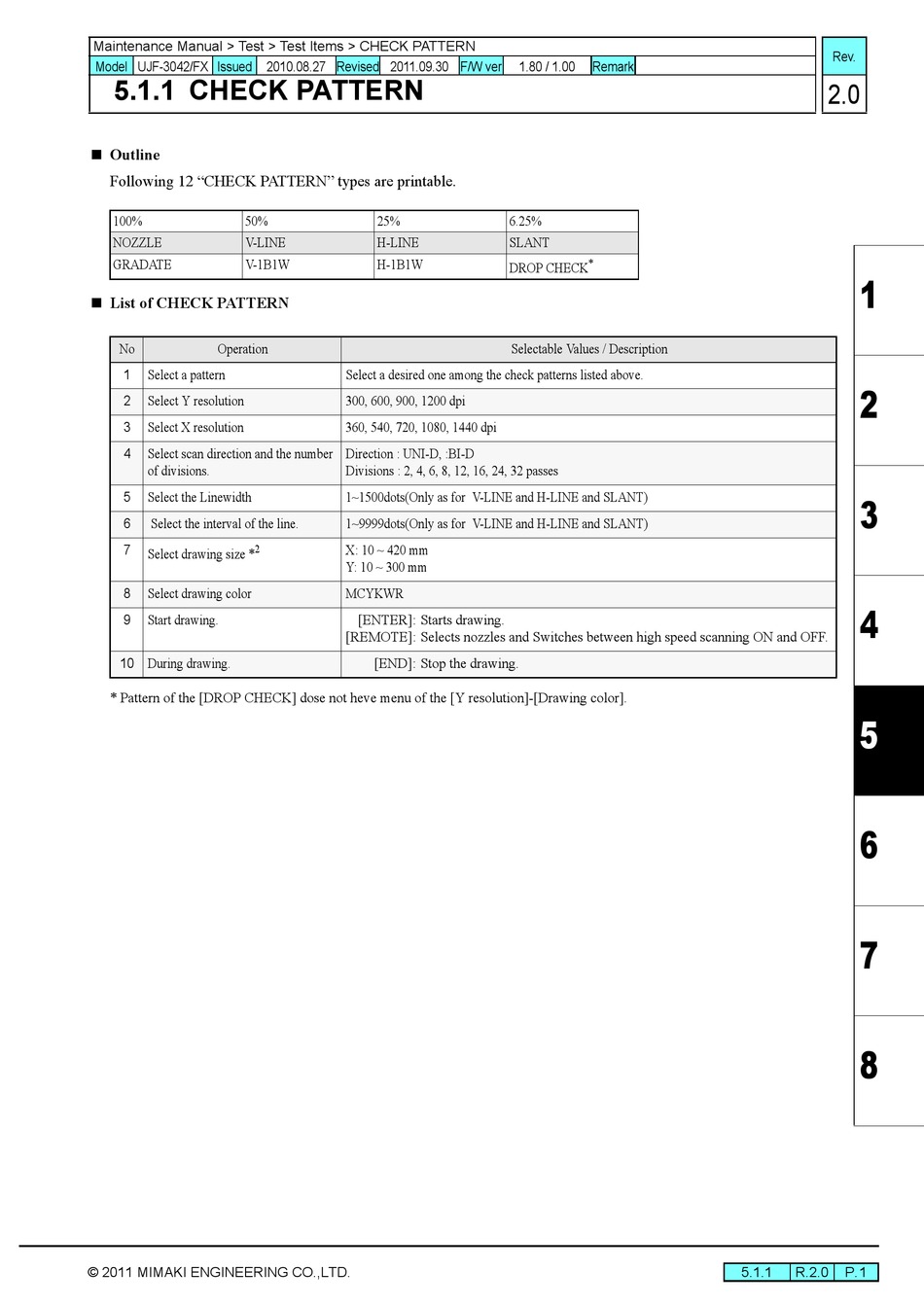

5.1.1 CHECK PATTERN
Outline
Following 12 "CHECK PATTERN" types are printable.
100%
50%
NOZZLE
V-LINE
GRADATE
V-1B1W
List of CHECK PATTERN
No
Operation
1
Select a pattern
2
Select Y resolution
3
Select X resolution
4
Select scan direction and the number
of divisions.
5
Select the Linewidth
6
Select the interval of the line.
7
2
Select drawing size *
8
Select drawing color
9
Start drawing.
10 During drawing.
* Pattern of the [DROP CHECK] dose not heve menu of the [Y resolution]-[Drawing color].
© 2011 MIMAKI ENGINEERING CO.,LTD.
1.80 / 1.00
25%
6.25%
H-LINE
SLANT
H-1B1W
DROP CHECK
Selectable Values / Description
Select a desired one among the check patterns listed above.
300, 600, 900, 1200 dpi
360, 540, 720, 1080, 1440 dpi
Direction : UNI-D, :BI-D
Divisions : 2, 4, 6, 8, 12, 16, 24, 32 passes
1~1500dots(Only as for V-LINE and H-LINE and SLANT)
1~9999dots(Only as for V-LINE and H-LINE and SLANT)
X: 10 ~ 420 mm
Y: 10 ~ 300 mm
MCYKWR
[ENTER]: Starts drawing.
[REMOTE]: Selects nozzles and Switches between high speed scanning ON and OFF.
[END]: Stop the drawing.
Remark
*
5.1.1
Rev.
2.0
1
2
3
4
5
6
7
8
R.2.0
P.1
