Maintenance Manual > Adjustment > Mechanical Adjustment > Carriage height Adjustment
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

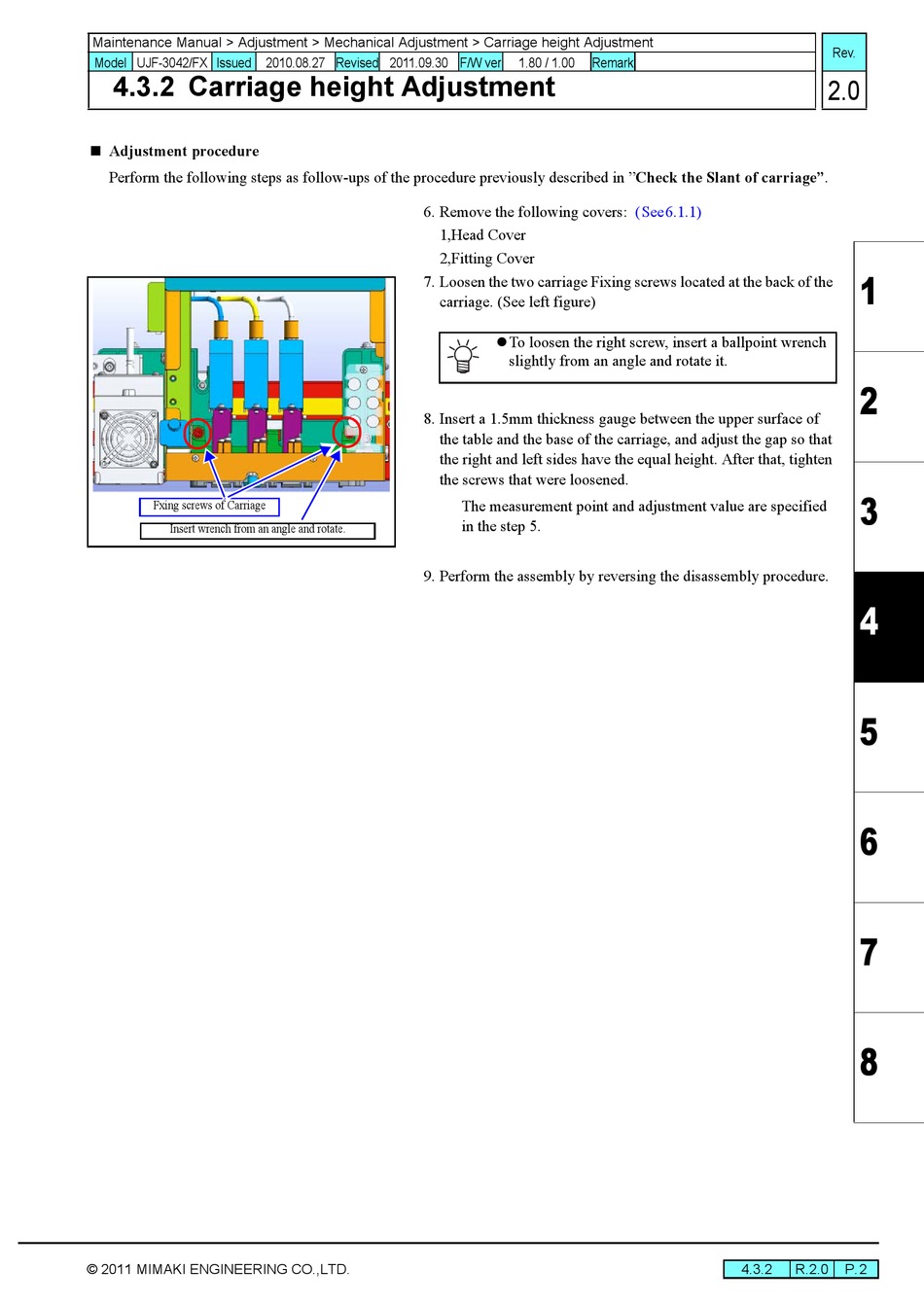

4.3.2 Carriage height Adjustment
 Adjustment procedure
Perform the following steps as follow-ups of the procedure previously described in "Check the Slant of carriage".
Fxing screws of Carriage
Insert wrench from an angle and rotate.
© 2011 MIMAKI ENGINEERING CO.,LTD.
1.80 / 1.00 Remark
6. Remove the following covers:
1,Head Cover
2,Fitting Cover
7. Loosen the two carriage Fixing screws located at the back of the
carriage. (See left figure)
 To loosen the right screw, insert a ballpoint wrench
slightly from an angle and rotate it.
8. Insert a 1.5mm thickness gauge between the upper surface of
the table and the base of the carriage, and adjust the gap so that
the right and left sides have the equal height. After that, tighten
the screws that were loosened.
The measurement point and adjustment value are specified
in the step 5.
9. Perform the assembly by reversing the disassembly procedure.
(See6.1.1)
