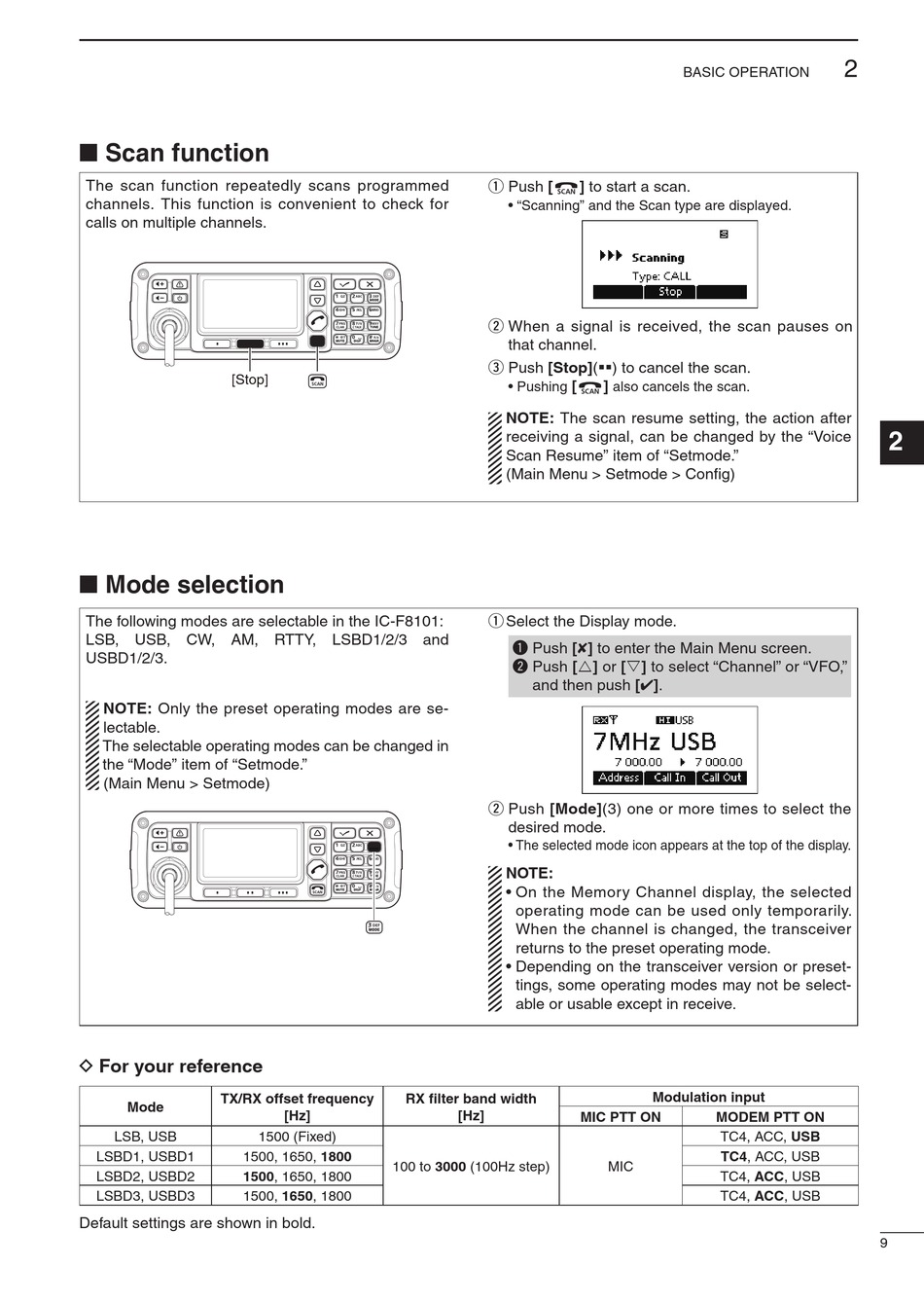

■ Scan function

The scan function repeatedly scans programmed
channels. This function is convenient to check for
calls on multiple channels.
[Stop]

■ Mode selection

The following modes are selectable in the IC-F8101:
LSB, USB, CW, AM, RTTY, LSBD1/2/3 and
USBD1/2/3.
NOTE: Only the preset operating modes are se-
lectable.
The selectable operating modes can be changed in
the "Mode" item of "Setmode."
(Main Menu > Setmode)
D For your reference
TX/RX offset frequency
Mode
LSB, USB
LSBD1, USBD1 1500, 1650, 1800
1500, 1650, 1800
LSBD2, USBD2
1500, 1650, 1800
LSBD3, USBD3
Default settings are shown in bold.
RX filter band width
[Hz]
1500 (Fixed)
100 to 3000 (100Hz step)
q Push [ ] to start a scan.
• "Scanning" and the Scan type are displayed.
w When a signal is received, the scan pauses on
that channel.
e Push [Stop](§§) to cancel the scan.
[ ]
• Pushing also cancels the scan.
NOTE: The scan resume setting, the action after
receiving a signal, can be changed by the "Voice
Scan Resume" item of "Setmode."
(Main Menu > Setmode > Config)
q Select the Display mode.
q Push [8] to enter the Main Menu screen.
w Push [r] or [s] to select "Channel" or "VFO,"
and then push [4].
w Push [Mode](3) one or more times to select the
desired mode.
• The selected mode icon appears at the top of the display.
NOTE:
• On the Memory Channel display, the selected
operating mode can be used only temporarily.
When the channel is changed, the transceiver
returns to the preset operating mode.
• Depending on the transceiver version or preset-
tings, some operating modes may not be select-
able or usable except in receive.
[Hz]
MIC PTT ON
MIC
BASIC OPERATION
Modulation input
MODEM PTT ON
TC4, ACC, USB
TC4, ACC, USB
TC4, ACC, USB
TC4, ACC, USB
