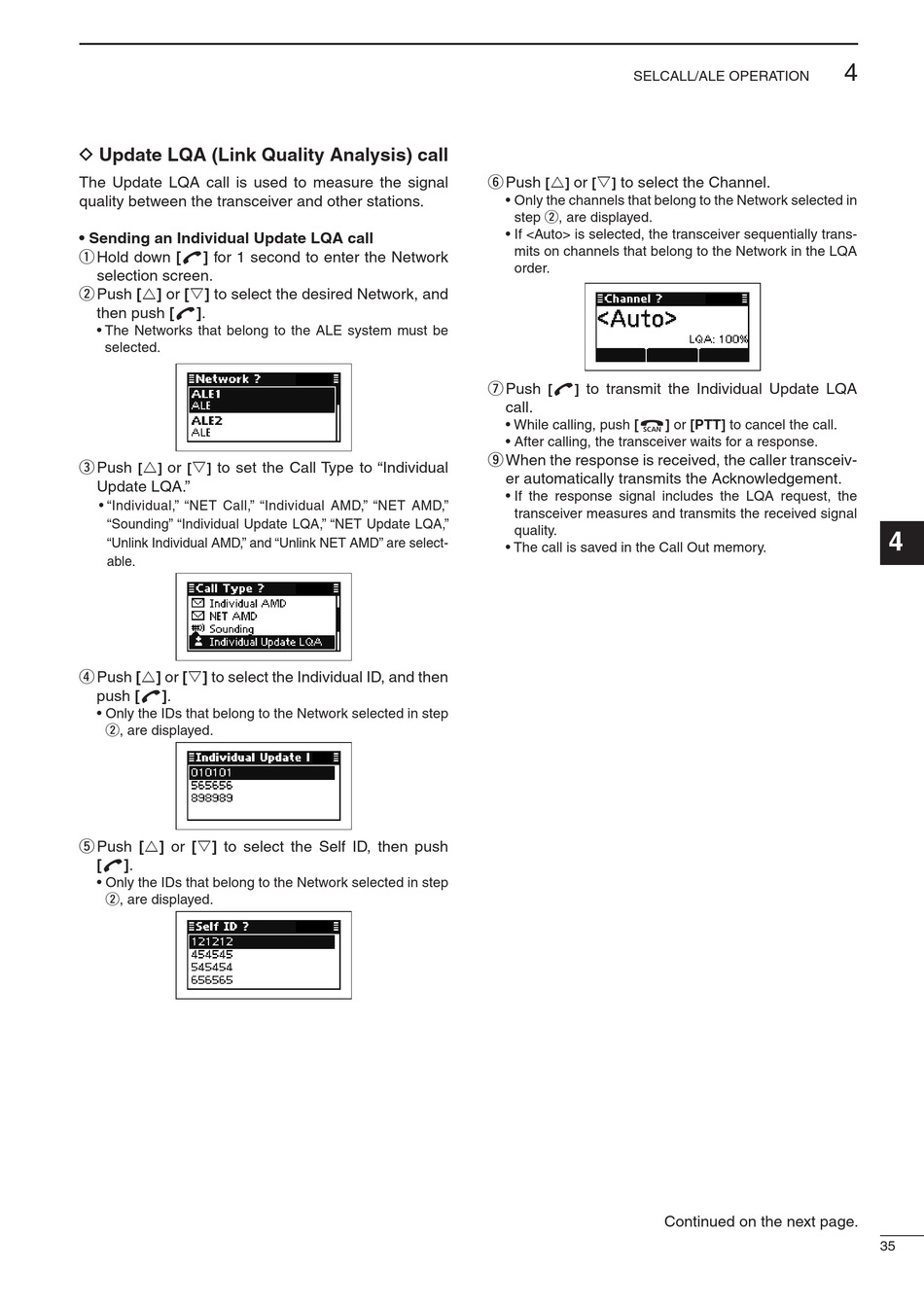

D Update LQA (Link Quality Analysis) call
The Update LQA call is used to measure the signal
quality between the transceiver and other stations.
• Sending an Individual Update LQA call
q Hold down [ ] for 1 second to enter the Network
selection screen.
w Push [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the ALE system must be
selected.
e Push r or s to set the Call Type to "Individual
[ ] [ ]
Update LQA."
• "Individual," "NET Call," "Individual AMD," "NET AMD,"
"Sounding" "Individual Update LQA," "NET Update LQA,"
"Unlink Individual AMD," and "Unlink NET AMD" are select-
able.
r Push [r] or [s] to select the Individual ID, and then
push [ ].
• Only the IDs that belong to the Network selected in step
w, are displayed.
t Push [r] or [s] to select the Self ID, then push
[ ].
• Only the IDs that belong to the Network selected in step
w, are displayed.
SELCALL/ALE OPERATION
y Push r or s to select the Channel.
[ ] [ ]
• Only the channels that belong to the Network selected in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits on channels that belong to the Network in the LQA
order.
u Push to transmit the Individual Update LQA
[ ]
call.
• While calling, push [
• After calling, the transceiver waits for a response.
o When the response is received, the caller transceiv-
er automatically transmits the Acknowledgement.
• If the response signal includes the LQA request, the
transceiver measures and transmits the received signal
quality.
• The call is saved in the Call Out memory.
] or [PTT] to cancel the call.
Continued on the next page.
