1
PANEL DESCRIPTION

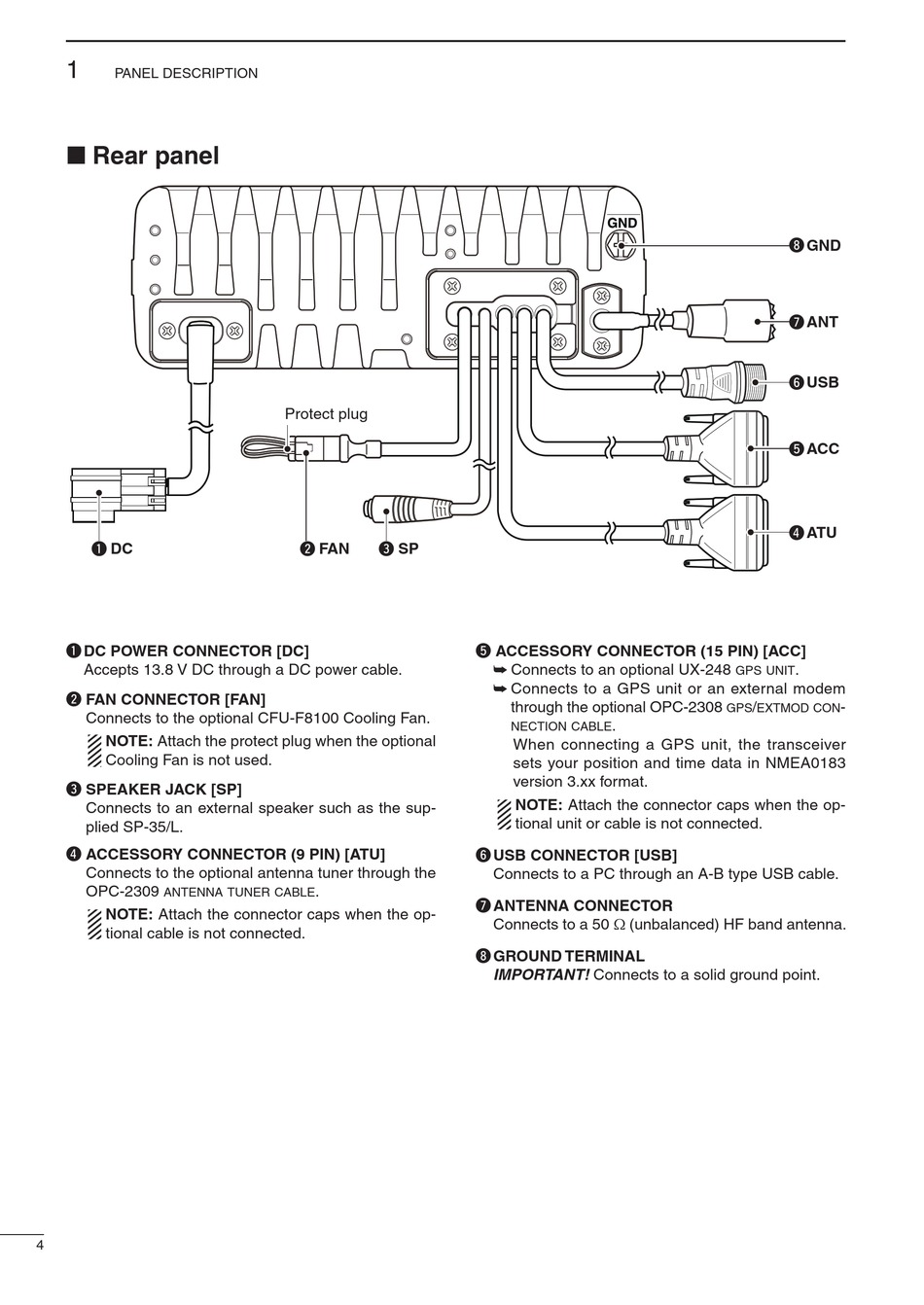

■ Rear panel

DC
q
q DC POWER CONNECTOR [DC]
Accepts 13.8 V DC through a DC power cable.
w FAN CONNECTOR [FAN]
Connects to the optional CFU-F8100 Cooling Fan.
NOTE: Attach the protect plug when the optional
Cooling Fan is not used.
e SPEAKER JACK [SP]
Connects to an external speaker such as the sup-
plied SP-35/L.
r ACCESSORY CONNECTOR (9 PIN) [ATU]
Connects to the optional antenna tuner through the
OPC-2309
antenna tuner cable
NOTE: Attach the connector caps when the op-
tional cable is not connected.
4
Protect plug
FAN SP
w e
.
t ACCESSORY CONNECTOR (15 PIN) [ACC]
➥ Connects to an optional UX-248
➥ Connects to a GPS unit or an external modem
through the optional OPC-2308
.
nection cable
When connecting a GPS unit, the transceiver
sets your position and time data in NMEA0183
version 3.xx format.
NOTE: Attach the connector caps when the op-
tional unit or cable is not connected.
y USB CONNECTOR [USB]
Connects to a PC through an A-B type USB cable.
u ANTENNA CONNECTOR
Connects to a 50 Ω (unbalanced) HF band antenna.
i GROUND TERMINAL
IMPORTANT! Connects to a solid ground point.
GND
i
ANT
u
USB
y
ACC
t
ATU
r
.
gps unit
/ -
gps extmod con
