Agc Function; D Agc Off Function - Icom IC-F8101 Instruction Manual

3
RECEIVE AND TRANSMIT
■ Functions for receive (Continued)

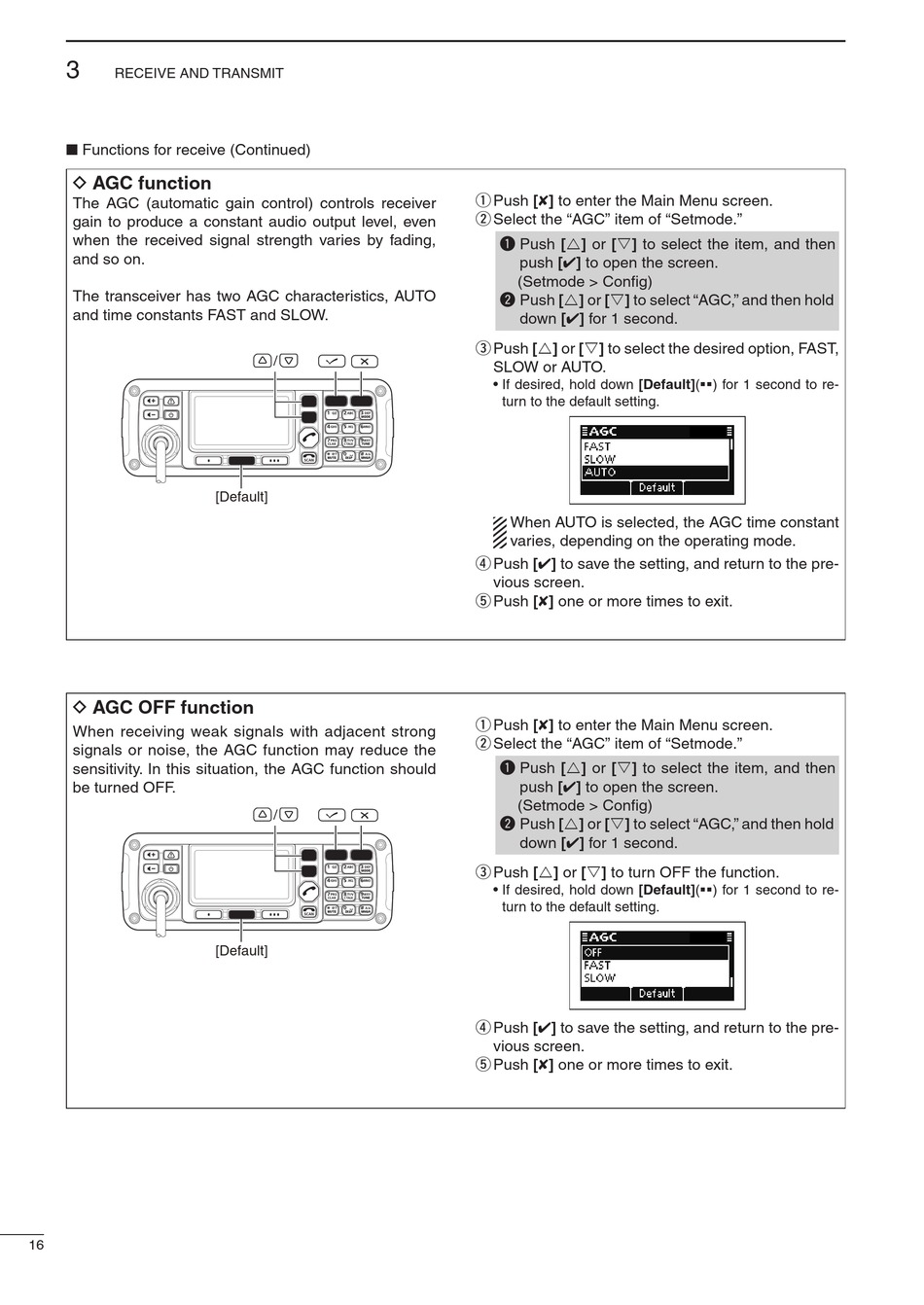

D AGC function
The AGC (automatic gain control) controls receiver
gain to produce a constant audio output level, even
when the received signal strength varies by fading,
and so on.
The transceiver has two AGC characteristics, AUTO
and time constants FAST and SLOW.

D AGC OFF function

When receiving weak signals with adjacent strong
signals or noise, the AGC function may reduce the
sensitivity. In this situation, the AGC function should
be turned OFF.
16
/
[Default]
/
[Default]
q Push [8] to enter the Main Menu screen.
w Select the "AGC" item of "Setmode."
q Push [r] or [s] to select the item, and then
push [4] to open the screen.
(Setmode > Config)
w Push [r] or [s] to select "AGC," and then hold
down [4] for 1 second.
e Push [r] or [s] to select the desired option, FAST,
SLOW or AUTO.
• If desired, hold down [Default](§§) for 1 second to re-
turn to the default setting.
When AUTO is selected, the AGC time constant
varies, depending on the operating mode.
r Push [4] to save the setting, and return to the pre-
vious screen.
t Push [8] one or more times to exit.
q Push [8] to enter the Main Menu screen.
w Select the "AGC" item of "Setmode."
q Push [r] or [s] to select the item, and then
push [4] to open the screen.
(Setmode > Config)
w Push [r] or [s] to select "AGC," and then hold
down [4] for 1 second.
e Push [r] or [s] to turn OFF the function.
• If desired, hold down [Default](§§) for 1 second to re-
turn to the default setting.
r Push [4] to save the setting, and return to the pre-
vious screen.
t Push [8] one or more times to exit.
