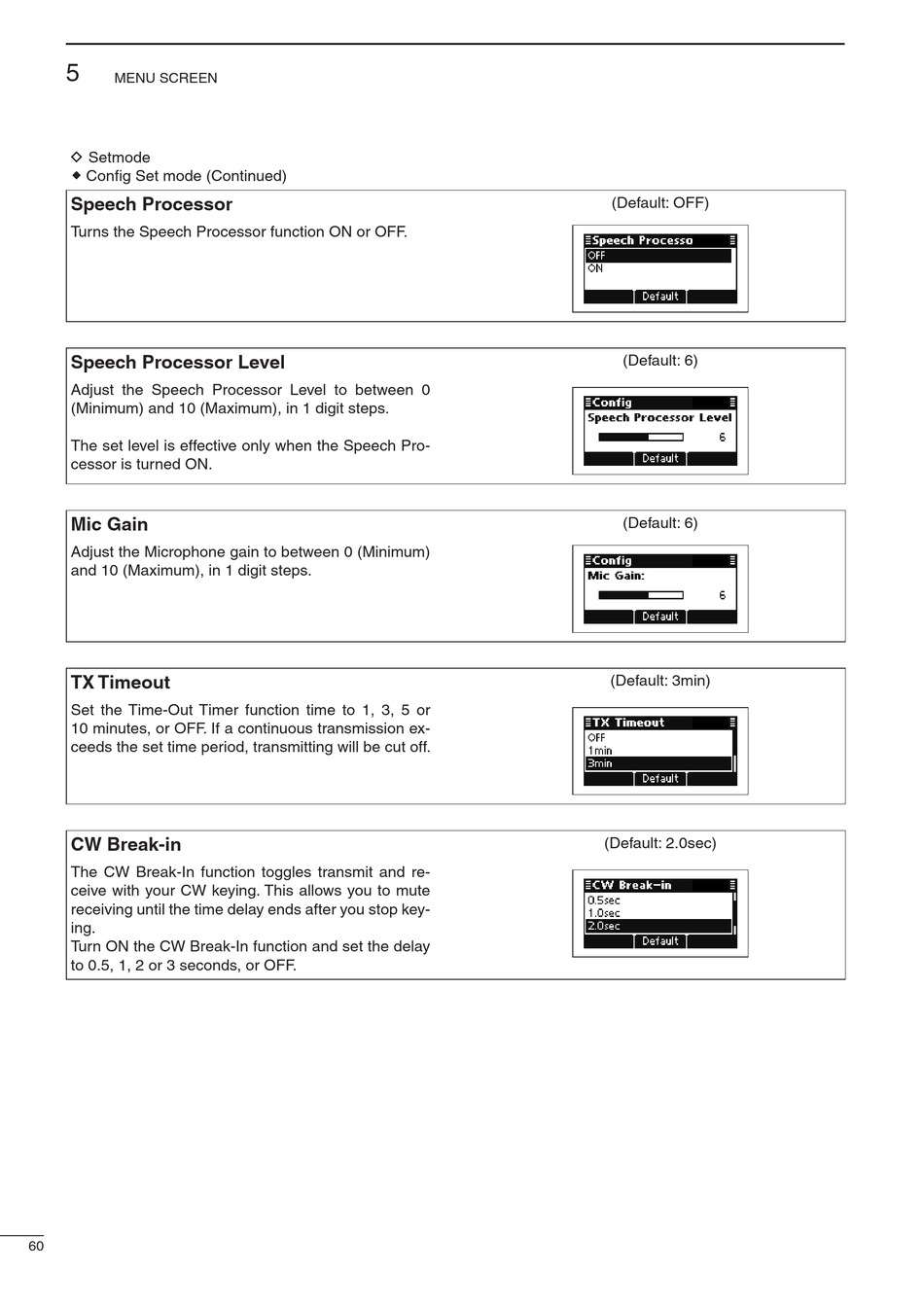

Icom IC-F8101 Instruction Manual page 66

5
MENU SCREEN
D Setmode
 Config Set mode (Continued)
Speech Processor
Turns the Speech Processor function ON or OFF.
Speech Processor Level
Adjust the Speech Processor Level to between 0
(Minimum) and 10 (Maximum), in 1 digit steps.
The set level is effective only when the Speech Pro-
cessor is turned ON.
Mic Gain
Adjust the Microphone gain to between 0 (Minimum)
and 10 (Maximum), in 1 digit steps.
TX Timeout
Set the Time-Out Timer function time to 1, 3, 5 or
10 minutes, or OFF. If a continuous transmission ex-
ceeds the set time period, transmitting will be cut off.
CW Break-in
The CW Break-In function toggles transmit and re-
ceive with your CW keying. This allows you to mute
receiving until the time delay ends after you stop key-
ing.
Turn ON the CW Break-In function and set the delay
to 0.5, 1, 2 or 3 seconds, or OFF.
60
(Default: OFF)
(Default: 6)
(Default: 6)
(Default: 3min)
(Default: 2.0sec)
