Icom IC-F8101 Instruction Manual page 51

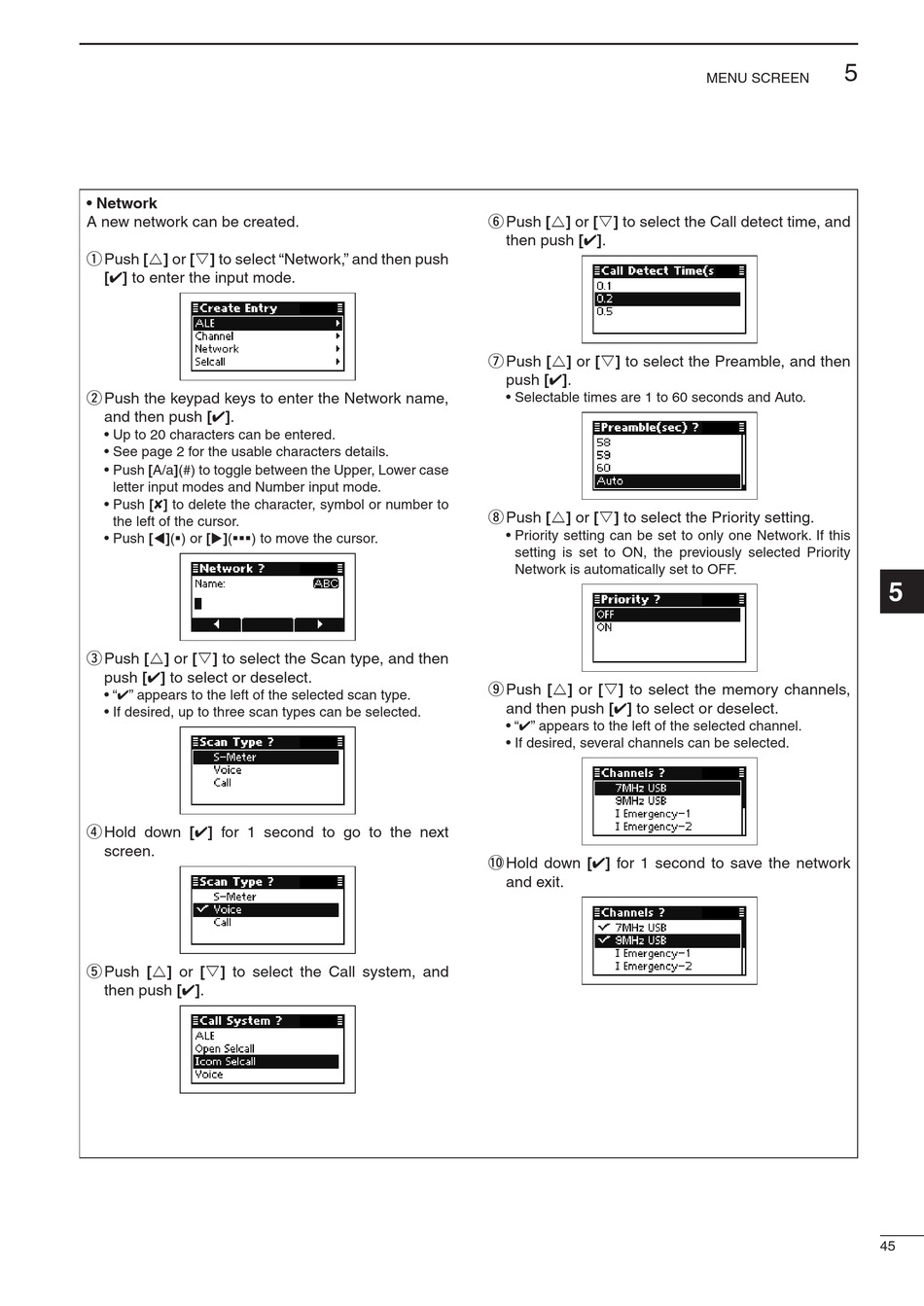

• Network
A new network can be created.
q Push [r] or [s] to select "Network," and then push
[4] to enter the input mode.
w Push the keypad keys to enter the Network name,
and then push [4].
• Up to 20 characters can be entered.
• See page 2 for the usable characters details.
• Push [A/a](#) to toggle between the Upper, Lower case
letter input modes and Number input mode.
• Push [8] to delete the character, symbol or number to
the left of the cursor.
• Push [t](§) or [u](§§§) to move the cursor.
e Push [r] or [s] to select the Scan type, and then
push [4] to select or deselect.
• "4" appears to the left of the selected scan type.
• If desired, up to three scan types can be selected.
r Hold down [4] for 1 second to go to the next
screen.
t Push [r] or [s] to select the Call system, and
then push [4].
y Push [r] or [s] to select the Call detect time, and
then push [4].
u Push [r] or [s] to select the Preamble, and then
push [4].
• Selectable times are 1 to 60 seconds and Auto.
i Push [r] or [s] to select the Priority setting.
• Priority setting can be set to only one Network. If this
setting is set to ON, the previously selected Priority
Network is automatically set to OFF.
o Push [r] or [s] to select the memory channels,
and then push [4] to select or deselect.
• "4" appears to the left of the selected channel.
• If desired, several channels can be selected.
!0 Hold down [4] for 1 second to save the network
and exit.
5
MENU SCREEN
45
