■ Fuse replacement

If a fuse blows, or the transceiver stops functioning,

find the source of the problem, and repair it. If the fuse

is blown, replace the damaged fuse with a new, ad-

equately rated fuse.

RWARNING!

Turn OFF the power and discon-

nect the DC power cable from the transceiver be-

fore performing any work on the transceiver. Other-

wise, there is a danger of electric shock, equipment

damage and/or fire or injury.

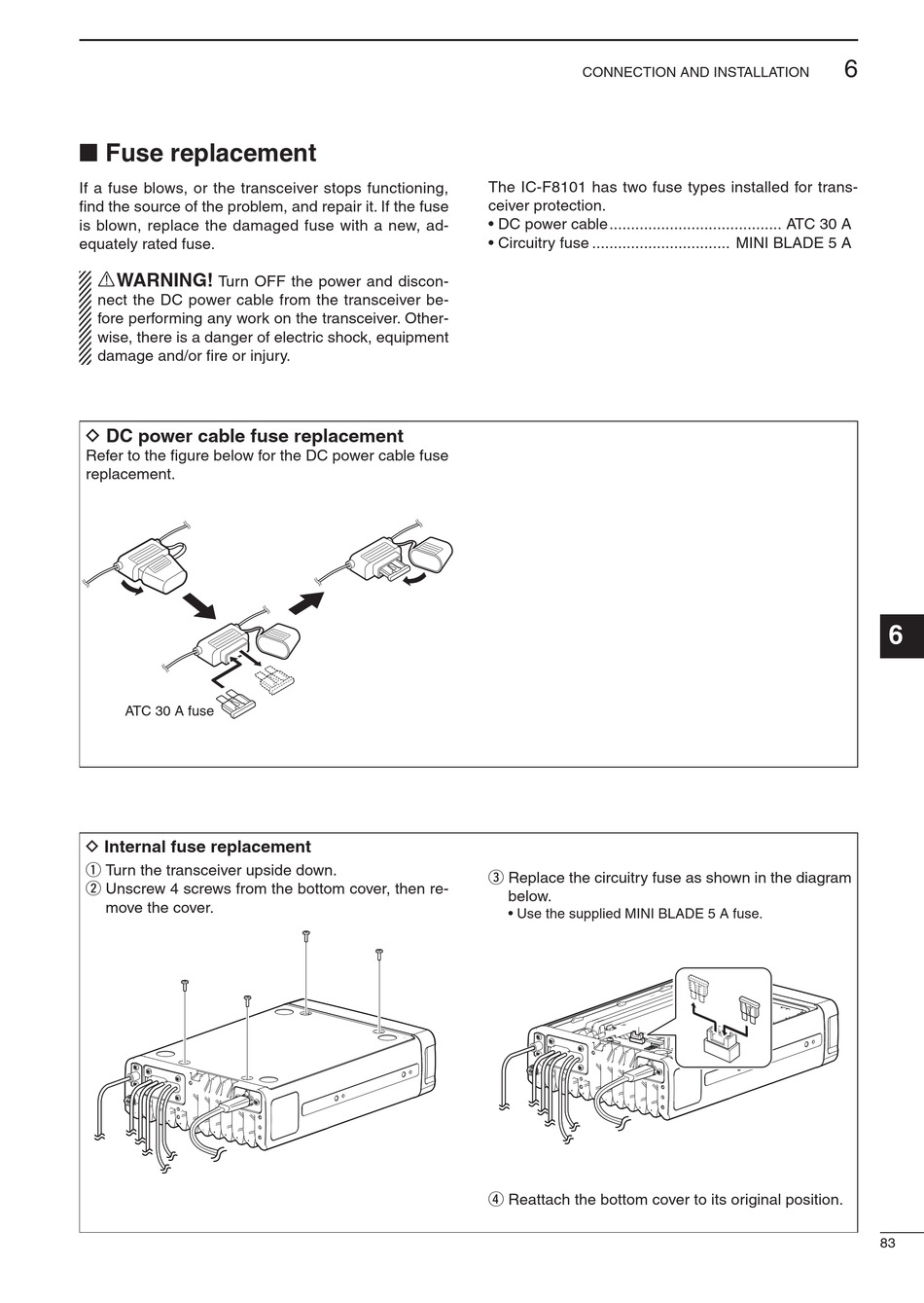

D DC power cable fuse replacement

Refer to the figure below for the DC power cable fuse

replacement.

ATC 30 A fuse

D Internal fuse replacement

q Turn the transceiver upside down.

w Unscrew 4 screws from the bottom cover, then re-

move the cover.

CONNECTION AND INSTALLATION

The IC-F8101 has two fuse types installed for trans-

ceiver protection.

• DC power cable ........................................ ATC 30 A

• Circuitry fuse ................................ MINI BLADE 5 A

e Replace the circuitry fuse as shown in the diagram

below.

• Use the supplied MINI BLADE 5 A fuse.

r Reattach the bottom cover to its original position.
