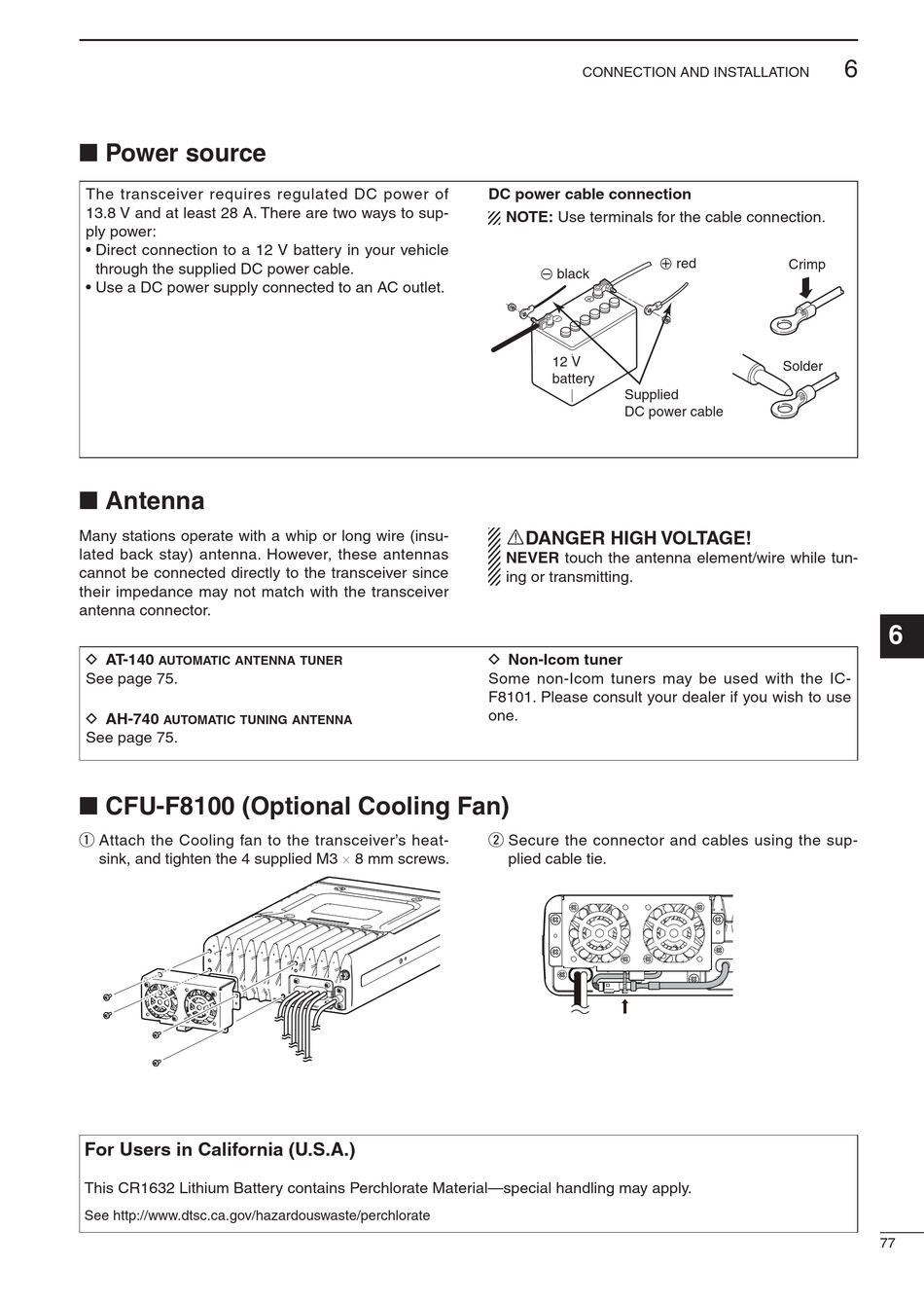

Power Source; Antenna; Cfu-F8100 (Optional Cooling Fan) - Icom IC-F8101 Instruction Manual

■ Power source

The transceiver requires regulated DC power of
13.8 V and at least 28 A. There are two ways to sup-
ply power:
• Direct connection to a 12 V battery in your vehicle
through the supplied DC power cable.
• Use a DC power supply connected to an AC outlet.

■ Antenna

Many stations operate with a whip or long wire (insu-
lated back stay) antenna. However, these antennas
cannot be connected directly to the transceiver since
their impedance may not match with the transceiver
antenna connector.
D AT-140
automatic antenna tuner
See page 75.
D AH-740
automatic tuning antenna
See page 75.

■ CFU-F8100 (Optional Cooling Fan)

q Attach the Cooling fan to the transceiver's heat-
sink, and tighten the 4 supplied M3 × 8 mm screws.
For Users in California (U.S.A.)
This CR1632 Lithium Battery contains Perchlorate Material—special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate
CONNECTION AND INSTALLATION
DC power cable connection
NOTE: Use terminals for the cable connection.
+ red
_ black
12 V
battery
Supplied
DC power cable
RDANGER HIGH VOLTAGE!
NEVER touch the antenna element/wire while tun-
ing or transmitting.
D Non-Icom tuner
Some non-Icom tuners may be used with the IC-
F8101. Please consult your dealer if you wish to use
one.
w Secure the connector and cables using the sup-
plied cable tie.
6
Crimp
Solder
6
