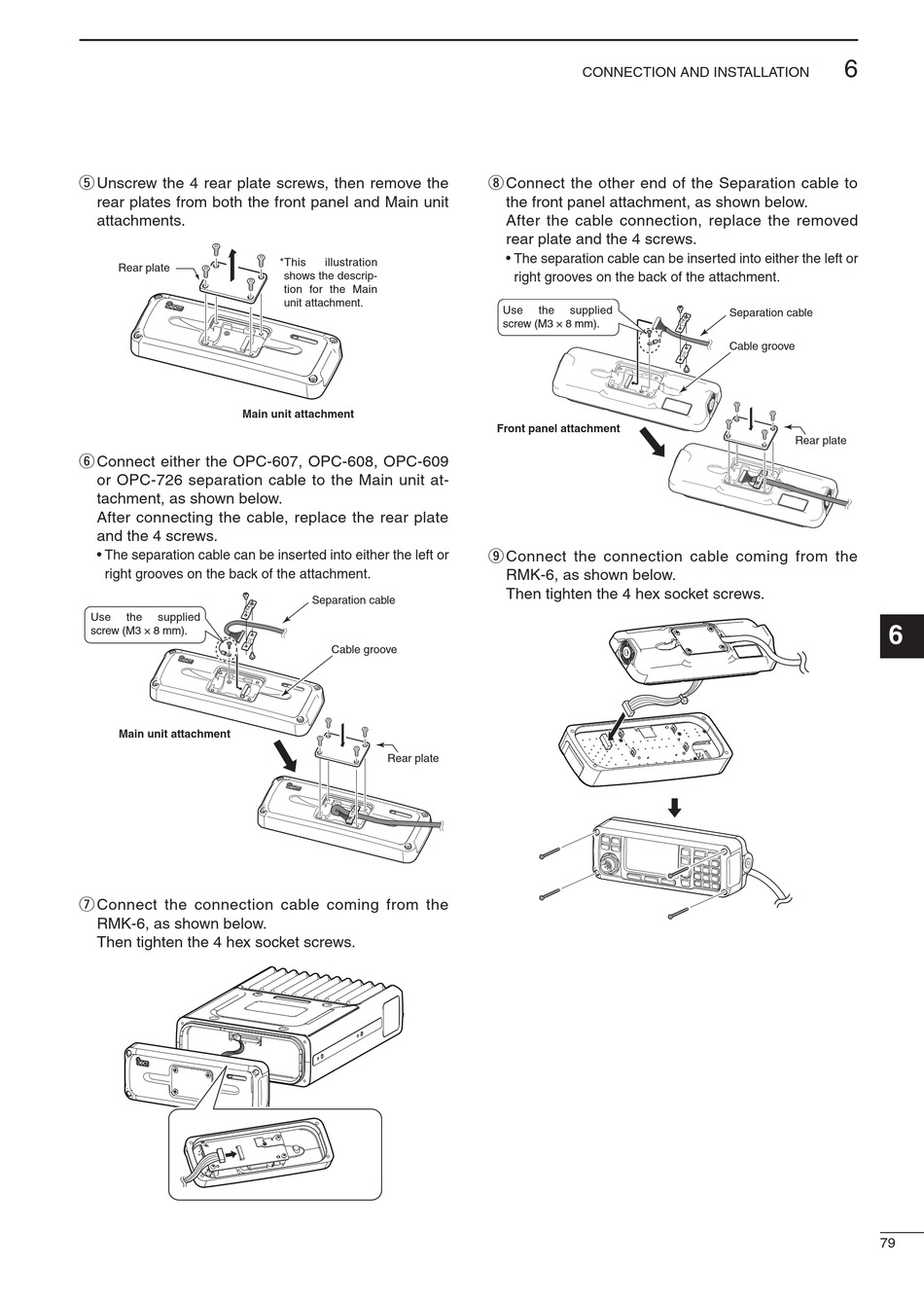

t Unscrew the 4 rear plate screws, then remove the
rear plates from both the front panel and Main unit
attachments.
Rear plate
Main unit attachment
y Connect either the OPC-607, OPC-608, OPC-609
or OPC-726 separation cable to the Main unit at-
tachment, as shown below.
After connecting the cable, replace the rear plate
and the 4 screws.
• The separation cable can be inserted into either the left or
right grooves on the back of the attachment.
Use
the
supplied
screw (M3 × 8 mm).
Main unit attachment
u Connect the connection cable coming from the
RMK-6, as shown below.
Then tighten the 4 hex socket screws.
*This
illustration
shows the descrip-
tion for the Main
unit attachment.
Separation cable
Cable groove
Rear plate
CONNECTION AND INSTALLATION
i Connect the other end of the Separation cable to
the front panel attachment, as shown below.
After the cable connection, replace the removed
rear plate and the 4 screws.
• The separation cable can be inserted into either the left or
right grooves on the back of the attachment.
Use
the
supplied
screw (M3 × 8 mm).
Front panel attachment
o Connect the connection cable coming from the
RMK-6, as shown below.
Then tighten the 4 hex socket screws.
6
Separation cable
Cable groove
1
2
Rear plate
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
79
