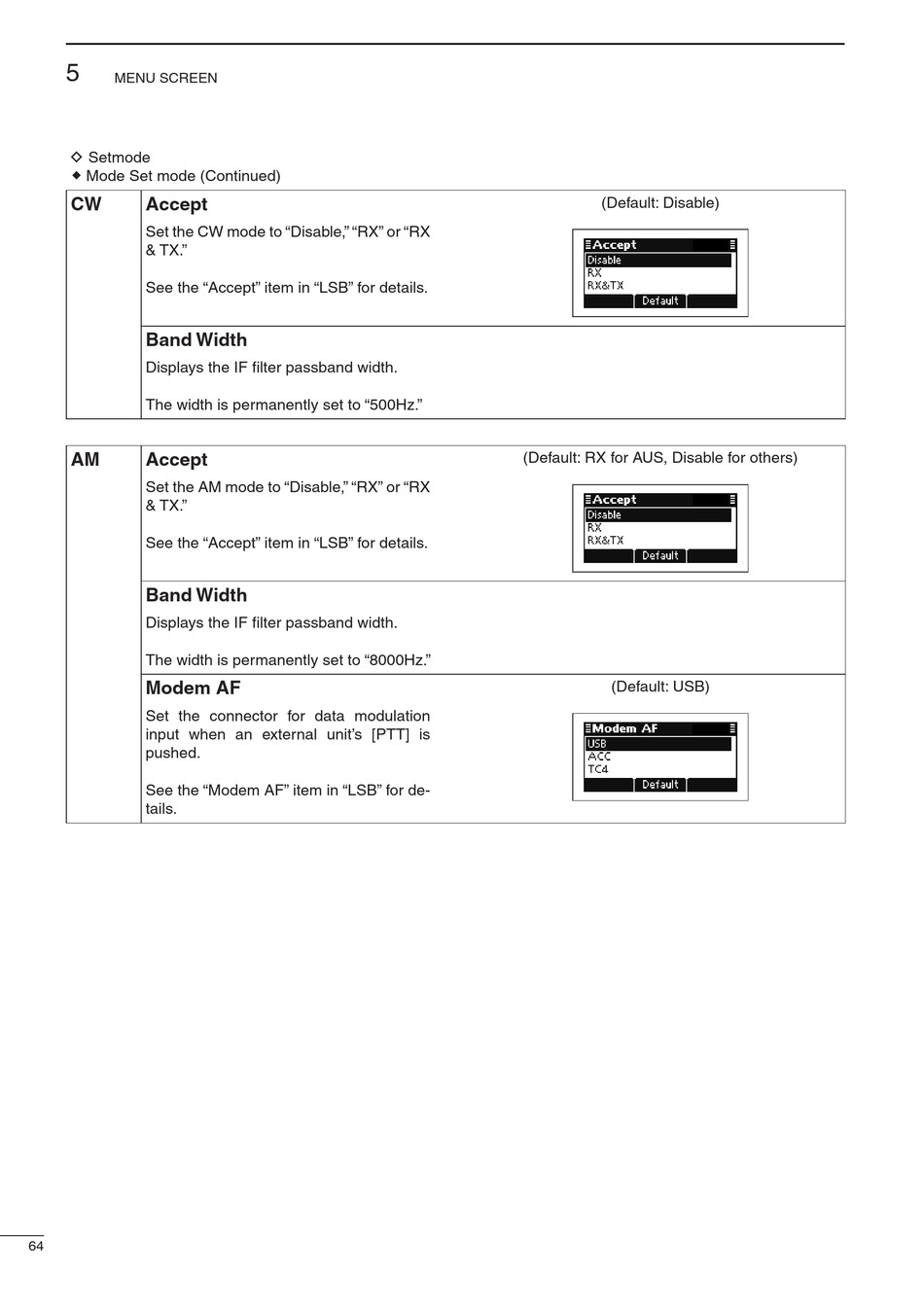

Icom IC-F8101 Instruction Manual page 70

5
MENU SCREEN
D Setmode
 Mode Set mode (Continued)
CW Accept
Set the CW mode to "Disable," "RX" or "RX
& TX."
See the "Accept" item in "LSB" for details.
Band Width
Displays the IF filter passband width.
The width is permanently set to "500Hz."
AM Accept
Set the AM mode to "Disable," "RX" or "RX
& TX."
See the "Accept" item in "LSB" for details.
Band Width
Displays the IF filter passband width.
The width is permanently set to "8000Hz."
Modem AF
Set the connector for data modulation
input when an external unit's [PTT] is
pushed.
See the "Modem AF" item in "LSB" for de-
tails.
64
(Default: Disable)
(Default: RX for AUS, Disable for others)
(Default: USB)
