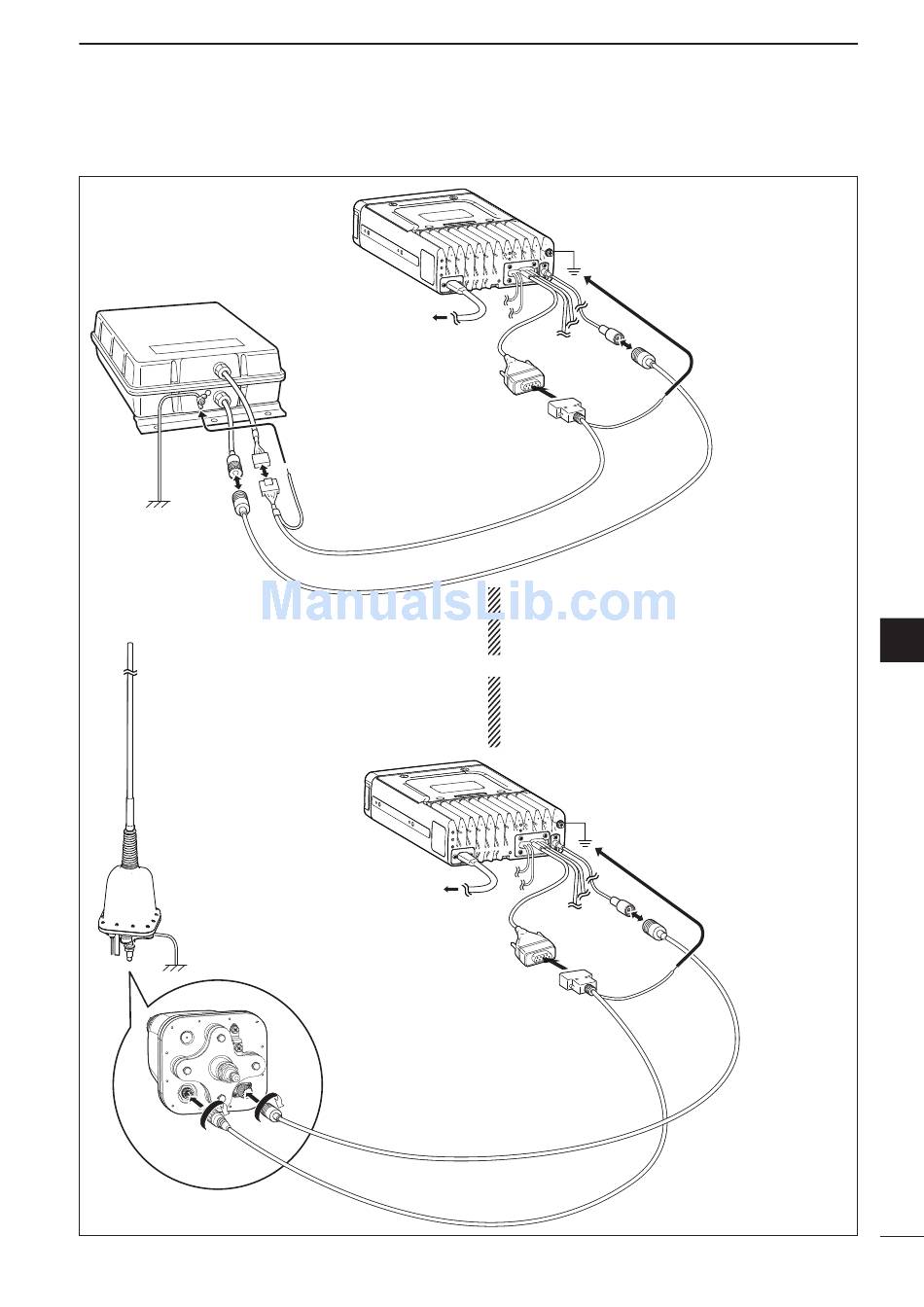

IC-F8101 main unit
AT-140
Ground
(see page 76)
IC-F8101 main unit
AH-740
Ground
(see page 76)
to a 13.8 V
DC power source
D-sub 9 pin
(female)
to [ATU]
OPC-2309
(10 m; 32.8 ft): 4 pin
Wrap both the antenna and the control cable con-
nectors with rubber vulcanizing tape, and then
wrap electrical tape over the rubber vulcanizing
tape to help in waterproofing.
to a 13.8 V
DC power source
D-sub 9 pin
(female)
to [ATU]
Coaxial cable
(6 m; 19.7 ft)
Control cable
(6 m; 19.7 ft)
CONNECTION AND INSTALLATION
Ground
Coaxial cable
(User supplied)
DO NOT pull the antenna and control cable re-
ceptacles. This may cause a cable disconnection
(in the tuner unit), inside connector damage or a
bad connection.
Ground
Both cables are supplied
with the AH-740.
