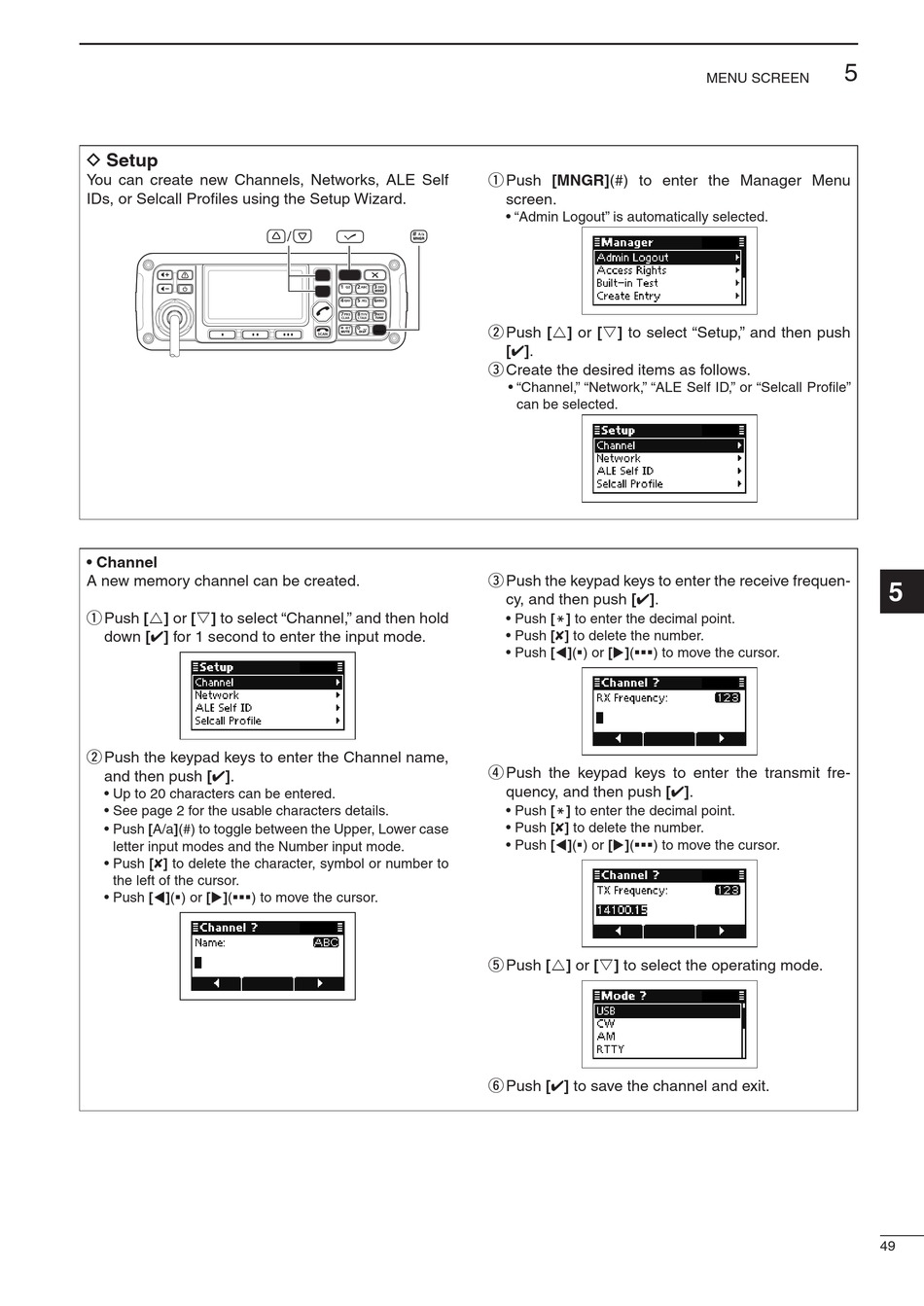

Icom IC-F8101 Instruction Manual page 55

D Setup
You can create new Channels, Networks, ALE Self
IDs, or Selcall Profiles using the Setup Wizard.
• Channel
A new memory channel can be created.
q Push [r] or [s] to select "Channel," and then hold
down [4] for 1 second to enter the input mode.
w Push the keypad keys to enter the Channel name,
and then push [4].
• Up to 20 characters can be entered.
• See page 2 for the usable characters details.
• Push [A/a](#) to toggle between the Upper, Lower case
letter input modes and the Number input mode.
• Push [8] to delete the character, symbol or number to
the left of the cursor.
• Push [t](§) or [u](§§§) to move the cursor.
/
q Push [MNGR](#) to enter the Manager Menu
screen.
• "Admin Logout" is automatically selected.
w Push [r] or [s] to select "Setup," and then push
[4].
e Create the desired items as follows.
• "Channel," "Network," "ALE Self ID," or "Selcall Profile"
can be selected.
e Push the keypad keys to enter the receive frequen-
cy, and then push [4].
• Push [M] to enter the decimal point.
• Push [8] to delete the number.
• Push [t](§) or [u](§§§) to move the cursor.
r Push the keypad keys to enter the transmit fre-
quency, and then push [4].
• Push [M] to enter the decimal point.
• Push [8] to delete the number.
• Push [t](§) or [u](§§§) to move the cursor.
t Push [r] or [s] to select the operating mode.
y Push [4] to save the channel and exit.
