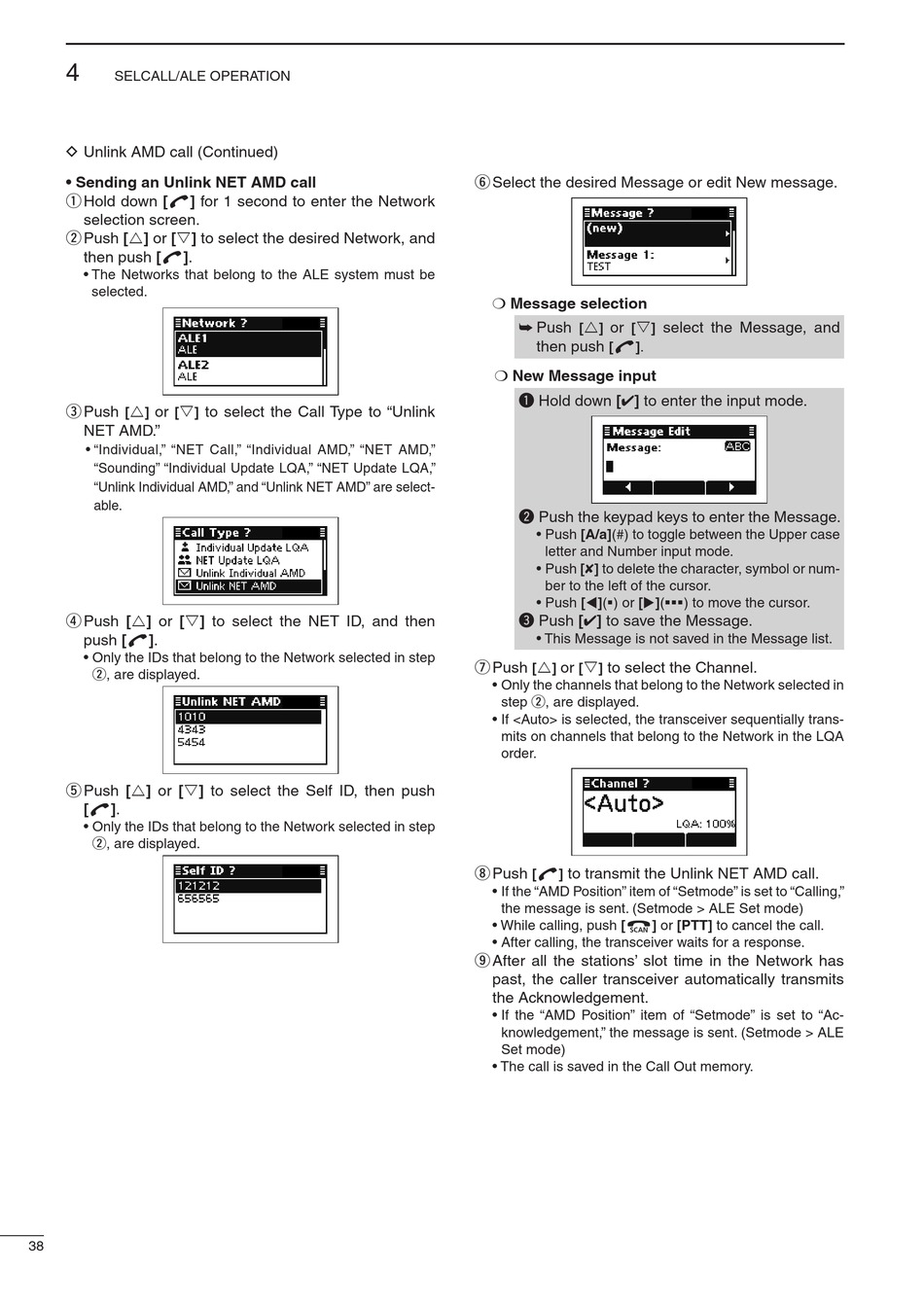

Icom IC-F8101 Instruction Manual page 44

4
SELCALL/ALE OPERATION
D Unlink AMD call (Continued)
• Sending an Unlink NET AMD call
q Hold down [ ] for 1 second to enter the Network
selection screen.
w Push [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the ALE system must be
selected.
e Push r or s
[ ] [ ]
NET AMD."
• "Individual," "NET Call," "Individual AMD," "NET AMD,"
"Sounding" "Individual Update LQA," "NET Update LQA,"
"Unlink Individual AMD," and "Unlink NET AMD" are select-
able.
r Push [r] or [s] to select the NET ID, and then
push [ ].
• Only the IDs that belong to the Network selected in step
w, are displayed.
t Push [r] or [s] to select the Self ID, then push
[ ].
• Only the IDs that belong to the Network selected in step
w, are displayed.
38
to select the Call Type to "Unlink
y Select the desired Message or edit New message.
❍ Message selection
➥ Push r or s
[ ] [
then push
[ ].
❍ New Message input
q Hold down [4] to enter the input mode.
w Push the keypad keys to enter the Message.
• Push [A/a](#) to toggle between the Upper case
letter and Number input mode.
• Push [8] to delete the character, symbol or num-
ber to the left of the cursor.
• Push [t](§) or [u](§§§) to move the cursor.
e Push [4] to save the Message.
• This Message is not saved in the Message list.
u Push r or s to select the Channel.
[ ] [ ]
• Only the channels that belong to the Network selected in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits on channels that belong to the Network in the LQA
order.
i Push to transmit the Unlink NET AMD call.
[ ]
• If the "AMD Position" item of "Setmode" is set to "Calling,"
the message is sent. (Setmode > ALE Set mode)
• While calling, push [
• After calling, the transceiver waits for a response.
o After all the stations' slot time in the Network has
past, the caller transceiver automatically transmits
the Acknowledgement.
• If the "AMD Position" item of "Setmode" is set to "Ac-
knowledgement," the message is sent. (Setmode > ALE
Set mode)
• The call is saved in the Call Out memory.
select the Message, and
]
] or [PTT] to cancel the call.
