Rudder Control Horn; Engine Mount Installation - Seagull Models Piper Cub Assembly Manual

PIPER CUB _
CODE SEA 87
Elevator control horn.

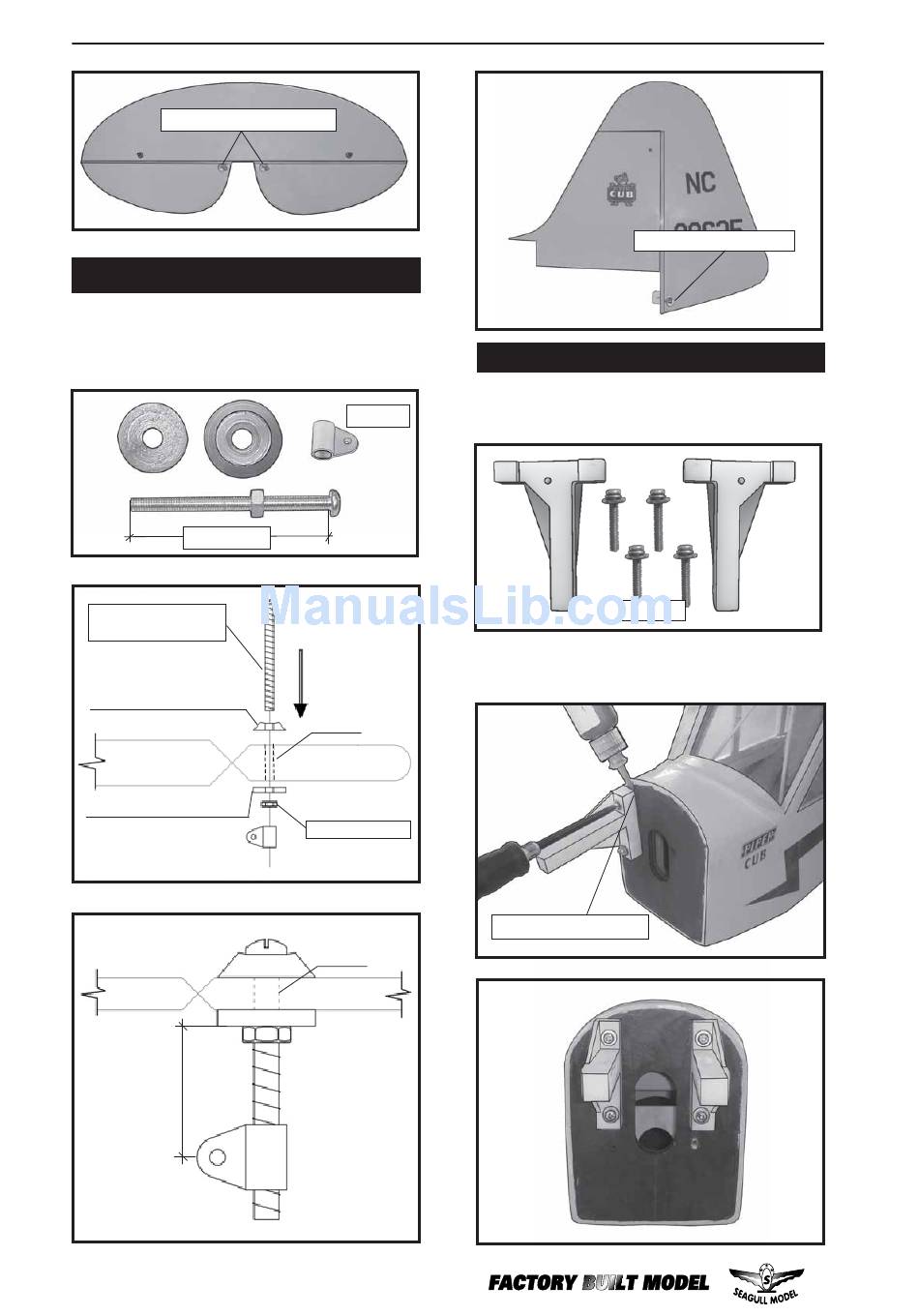

RUDDER CONTROL HORN.

Rudder control horn:
Using the same tectniques used aileron control
horn. See picture below.
3x35mm.
CONTRONL HORN
.
M3 SCREW
ALUMINUM WASHER.
FUSELAGE
.
ALUMINUM WASHER.
FUSELAGE.
16mm
.
6
.
2 sets.
EPOXY.
Rudder
.
M3 LOCK NUT.
EPOXY.
Rudder
.
Instruction Manual
Rudder control horn.

ENGINE MOUNT INSTALLATION.

See pictures below.Make yourself the
template of your engine on paper.
4x30mm.
Mark and drill 4 holes for engine mount.
Insert 4 blind nuts to firewall.
Thread locker glue.
