5) Bolt the engine to the engine mount using
the four machine screws. Double check that
all the screws are tight before proceeding.
6) Attach the Z-Bend in the pushrod wire to
the throttle arm on the carburetor.
Machine Screw 4x30mm.
Machine Screw 4x30mm.
Pushrod wire.
10
.
4.2 mm diameter.
Instruction Manual

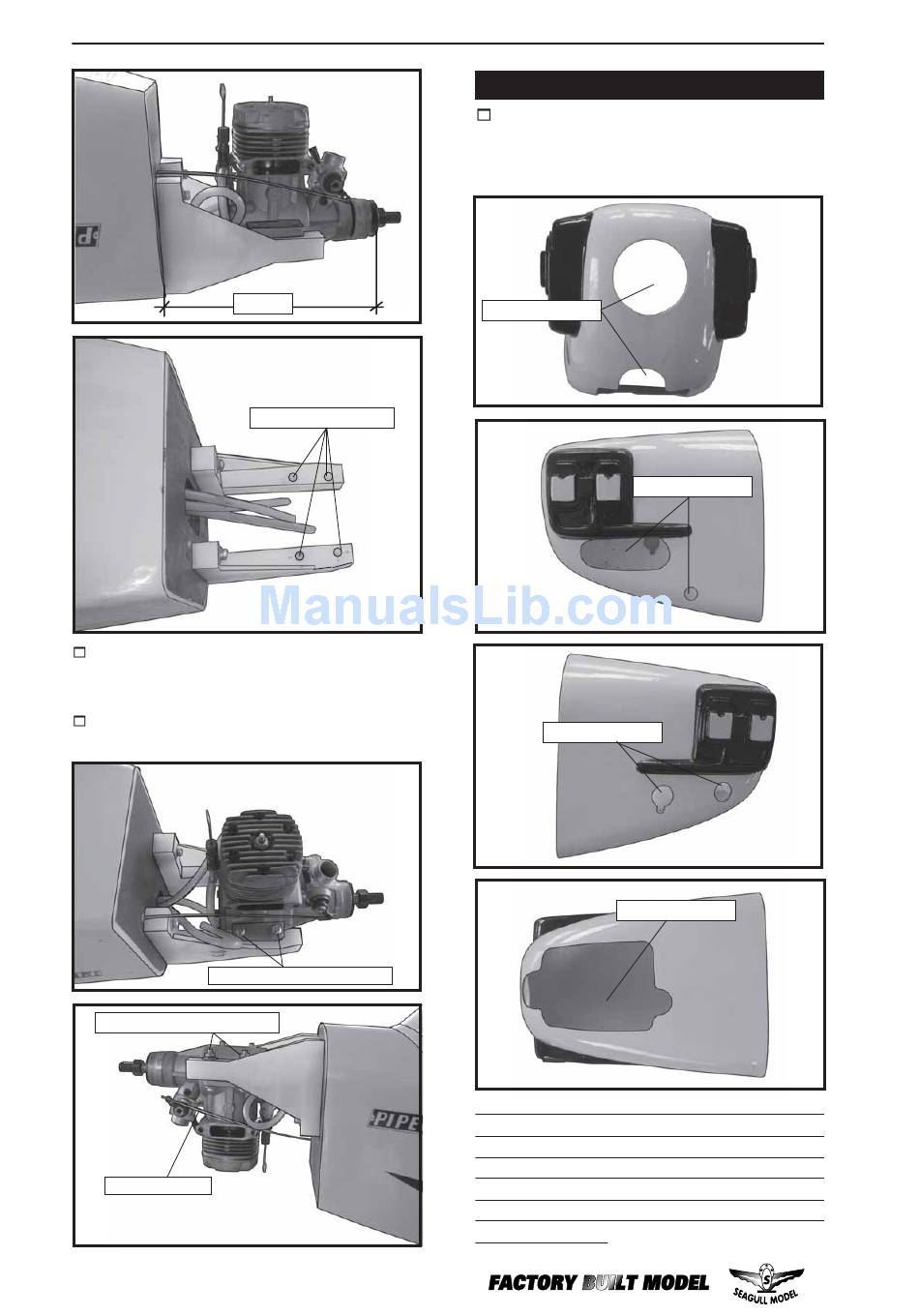

COWLING INSTALLATION.

1) Slide the fiberglass cowl over the en-
gine and line up the back edge of the cowl with
the marks you made on the fuselage then trim
and cut.
Trim and cut.
Trim and cut.
Trim and cut.
Trim and cut.
Because of the size of the cowl, it may be nec-
essary to use a needle valve extension for the
high speed needle valve. Make this out of suf-
ficient length 1.5mm wire and install it into the
end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
