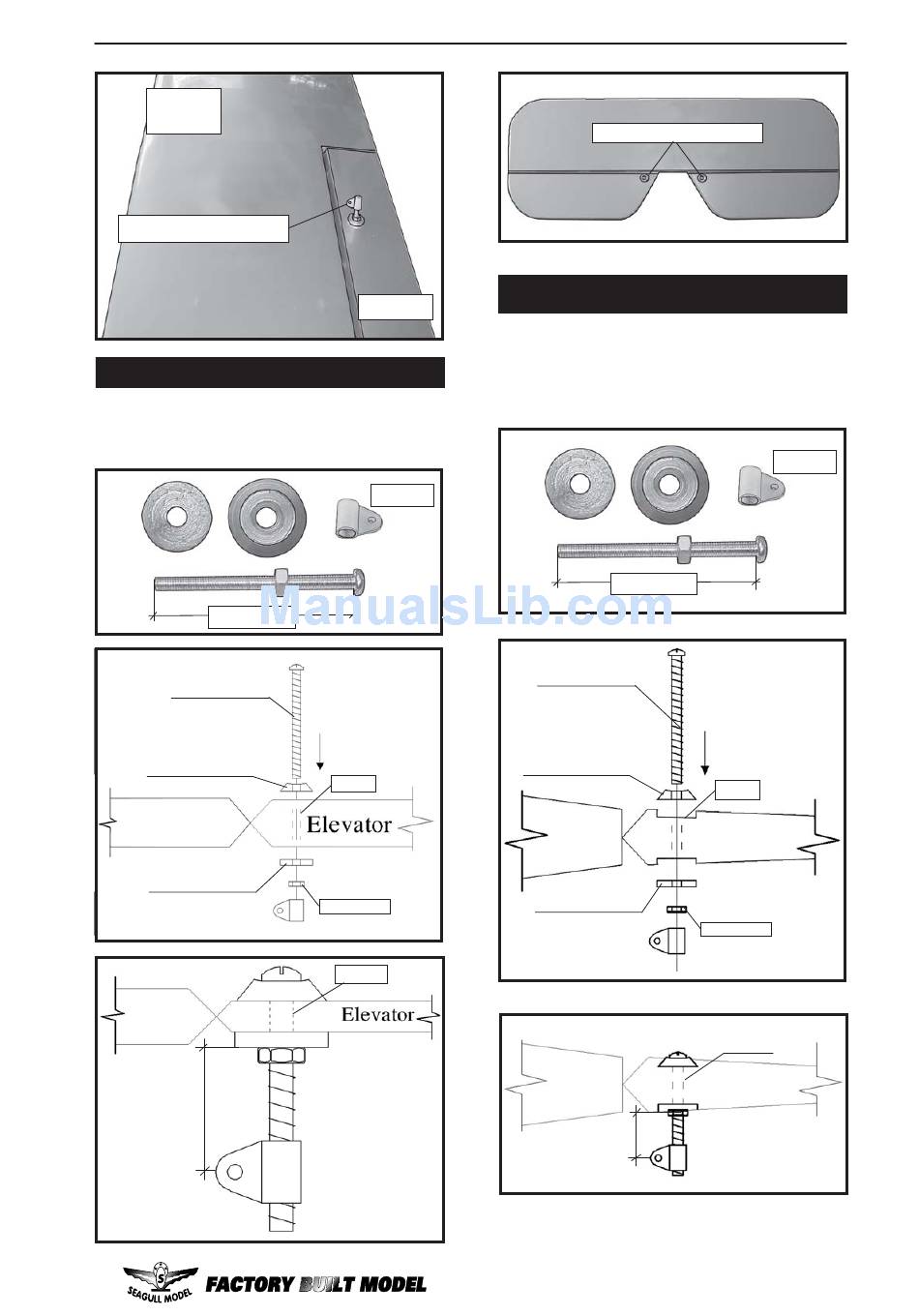

Rudder Control Horn - Seagull Models Sparrow Hawk SEA-93 Instruction Manual

Wing
bottom.
Aileron control horn.
ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
3x35mm.
CONTRONL HORN M3
.
Aluminum Washer
Horizontal
Stabilizer.
.
Aluminum Washer
Horizontal
Stabilizer.
16mm
.
www.seagullmodels.com
Aileron.
2 sets.
.
Epoxy
.
M3 LOCK NUT
Epoxy.
Elevator control horn

RUDDER CONTROL HORN.

Rudder control horn:
Using the same techniques used aileron
control horn. See picture below.
3x40mm.
CONTRONL HORN M3
.
Aluminum Washer
Fuselage.
.
Aluminum Washer
Fuselage.
18mm
.
.
2 sets.
.
Epoxy
Rudder.
.
M3 LOCK NUT
EPOXY.
Rudder.
5
