Rudder Control Horn - Seagull Models AT-6 TEXAN Assembly Manual

CONTRONL HORN
.
M3 SCREW
.
Epoxy
Wing
.
M3 LOCK NUT
Wing
.
16mm

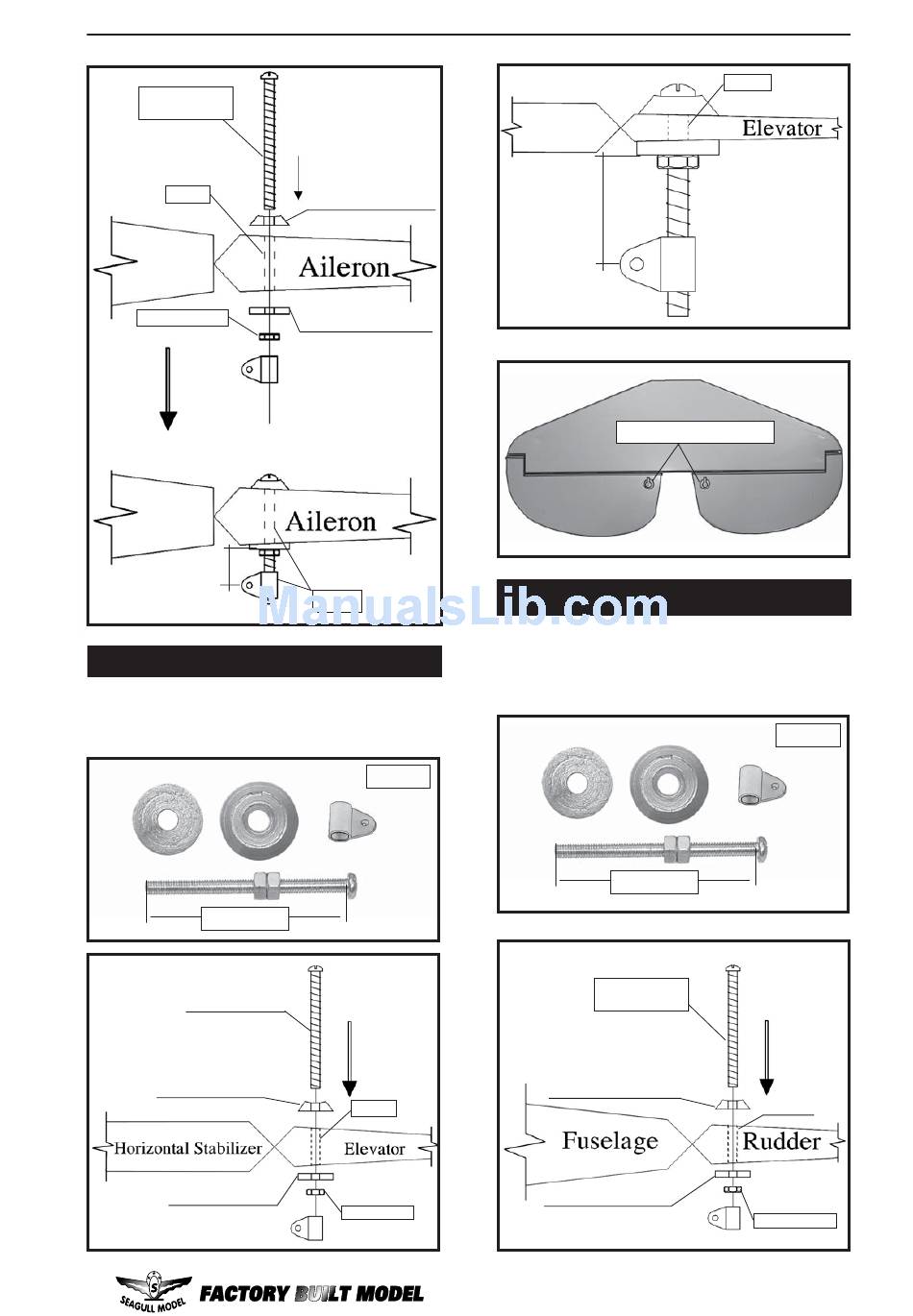

ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
3x35mm.
CONTRONL HORN M3
Aluminum Washer
Aluminum Washer
www.seagullmodels.com
.
ALUMINUM WASHER
.
ALUMINUM WASHER
.
Epoxy
2 sets.
.
.
Epoxy
.
.
M3 LOCK NUT
Horizontal
Stabilizer
.
.
16mm
Elevator control horn.

RUDDER CONTROL HORN.

Rudder control horn:
Using the same tectniques used aileron control
horn. See picture below.
3x35mm.
CONTRONL HORN
.
M3 SCREW
ALUMINUM WASHER
.
ALUMINUM WASHER
.
Epoxy
1 sets.
.
EPOXY.
.
M3 LOCK NUT
