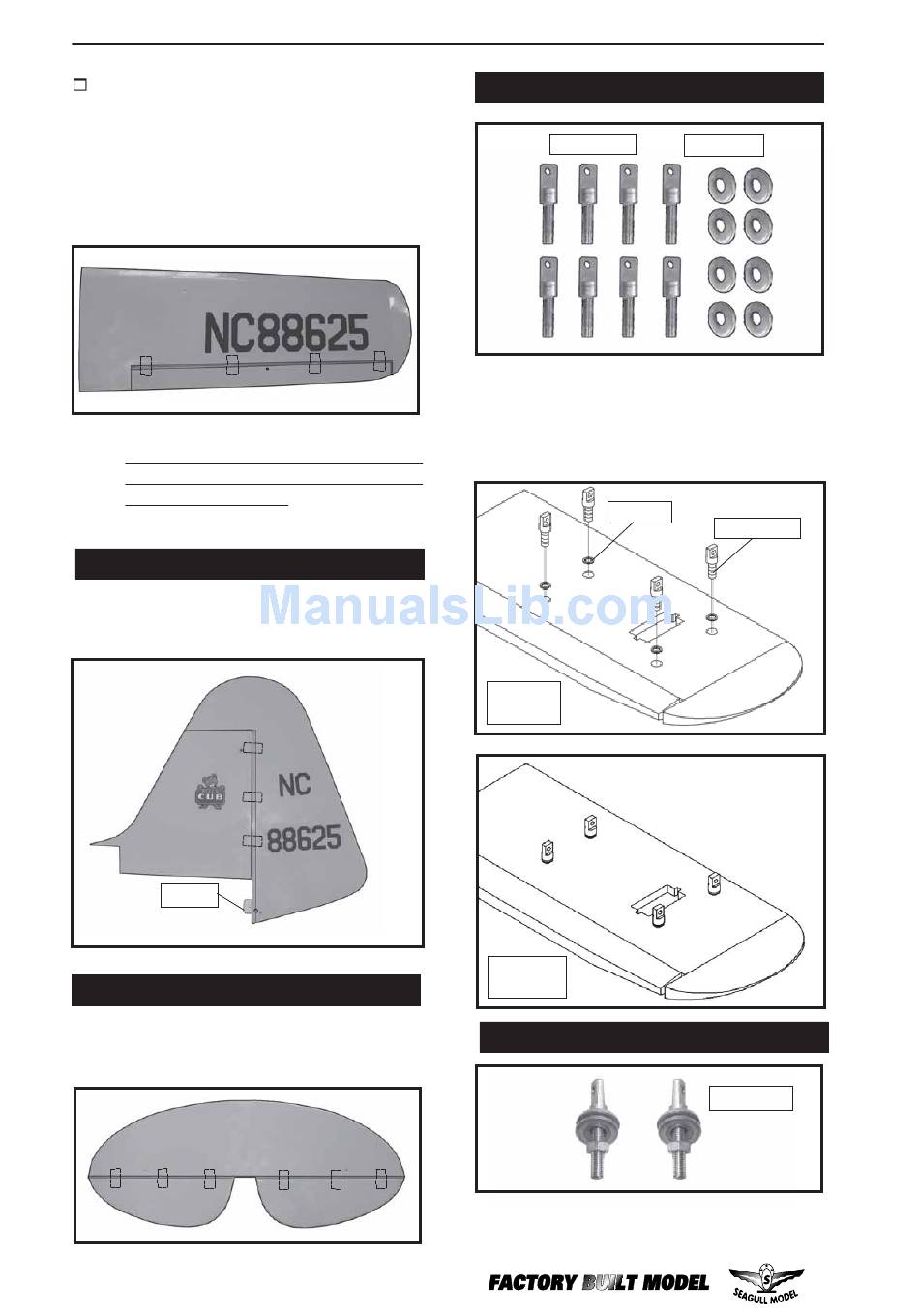

8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Note:
Work the aileron up and down several
times to "work in" the hinges and check
for proper movement.

HINGING THE RUDDER.

Glue the rudder hinges in place using the
same tectniques used to hinge the ailerons.
Hinge.

HINGING THE ELEVATOR.

Glue the Elevator hinges in place using the
same tectniques used to hinge the ailerons.
4
.
Instruction Manual
TURNBUCKLE INSTALLATION.
Turnbuckle.
The hole location of turnbuckles shown in pic-
ture below .
Installing the turnbuckle for the wing as
same as pictures below.
washer.
wing
Bottom.
wing
Bottom.
TURNBUCKLE INSTALLATION.
The hole location of turnbuckles shown in pic-
ture below .
Washer.
Turnbuckle.
3x20mm.
