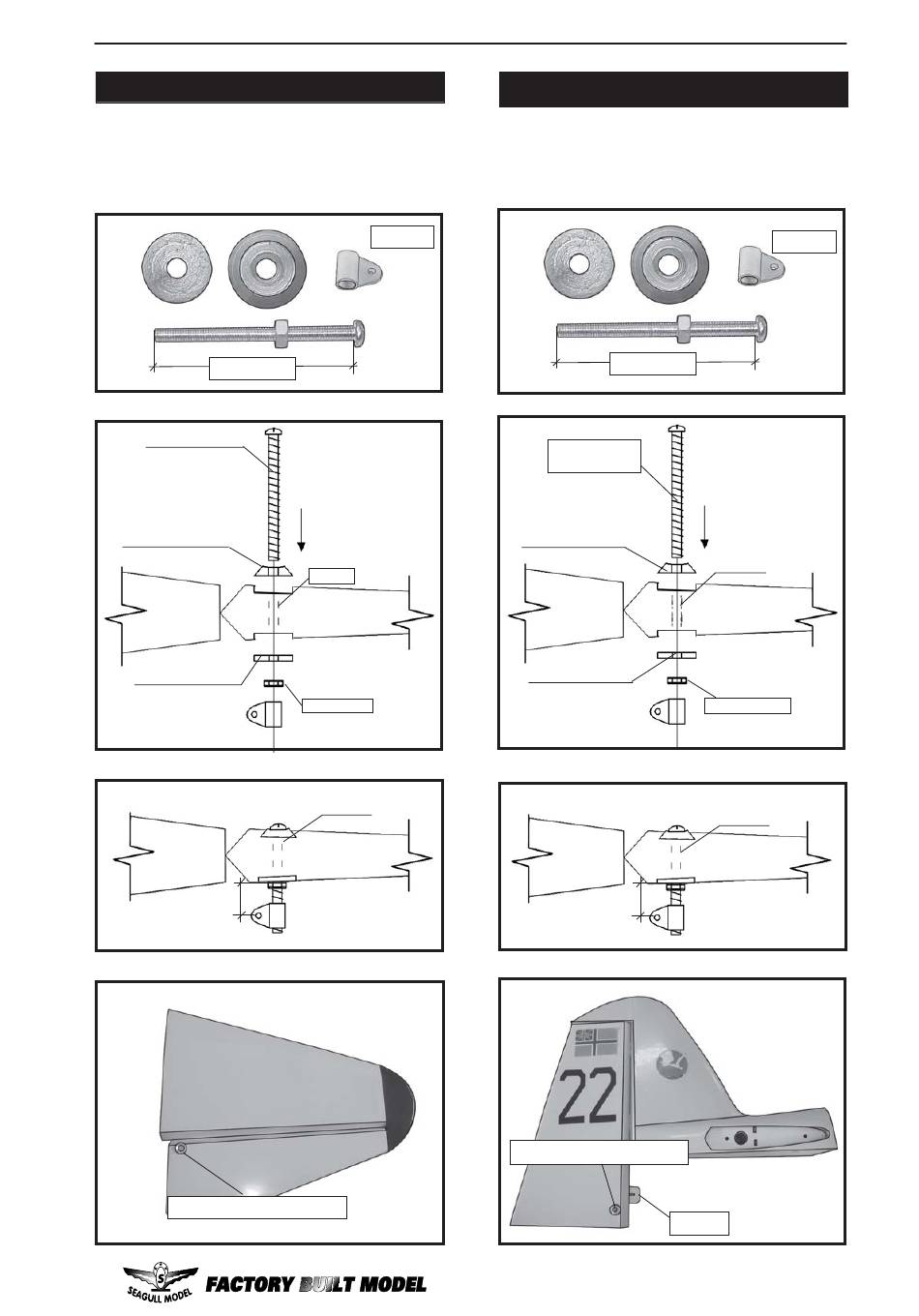

ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
3x45mm.
CONTRONL HORN M3
.
Aluminum Washer
Horizontal
stabilizer
.
Aluminum Washer
Horizontal
Stabilizer.
18mm
.
Elevator control horn
www.seagullmodels.com
2 sets.
.
Epoxy
Elevator
.
M3 LOCK NUT
EPOXY.
Elevator.
.

RUDDER CONTROL HORN.

Rudder control horn:
Using the same tectniques used aileron control
horn. See picture below.
3x50mm.
CONTRONL HORN
.
M3 SCREW
.
ALUMINUM WASHER
FUSELAGE
.
ALUMINUM WASHER
Fuselage.
18mm
.
Rudder control horn
2 sets.
EPOXY.
Rudder
.
M3 LOCK NUT
EPOXY.
Rudder.
.
Hinge
.
5
