2 Getting Started

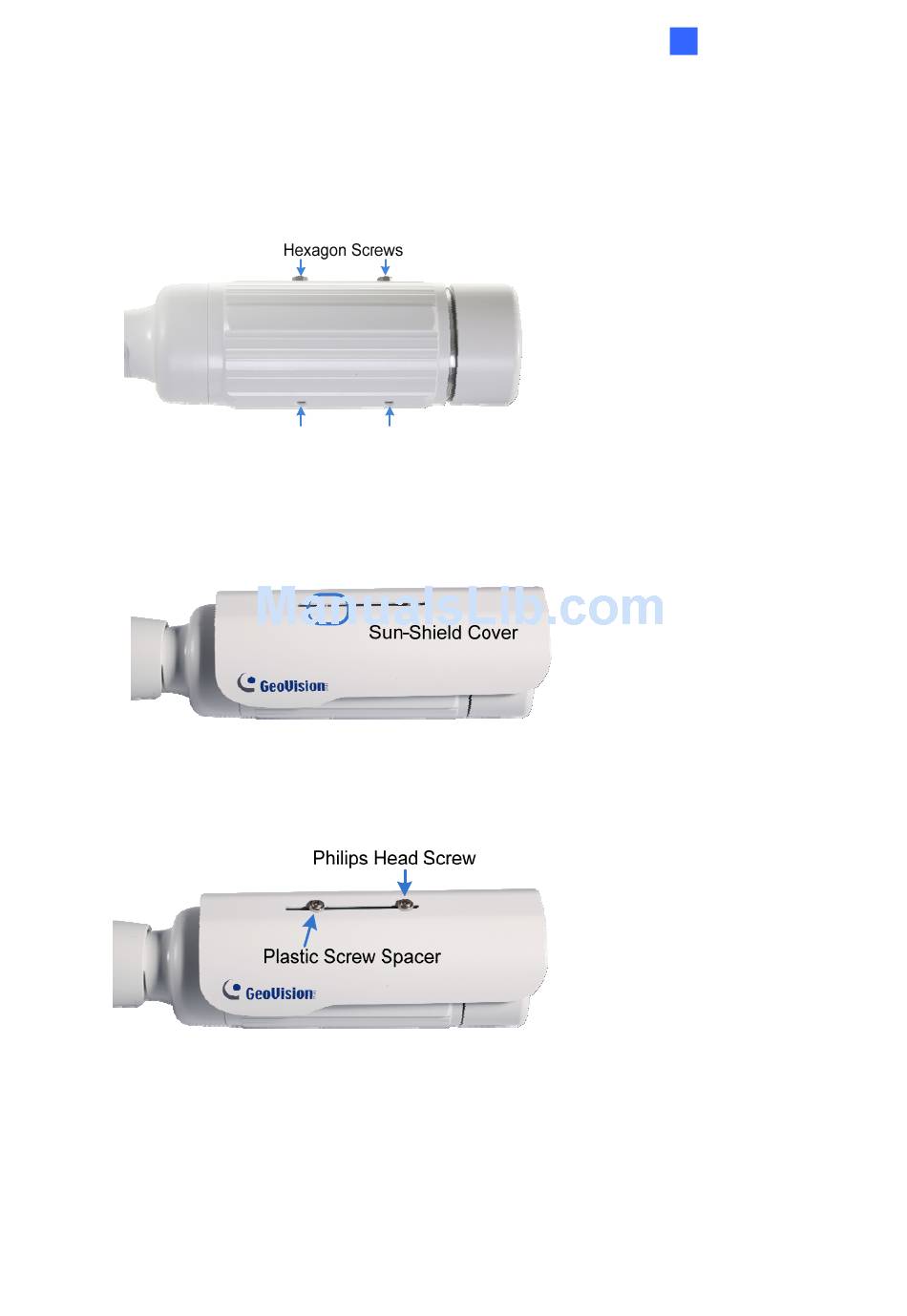

1.2.9 Installing the Sun-Shield Cover

After setting up the Bullet Camera, now you can install the sun-shield cover to the camera.
1. Fasten the hexagon screws either on top or below the camera.
Figure 1-24
2. Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon
screw at the edge of the sun-shield cover's aperture for optimal sun-shield performance.
Figure 1-25
3. Fasten the Philips head screws with the plastic screw spacers.
Figure 1-26
23
