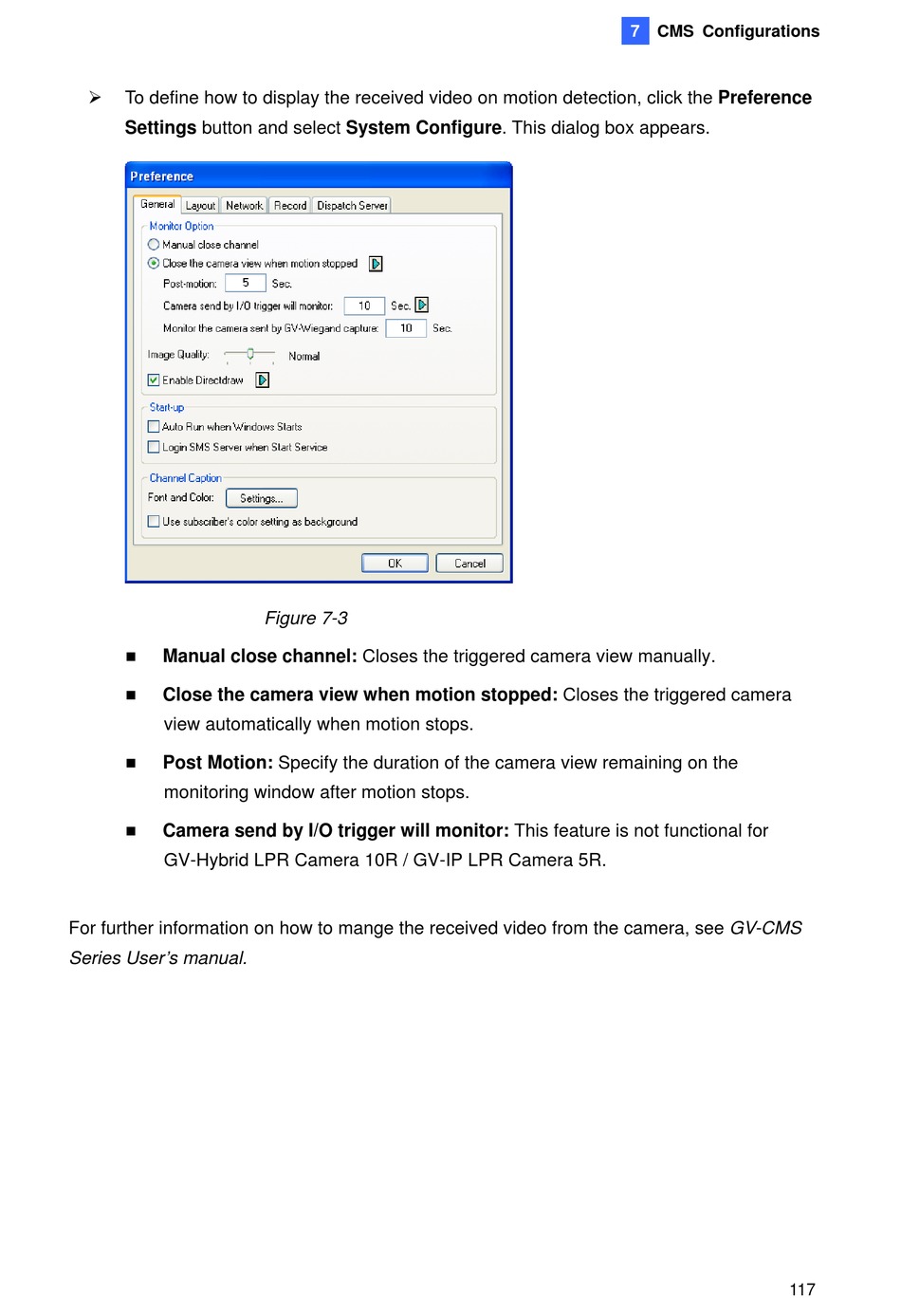

To define how to display the received video on motion detection, click the Preference
Settings button and select System Configure. This dialog box appears.
Manual close channel: Closes the triggered camera view manually.
Close the camera view when motion stopped: Closes the triggered camera
view automatically when motion stops.
Post Motion: Specify the duration of the camera view remaining on the
monitoring window after motion stops.
Camera send by I/O trigger will monitor: This feature is not functional for
GV-Hybrid LPR Camera 10R / GV-IP LPR Camera 5R.
For further information on how to mange the received video from the camera, see GV-CMS
Series User's manual.
Figure 7-3
7
CMS Configurations
117
