Page 1 Quick Start Guide GV-IP Camera Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. IC-QG-AP-EN...
Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Page 3: Table Of Contents
Contents Introduction ................viii Options ..................Note for Connecting to GV-System / GV-VMS ...... xxiii Note for Recording..............xxiv Note for Adjusting Focus and Zoom ........Note for Installing Camera Outdoor ........xxvi Note for Closing the Bullet Camera Cover......xxviii Note for Bullet Waterproof Failures........
Page 4 3.2 Overview .................15 3.3 Installation ................16 3.4 Connecting the Camera............18 4. IR Arctic Box Camera ............19 4.1 Packing List................19 4.2 Overview .................21 4.3 Installation ................23 4.4 Connecting the Camera............28 5. Mini Fixed Dome & Mini Fixed Rugged Dome .....32 5.1 Packing List................32 5.2 Overview .................34 GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series...............34...
Page 5 8. Bullet Camera (Part I).............62 8.1 Packing List................62 8.2 Overview .................63 8.3 Installation ................64 8.3.1 Adjusting the Angles ..........66 8.3.2 Adjusting Lens and Inserting a Memory Card .....69 8.3.3 Inserting the Sun-Shield Cover........72 8.4 Connecting the Camera............73 8.4.1 Wire Definition............73 8.4.2 Connecting the Power Cable........75 9.
Page 6 12. Target Bullet Camera (Part I)..........110 12.1 Packing List .................110 12.2 Overview ................111 12.3 Installation ................113 12.4 Connecting the Camera............117 12.4.1 Wire Definition............117 12.4.2 Power Connection..........118 13. Target Bullet Camera (Part II)..........119 13.1 Packing List .................119 13.2 Overview ................121 13.3 Installation ................122 13.4 Connecting the Camera............127 13.4.1 Wire Definition............127 13.4.2 Power Connection..........127...
Page 7 16. Vandal Proof IP Dome (Part III) .........161 16.1 Packing List .................161 16.2 Overview ................163 16.3 Installation ................165 16.4 Connecting the Camera............170 16.4.1 Definition..............170 16.4.2 Power Connection..........171 17. Target Vandal Proof IP Dome..........172 17.1 Packing List .................172 17.2 Overview ................175 17.3 Installation ................177 17.4 Connecting the Camera............186 18.
Page 8 20.4 Connecting the Camera............212 21. Advanced Cube Camera............213 21.1 Packing List .................213 21.2 Overview ................214 21.3 Installation ................216 21.4 Connecting the Camera............218 22. PT Camera ................219 22.1 Packing List .................219 22.2 Overview ................221 22.3 Installation ................223 22.3.1 Ceiling Mount ............223 22.3.2 L-Shaped Wall Mount..........225 22.4 Connecting the Camera............228 23.
Page 9 27. Restoring to Default Settings..........257 27.1 Using the Web Interface ............257 27.2 Directly on the Camera ............258 Box Camera..............258 Ultra Box Camera and Target Box Camera .......259 Mini Fixed Dome ...............260 Mini Fixed Rugged Dome..........261 IR Arctic Box Camera............261 Target Mini Fixed Target Mini Fixed Rugged Dome ..262 Bullet Camera ..............263 Ultra Bullet Camera............264 Target Bullet Camera ............264...
Page 10: Introduction
Introduction Welcome to the GV-IPCam Quick Start Guide. In this quick guide, you will find information on the installation and basic configurations of the GV-IPCam H.264 / H.265 series. Camera Model No. Lens Description 1.3 MP Low Lux / 1.3 MP / GV-BX1500-1F 1.3 MP Super Low Lux / 2 MP WDR Pro / 2 MP Super...
Page 11 Camera Model No. Lens Description 1.3 MP Low Lux / 1.3 MP / GV-BX1500-3V 1.3 MP Super Low Lux / 2 GV-BX2500-3V MP Super Low Lux Varifocal 2 MP, Super Low Lux, GV-BX2600 WDR Pro GV-BX3400-5V 3 MP, WDR Pro Camera GV-BX5300-6V 5 MP...
Page 12 Camera Model No. Lens Description GV-EBX1100-0F 1.3 MP, Low Lux Target GV-EBX1100-2F 1.3 MP, Low Lux Fixed GV-EBX2100-0F 2 MP, Low Lux Camera GV-EBX2100-2F 2 MP, Low Lux GV-UBX1301-0F GV-UBX1301-1F 1.3 MP GV-UBX1301-2F GV-UBX2301-0F Ultra Box Fixed GV-UBX2301-1F 2 MP Camera GV-UBX2301-2F GV-UBX3301-0F...
Page 13 Camera Model No. Lens Description GV-BX1500-E 1.3 MP, Super Low Lux, GV-BX2400-E 2 MP / 3 MP, WDR Pro GV-BX3400-E IR Arctic Varifocal GV-BX5300-E 5 MP Camera 2 MP Super Low Lux, GV-BX2510-E P-Iris GV-BX5310-E 5 MP, P-Iris...
Page 14 Camera Model No. Lens Description GV-MDR220 GV-MDR320 Fixed 2 MP / 3 MP / 5 MP GV-MDR520 Mini GV-MDR1500-1F Fixed 1.3 MP Super Low Lux / 3 MP GV-MDR3400-1F Rugged WDR Pro GV-MDR5300-1F Dome Fixed GV-MDR1500-2F 1.3 MP Super Low Lux / 3 MP GV-MDR3400-2F WDR Pro / 5 MP GV-MDR5300-2F...
Page 15 Camera Model No. Lens Description GV-MFD1501-2F 1.3 MP Super Low Lux / 2 GV-MFD2401-2F MP WDR Pro / 2 MP Super GV-MFD2501-2F Low Lux / 3 MP WDR Pro / 5 GV-MFD3401-2F GV-MFD5301-2F GV-MFD1501-3F 1.3 MP Super Low Lux / 2 GV-MFD2401-3F MP WDR Pro / 2 MP Super GV-MFD2501-3F...
Page 16 Camera Model No. Lens Description Target GV-EDR1100-0F 1.3 MP Low Lux / 2 MP Mini Low Lux GV-EDR2100-0F Fixed Fixed GV-EDR1100-2F 1.3 MP Low Lux / 2 MP Rugged Low Lux GV-EDR2100-2F Dome GV-BL1500 1.3 MP Super Low Lux / 2 GV-BL2400 MP WDR Pro / 2 MP Super GV-BL2500...
Page 17 2 MP Super Low Lux, 3X GV-BL2511-E IR Arctic Optical Zoom, P-Iris Varifocal Bullet Motorized 5 MP, 2X Optical Zoom, Camera GV-BL5311-E P-Iris...
Page 18 Camera Model No. Lens Description GV-EBL1100-1F 1.3 MP / 2 MP, Low Lux GV-EBL2100-1F Fixed Target GV-EBL1100-2F Bullet 1.3 MP Low Lux GV-EBL2100-2F Camera 2 MP, Super Low Lux, GV-EBL2101 Varifocal P-Iris GV-UBL1211 1.3 MP Low Lux / 1.3 MP GV-UBL1511 Super Low Lux / 2 MP Motorized...
Page 19 Camera Model No. Lens Description GV-UBL3401-0F 3 MP, WDR Pro Ultra GV-UBL3401-1F Bullet Fixed 3 MP, WDR Pro GV-UBL3401-2F Camera GV-UBL3401-3F GV-FD1200 1.3 MP Low Lux / 2 MP WDR Pro GV-FD2400 Varifocal Fixed IP GV-FD1500 Dome 1.3 MP Super Low Lux / 2 GV-FD2500 MP Super Low Lux / 3 MP WDR Pro...
Page 20 Camera Model No. Lens Description 1.3 MP Super Low Lux / 2 GV-FD1510 Fixed IP Motorized MP Super Low Lux / 3 MP GV-FD2510 Dome Varifocal WDR Pro, 3x Optical GV-FD3410 Zoom GV-FD1500 1.3 MP Super Low Lux / 2 GV-FD2500 Varifocal MP Super Low Lux / 3 MP...
Page 21 Camera Model No. Lens Description GV-VD120D (IK10+, Transparent Cover) GV-VD121D (IK10+, Smoked Cover) 1.3 MP, Low Lux GV-VD122D (IK7, Transparent Cover) GV-VD123D (IK7, Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D (IK10+, Smoked Cover) 2 MP GV-VD222D (IK7, Transparent Cover) GV-VD223D Vandal (IK7, Smoked Cover) Proof IP...
Page 22 Camera Model No. Lens Description 3 MP H.265, WDR Pro, GV-VD3700 Super Low Lux Varifocal lens 5 MP H.265, WDR, Low GV-VD5700 GV-VD1530 1.3 MP Super Low Lux / 2 High Power IR GV-VD2430 MP WDR Pro / 2 MP LEDs, Super Low Lux / 3 MP GV-VD2530...
Page 23: Options
Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Accessory Description The power adapter is available for all GV-IP Camera (except for IR Arctic Cameras, Mini Fixed Rugged Power Adapter Dome and GV-BL2510-E / 5310-E). Contact your sales representative for the countries and areas supported.
Page 24 Accessory Description The GV-WiFi Adapter is a plug-and-play device designed to connect GV-BX1200 Series / 1500 series / 2400 series / 2500 series / 3400 series / 5300 series and GV-MFD1501 series / 2401 series / GV-WiFi Adapter 2501 series / 3401 series / 5301 series to wireless network.
Page 25: Note For Connecting To Gv-System / Gv-Vms
Note for Connecting to GV-System / GV-VMS The GV-IPCAM H.264 is designed to work with GV-System / GV-VMS, a hybrid or digital video management system. Note the following when GV-IPCAM H.264 is connected to GV-System / GV-VMS: By default, the images are recorded to the memory card inserted to the GV-IP Camera H.264 (except GV-IR Arctic Camera and Target Series, which are not equipped with a memory card slot).
Page 26: Note For Recording
Note for Recording By default, the images are recorded to the memory card inserted to the GV-IP Camera (except GV-IR Arctic Camera and Target Series, which are not equipped with a memory card slot). Make sure the Write recording data into local storage option is enabled. If this option is disabled, the camera will stop recording to the memory card while the live view is accessed through Web browsers or other applications.
Page 27: Note For Adjusting Focus And Zoom
Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws (on Box Camera, IR Arctic Box Camera, Mini Fixed Dome, Bullet Camera, Vandal Proof IP Dome and Fixed IP Camera), please do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it;...
Page 28: Note For Installing Camera Outdoor
Note for Installing Camera Outdoor When installing the IR Arctic Box Camera, Bullet Camera, Ultra Bullet Camera, Target Bullet Camera, Vandal Proof IP Dome, Mini Fixed Rugged Dome or Target Mini Fixed Rugged Dome outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables.
Page 29 After opening the camera cover, ensure the screws are tightened and the cover is in place. Make sure the housing cover is properly secured to prevent water from entering and damaging the inner housing. xxvii...
Page 30: Note For Closing The Bullet Camera Cover
Note for Closing the Bullet Camera Cover To ensure that the camera performs its full capacity against water and dust, tightly close and lock the camera cover as indicated below. xxviii...
Page 31: Note For Bullet Waterproof Failures
Note for Bullet Waterproof Failures To avoid waterproofing failures, do not open the screw on the camera body. The screw on Ultra Bullet The screw on Target Bullet Camera Camera The screw on GV-EBL2101 The screw on GV-BL3700 / 5700 xxix...
Page 32: Note For Usb Storage And Wifi Adapter
Note for USB Storage and WiFi Adapter Mind the following limitations and requirements for using USB storage and GV-WiFi Adapter: The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above. The USB hard drive’s storage capacity must not exceed 2TB. USB flash drives and USB hubs are not supported.
Page 33: Box Camera

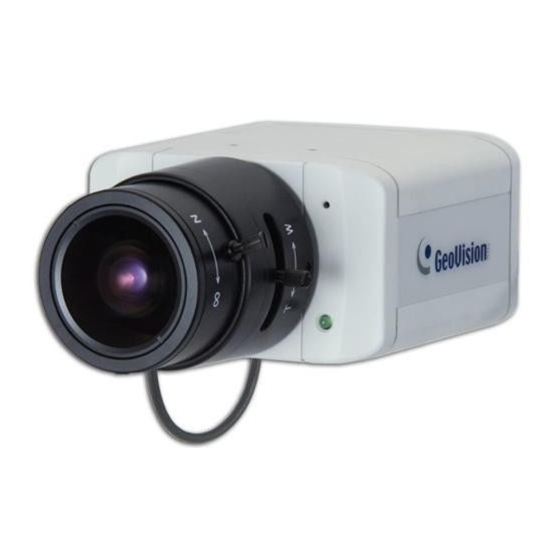

Box Camera 1. Box Camera 1.1 Packing List • Box Camera • Terminal Block • Fixed Focal or Varifocal Megapixel Lens • Six Lens Rings • Video Out Wire • Camera Holder • Power Adapter • GV-IPCAM Software DVD • GV-NVR Software DVD •...
Page 34: Overview
1.2 Overview GV-BX1200 Series / 1500 Series / 2400 Series / 2500 Series / 2600 / 3400 Series / 5300 Series / 12201 GV-BX1200 Series / 1500 Series / GV-BX12201 2400 Series / 2500 Series / 2600 / 3400 Series / 5300 Series...
Page 35 Box Camera Note: The Auto Iris Connector (No. 8) is only functional for varifocal models of GV-BX1200 / 1500 / 2400 / 2500 / 2600 / 3400. The Iris Screw (No. 12) is only available for GV-BX5300-6V. The Zoom Screw (No. 13) is only available for varifocal models of GV-BX1200 / 1500 / 2400 / 2500 / 2600 / 3400 / 5300 / 12201 Built-in microphone is not available for GV-BX2600.
Page 36 Name Description DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Resets the camera to default settings. See 27. Default Restoring to Default Settings later in the Quick Start Guide. Iris Screw Adjusts the iris of the camera. Zoom Screw Adjusts the zoom of the camera.
Page 37: Accessory Installation
Box Camera 1.3 Accessory Installation 1.3.1 C-Mount Lenses When you use a C-mount lens, it requires a certain distance from the camera’s imaging chip to focus the lens. Mount the supplied C-mount lens adapter / lens ring to the camera, and then attach the lens onto the camera body.
Page 38: Infrared Illuminators (Optional)
1.3.2 Infrared Illuminators (Optional) Connect the infrared illuminator to the terminal block on the camera. See I/O Terminal Block, Box Camera Chapter, GV-IPCAM Hardware Manual on the Software DVD. Access the Web interface of the camera. Select Video and Motion, select Video Settings, select Streaming 1 and set the IR Check Function setting to Trigger by Input.
Page 39: Connecting The Camera
Box Camera 1.4 Connecting the Camera The Box Camera is designed for indoor use. Please make sure the installing site is shielded from rain and moisture. GV-BX1200 Series / 1500 Series / 2400 Series / 2500 Series / 2600 / 3400 Series / 5300 Series/ 12201 If you are using an auto iris model, plug the iris control cable to the Auto Iris Connector on the camera.
Page 40 • Wireless Connection: Optionally purchase and connect the GV-WiFi Adapter. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.
Page 41: Ultra Box Camera
Ultra Box Camera 2. Ultra Box Camera 2.1 Packing List • Ultra Box Camera • Supporting rack • Screw x 3 • Screw anchor x 3 • Power Adapter • GV-IPCAM Software DVD • GV-NVR Software DVD • Warranty Card Note: The power adapter can be excluded upon request.
Page 42: Overview
2.2 Overview Name Description Audio Out Connects a speaker for audio output. Resets the camera to default settings. See 27 Default Restoring to Default Settings in the Quick Start Guide. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds.
Page 43: Installation
Ultra Box Camera 2.3 Installation You can stand the Ultra Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Ultra Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
Page 44 Connect the network and power cables to the camera. See 2.4 Connecting the Camera in the Quick Start Guide. Access the live view. See 24.2 Accessing the Live View in the Quick Start Guide. Adjust the angle of the camera based on live view and fasten the indicated screw.
Page 45: Connecting The Camera
Ultra Box Camera 2.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 5V terminal block. • Use the Power over Ethernet (PoE) function and the power will be provided over the network cable. The power and status LEDs shall turn on (green).
Page 46: Target Box Camera
3. Target Box Camera 3.1 Packing List • Target Box Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCAM Software DVD • GV-NVR Software DVD • Warranty Card Note: Power adapter can be purchased upon request.
Page 47: Overview
Target Box Camera 3.2 Overview Name Description Resets the camera to default settings. See 27. Default Restoring to Default Settings in the Quick Start Guide. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds. DC 12V Connects to power.
Page 48: Installation
3.3 Installation You can stand the Target Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Target Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
Page 49 Target Box Camera Connect the network and power cables to the camera. See 3.4 Connecting the Camera in the Quick Start Guide. Access the live view. See 24.2 Accessing the Live View in the Quick Start Guide. Adjust the angle of the camera based on live view and fasten the indicated screw.
Page 50: Connecting The Camera
3.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the GV-IPCAM Hardware Manual for Target Box Camera on the Software DVD.
Page 51: Ir Arctic Box Camera
IR Arctic Box Camera 4. IR Arctic Box Camera 4.1 Packing List For GV-BX1500-E / 2400-E / 3400-E / 5300-E • IR Arctic Box Camera • Screw Anchor x 4 • Screw x 4 • Washer x 4 • 4 mm Torx Wrench •...
Page 52 For GV-BX2510-E / 5310-E • IR Arctic Box Camera • Screw Anchor x 4 • Screw x 4 • Washer x 4 • 5 mm Torx Wrench • Silica Gel Bag • Adhesive Tape • Power Adapter (DC 48V, 2.5A, 120 W max.) •...
Page 53: Overview
IR Arctic Box Camera 4.2 Overview For GV-BX1500-E / 2400-E / 3400-E / 5300-E Note: The Iris Screw (no. 7) is only available in GV-BX5300-E. Name Description Silica gel bag Desiccant that keeps the camera housing dry. IR power plug Supplies power to the built-in IR LEDs.
Page 54 For GV-BX2510-E / 5310-E Name Description Silica gel bag Desiccant that keeps the camera housing dry. Memory Card Inserts a micro SD card (SD/SDHC, version Slot 2.0, Class 10) to store recording data. Turns on when the camera is supplied with Power LED power.
Page 55: Installation
IR Arctic Box Camera 4.3 Installation The IR Arctic Box Camera is designed for outdoor use. Follow the steps below to install your camera. Mark the installation site and drill four holes for screw anchors. Insert the supplied screw anchors. Secure the camera to the wall using the supplied washers and screws.
Page 56 Based on the live view, adjust the angle of the camera. Loosen the indicated screw with the supplied big torx wrench and adjust the joint. Tilt Adjustment Pan Adjustment...
Page 57 IR Arctic Box Camera For GV-BX1500-E / 2400-E / 3400-E / 5300-E, adjust for image clarity based on the live view. A. Unscrew the cover with the supplied 4 mm torx wrench. B. Hold and unplug the connector. IMPORTANT: Unscrew and remove the cover carefully. Pulling the cover off may cause damages to the inner wiring of the camera.
Page 58 C. Adjust the focus, zoom and iris screws. For a more precise focus, use GV-IP Device Utility. For details, see 24.3 Adjusting Image Clarity in the Quick Start Guide. Note: Only GV-BX5300-E contains an iris screw. D. Replace the silica gel bag. Paste the sticker to the front side of the silica gel bag.
Page 59 IR Arctic Box Camera For GV-BX2510-E / 5310-E, optionally insert a memory card. A. Open the camera cover using the supplied torx wrench. B. Insert a memory card to the card slot. Memory card slot C. Replace the silica gel bag. Paste the sticker to the silica gel bag. Press the silica gel bag several times onto the camera cover to make sure it adheres properly.
Page 60: Connecting The Camera
4.4 Connecting the Camera For GV-BX1500-E / 2400-E / 3400-E / 5300-E Wire Definition RJ-45 Black BNC TV ou Green RCA Audio Out Pink RCA Audio In Foll ow t he steps bel ow to connect t he camera: Optionally connect a speaker (green) and a n external microphone (pink).
Page 61 IR Arctic Box Camera Connect the camera to a GV-PA481 PoE adapter as illustrated to supply power and network access. POWER & DATA OUT DATA IN Rear Panel Ethernet Cable Power Hub/Router GV-BX-E The status LED of the camera will be on. You are ready to access the live view.
Page 62 For GV-BX2510-E / 5310-E Wire Definition Green RCA Audio Out Pink RCA Audio In Brown wire Digital Output Yellow wire Digital Input White wire Terminal Block DC 48V TV Out RJ-45 Ethernet/PoE++ 1. Optionally connect the audio out (green), audio in (pink), digital output (brown), digital input (yellow), and GND.
Page 63 IR Arctic Box Camera 3. Supply the camera with power and network access using one of the following methods: • Use a GV-PA482 Power over Ethernet adapter to connect the camera to power and network as illustrated below. GV-PA482 PoE adapter is an optional accessory.
Page 64: Mini Fixed Dome & Mini Fixed Rugged Dome
5. Mini Fixed Dome & Mini Fixed Rugged Dome 5.1 Packing List GV-MFD • Mini Fixed Dome • Torx Wrench • Self Tapping Screw x 2 • Screw Anchor x 2 • Cable stopper • 2-pin terminal block • Short-Body RJ-45 Plug (for GV-MFD1501 series / 2401 series / 2501 series / 3401 series / 5301 series) •...
Page 65 Mini Fixed & Rugged Dome GV-MDR • Mini Fixed Rugged Dome • Torx Wrench • Self Tapping Screw x 2 • Screw Anchor x 2 • Cable stopper • Cable Connector • Installation sticker • Silica gel bag x 2 •...
Page 66: Overview
5.2 Overview GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series Name Description Microphone Receives sound. Pan Screw Loosens the screw to pan. Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle. Resets the camera to default settings.
Page 67 Mini Fixed & Rugged Dome LED Name Description 1. Link Turns on (green) when the network is connected. 2. ACT Turns on (orange) when data are being transmitted. 3. Status Turns on (red) when the system is ready. 4. Power Turns on (green) when power is on.
Page 68: Gv-Mdr
GV-MDR Name Description Silica gel bag Absorbs the moisture inside the camera. Prevents water or moisture from entering Conceal paper the camera. Lens Receives image inputs. Rotation Disc Rotates the camera lens. Pan Disc Pans the camera lens. Tilt Screw Loosens to tilt the camera.
Page 69 Mini Fixed & Rugged Dome Name Description Turns red when the power is on. Flashes Power and status orange light twice when the system is ready. LAN LED Turns on when the network is connected. Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10) to store recording data.
Page 70 LAN Connector Two types of LAN connector are available for GV-MDR1500 series / 3400 series / 5300 series. Select an option based on your installation environment. Waterproof M12 4-Pin Female Connector The M12 connector is used for motor vehicles. Ø14.7 mm (0.58'') Small Waterproof Connector For this connector type, see GV-MDR, 5.3 Installation to install the supplied cable connector.
Page 71: Installation
Mini Fixed & Rugged Dome 5.3 Installation To install a Mini Fixed Dome, make sure the installing site is shielded from rain and moisture. GV-MFD Series Unscrew the housing cover using the supplied torx wrench. Put the camera on the desired location and make 2 marks on the ceiling for screw anchors.
Page 72 Tilt Adjustment Insert a memory card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. Memory Card Slot Adjust image clarity using the GV-IP Device Utility program. For details, see 24.3 Adjusting Image Clarity in the Quick Start Guide. 10.
Page 73: Gv-Mdr Series
Mini Fixed & Rugged Dome GV-MDR Series Paste the installation sticker on the desired location. The arrow should point toward the direction that the camera faces. Drill one hole on each of the two curves for screw anchors. Drill the circle (30 mm in diameter) if you want to run the cable into the ceiling.
Page 74 Install the cable connector to waterproof the cable. You should have 5 parts: Prepare an Ethernet cable with the RJ-45 connector on one end only. Connect the Ethernet cable to the camera cable. Paste the sticker to the camera cable and slide in all the components as shown below.
Page 75 Mini Fixed & Rugged Dome IMPORTANT: Item 5 must be secured tightly to waterproof the cable. Access the live view. See 24.2 Accessing the Live View in the Quick Start Guide. Adjust the angles based on the live view. Pan Adjustment Tilt Adjustment Rotational Adjustment...
Page 76 Adjust image clarity using the GV-IP Device Utility program. For details, see 24.3 Adjusting Image Clarity in the Quick Start Guide. 10. Insert a memory card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. 11. Replace the silica gel bag. 12.
Page 77: Connecting The Camera
Mini Fixed & Rugged Dome 5.4 Connecting the Camera Refer to the wire definition and illustrations below to connect the power and network. 5.4.1 Wire Definition GV-MDR Series Power and network connectivity is provided through a PoE cable. Wire Color Definition Gray PoE, Ethernet...
Page 78: Vehicle Installation
5.4.3 Vehicle Installation To install the Mini Fixed Rugged Dome on a vehicle, clip the ferrite core to the camera cable. The ferrite core must be attached as close as possible to the camera with the maximum distance of 15 cm. Max.
Page 79: Target Mini Fixed Dome
Target Mini Fixed Dome 6. Target Mini Fixed Dome 6.1 Packing List • Target Mini Fixed Dome • Screw x 2 • Screw Anchor x 2 • Focus Adjustment Clip or Ring • GV-IPCAM Software DVD • GV-NVR Software DVD •...
Page 80: Overview
6.2 Overview Name Description Lens Receives image inputs. Pan Screw Loosens the screw to adjust pan angle. Tilt Screw Loosens the screw to adjust tilt angle. Microphone Receives sound. Default Button Resets the camera to default settings. See 27. Restoring to Default Settings. DC 12V Port Connects to power.
Page 81: Installation
Target Mini Fixed Dome 6.3 Installation The Target Mini Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Open the housing cover by turning. Place the camera where you want to install it and make 2 marks on the ceiling or the wall for screw anchors.
Page 82 Thread the power and / or network cable(s) through the oval-shaped hole or the cable opening on the side, and connect the camera to network and power. For details, see 6.4 Connecting the Camera. Secure the Target Mini Fixed Dome to the ceiling or the wall with the self-tapping screws.
Page 83: Connecting The Camera
Target Mini Fixed Dome 6.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the GV-IPCAM Hardware Manual for Target Mini Fixed Dome on the Software DVD.
Page 84: Target Mini Fixed Rugged Dome
7. Target Mini Fixed Rugged Dome 7.1 Packing List • Target Mini Fixed Rugged Dome • Screw x 2 • Screw Anchor x 2 • Focus Adjustment Ring • Installation Sticker • Conduit Converter • RJ-45 Connector • Waterproof Rubber Set (for RJ45 and DC12V) •...
Page 85 Target Mini Fixed Rugged Dome Note: Power adapter can be purchased upon request. You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter with a PG21 conduit connector and a self-prepared conduit pipe (of 1/2’’, 3/4’’...
Page 86: Overview
7.2 Overview Name Description Lens Receives image inputs. Pan Screw Loosens the screw to adjust pan angle. Tilt Screw Loosens the screw to adjust tilt angle. Resets the camera to default settings. See 27. Default Button Restoring to Default Settings. DC 12V Port Connects to power.
Page 87: Installation
Target Mini Fixed Rugged Dome 7.3 Installation The Target Mini Fixed Rugged Dome can be installed on the wall or ceiling. You must use the supplied waterproof rubber set to waterproof the cable. Paste the installation sticker where you want to install, and drill two holes that are at a diagonal.
Page 88 Unscrew the three screws as indicated below. A back plate can be separated from the bottom. Use the 2 supplied screws to secure the back plate onto the ceiling or the wall where the screw anchors were inserted. Prepare an Ethernet cable with the RJ-45 connector on one end only. Remove the waterproof cap from the cable opening and thread the power and / or network cable(s) through the opening.
Page 89 Target Mini Fixed Rugged Dome Install the supplied waterproof rubber set onto the cable(s). The rubber set has two parts. Item 1 comes in two types. For power cable For network cable For network cable (PoE) Slide the waterproof rubber set, and the waterproof cap you previously removed through the cable(s) as shown below.
Page 90 Fit item 1 to item 2, and insert them in the cable opening. Use the supplied ruler to make sure the length of the cable(s) from the bottom of the opening to the end of the cable is under 10 cm. Cap the cable opening with the waterproof cap.
Page 91 Target Mini Fixed Rugged Dome Thread the cable(s) under the black cable holder. You can loosen the screw on the cable holder if needed. 10. Connect the camera to network and power. For details, see 7.4 Connecting the Camera. 11. Secure the camera to the back plate by tightening the three screws as shown in Step 4.
Page 92 15. Attach the silica gel bag to the place indicated below, and secure the housing cover using the torx wrench.
Page 93: Connecting The Camera
Target Mini Fixed Rugged Dome 7.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options, GV-IPCAM Hardware Manual for Target Mini Fixed Rugged Dome on the Software DVD.
Page 94: Bullet Camera (Part I)
8. Bullet Camera (Part I) 8.1 Packing List • Bullet Camera • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench x 2 • Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screws x 2, Plastic Screw Spacer x 2 and Hexagon Screw x 2) •...
Page 95: Overview
Bullet Camera (Part I) 8.2 Overview Name Description Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10). Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets the camera to default settings. See Default Button 27.
Page 96: Installation
8.3 Installation The Bullet Camera is designed for outdoor use and can be mounted on ceiling and wall. Slide the cable clamp to the camera base. Cable Clamp Install the Bullet Camera to the wall / ceiling. Remove the protection sticker from the camera’s cover. Connect the power, network and other cables to the camera.
Page 97 Bullet Camera (Part I) Loosen the camera’s cover, adjust the lens and focus, and insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. See 8.3.2 Adjusting Lens and Inserting a Memory Card in the Quick Start Guide.
Page 98: Adjusting The Angles
8.3.1 Adjusting the Angles The Bullet Camera is designed to be adjustable in three shafts. Tip: The three shafts are designed to offer easy and flexible ceiling / wall mount installation. First Shaft You can adjust the camera body by 360 degrees to the right or the left. Unscrew the panning lock screw with the torx wrench.
Page 99 Bullet Camera (Part I) Second Shaft You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base. Unscrew the tilting lock screw with the torx wrench. Tilting Lock Screw Torx Wrench Hold the camera body, and move the camera base to the right to...
Page 100 Third Shaft You can adjust the camera base by 360 degrees. Unscrew the base fixing screw with the torx wrench. Torx Wrench Base Fixing Screw Adjust the angle of camera base, and fasten the base fixing screw. 0~360°...
Page 101: Adjusting Lens And Inserting A Memory Card
Bullet Camera (Part I) 8.3.2 Adjusting Lens and Inserting a Memory Card To adjust the camera’s lens to produce a clear image and insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot, follow the steps below. Loosen the camera’s cover.
Page 102 To insert a memory card, follow the steps below. Loosen the fixing screw. Fixing Screw Slightly pull out the camera module. Insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. Memory Card Slot Push the camera module back and fasten the fixing screw.
Page 103 Bullet Camera (Part I) Insert a new silica gel bag to the camera module. Silica Gel Bag All Bullet Camera except GV-BL2510-E/5310-E GV-BL2510-E/5310-E...
Page 104: Inserting The Sun-Shield Cover
8.3.3 Inserting the Sun-Shield Cover After setting up the Bullet Camera, now you can install the sun-shield cover to the camera. Fasten the hexagon screws either on top or below the camera. Hexagon Screws Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover’s aperture for optimal sun-shield performance.
Page 105: Connecting The Camera
Bullet Camera (Part I) 8.4 Connecting the Camera Connect your Bullet Camera to power, network and the cables needed. 8.4.1 Wire Definition The cable of the Bullet Camera is illustrated and defined below: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow)
Page 106 Note that the Audio In and Out connectors may also come as terminal blocks: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow) Audio In (Brown) Audio Out (Green) Ethernet (PoE) Wire Color Definition...
Page 107: Connecting The Power Cable
Bullet Camera (Part I) 8.4.2 Connecting the Power Cable Use one of the following methods to supply power to the camera. Note that GV-BL2510-E / 5310-E do not support PoE. • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
Page 108: Bullet Camera (Part Ii)
9. Bullet Camera (Part II) 9.1 Packing List • Bullet Camera • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench x 3 • Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2, and Hexagon Screw x 2) •...
Page 109: Overview
Bullet Camera (Part II) 9.2 Overview Twist off the camera cover to access the following: Name Description Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10). Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets the camera to default settings.
Page 110 To access the following interface, remove the camera base using the supplied torx wrench. Name Description LAN / PoE Connects to a 10/100 Ethernet or PoE. Audio In Connects a microphone for audio input. Audio Out Connects a speaker for audio output. Connects to I/O devices.
Page 111: Installation
Bullet Camera (Part II) 9.3 Installation Follow the steps below to install the Bullet Camera. Paste the supplied sticker to the ceiling/wall. For wall installations, make sure the arrow on the sticker points toward the ceiling. Drill the shaded area, and insert the screw anchor into the three holes. Loosen the indicated screws with the supplied torx wrench to remove the base.
Page 112 Loosen the indicated screws and remove the back plate. Back Plate Align and secure the black plate to the wall/ceiling with the supplied self-tapping screws.
Page 113 Bullet Camera (Part II) To use a pipe (optional), install the conduit converter using the supplied M3 screws. IMPORTANT: For GV-BL2511-E / 5311-E connected with a power adapter, only install the conduit converter to the indicated exit. Install the Ethernet cable. 1.
Page 114 2. Thread an Ethernet cable (with no RJ-45 connector on one end) from the back panel through the conduit converter (optionally installed at step 6) and then through the cable seal. IMPORTANT: Use the supplied ruler and leave about 10 cm of the Ethernet cable between the connector and the cable seal.
Page 115 Bullet Camera (Part II) C. Optionally thread audio wires, adapter wires, and I/O wires through the conduit converter and then through part 1, 2, 3, and 4 of the conduit connector. Tip: To make the threading easier, it is advised to thread the wires in the order described here.
Page 116 IMPORTANT: 1. Use the supplied ruler and leave about 10 cm of audio, power, and I/O wires between their connectors and the cable seal. 2. The plugs are used to prevent water from entering the camera housing. Keep the unused holes plugged and save the removed plugs for future use.
Page 117 Bullet Camera (Part II) 12. Access the live view. For details, see 24.2 Accessing the Live View in the Quick Start Guide. 13. Adjust the angles of the camera based on the live view. Three shafts can be adjusted. See 8.3.1 Adjusting the Angles. 14.
Page 118: Connecting The Camera
9.4 Connecting the Camera Power Connection Use one of the following methods to supply power to the camera. Note that GV-BL2511-E / 5311-E do not support PoE. • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
Page 119 Bullet Camera (Part II) I/O Device Connection The camera supports one digital input and one digital output of dry contact. Function Digital Output Digital Input For details on how to enable an installed I/O device, see I/O Settings, Administrator Mode Chapter, GV-IPCAM Firmware Manual on the Software DVD.
Page 120: Bullet Camera (Part Iii)
10. Bullet Camera (Part III) The information in this chapter applies to GV-BL3700 / GV-BL5700. 10.1 Packing List • H.265 Bullet Camera • Sun-shield Cover • Screw for Sun shield Cover x 2 • Washer x 2 • Screw for Supporting Rack x 3 •...
Page 121: Overview
Ultra Bullet Camera 10.2 Overview Twist off the camera cover to access the following: Name Description Memory Card Receives a micro SD card (SD/SDHC/SDXC, Slot Class 10). Resets the camera to default settings. For details, see 27. Restoring to Default Settings Default Button later in the Quick Start Guide.
Page 122: Installation
10.3 Installation You can install the camera to the ceiling or wall. Follow the steps below. Unscrew the camera body, remove the sun-shield mount, and loosen the camera cover from the camera. Sun-Shield Mount Screws Camera Cover Insert a micro SD card (SD/SDHC/SDXC, Class 10) into the card slot. Tape two silica gel bags to the camera module.
Page 123 Ultra Bullet Camera Secure the camera cover, fasten the sun-shield mount, and screw the camera body. Sun-Shield Mount Slide the sun-shield cover onto the top of the camera. Adjust the position of the cover before fully securing the cover with the washer and the screw.
Page 124 Thread the Ethernet cable into the conduit connector. Remove the plug from the conduit connector. Disintegrate the removed conduit connector. Thread the Ethernet cable through the 3 parts. Assemble the conduit connector. Note: If you can’t plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.
Page 125 Ultra Bullet Camera Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack. IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount. Connect the wires and cable connector to the camera. See 10.4 Connecting the Camera.
Page 126: Adjusting The Angles
10.3.1 Adjusting the Angles The GV-BL3700 / 5700 is designed to be adjustable in two shafts for easy and flexible installation. First Shaft You can adjust the camera base by 360°. Unscrew the base fixing screw with the hex wrench. Adjust the angle of camera base, and fasten the base fixing screw with the hex wrench.
Page 127 Ultra Bullet Camera Second Shaft You can adjust the camera body to the desired angle by tilting the camera module. Unscrew the tilting lock screw with the hex wrench. Adjust the angle of camera body to the desired angle. Fasten the tilting lock screw.
Page 128: Adjusting Lens
10.3.2 Adjusting Lens To adjust the camera’s zoom and focus, follow the steps below. Loosen the camera’s cover. To adjust for image clarity by adjusting the focus and zoom screws. For details, see 2.2 Adjusting Image Clarity, GV-IPCAM Firmware Manual. Focus Screw Zoom Screw IMPORTANT: See Note for Silica Gel Bags at the beginning of the...
Page 129: Connecting The Camera
Ultra Bullet Camera 10.4 Connecting the Camera 10.4.1 Wire Definition The 4-Pin terminal block provides connections for 1 sensor input and 1 sensor output. The 5-Pin terminal block provides power input, 1 audio input and 1 audio output. The wires are illustrated and defined below: Ethernet (PoE) 4-Pin terminal block 5-Pin terminal block...
Page 130: Power Connection
10.4.2 Power Connection Use one of the following methods to supply power to the camera. Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. Connect the wires of your power adapter to the DC 12V+ and DC 12V- pins of the 5-pin terminal block.
Page 131: Ultra Bullet Camera
Ultra Bullet Camera 11. Ultra Bullet Camera 11.1 Packing List • Ultra Bullet Camera (with Waterproof or Non-Waterproof LAN connector) • Camera Stand • Black Rubber • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench •...
Page 132: Overview
11.2 Overview Name Description Connects to the data cable. For details, see Power & I/O 11.4 Connecting the Camera in the Quick Start Connector Guide. Resets the camera to default settings. See 27. Default Button Restoring to Default Settings in the Quick Start Guide.
Page 133 Ultra Bullet Camera LAN Connector The Ultra Bullet Camera provides two connector types. Select an option based on your installation environment. • Option 1 (Waterproof) To waterproof the cable, install the supplied cable connector. See 11.4.1 Waterproofing the Cable in the Quick Start Guide. •...
Page 134: Installation
11.3 Installation You can install the camera to the ceiling or wall. Follow the steps below. Optionally insert a micro SD card to the camera. A. Unscrew and open the back panel with the supplied torx wrench. B. Insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the card slot and replace the silica gel bag.
Page 135 Sun-Shield Cover IMPORTANT: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. C. Fasten the Philips head screws with the plastic screw spacers to mount the sun-shield cover onto the camera.
Page 136 Ceiling Mount: Secure the black rubber and the camera stand to the other screw hole on the top. Wall Mount: Secure the black rubber and the camera stand to one of the screw holes on the bottom. Ceiling Mount Wall Mount...
Page 137 Ultra Bullet Camera Use the screw anchors and self-tapping screws to secure the camera to the wall. Remove the protection sticker from the camera’s cover. Connect the wires and cable connector to the camera. See 11.4.1 Waterproofing the Cable and 11.4.2 Connecting the Camera. Access the live view.
Page 138: Connecting The Camera
11.4 Connecting the Camera 11.4.1 Waterproofing the Cable Waterproof the cable of the LAN connector, using the supplied cable connector. The cable connector can be dissembled into 5 parts. [LAN Connector] [Cable Connector] Cut off the RJ-45 connector on one end of the Ethernet cable. Connect the Ethernet cable to the LAN / PoE connector.
Page 139 Ultra Bullet Camera Slide the components through the Ethernet cable as shown below. Paste the item 1 sticker to item 2. Move all the components toward the LAN connector, fit item 4 to item 2, secure item 3 to the LAN connector (Item A) and finally secure item 5 to item 2 tightly.
Page 140: Wire Definition
11.4.2 Wire Definition The supplied 4-pin data cable provides connections for power, ground, 1 sensor input and 1 alarm output. The wires are defined below: Wire Color Definition DC 5V Green Digital In Blue Digital Out Black Ground...
Page 141: Power Connection
Ultra Bullet Camera 11.4.3 Power Connection Connect the camera to power using one of the following methods: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...
Page 142: Target Bullet Camera (Part I)
12. Target Bullet Camera (Part I) 12.1 Packing List • Target Bullet Camera • Sun-Shield Cover • Silica Gel Tape x 2 • Supporting Rack • Screw for Supporting Rack x 3 • Screw Anchor x 3 • Screw for Sun-shield Cover •...
Page 143: Overview
Target Bullet Camera 12.2 Overview Name Description Power Connects to the data cable. For details, see Connector 12.4.1 Connecting the Camera. Resets the camera to default settings. See 27. Restoring to Default Settings in the Quick Start Default Button Guide.
Page 144 IMPORTANT: The silica gel loses its effectiveness when the camera is opened. If you open the camera to access the load default button, replace the silica gel tape by taping the new silica gel tape to the inside of the camera cover. Make sure you conceal the silica gel tape in the camera within two minutes of exposing to the open air.
Page 145: Installation
RJ-45 connector. Slide the sun-shield cover onto the top of the camera. Note: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. Line up the screw hole on the camera with the opening on the...
Page 146 Ceiling Mount: Secure the supporting rack to the opening on the sun-shield cover. Wall Mount: Insert and tighten the supplied screw on the sun-shield cover. Secure the supporting rack to the bottom. IMPORTANT: To avoid waterproofing failures, do not open the screw on the camera body (see Note for Bullet Waterproofing Failures).
Page 147 Target Bullet Camera Thread the Ethernet cable into the conduit connector. For details, see step 6, 10.3 Installation. Note: The size of RJ-45 connector must be within 14 mm to plug into the jack of the conduit.
Page 148 Install the camera to the wall or ceiling using the screw anchors and self-tapping screws. You can also stand the camera on a plain surface. Remove the protection sticker from the camera’s cover. Connect the wires and cable connector to the camera. See 12.4 Connecting the Camera in the Quick Start Guide.
Page 149: Connecting The Camera
Target Bullet Camera 12.4 Connecting the Camera 12.4.1 Wire Definition The data cable provides connections for power, ground and network access. The wires are defined below: Wire Color Definition DC 12V Black Ground Black (thick) PoE, Ethernet...
Page 150: Power Connection
12.4.2 Power Connection There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. • Plug the power adaptor to the terminal block as shown below. The power adapter is an optional device.
Page 151: Target Bullet Camera (Part Ii)
Ultra Bullet Camera 13. Target Bullet Camera (Part II) The information in this chapter applies to GV-EBL2101. 13.1 Packing List • Target Bullet Camera • Sun-Shield Cover • Silica Gel Bag x2 • Screw for Supporting Rack x 3 • Screw Anchor x 3 •...
Page 152 • GV-NVR Software DVD • Warranty Card Note: Power adapter can be purchased upon request.
Page 153: Overview
Ultra Bullet Camera 13.2 Overview Name Description Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets the camera to default settings. See 27. Default Button Restoring to Factory Default Settings in the Quick Start Guide.
Page 154: Installation
13.3 Installation You can install the camera to the ceiling or wall. Follow the steps below. Replace the Silica Gel Bag. Remove the camera cover from the camera. Loosen the camera’s screws and the hexagon pillars as indicated below.
Page 155 Ultra Bullet Camera Take out the camera from the camera body Cut the 2 silica gel bags apart with scissors and place the new silica gel bags at the lower half of the camera body. Secure the 2 hexagon pillars to the upper and lower holes of camera module as indicated below.
Page 156 Note: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. There are two holes for the screws at the back of the camera. You...
Page 157 Ultra Bullet Camera Thread the Ethernet cable into the conduit connector. For details, see step 6, 10.3 Installation. Note: If you can’t plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.
Page 158 Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack. IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount. Connect the wires and cable connector to the camera. See 13.4 Connecting the Camera.
Page 159: Connecting The Camera
Ultra Bullet Camera 13.4 Connecting the Camera 13.4.1 Wire Definition The data cable provides connections for power, ground and network access. The wires are defined below: Wire Color Definition DC 12V Black Ground Black (thick) PoE, Ethernet 13.4.2 Power Connection For details, see 12.4.2 Power Connection.
Page 160: Vandal Proof Ip Dome (Part I)
14. Vandal Proof IP Dome (Part I) The information in this chapter applies to GV-VD120D / 121D / 122D / 123D / 220D / 221D / 222D / 223D / 320D / 321D / 322D / 323D / 1500 / 2400 / 3400.
Page 161 Vandal Proof IP Dome (Part I) • GV-IPCam Software DVD • Power Adapter • GV-NVR Software DVD • Warranty Card Note: 1. Focus Adjustment Cap is only needed and supplied for IK10+ models. 2. The power adapter can be excluded upon request.
Page 162: Overview
14.2 Overview Name Description Turns on (green) when the power is on and Power LED turns off when there is no power supply. Turns on (green) when the system Status LED operates normally and turns off when system error occurs. Resets the camera to default settings.
Page 163 Vandal Proof IP Dome (Part I) Name Description Zoom Screw Adjusts the zoom of the camera. Focus Screw Adjusts the focus of the camera. Silica Gel Bag Absorbs moisture in the camera body.
Page 164: Installation
14.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, there are two ways to install the Vandal Proof IP Dome: hard-ceiling mount and in-ceiling mount. Note: You can also install the camera: • on a power box (of the 4" square and double gang type) using the standard package •...
Page 165: Hard-Ceiling Mount
Vandal Proof IP Dome (Part I) 14.3.1 Hard-Ceiling Mount Unpack the camera package and take out the camera body. Unscrew the housing cover Unscrew thread lock...
Page 166 Unscrew the inner housing Take out the camera body Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires through it.
Page 167 Vandal Proof IP Dome (Part I) Insert the screw anchors to the 4 holes on the ceiling. Secure the back cover to the ceiling with 4 ceiling screws. wall Refer to step 1 to secure the camera body with inner housing. Thread the cable through the conduit entry at the side of the back cover.
Page 168 Pan Adjustment Tilt Adjustment Rotational Adjustment...
Page 169 Vandal Proof IP Dome (Part I) 10. Hold the focus adjustment cap on top of the camera view and adjust for image clarity using the GV-IP Device Utility program. For details, see 22.3 Adjusting Image Clarity in the Quick Start Guide. Focus Screw Zoom Screw 11.
Page 170: In-Ceiling Mount
14.3.2 In-Ceiling Mount Follow step 1 in the Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Cut out a circle with a diameter of 142 mm on the ceiling. Insert a blue screw to the indicated holes on the camera body.
Page 171 Vandal Proof IP Dome (Part I) Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Plastic Clip Secure a T-cap on top of the blue screw with a small screw cap and a T-cap screw.
Page 172 Insert the camera to the ceiling with the plastic screws moved inward. Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly. Connect the network and power cables to the camera.
Page 173: Connecting The Camera
Vandal Proof IP Dome (Part I) 14.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables. 14.4.1 Wire Definition The cables for Vandal Proof IP Dome are illustrated and defined below. Shielding ground DC 12V- / AC 24V- DC 12V+ / AC 24V+ Digital in (oragne) Digital out (brown)
Page 174 Note: To use the TV out function, connect the black BNC connector to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface. For details, see Video Settings, Administrator Mode Chapter, GV-IPCam Firmware Manual on the Software DVD.
Page 175: Connecting The Power Cable
Vandal Proof IP Dome (Part I) 14.4.2 Connecting the Power Cable There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...
Page 176: Vandal Proof Ip Dome (Part Ii)
15. Vandal Proof IP Dome (Part II) The information in this chapter applies to GV-VD1530 / 1540 / 2430 / 2440 / 2530 / 2540 / 2540-E / 3430 / 3440 / 5340 / 5340-E. 15.1 Packing List • Vandal Proof IP Dome •...
Page 177 Vandal Proof IP Dome (Part II) • RJ-45 Connector x 2 • Back Plate • Installation sticker • Screw Anchor x 4 Ceiling mount template • Long Screw x 4 • Flat Screw • Short Screw x 2 • Silica Gel Bag •...
Page 178 • Power Adapter • GV-IPCAM Software DVD • GV-Vandal Proof IP Dome • GV-NVR Software DVD Hardware Installation Guide • Warranty Card Note: You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter and plastic PG21 conduit connector with a self-prepared 1/2’’...
Page 179: Overview
Vandal Proof IP Dome (Part II) 15.2 Overview...
Page 180 Name Description LED Indicators The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) turns on (green) when the system operates normally and turns off when system error occurs.
Page 181: Installation
Vandal Proof IP Dome (Part II) 15.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera: • on a power box (of the 4" square and double gang type) using the standard package •...
Page 182 B. Unplug the conduit connector inside the housing and disintegrate the connector. You should have 4 parts: C. Remove the terminal block from the power adapter. D. Thread the audio wires (optional), TV out wire (optional), adapter wires and I/O wires (optional) through the conduit entry and then through part 1, 2, 3 and 4 of the conduit connector.
Page 183 Vandal Proof IP Dome (Part II) 2.6 mm: Audio, BNC 2 mm: DC12V / AC24V 1.8 mm: DIDO IMPORTANT: 1. Use the supplied ruler and leave about 10 cm of power and I/O wires between their connectors and the cable seal; leave at least 11 cm of audio/TV-out wires between their connectors and the cable seal.
Page 184 Install the Ethernet cable. A. Rotate to remove the indicated cap and the plug inside. B. Thread an Ethernet cable (the end with no RJ-45 connector) from the back panel through the cable seal. IMPORTANT: Use the supplied ruler and leave about 11 cm of the Ethernet cable between the connector and the cable seal.
Page 185 Vandal Proof IP Dome (Part II) Connect the wires to the camera. Install the terminal blocks to the power adapter and I/O devices. See 15.4 Connecting the Camera in the Quick Start Guide. Install the supplied RJ-45 connector to the Ethernet cable. Plug all the connectors to the camera panel.
Page 186 Sort out the wires at the back. You can have the wires come out from position A, B or both. The instructions here describe sorting wires for position A. From the back of the camera housing, unscrew and rotate the plate to one side, sort out the wires and secure the plate back.
Page 187 Vandal Proof IP Dome (Part II) Secure the back plate to the ceiling. A. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces. Ceiling mount template B. Drill 3 holes for screws. The recommended ones are indicated as ‘1’.
Page 188 Secure the camera to the ceiling. Secure the safety lock to the camera using a short screw. Use flat screw for number 1 and small screw for number 2. Thread all the wires into the ceiling and connect them. C. Secure the camera using the torx wrench. Access the live view.
Page 189 Vandal Proof IP Dome (Part II) Pan Adjustment Tilt Adjustment Rotational Adjustment...
Page 190 10. Replace the silica gel bag and secure the camera cover using the torx wrench. IMPORTANT: If the center of the camera view is less than 25° to the ceiling, or lower than the grey line (as illustrated below), disassemble the indicated ring so the view is not obstructed.
Page 191: Connecting The Camera
Vandal Proof IP Dome (Part II) 15.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other wires needed. 15.4.1 Connecting the Power Cable There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
Page 192: Connecting The I/O Device
15.4.2 Connecting the I/O Device The camera support one digital input and one digital output of dry contact. Function Digital Output Digital Input For details on how to enable an installed I/O device, see I/O Settings, Administrator Mode Chapter, GV-IPCAM Firmware Manual on the Software DVD.
Page 193: Vandal Proof Ip Dome (Part Iii)
Vandal Proof IP Dome (Part III) 16. Vandal Proof IP Dome (Part III) The information in this chapter applies to GV-VD3700/5700. 16.1 Packing List  H.265 Vandal Proof IP Dome  Torx Wrench  Long Screw x 4  Screw Anchor x 4 ...
Page 194  Cable Stopper  Anti-Drop Wire  Screw (for the Anti-Drop Wire)  Silica Gel Bag x 2  Sticker (for Silica Gel Bag) x 2  GV-IPCAM Software DVD  GV-Software DVD  Pan Angle Notification Card  Warranty Card Note: The supplied anti-drop wire is used for attaching the camera body to GV-Mount206.
Page 195: Overview
Vandal Proof IP Dome (Part III) 16.2 Overview...
Page 196 Name Description Rotational Screw Loosen to rotate the lens. Insert a micro SD card (SD/SDHC/SDXC, Class 10) to store recording data. SD Card Slot * UHS-II card type is not supported. Base Screw Loosen to pan the camera. Tilt Screw Loosen to tilt the camera.
Page 197: Installation
Vandal Proof IP Dome (Part III) 16.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Remove the housing cover with the supplied torx wrench. Thread the Ethernet cable into conduit connector. For details, see step 6, 10.3 Installation.
Page 198 Connect the audio wires (optional), power adapter wires and I/O devices (optional) to the camera. See 16.4 Connecting the Camera. Secure the back plate to the ceiling. Paste the sticker to the ceiling. The triangle on the sticker indicates the direction that the camera faces. Ceiling mount template Drill 4 holes for screws.
Page 199 Vandal Proof IP Dome (Part III) Align and secure the back plate to the rear side of the camera with the supplied short screws. Insert your micro SD card into the SD card slot. Access the live view. See 2.1 Accessing the Live View, GV-IPCAM Firmware Manual.
Page 200 Pan Adjustment IMPORTANT: Loosen the Base Screw (No. 3, 16.2 Overview) before adjusting the camera pan angle. The front of the camera is marked with a white line in front of the memory card slot. When adjusting the camera pan angle, avoid turning the camera for more than 180 degrees in either direction.
Page 201 Vandal Proof IP Dome (Part III) Paste the silica gel bag with a sticker right behind the lens. Secure the housing cover back to the camera body. Note: You can remove the cable stopper to thread the camera’s cable through the side opening.
Page 202: Connecting The Camera
16.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables needed. 16.4.1 Definition Wire Name Definition DI + Digital out + DI - Digital out - 4-Pin terminal block DO + Digital in + DO - Digital in - L –...
Page 203: Power Connection
Vandal Proof IP Dome (Part III) 6.4.2 P er Connectio There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. Connect the wires of your power adapter to the DC 12V+ and DC 12V- pins of the terminal blocks.
Page 204: Target Vandal Proof Ip Dome
Target Vandal P roof IP Dome 17.1 Packing List • Target Vandal Proof IP • Torx Wrench Dome • Screw x 4 • Screw Anchor x 4 • TV-Out Wire • Audio Wires x 2 • Installation sticker • RJ-45 Connector Ceiling mount template...
Page 205 Target Vandal Proof IP Dome • Conduit Converter • Water proof rubber set (for RJ-45 and DC12V) • • Small Concave hexagon g Concave hexagon Wrench Wrench • Silica Gel Bag • Sticker (for Silica G Bag) • GV-IPCAM Soft •...
Page 206 Note: With the supplied Co nduit Converter, you can choose to run th wires through a conduit pipe. The installation of conduit converter a conduit pipe is illustrated as below. You may optionally purchase a plastic or metal PG21 conduit connector for a 1/2” or 3/4” pipe respectively. When you use a 1/2”...
Page 207: Overview
Target Vandal Proof IP Dome 17.2 Overview 13 12...
Page 208 Name Description The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) LED Indicators turns on (green) when the system operates normally and turns off when system error occurs.
Page 209: Installation
Target Vandal Proof IP Dome 17.3 Installation he Ta get Vanda l Proof IP D ome is designed for outdoors. With the standard package, you can in stall the camera on the ceiling. move the housin g cov er with the supplied torx wrench. move the back p late w ith the supplied torx wrench and remove...
Page 210 Thread an Ethernet cable and/or the adapter wire into the camera. Rotate to remove the indicated cap. B. Take out and disintegrate the connector. You should have 3 parts: C. Thread an Ethernet cable (the end without RJ-45 connector) and/or the adapter wire from the back panel. D.
Page 211 Target Vandal Proof IP Dome E. If you are using DC 12V, change the connector to the supplied Waterproof rubber set. Remove the terminal block from the power adapter and thread the adapter wire through the rubber. Thread the Ethernet cable and/or the adapter wire through part 2 and 3 of the connector.
Page 212 Thread audio wires (optional) into the camera. Rotate to remove the cap of the conduit connector. Take out and disintegrate the connector. You should have 3 parts too. Thread the audio wires from the back panel, remove the plugs of part 1 and thread through the 3 parts of the connector.
Page 213 Target Vandal Proof IP Dome Tip: Use a pair of pliers to help you pull the wires through the camera. IMPORTANT: Use the supplied ruler and leave about 10 cm of the audio wires between the connectors and the cable seal. The plugs are used to prevent water from entering the camera housing.
Page 214 Sort out the wires at the back. You can have the wires come out from both positions A and B, or from C. Secure the back plate to the ceiling. Paste the sticker to the ceiling. The arrow on the sticker in dicates the direction that the camera faces.
Page 215 Target Vandal Proof IP Dome Drill A & B holes or only C hole for sorting out the wires according to Figure 5-11. Secure the back plate to the ceiling with the supplied screws. Secure the camera to the ceiling. Secure the safety lock to the camera with the screw you removed from the back plate in step 2.
Page 216 Access the live view. See 24.2 Accessing the Live View in the Quick Start Guide. Note: The TV-out function can be used to access the live view. See the Note for TV-out in 17.2 Overview. 10. Adjust the camera’s angle, focus and zoom of the camera. Pan Adjustment Tilt Adjustment Rotational Adjustment...
Page 217 Target Vandal Proof IP Dome 11. Replace the silica gel bag, press all the wires and cables into the notch and secure the camera cover with the torx wrench.
Page 218: Connecting The Camera
4 Connecting th e Camera There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...
Page 219: Fixed Ip Dome
Fixed IP Dome 18. Fixed IP Dome 18.1 Packing List 18.1.1 Packing List for Hard-Ceiling Mount • Fixed IP Dome • Torx Wrench • Mounting Plate • Short Screw Anchor x 3 • Ceiling Screw x 3 • Plate Screw x 3 •...
Page 220: Packing List For In-Ceiling Mount
18.1.2 Packing List for In-Ceiling Mount • In-Ceiling Housing Cover • Mounting Plate • Mounting Bracket x 3 • Copper Pillar x 3 • Copper Pillar Screw x 6 • Bracket Screw x 3 • Thread Lock Screw • Housing Cover Thread •...
Page 221: Overview
Fixed IP Dome 18.2 Overview 10 11 12 13 14 15 Name Description Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Rotational Screw Loosens to adjust the camera angle. Tilt Screw Loosens the screw to tilt the camera. Pan Disc Loosens to pan the camera.
Page 222 Name Description Audio Out Connects a speaker for audio output. LAN / PoE Connects to a 10/100 Ethernet or PoE. Connects to I/O devices. For details, see I/O Terminal Block Fixed IP Dome Chapter in the GV-IPCAM Firmware Manual on the Software DVD. DC 12V Port Connects to power.
Page 223: Installation
Fixed IP Dome 18.3 Installation The Fixed IP Camera is designed for indoors. With the standard packing, there are three ways to install the Fixed IP Camera: hard-ceiling mount, in-ceiling mount and wall-surface mount. 18.3.1 Hard-Ceiling Mount Paste the supplied sticker onto a desired location on the ceiling. Drill the three red dots and the ellipse mark only if you wish to run the wires into the ceiling.
Page 224 Take out the camera body Secure the camera body and the mounting plate to the ceiling with the three ceiling screws. Ceiling mounting plate Connect the network and power cables to the camera. See 18.4 Connecting the Camera in the Quick Start Guide. Access the live view.
Page 225 Fixed IP Dome Pan Adjustment Tilt Adjustment Rotational Adjustment...
Page 226 Adjust for image clarity using the GV-IP Device Utility program. For details, see 24.3 Adjusting Image Clarity in the Quick Start Guide. Focus Screw Zoom Screw Secure the housing cover as shown in step 2. Remove the indicated part when necessary. Note: Adjust the black mask inside the housing cover to make sure the camera view is not obscured.
Page 227: In-Ceiling Mount
Fixed IP Dome 18.3.2 In-Ceiling Mount Follow step 2 in the Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the ceiling and cut a circle on the ceiling along the edge of the sticker. On the mounting plate, locate the 3 holes labeled as 1 and insert the 3 copper pillars from the back side.
Page 228 Place the 3 mounting brackets at the indent next to the copper pillars (labeled as 2 on the mounting plate) and secure them using the 3 bracket screws. Place the mounting plate on the camera body with the copper pillars inserted in the locations indicated below.
Page 229 Fixed IP Dome On the back side, make sure the black plastic clips are slightly above the ceiling board and pointing outward. Back Side Front Side 10. Tighten the bracket screws from the front side of the camera. 11. Connect the network and power cables to the camera. See 18.4 Connecting the Camera in the Quick Start Guide.
Page 230 15. Place the housing cover on the camera body with the GeoVision logo pointing toward the front of the camera.
Page 231: Wall-Surface Mount
Fixed IP Dome 18.3.3 Wall-Surface Mount Follow step 2 in the Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.
Page 232 Follow steps 6 and 7 in the Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera. Follow step 8 in the Hard-Ceiling Mount section to secure the housing cover.
Page 233: Connecting The Camera
Fixed IP Dome 18.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable the function by selecting the signal format in the TV Out field in the Web interface.
Page 234: Target Fixed Ip Dome
19. Target Fixed IP Dome 19.1 Packing List • Target Fixed IP Dome • Torx Wrench • Screw x 3 • Screw Anchor x 3 • TV-Out Wire • Installation sticker • GV-IPCam Software DVD • Warranty Card • GV-NVR Software DVD Note: The power adapter can be purchased upon request.
Page 235: Overview
Target Fixed IP Dome 19.2 Overview Name Description Lens Receives image inputs. Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Default Resets the camera to default settings. See 27. Button Restoring to Default Settings. TV-Out Provides video inputs (D1 resolution).
Page 236 Name Description Turns on (orange) when data are being transmitted. DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Tilt Screw Loosens the screw to adjust tilt angle. Note: The TV-out function can only be used during installation to adjust the focus of the camera.
Page 237: Installation
Target Fixed IP Dome 19.3 Installation The Target Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Use the supplied torx wrench to loosen three screws on the housing cover, and take out the camera body.
Page 238 Note: The TV-out function can be used to access the live view. For details, see the Note for TV-out in 19.2 Overview. Adjust image clarity using the GV-IP Device Utility program. For details, see 24.3 Adjusting Image Clarity in the Quick Start Guide. Loosen the tile screw, pan screw or rotational screw.
Page 239: Connecting The Camera
Target Fixed IP Dome 19.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the manual. •...
Page 240: Cube Camera
20. Cube Camera 20.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCam Software DVD • Power Adapter • GV-NVR Software DVD • Warranty Card Note: The power adapter can be excluded upon request.
Page 241: Overview
Cube Camera 20.2 Overview Name Description Microphone Receives sounds. Speaker Plays sounds. Connects to a 10/100 Ethernet. Turns red when the system powers on. Turns Status LED orange when the system is ready. Turns green when the camera is connected to the LAN LED Internet.
Page 242: Installation
20.3 Installation Follow the steps below to install, connect to and adjust your Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws. Screw the camera onto the supporting rack and fasten the indicated screw.
Page 243 Cube Camera Adjust the angles of the camera based on live view and fasten the indicated screw.
Page 244: Connecting The Camera
See 24. Accessing the Camera in the Quick Start Guide. IMPORTANT: Be sure to use the GeoVision power adapter to power up the camera. To use your own power cable, make sure you look up the...
Page 245: Advanced Cube Camera
Advanced Cube Camera 21. Advanced Cube Camera 21.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCam Software DVD • Power Adapter • GV-NVR Software DVD • Warranty Card Note: The power adapter can be excluded upon request.
Page 246: Overview
21.2 Overview 2 3 4 5 6 7 Name Description Plays sounds for tampering and motion alarm, and listens to the audio around the camera. To Speaker set up alarm sound, see Speaker section, Administrator Mode Chapter, GV-IPCAM Firmware Manual on the Software DVD. PIR sensor Passive infrared sensor.
Page 247 Advanced Cube Camera Name Description Stand screw Connects to the Supporting Rack. Power port Connects to the power adapter. Reflects system status of the camera. See the Ready LED below table. Reflects LAN status of the camera. See the below LAN LED table.
Page 248: Installation
21.3 Installation Follow the steps below to install, connect to and adjust your Advanced Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws. Screw the camera onto the supporting rack and fasten the indicated screw.
Page 249 Advanced Cube Camera Adjust the angle of the camera based on live view and fasten the indicated screw. For GV-CAW120/220, to connect to the Internet through wireless service, follow the steps in 24.2.3 Configuring the Wireless Connection in the Quick Start Guide.
Page 250: Connecting The Camera
21.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Connect power using one of the following methods: • Plug the power adapter to the power port. • Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.
Page 251: Camera
PT Camera 22. PT Camera 22.1 Packing List • GV-PT130D/220D/320D • Mounting Base • Mounting Cover • Wall Mount Bracket • Screw Anchor x 3 • Long Screw x 3 • Short Screw x 3 • Round Screw x 3...
Page 252 • Terminal Block • Washer x 3 • Power Adapter • GV-IPCAM Software DVD • GV-NVR Software DVD • Warranty Card Note: The power adapter can be excluded upon request.
Page 253: Overview
PT Camera 22.2 Overview 6 7 8...
Page 254 Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN / PoE Connects to a 10/100 Ethernet or PoE. Connects to I/O terminal device. For details, see I/O Terminal Block, PTZ I/O Terminal Block Camera Chapter, GV-IPCAM Firmware Manual on the Software DVD.
Page 255: Installation
PT Camera 22.3 Installation The GV-PT series is designed for indoor usage. Make sure that the installing location is shielded from rain and moisture. There are two ways to install the camera: Ceiling Mount and L-Shaped Wall Mount. 22.3.1 Ceiling Mount Use the mounting base to make 3 marks on the wall for screw anchors.
Page 256 Fix the mounting base (now with the PT Camera attached) to the wall with 3 long screws. Put on the mounting cover. To fit the installation environment, you can cut the parts indicated by arrows to make an opening for wires and cables.
Page 257: L-Shaped Wall Mount
PT Camera 22.3.2 L-Shaped Wall Mount You may wall-mount the GV-PT series with or without the mounting cover. Take the wall mount bracket and make 2 marks on the wall for screw anchors. wall Drill the marks and insert 2 screw anchors. Insert the long screws and leave enough distance (approximately 2 mm) to hang the wall mount bracket later.
Page 258 Hang the wall mount bracket on the screws and push the wall mount bracket downward. Make sure the long screws are tightened. Without Mounting Cover Attach the wall mount bracket with the PT Camera using 3 washers and 3 round screws. Screw Washer...
Page 259 PT Camera With Mounting Cover To install the mounting cover, attach the mounting base to the camera and then put on the mounting cover. See steps 3 and 5 in 19.3.1 Ceiling Mount. Attach the wall mount bracket with the PT Camera using 3 round screws.
Page 260: Connecting The Camera
22.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Connect power using one of the following methods: • plugging the power adapter to the power port. •...
Page 261: Pinhole Camera
Pinhole Camera 23. Pinhole Camera 23.1 Packing List • Pinhole Camera • 1 m (3.28 ft) RJ-12 Cable • Camera Adhesive Tape x 2 • Installation Sticker • Main Body Mount • Main Body Adhesive Tape...
Page 262 • M3 Screw x 2 • M2 Screw • GV-IPCAM Software DVD • GV-NVR Software DVD • Warranty Card...
Page 263: Overview
Pinhole Camera 23.2 Overview Camera Lens Main Body...
Page 264 Name Description Lens Receives images. Microphone Receives sounds. Lens Screw Loosens to adjust the camera lens. Use the supplied RJ12 cable to connect RJ12 Port the camera lens and main body. Turns on (green) when the camera lens RJ12 Status LED and main body are connected.
Page 265: Installation
Pinhole Camera 23.3 Installation The Pinhole Camera is designed for indoors. You can install the camera lens behind a wall or the ceiling board. Note that the thickness of the wall or ceiling board must be less than 4 mm. Paste the installation sticker on the ceiling or the wall where you want to install the camera lens.
Page 266 Paste one of the supplied camera adhesive tapes onto the camera lens. Remove the backing paper on the other side of the adhesive tape and attach the camera lens onto the wall or ceiling. The arrows on the camera lens point toward the top of the camera view.
Page 267 Pinhole Camera Loosen the lens screw and adjust the position of the lens so that the metal ring is pressing against the wall or ceiling. Metal ring Lens screw Place the main body mount where you want to install it, and secure the mount using one of the methods below.
Page 268 Align the main body with the mount as shown below and secure with the supplied M2 screw. Connect the camera lens and the main body using the RJ-12 cable. Connect the main body to the network and supply power via the PoE cable.
Page 269: Connecting The Camera
Pinhole Camera 23.4 Connecting the Camera Use the supplied RJ12 cable to connect the camera lens and the main body. Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided over the network cable. Status LED The status LED of the camera will be on.
Page 270: Accessing The Camera
24. Accessing the Camera 24.1 System Requirement To access the GV-IP Camera through the Web browser, ensure your PC connects to the network properly and meets this system requirement: • Microsoft Internet Explorer 7.x or later Note: For the users of Internet Explorer 8, additional settings are required.
Page 271: Accessing The Live View
Accessing the Camera 24.2 Accessing the Live View When the camera is connected to a network with a DHCP server, it will be automatically assigned with a dynamic IP address. See 24.2.1 Checking the Dynamic IP Address to look up this IP address. However, if you do not have a DHCP server on your network, access the camera by its default IP address 192.168.0.10 and see 2.1.2 Configuring the IP Address for more detail.
Page 272: Checking The Dynamic Ip Address
24.2.1 Checking the Dynamic IP Address Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the GV-IPCAM software DVD. Note: The PC installed with GV-IP Device Utility must be under the same LAN with the GV-IPCAM you wish to configure.
Page 273 Accessing the Camera Find the camera with its Mac Address, click on its IP address and select Web Page. The login page appears. Type the default ID and password admin and click Apply to log in.
Page 274: Configuring The Ip Address
Click Apply. The camera is now accessible by entering the assigned IP address on the Web browser. To enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a one-time installation of GeoVision’s ActiveX component onto your computer.
Page 275 Accessing the Camera IMPORTANT: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from DHCP server or ISP to log in. If your camera is installed in the LAN, use the GV-IP Device Utility to look up its current dynamic IP address.
Page 276: Configuring The Wireless Connection
24.2.3 Configuring the Wireless Connection You may create wireless connection to the Internet for GV-BX1200 series / 1500 series / 2400 series / 3400 series / 5300, GV-MFD1501 Series / 2401 series / 3401 series / 5301 series, and GV-CAW120/220. To set up the wireless LAN for the first time, power on and connect a standard network cable to the camera.
Page 277 Accessing the Camera D. Select the Authentication Type using the drop-down list. You can also obtain this information by clicking the Access Point Survey button. E. Type the WPA-PSK Pre-shared Key or WEP depending on the encryption setting for the Access Point. Click Apply to save the configuration.
Page 278 Enable wireless LAN. On the Web interface, select Network and LAN. This page appears. Select Wireless for Optional Network Type. To use a dynamic IP address assigned by the DHCP server, select Dynamic IP address. To use a fixed IP address, select Static IP address and type the IP address information.
Page 279 Accessing the Camera Unplug the Ethernet cable.
Page 280: Adjusting Image Clarity
24.3 Adjusting Image Clarity You can adjust the image clarity using the GV-IP Device Utility. Make sure that you have connected your GV-IPCAM to the network and install the GV-IP Device Utility program under the same LAN. Note: This feature only applies to the cameras that allow manual focus adjustment.
Page 281 Accessing the Camera Select Focus Value. The Login dialog box appears. Type the user name and password of the camera selected. The default is admin for both user name and password. This window appears. For IK10+ models (GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 3400 / 1530 / 2430 / 2530 / 3430), hold the supplied Focus Adjustment Cap over the camera view.
Page 282 For Target Mini Fixed Dome and Target Mini Fixed Rugged Dome, hold the camera cover close to the lens and use the supplied focus adjustment tool for precise focus adjustment. For Mini Fixed Dome and Mini Fixed Rugged Dome, hold the camera cover close to the lens for precise focus adjustment.
Page 283: Using Focus Adjustment Cap
Accessing the Camera 24.3.1 Using Focus Adjustment Cap There are two types of Focus Adjustment Caps for GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 3400 / 1530 / 2430 / 2530 / 3430. Focus Adjustment Cap Type I: Hold the Focus Adjustment Cap on top of the camera view, keep...
Page 284: The Web Interface
25. The Web Interface 12 13...
Page 285 The Web Interface No. Name Function Play Plays live video. Stop Stops playing video. Broadcasts to the surveillance site from a remote PC. Note this function is not available for Ultra Bullet Camera and Target Series. For Cube Camera and Advanced Cube Camera, click the Microphone Push to talk button (from the pop-up menu) for the camera to switch between audio transmission and...
Page 286 No. Name Function Enables the PTZ Control Panel or the Visual PTZ. PTZ Control Note this function is supported by PTZ Camera and Panel PT Camera, and only partially supported by GV-IP Cameras with motorized varifocal lens. Enables the I/O Control Panel and Visual Automation.
Page 287: Upgrading System Firmware
Upgrading System Firmware 26. Upgrading System Firmware GeoVision periodically releases updated firmware on the website. The new firmware can be simply loaded into the GV-IPCAM by using the Web interface or IP Device Utility included in the software DVD. IMPORTANT: To update the camera firmware from versions earlier than V2.07 to...
Page 288 Click the Upgrade button to start the upgrade. WARNING: The interruption of power supply during updating causes not only update failures but also damages to the camera. In this case, please contact your sales representative and send your device back to GeoVision for repair.
Page 289: Restoring To Default Settings
Restoring to Default Settings 27. Restoring to Default Settings You can restore factory default settings through the Web interface or directly on the camera. 27.1 Using the Web Interface On the left menu of Web interface, select Management and select Tools.
Page 290: Directly On The Camera
27.2 Directly on the Camera Box Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button for about 8 seconds on the back panel of the camera. Default button Release the default button when the status LED blinks.
Page 291: Ultra Box Camera And Target Box Camera
Restoring to Default Settings Ultra Box Camera and Target Box Camera Press and hold the default button on the back panel of the camera for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . Default button Status LED...
Page 292: Mini Fixed Dome
Mini Fixed Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . • GV-MFD120 / 130 / 320 Default button Status LED •...
Page 293: Mini Fixed Rugged Dome
Restoring to Default Settings Mini Fixed Rugged Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . Status LED Default button IR Arctic Box Camera Note the following procedure is only applicable to GV-BX2510-E / 5310-E.
Page 294: Target Mini Fixed Target Mini Fixed Rugged Dome
Target Mini Fixed Target Mini Fixed Rugged Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . Status LED Status LED...
Page 295: Bullet Camera
Restoring to Default Settings Bullet Camera Press and hold the default button. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . • For GV-BL3700 / 5700, hold the button for 5 seconds. The ready LED blinks.
Page 296: Ultra Bullet Camera
Ultra Bullet Camera Press and hold the default button for about 8 seconds to restore the default settings. For details, see Box Camera, 27.2 Directly on the Camera . Default button Target Bullet Camera Press and hold the default button for about 8 seconds to restore the default settings.
Page 297: Vandal Proof Ip Dome
Restoring to Default Settings Vandal Proof IP Dome Press and hold the default button. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . • For GV-VD3700 / 5700, hold the default button for 5 seconds. Note the camera model doesn’t have the LED.
Page 298: Target Vandal Proof Ip Dome
Target Vandal Proof IP Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . Default Status LED Fixed IP Dome Press and hold the default button for about 8 seconds.
Page 299: Target Fixed Ip Dome
Restoring to Default Settings Target Fixed IP Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . Cube Camera Press and hold the default button for about 8 seconds.
Page 300: Advanced Cube Camera
Advanced Cube Camera Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. The status LED turns green when the camera is ready to use. For details, see Box Camera, 27.2 Directly on the Camera .
Page 301: Pinhole Camera
Restoring to Default Settings Pinhole Camera Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 27.2 Directly on the Camera . Status LED Load Default...
