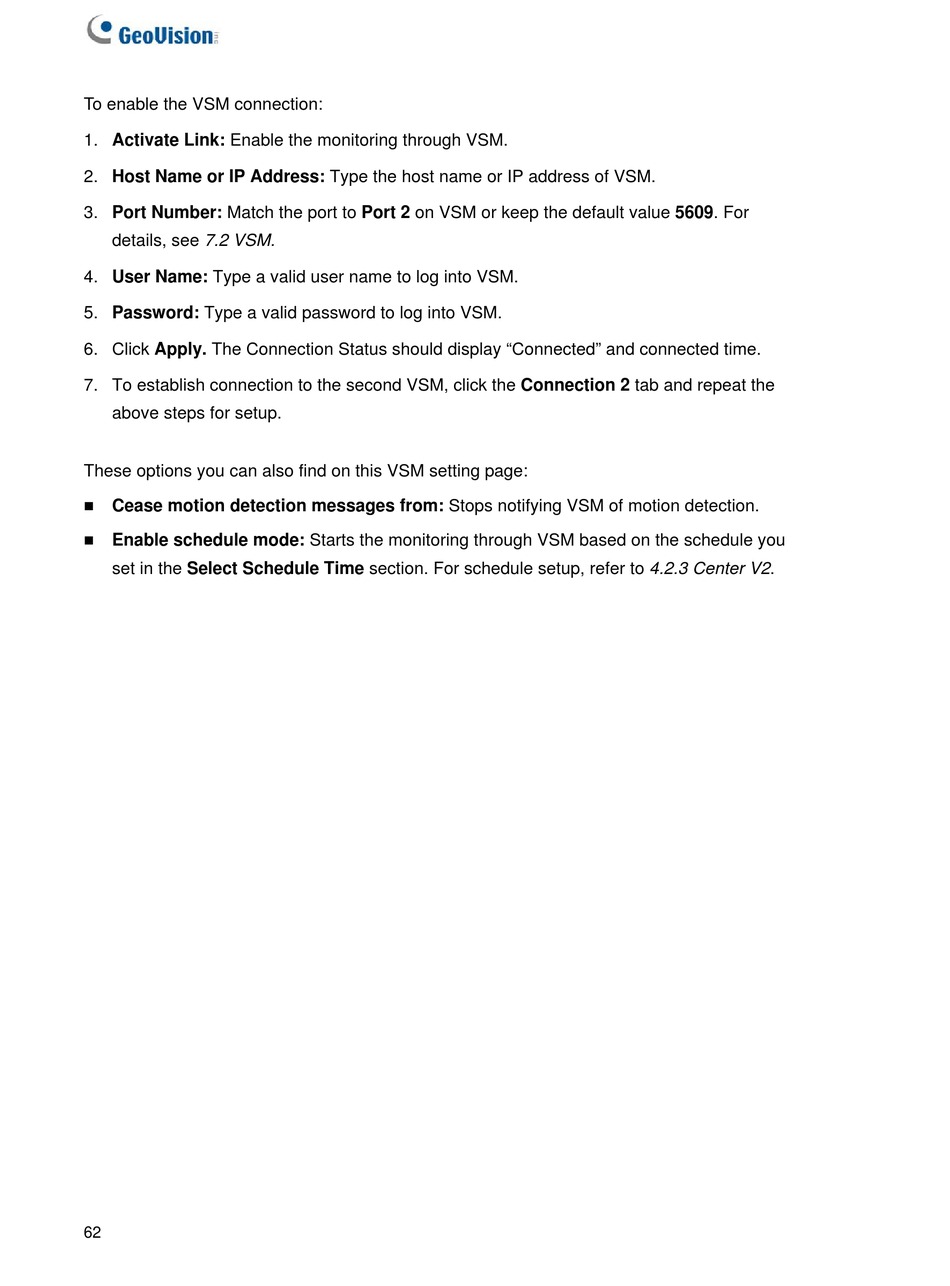

GeoVision GV-IP LPR Camera 5R User Manual page 70

To enable the VSM connection:
1. Activate Link: Enable the monitoring through VSM.
2. Host Name or IP Address: Type the host name or IP address of VSM.
3. Port Number: Match the port to Port 2 on VSM or keep the default value 5609. For
details, see 7.2 VSM.
4. User Name: Type a valid user name to log into VSM.
5. Password: Type a valid password to log into VSM.
6. Click Apply. The Connection Status should display "Connected" and connected time.
7. To establish connection to the second VSM, click the Connection 2 tab and repeat the
above steps for setup.
These options you can also find on this VSM setting page:
 Cease motion detection messages from: Stops notifying VSM of motion detection.
 Enable schedule mode: Starts the monitoring through VSM based on the schedule you
set in the Select Schedule Time section. For schedule setup, refer to 4.2.3 Center V2.
62
