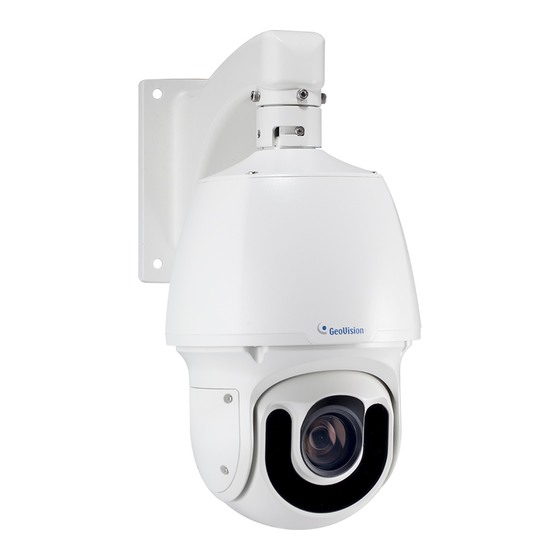

GV-IP Speed Dome
GV-SD2322-IR
GV-SD3732-IR
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
User's Manual
ISD3732IRV100-A-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-SD2322-IR and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-SD2322-IR

Summary of Contents for GeoVision GV-SD2322-IR

  • Page 1 GV-IP Speed Dome User's Manual GV-SD2322-IR GV-SD3732-IR Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. ISD3732IRV100-A-EN...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 Preface Welcome to the GV-IP Speed Dome User’s Manual. This Manual is designed for the following models and firmware versions: Model Model Number Firmware Version GV-SD2322-IR V1.0 IP Speed Dome GV-SD3732-IR V1.0...

  • Page 4: Table Of Contents

    Contents Naming Definition..............v Note for Connecting to GV-VMS / DVR / NVR .......vi Note for Recording ..............vii Note for Installing Camera Outdoor ........viii Chapter 1 Introduction ............1 1.1 Key Features ......................2 1.2 Packing List ......................4 1.3 System Requirements.................... 5 1.4 Optional Accessories .....................
  • Page 5 Chapter 4 Administrator Mode ...........32 4.1 Common .......................34 4.1.1 Navigation / Basic Info................34 4.1.2 Local Settings..................35 4.2 Network ........................37 4.2.1 TCP/IP ......................37 4.2.2 Port......................39 4.2.3 FTP......................40 4.2.4 E-mail ......................41 4.2.5 DDNS ......................42 4.2.6 Port Mapping ...................44 4.2.7 802.1x .....................45 4.3 Video & Audio .......................46 4.3.1 Video ......................46 4.3.2 Audio ......................48 4.3.3 Capture.....................49...
  • Page 6 4.9.1 Time ......................76 4.9.2 Maintenance....................78 4.9.3 Security ....................80 4.9.4 Ports and Device..................82 Chapter 5 Recording and Playback ........83 5.1 Recording ......................83 5.2 Playback from the Memory Card................84 Chapter 6 Advanced Applications ........86 6.1 Upgrading System Firmware.................86 6.1.1 Using the Web Interface ................87 6.1.2 Using the GV-IP Device Utility ..............88 6.2 Restoring to Factory Default Settings..............90 6.2.1 Using the Web Interface ................90...

  • Page 7: Naming Definition

    Naming Definition GV-System GeoVision Analog and Digital Video Recording Software. The GV- System also refers to Multicam System, GV-NVR System, GV- DVR System and GV-Hybrid DVR System at the same time GV-VMS GeoVision Video Management System for IP cameras.

  • Page 8: Note For Connecting To Gv-Vms / Dvr / Nvr

    Note for Connecting to GV-VMS / DVR / NVR The GV-IP Speed Dome is designed to work with and record on GV-VMS / DVR / NVR, a video management system.  By default, the images are recorded to the memory card inserted in the GV-IP Speed Dome.

  • Page 9: Note For Recording

    Note for Recording By default, the images are recorded to the memory card inserted in the GV-IP Speed Dome. Mind the following when using a memory card for recording:  Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan.

  • Page 10: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the camera outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.

  • Page 11: Chapter 1 Introduction

    This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at 30 fps (GV-SD2322-IR), or 2048 x 1536 at 30 fps and 1920 x 1080 at 60 fps (GV-SD3732- IR). In low-light environments, night vision is enhanced with its high power LEDs, which allow up to 150 m (492 ft) effective IR distance.

  • Page 12: Key Features

    1.1 Key Features  1/2.8" progressive scan low lux CMOS sensor  Min. illumination at 0.01 lux (B/W) and 0.03 lux (color) (for GV-SD2322-IR) Min. illumination at 0.03 lux (B/W) and 0.05 lux (color) (for GV-SD3732-IR)  Triple streams from H.264 and MJEPG (for GV-SD2322-IR) Triple streams from H.265, H.264 and MJPEG (for GV-SD3732-IR)
  • Page 13 Introduction  Motion detection  Privacy mask...

  • Page 14: Packing List

    IR IP Speed Dome 24V AC Power Adapter   M4 Hex Key Waterproof Rubber Set  Waterproof Requirements  GV-IP Speed Dome Software DVD (for GV-SD2322-IR)  GV-Software DVD (for GV-SD2322-IR)  Software Download Guide (for GV-SD3732-IR)  Warranty Card...

  • Page 15: System Requirements

    Introduction 1.3 System Requirements Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) Web Browsers Internet Explorer 11.0 or above   Mozilla Firefox Safari ...

  • Page 16: Optional Accessories

    1.4 Optional Accessories Optional accessories can expand the capabilities and versatility of your GV-SD2322-IR / 3732-IR. Contact your dealer for more information. Model Number Name Details GV-Mount104 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x 13.1”)
  • Page 17 Introduction GV-Mount400 Pole Mount Bracket Bracket: 241 x 161 mm (9.5” x 6.3”) Weight: 1.70 kg (3.75 lb) (Ø 4" ~ 6") Steel Strap: Ø 4" ~ 6" GV-Mount410 Pole Mount Bracket Bracket: 241 x 161 mm (9.5” x 6.3”) Weight: 1.70 kg (3.75 lb) (Ø...

  • Page 18: Physical Description

    1.5 Physical Description Figure 1-1 Name Function Resets all configurations to default factory settings. See Default Button 6.2 Restoring to Factory Default Settings. Inserts a micro SD card (SDHC/SDXC, Class 10) to store Micro SD Card Slot recording data.

  • Page 19: Accessory Installation (Wall Pendant Mount)

    Introduction 1.6 Accessory Installation (Wall Pendant Mount) You can separately purchase optional mounting accessories to mount GV-SD2322-IR / 3732-IR on a wall, ceiling or pole. Make sure the wall has enough strength to support the camera and the mount. Below are the instructions for Wall Pendant Mount, which requires the accessory GV- Mount210.
  • Page 20 Place the pendant tube on the wall, and mark the position of the screw holes. Figure 1-2 Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared screws. Attach the safety lock of the camera to the pendant tube. Figure 1-5 Thread the data cable through the pendant tube.
  • Page 21 Introduction Attach the camera to the pendant tube, rotate the camera until it is locked into position, and secure the indicated screws. Figure 1-7 Insert the pendant mount screws and tighten with the supplied M4 hex key. Figure 1-8 Thread the Ethernet cable through the waterproof rubber set as shown below. Figure 1-9 Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof rubber set.

  • Page 22: Connecting The Camera

    1.7 Connecting the Camera The camera comes with a data cable that allows you to connect the camera to the power adapter, microphone, speaker, and I/O devices. Figure 1-10 Connect the supplied power adapter to the 3-pin terminal block. Either of the red or black cables can be used for anode (+) and the cathode (-).
  • Page 23 Introduction Wire Definition No. Wire Definition Brown Audio in Brown / White Green Audio out Green / White Gray Alarm IN 1 Purple Alarm IN 2 Black Orange Alarm In - Orange / White Alarm Out + Yellow RS-485 – (only for GV-SD3732-IR) Yellow / Black RS-485 +...

  • Page 24: Chapter 2 Accessing The Camera

    Chapter 2 Accessing the Camera Once installed, the IP Speed Dome is accessible on a network. Follow these steps to configure the network settings and access your surveillance images. 2.1 Installing on a Network These instructions describe the basic connections to install the camera on the network. 1.

  • Page 25: Checking The Dynamic Ip Address

    Install the GV-IP Device Utility program included on the Software DVD (for GV-SD2322- IR) or download the program from http://www.geovision.com.tw/english/5_8.asp Note: The PC installed with GV-IP Device Utility must be under the same LAN with the camera you wish to configure.
  • Page 26 The login page appears. Figure 2-3 Type the default ID and password admin and click Apply to login.

  • Page 27: Assigning An Ip Address

    Accessing the Camera 2.1.2 Assigning an IP Address To assign a new static IP address, log in the Web interface to access the network setting page. Note: If your router does not support DHCP, the default IP address will be 192.168.0.10. In this case, it is strongly suggested that you modify the IP address to avoid the IP address conflict with other GV-IP devices on the same LAN.

  • Page 28: Accessing Live View

    2.2 Accessing Live View After logging in to the speed dome, you will see the Home page as shown below: Figure 2-5...

  • Page 29: The Live View Window

    Accessing the Camera 2.2.1 The Live View Window For GV-SD2322-IR Figure 2-6 No. Name Function Set the display ratio of the image.  Scale: display images by 16:9. Proportional  Stretch: display images by window size.  Original: display images in its original size.
  • Page 30 Adjust the microphone volume on the PC during audio Microphone communication between the PC and the camera. Snapshot Take a snapshot of the current image displayed on the PC. Local Recording Start or stop local recording. Audio Start or stop audio communication between the PC and Communication the camera.

  • Page 31: Accessing The Camera

    Accessing the Camera For GV-SD3732-IR Figure 2-7 No. Name Function Image Open the image setting page. -- See 4.5.1 Image. Full Screen Mode Display in full screen mode. Start or stop area focus. By activating this function, you can change the focus of the live view either to the foreground or to the background objects.

  • Page 32: Digital Zoom

    2.2.1.1 Digital Zoom To use the digital zoom function, follow these steps: 1. Click (No. 11, Figure 2-6) on the toolbar. 2. Click and hold the mouse button, and then drag from the top down to specify an area. 3. To restore the original image size, click in the enlarged area, or drag from the bottom up. 4.

  • Page 33: Chapter 3 Ptz Control Panel

    PTZ Control Panel Chapter 3 PTZ Control Panel In this chapter, you will be guided through the various functions of PTZ Control Panel. The PTZ Control Panel is accessed from the live view interface of the camera. 3.1 Assessing the PTZ Control Panel Figure 3-1 No.

  • Page 34: Setting Presets

    3.1.1 Setting Presets Under the Preset tab, you can create and delete preset points. Adding a Preset 1. On the Live View page, click Preset (No.7, Figure 3-1) on the control panel. Figure 3-2 2. Adjust the camera until it points toward the desired direction. 3.
  • Page 35 PTZ Control Panel Deleting a Preset 1. On the Live View page, click Preset (No.7, Figure 3-1) on the control panel. 2. Click (Figure 3-3) for a preset and confirm the delete. Figure 3-4...

  • Page 36: Setting Patrol

    3.1.2 Setting Patrol A patrol route is the track by which the camera follows when moving from a preset to the next. The length of time that the camera stays at each preset is configurable. Multiple patrol routes are allowed for the camera. Patrol actions include going to a preset and staying at the preset for a certain amount of time before going to the next.
  • Page 37 PTZ Control Panel Note: 1. It is recommended that the first action type is Go to Preset. 2. If Keep Rotating is selected, the camera will rotate at the set speed in the set direction for a certain amount of time, zoom, stay at a set position for a certain amount of time, or patrol repeatedly.
  • Page 38 Making a Patrol Plan 1. On the Live View page, click Patrol (No.8, Figure 3-1) on the control panel. 2. Click the Route button . The page for setting patrol plans is displayed. Figure 3-8 3. Set the correct patrol time and route. 4.
  • Page 39 PTZ Control Panel Starting a patrol route After you have added a patrol route, select the patrol route to start patrol. 1. On the Live View page, click Patrol (No.8, Figure 3-1) on the control panel. 2. Click for the patrol route you want to start. Figure 3-9...
  • Page 40 Editing a Patrol Route 1. On the Live View page, click Patrol (No.8, Figure 3-1) on the control panel. 2. Click for the patrol route you want to edit and modify the settings as required. Figure 3-10 Delete a patrol route 1.

  • Page 41: Setting Home Position

    PTZ Control Panel 3.2 Setting Home Position PTZ camera will return to home position if no operation is made within a specified period. 1. On the Setup page, select PTZ in the left menu and select Home Position to access the settings.

  • Page 42: Chapter 4 Administrator Mode

    Chapter 4 Administrator Mode The Administrator can access and configure GV-SD2322-IR / 3732-IR through the network. Click Setup at the top of the Web interface to access the following nine configuration tabs: Common, Network, Video & Audio, PTZ, Image, Events, Storage, Security and System.
  • Page 43 Administrator Mode List of Options See the table below for the settings available on the Web interface. Find the topic of interest by referring to the section number prefixed to each option. The configuration tabs and settings may vary with available models. 4.1.1 Navigation / Basic Info 4.1 Common 4.1.2 Local Settings...

  • Page 44: Common

     OSD: See 4.5.2 OSD for details  User: See 4.8 Security (for GV-SD3732-IR) or 4.9.3 Security (for GV-SD2322-IR) for details 4.1.1 Navigation / Basic Info You can view the current status of your camera. Click Refresh for the latest status information.

  • Page 45: Local Settings

    Administrator Mode 4.1.2 Local Settings You can set local parameters for your PCs. Figure 4-3 [Video Param]  Processing Mode  Real Time Prior: Select this if the network is in good condition.  Fluent Prior: Select this if you want short time lag for live video. ...
  • Page 46 [Audio Param] The audio codec and sampling rate used are shown here. [Recording and Snapshot]  Recording  Subsection By Time: Set a maximum time length of each recording file. If you select 5 minutes, a 30-minute event will be chopped into six 5-minute event files. ...

  • Page 47: Network

    The network section allows you to configure the network settings, modify ports, configure FTP server, and set up e-mail for notification. 4.2.1 TCP/IP For GV-SD2322-IR Figure 4-4  IP Obtain Mode: Select Static IP or DHCP according to your network environment.
  • Page 48 IPv4: Select Static IP, DHCP or PPPoE according to your network environment. For detailed instructions see IP Obtain Mode for GV-SD2322-IR.  PPPoE: (The function is not supported by GV-SD2322-IR.) The network environment is xDSL connection. Type the Username and Password provided by ISP to establish the connection.

  • Page 49: Port

    Administrator Mode 4.2.2 Port You can modify the default HTTP port, HTTPS port and RTSP port if necessary. Figure 4-6...

  • Page 50: Ftp

    4.2.3 FTP After the configuration of FTP, you will be able to upload snapshots from the camera to the specified FTP server. Figure 4-7 1. Type the Server IP address. 2. Change the Port No. of the FTP server if needed. 3.

  • Page 51: E-Mail

    Administrator Mode 4.2.4 E-mail After the configuration of E-mail, you will be able to send messages to the specified E-mail address when alarms are triggered. Figure 4-8 [Sender] 1. Type the Name and Address of the sender. 2. Type the SMTP Server. 3.

  • Page 52: Ddns

    Administrator does not need to go through the trouble of checking if the IP address assigned by DHCP Server or ISP (in xDSL connection) has changed. Figure 4-9 1. Enable DDNS Service. 2. Copy the website address http://ns.gvdip.com/register.aspx to a browser to access Geovision DDNS service. Figure 4-10...
  • Page 53 Administrator Mode 3. In the Geovision DDNS Server page, type a desired Hostname and Password. Re-type Password and type the verification letters shown in the image. Click Send. 4. In the Web interface of your GV-SD3732-IR, type Username. The username is the hostname registered in DDNS Server.

  • Page 54: Port Mapping

    4.2.6 Port Mapping Note this function is only for GV-SD3732-IR. This function can automatically forward and open certain ports on your router, allowing connection to your camera from the Internet. Figure 4-12 1. Enable Port Mapping, and select Mapping Type. 2.
  • Page 55 Administrator Mode 4.2.7 802.1x Note this function is only for GV-SD3732-IR. IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN. Figure 4-13 1. Enable IEEE 802.1x. 2.

  • Page 56: Video & Audio

    Capture Collect Mode: Sets the maximum resolution and frame rate. The following options are available for the main, sub and third streams. Video Compression: Set the codec type to H.264 or MJPEG (for GV-SD2322-IR), or to  H.265, H.264 or MJPEG (for GV-SD3732-IR).
  • Page 57 Administrator Mode  Image Quality: When VBR is selected for the encoding mode, you can move the slider to adjust quality level for images. Moving the slider toward Bit Rate decreases the bit rate and may affect image quality. Moving the slider toward Quality increases the bit rate and improves image quality.

  • Page 58: Audio

    4.3.2 Audio You can configure the audio settings of the camera. Figure 4-15 The following options are available.  Audio Input: Select ON to enable audio input. Input Gain: Set the audio signal amplification for sampling. The greater the gain, the ...

  • Page 59: Capture

    Administrator Mode 4.3.3 Capture Note this function is only for GV-SD3732-IR. Using the Capture function, when an alarm is triggered, the camera will automatically upload the captured snapshots to the FTP server or send snapshots to the specified e-mail address. Figure 4-16 Enable Capture.

  • Page 60: Media Stream

    4.3.4 Media Stream Note this function is only for GV-SD3732-IR. Media Stream By configuring media stream, you can set the camera to transmit code streams by UDP or TCP protocol to a specified IP address and port number. The settings can be saved and take effects after the camera is restarted.
  • Page 61 Administrator Mode RTSP Multicast Address After an RTSP multicast address is configured, the third-party player can request the RTSP multicast media stream from the camera through the RTP protocol. Figure 4-18 1. Type the Multicast Address (224.0.0.0 to 239.255.255.255) and Port number (0 to 65535).

  • Page 62: Ptz

    4.4 PTZ 4.4.1 Home Position You can set the camera to return to home position if no operation is made within a specified period. Figure 4-19 1. Use the Preset drop-down list to set a preset point as the home position. 2.

  • Page 63: Patrol

    Administrator Mode 4.4.2 Patrol Note this function is only for GV-SD3732-IR. You can set the camera to take a snapshot and upload the image to the FTP server when the camera goes to the preset during the patrol route. Figure 4-20 1.

  • Page 64: Image

    4.5 Image This section introduces the Image Settings, On-screen Display, and Privacy Mask. 4.5.1 Image This page allows you to adjust image settings such as brightness, exposure, IR illumination and white balance. Figure 4-21 [Scene]  Current: Indicates the scene that is being used. ...
  • Page 65 Administrator Mode Figure 4-22 [Image Enhancement]  Brightness: Adjust the degree of brightness of the image.  Saturation: Adjust the amount of a hue contained in a color.  Contrast: Set the degree of difference between the blackest pixel and the whitest pixel. ...
  • Page 66 Figure 4-23 [Exposure]  Exposure Mode: Select the correct exposure mode to achieve the desired exposure effect. The default setting is Outdoor with a frequency of 50 Hz.  Shutter (s): The length of time that allows light to enter into the lens. You can set a shutter speed when Exposure Mode is set to Manual or Shutter Priority.
  • Page 67 Administrator Mode  Slow Shutter: Improve image brightness in low light conditions. You can only set this parameter when Exposure Mode is not set to Shutter Priority and when Image Stabilizer is disabled. Slowest Shutter: Set the slowest shutter speed that the camera can use during ...
  • Page 68  Control Mode:  Global Mode: (The function is only for GV-SD2322-IR.) Adjust IR illumination and exposure to achieve balanced image effects. Some areas might be overexposed if you select this option. This option is recommended if monitored range and image brightness are your first priority.
  • Page 69 Administrator Mode Figure 4-25 [Focus]  Focus Mode:  Auto Focus: Focuses automatically according to the current light condition.  Manual Focus: Manually adjust camera focus as required.  One-Click Focus: The camera is triggered to focus once when rotating, zooming or going to a preset.
  • Page 70 Sodium: Adjust the red and blue offset automatically according to the light  condition (the color tends to be red). Figure 4-27 [Advanced]  Defog: Select Digital (for GV-SD2322-IR) or ON (for GV-SD3732-IR) to activate the slider for adjusting the defog intensity for images.

  • Page 71: Osd

    On Screen Display (OSD) is the text displayed on the screen with video images and may include time and other customized contents. For GV-SD2322-IR Figure 4-28 1. Click under Position to select an Area #, and then click Overlay OSD Content to select the content to display on screen.
  • Page 72 2. Adjust the position of the Area 1/2/3 boxes on the live view either by dragging directly or by specifying the coordinates under Overlay Area. 3. Under Display Style, customize the text style and date/time format. 4. Under Orientation, use the Direction drop-down list to select a direction, turn the camera toward the corresponding direction, and click Demarcate.

  • Page 73: Privacy Mask

    Administrator Mode 4.5.3 Privacy Mask On certain occasions, you may need to set a mask area to block out parts of the camera image to protect privacy, for example, the keyboard of an ATM machine. When PTZ changes its position or zooms, the Privacy Mask will be adjusted accordingly to protect the area all along.

  • Page 74: Events

    Object Size: When the extent of motion within the detection area exceeds the set object size, motion detection alarm will be triggered.  History: (The function is only for GV-SD2322-IR.) If the duration of motion exceeds the set duration motion detection alarm will be triggered.
  • Page 75 Administrator Mode Beneath History, motion detection results are shown in real time. The red lines represent motion detection alarms. The longer a line, the greater the extent of motion. [Alarm Parameters]  Suppress alarm: After an alarm is triggered, the same alarm will not be reported within the set time.
  • Page 76 [Enable Plan] Select this option to set the start and end times during which motion detection alarm is enabled. You can directly drag the mouse to draw a plan or click Edit to edit time periods in the table. You can set up to four periods for each day, and the time periods cannot overlap. The camera reports alarms during the specified period(s) only.

  • Page 77: Audio Detection

    Administrator Mode 4.6.2 Audio Detection The camera can detect for abnormal audio volume. When the rise or fall of volume exceeds the set limit, or when the input volume reaches the threshold, the camera reports an alarm and triggers the set actions. Make sure an audio input device is correctly connected to the camera and audio input is enabled.
  • Page 78 4. Select the actions to be triggered by an audio alarm and set a schedule plan if needed. Refer to 4.6.1 Motion Detection for detailed instructions 5. Click Save.

  • Page 79: Alarm Input

    Administrator Mode 4.6.3 Alarm Input The camera can receive alarm information from an input device. Figure 4-35 1. Select Alarm Input 1 or Alarm Input 2 from the drop-down list. 2. Type an Alarm Name, and set an alarm ID. 3.

  • Page 80: Alarm Output

    4.6.4 Alarm Output After alarm output is triggered by a motion detection alarm, temperature alarm or input alarm, the camera can trigger an output device. Figure 4-36 Type and Alarm Name for the output device. Set the status to Normally Open (default setting). Set the alarm duration.

  • Page 81: Capture

    Administrator Mode 4.6.5 Capture Note this function is only for GV-SD2322-IR. Using the Capture function, when an alarm is triggered, the camera will automatically upload the captured snapshots to the FTP server or send snapshots to the specified email address.

  • Page 82: Storage

    Storage Medium: Click the Format button to format the memory card before you start recording.  Edge Storage: (The function is only for GV-SD2322-IR.) Enable or disable Round-the- Clock recording to the memory card.  Storage Policy: (The function is only for GV-SD3732-IR.) Choose the Storage Policy from one of the three options.

  • Page 83: Recording Download

     Enable Plan: (The function is only for GV-SD2322-IR.) You can set a schedule plan to enable Round-the-Clock recording. Refer to Enable Plan section, 4.6.1 Motion Detection for detailed instructions.

  • Page 84: Security

    4.8 Security Note these functions are only for GV-SD3732-IR. This section allows you to create user accounts and set the network security settings. 4.8.1 User There are two types of accounts: Administrator and Common User. For more detailed instructions, refer to 4.9.3 Security. 4.8.2 Network Security There are four of network security settings: HTTPS, RTSP Authentication, ARP Binding and IP Address Filtering.
  • Page 85 Administrator Mode IP Address Filtering You can allow or deny the access from the specified IP address to your camera. Figure 4-41 1. Enable IP Address Filtering. 2. Choose a Filtering Mode: Allow Access or Deny Access. 3. Click + to add an IP address. 4.

  • Page 86: System

    4.9 System This section allows you to create user accounts, set the camera time, and update the firmware. 4.9.1 Time You can use the following methods to adjust the system time of your camera. Figure 4-42 To manually set a time or synchronize with the computer time: Enable Time Sync.
  • Page 87 Administrator Mode To adjust the camera’s time for daylight saving time: Click the DST tab at the top. Figure 4-43 Select Enable DST. Set a Start Time and End Time for the daylight saving time. Select a time period for DST Bias. Click Save.

  • Page 88: Maintenance

    4.9.2 Maintenance This section allows you to upgrade firmware, restart the camera, and backup/import camera configurations. Figure 4-44 [Firmware Upgrade]. Under Firmware Upgrade, click Browse and select the firmware file (.zip). Optionally, select the check box to enable Upgrade Boot Program. Click Upgrade and then confirm to start.
  • Page 89 Administrator Mode [Diagnosis Info] Includes logs and system configurations. You can export diagnostic information to your PC. Click Browse to select the destination folder, and then click Download to save the diagnostic information to the specified folder. [Mounting Info] Type the actual height from the installed infrared dome to the ground, so that the camera will be able to automatically adjust its infrared lamp.

  • Page 90: Security

    4.9.3 Security Note these functions are only for GV-SD2322-IR. Three tabs are available under the Security page: User, HTTPS, and RTSP Authentication. User There are two types of accounts: Administrator and Common User.  Administrator: The default name of the administrator is admin, which cannot be modified.
  • Page 91 Administrator Mode RTSP Authentication RTSP (Real Time Streaming Protocol) is an application layer protocol for transmitting audio and video. Set the authentication mode for RTSP streaming. Figure 4-48...

  • Page 92: Ports And Device

    4.9.4 Ports and Device Note this function is only for GV-SD3732-IR. Use the RS485 serial port to transmit data to the third-party device. Figure 4-49 1. Select Trans-Channel / OSD / Local PTZ Control from the Port Mode drop-down list. ...

  • Page 93: Chapter 5 Recording And Playback

    Recording and Playback Chapter 5 Recording and Playback The camera can record video and audio directly to the memory card. Note: See Note for Recording at the beginning of the manual. 5.1 Recording To configure the recording function, refer to the following sections ...

  • Page 94: Playback From The Memory Card

    5.2 Playback from the Memory Card You can play back the files recorded at the memory card of the camera from the Web interface. Click Playback at the top. This page appears. Figure 5-1 On the right, select a date and click Query. Figure 5-2...

  • Page 95: Recording And Playback

    Recording and Playback Double-click a search result to play back the recorded file. You can adjust the audio volume at the bottom-right corner if needed. Figure 5-3 The following functions are available:  Snapshot : Click to capture a snapshot of the recorded video. ...

  • Page 96: Chapter 6 Advanced Applications

    This chapter introduces more advanced applications. 6.1 Upgrading System Firmware GeoVision periodically releases the updated firmware on the website. The new firmware can be simply loaded into the camera using the Web interface or the IP Device Utility included on the Software DVD (for GV-SD2322-IR). For GV-SD3732-IR, refer to http://www.geovision.com.tw/english/5_8.asp...

  • Page 97: Using The Web Interface

    Advanced Applications 6.1.1 Using the Web Interface Log into the Web interface and follow the steps below to update the firmware. 1. At the top, click Setup. In the left menu, select System and select Maintenance. This page appears. Figure 6-1 3.

  • Page 98: Using The Gv-Ip Device Utility

    1. Insert the Software DVD, select IP Device Utility. Or, you can download IP Device Utility from http://www.geovision.com.tw/english/5_8.asp. Then follow the onscreen instructions to install the program.
  • Page 99 Advanced Applications 7. Click the Browse button to locate the firmware file (.zip) saved at your local computer. 8. Click Upgrade to start upgrading the firmware.

  • Page 100: Restoring To Factory Default Settings

    6.2 Restoring to Factory Default Settings You can restore the camera to factory default settings using the Web interface or directly on the camera. 6.2.1 Using the Web Interface To restore to default settings using the Web interface: 1. At the top, click Setup. 2.

  • Page 101: Directly On The Camera

    Advanced Applications 6.2.2 Directly on the Camera 1. Unscrew the back cover of the camera. Figure 6-5 2. Press and hold the default button for about 30 seconds. Figure 6-6 3. When the camera rotates twice, the process of loading default is completed and the camera robots automatically.

  • Page 102: Chapter 7 Dvr Configurations

    The maximum number of streams supported by GV-SD2322-IR / 3732-IR is 8.  When a GV-SD2322-IR / 3732-IR is connected to IE browser or any other applications, it takes up 1 stream; when it is connected to GV-VMS / DVR / NVR, it takes up 2 streams.

  • Page 103: Setting Up Ip Cameras On Gv-System

    Camera Install and click IP Camera Install. This dialog box appears. Figure 7-1 To automatically set up the camera, click Scan Camera to detect any GV IP devices on the LAN. Double-click the GV-SD2322-IR / 3732-IR and type the user name and password of the camera. Figure 7-2...
  • Page 104 Click OK. This dialog box appears. Figure 7-3 Click OK. The IP camera is added to the connection list. Click the listed camera and select Display position to map the IP camera to a channel on the GV-System. Figure 7-4 The Statue column should display “Connected”.

  • Page 105: Customizing The Basic Settings On Gv-System

    DVR Configurations 7.1.1 Customizing the Basic Settings on GV-System After the camera is connected and assigned with a display position, you can configure the camera’s settings such as frame rate, codec type and resolution. Right-click the desired camera to see the following list of options: Figure 7-5 ...

  • Page 106: Setting Up Ip Cameras On Gv-Vms

    1. To access the IP Device Setup page, click Home , select Toolbar , click Configure and select Camera Install. Figure 7-6 2. Click Automatic Setup 3. Double-click the GV-SD2322-IR / 3732-IR and type the user name and password of the camera. Figure 7-7...
  • Page 107 DVR Configurations 4. Click OK. This dialog box appears. Figure 7-8 5. Click OK to add the camera to the list. 6. To connect the added camera, click the box besides the ID column. Upon successful connection, the Status icon shows green, with the video resolution and bit rate being displayed in the correspondent columns.

  • Page 108: Appendix

    Appendix A. RTSP Protocol Support The camera can support RTSP protocol for both video and audio streaming. If you are using Quick Time player, use the following RTSP command: rtsp://<IP of the camera>:554/<CH No.>.sdp For example, rtsp://192.168.3.111:554/CH001.sdp If you are using VLC player, use the following RTSP command: rtsp://<ID>:<Password>@<IP of the camera>:554/<CH No.>.sdp For example, rtsp://admin:admin@192.168.3.111:554/CH001.sdp If you use the VLC, and if authentication is not required, enter:...
