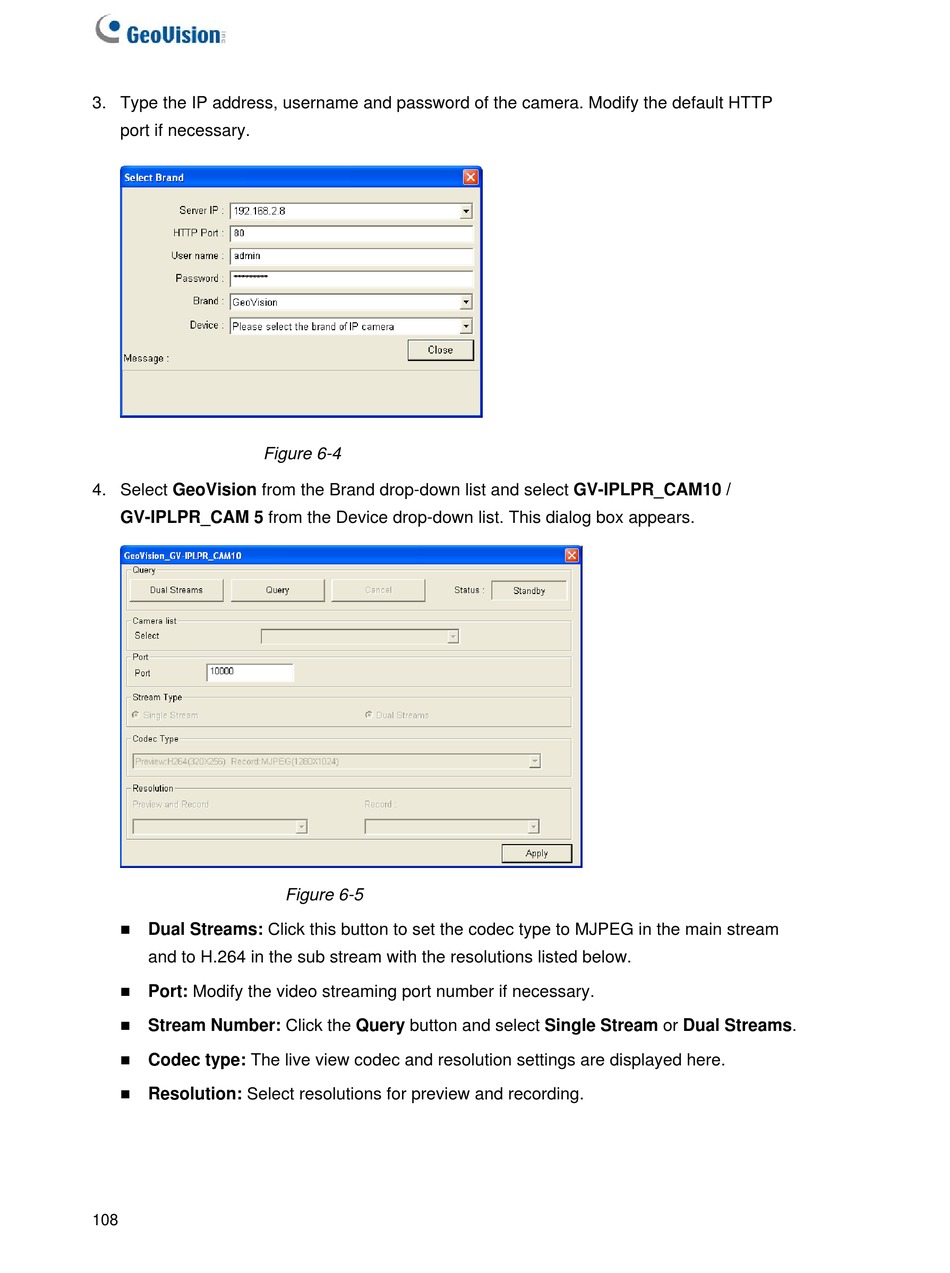

GeoVision GV-IP LPR Camera 5R User Manual page 116

3. Type the IP address, username and password of the camera. Modify the default HTTP
port if necessary.
4. Select GeoVision from the Brand drop-down list and select GV-IPLPR_CAM10 /
GV-IPLPR_CAM 5 from the Device drop-down list. This dialog box appears.
 Dual Streams: Click this button to set the codec type to MJPEG in the main stream
and to H.264 in the sub stream with the resolutions listed below.

Port: Modify the video streaming port number if necessary.

Stream Number: Click the Query button and select Single Stream or Dual Streams.

Codec type: The live view codec and resolution settings are displayed here.
 Resolution: Select resolutions for preview and recording.
108
Figure 6-4
Figure 6-5
