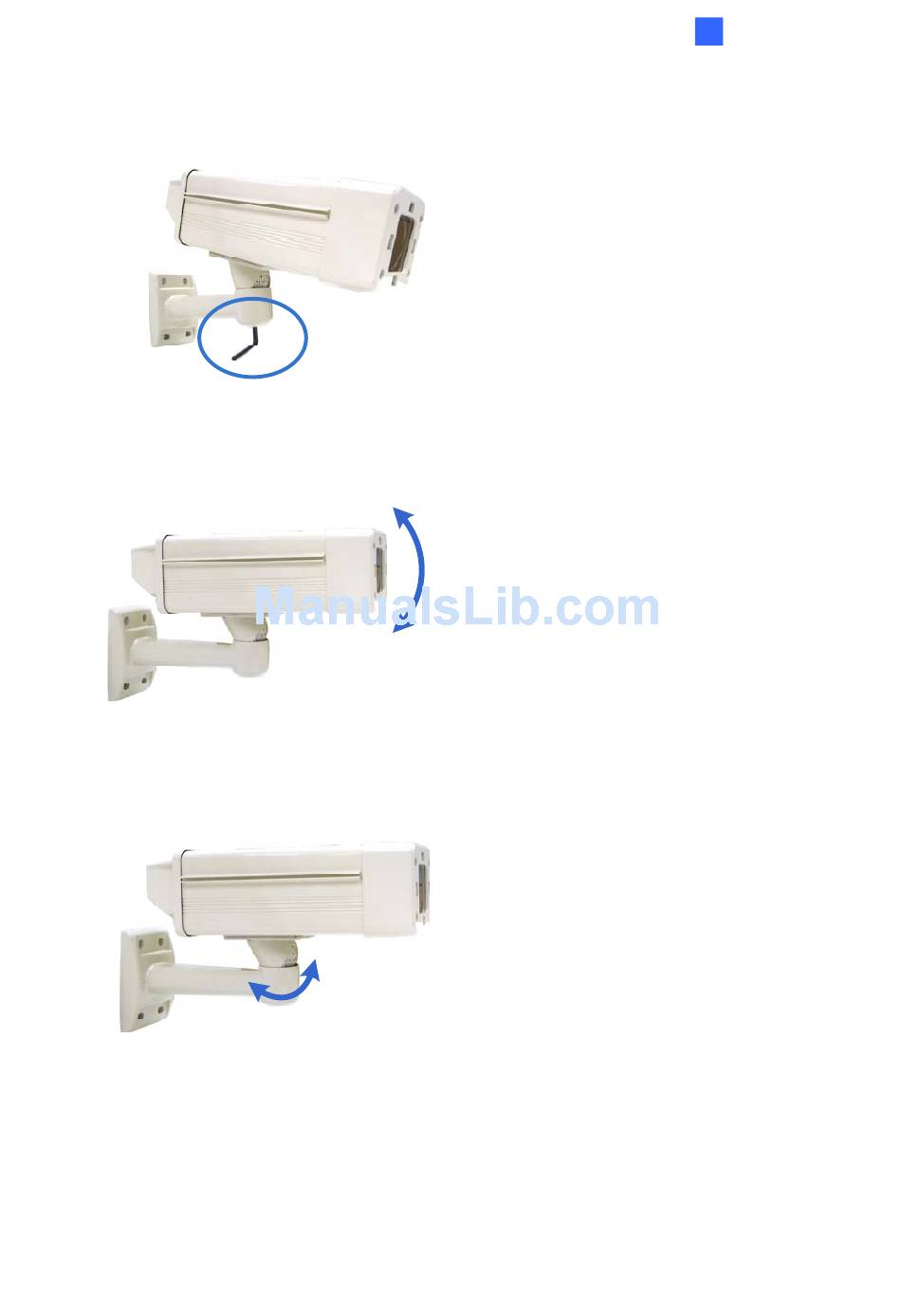

6. Based on the live view, adjust the angle of the camera. Loosen the indicated screw with
the supplied big torx wrench and adjust the joint.
Figure 1-3
Tilt Adjustment
Figure 1-4
Pan Adjustment
Figure 1-5
