1.1.6 Connecting the Camera

Follow the steps below to connect your GV-Hybrid LPR Camera 10R.
1. Optionally connect a speaker to the green RCA wire and an external microphone to the
pink RCA wire.
2. Optionally connect a monitor to the black BNC wire. Enable the TV-Out function by
selecting the correct signal format at the TV Out field on the Web interface. See 4.1.1
Video Settings.

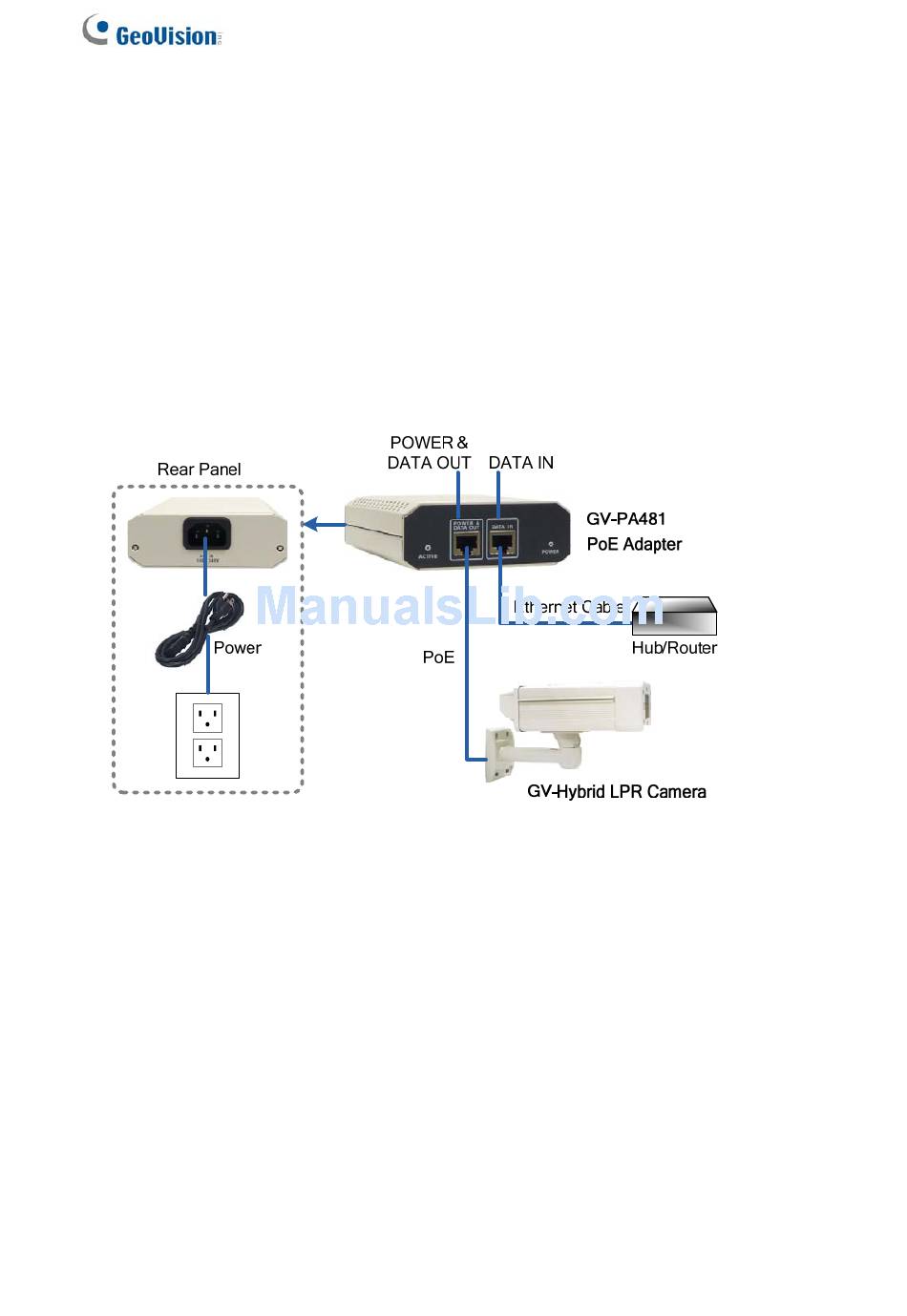

3. Connect the camera's cable to the GV-PA481 PoE adapter as illustrated below. The
power and network will be supplied simultaneously.
4. When the status LED of the camera is on, .you are ready to access the live view, adjust
the image clarity and configure the basics. See Getting Started, Chapter 2.
10
Figure 1-10
