MOUNTING OF FLUE GAS RESTRICTION PLATE

Depending on the length and shape of the concentric fl ue system and the chimney
construction, you should, if indicated, fit a restriction plate with a certain width (B) into
the ceiling of the combustion chamber. To do this, see the set-up options as listed in
fi gure 7 through 12.

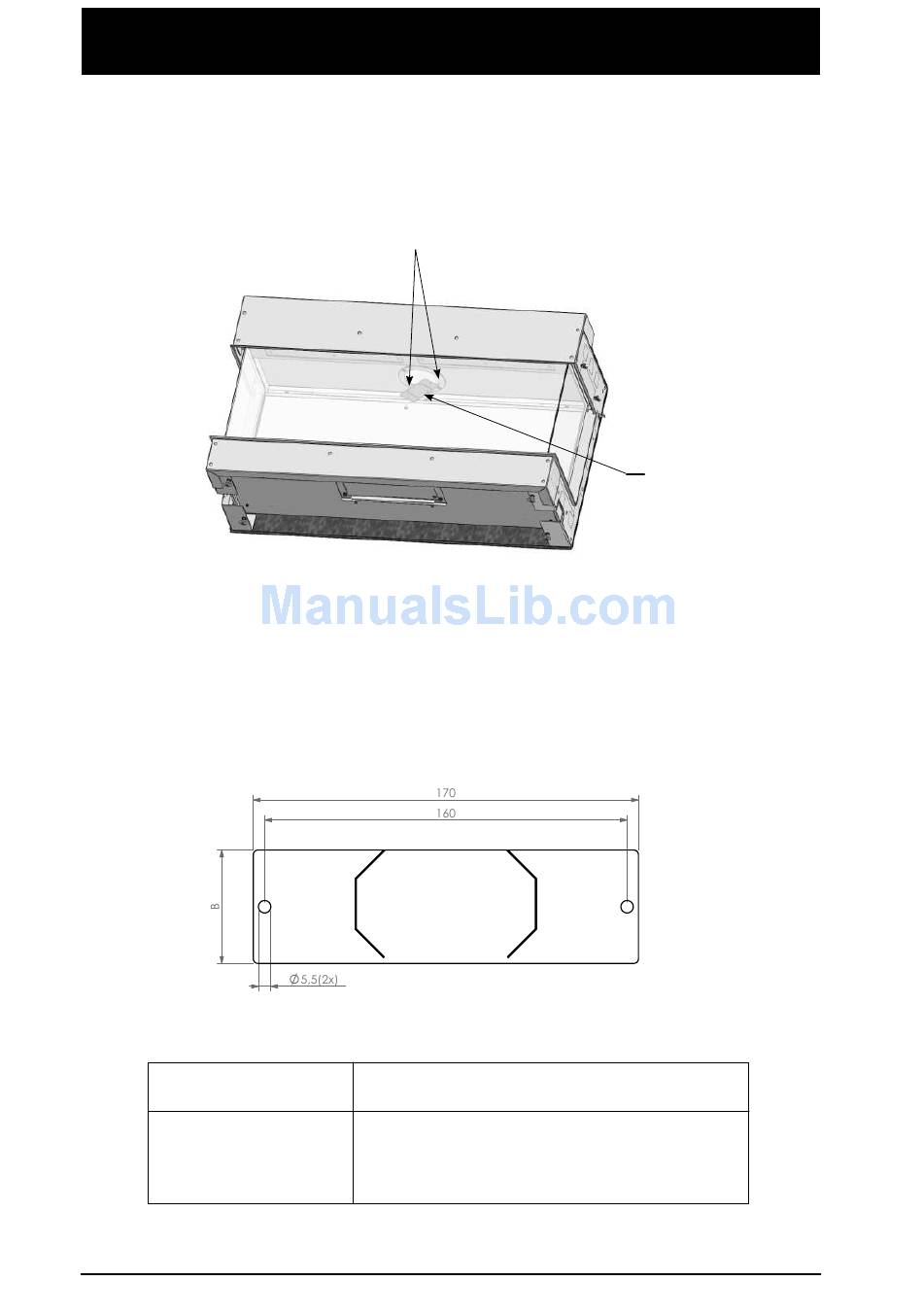

Figure 23: Positioning restriction plate
The following restriction plates are supplied:
Restriction plate:
Width:
Width:
Width:
Width:
The size of each plate (in mm's) is printed on the plates.
Bellfi res
Screw fastening (2x)
Dimensions in mm's.
Concentric fl ue connection appliance [5⅛" x 7⅞"]
(Roof terminal)
B = 40 mm
B = 50 mm
B = 65 mm
B = 80 mm
58
Assembly
restriction
plate
