Bellfires View Bell Medium 3 CF Installation Manual page 44

Inlet
Pressure Tap
Outlet
Pressure Tap
Gas supply
connection
Gas connection for
to the "front burner"

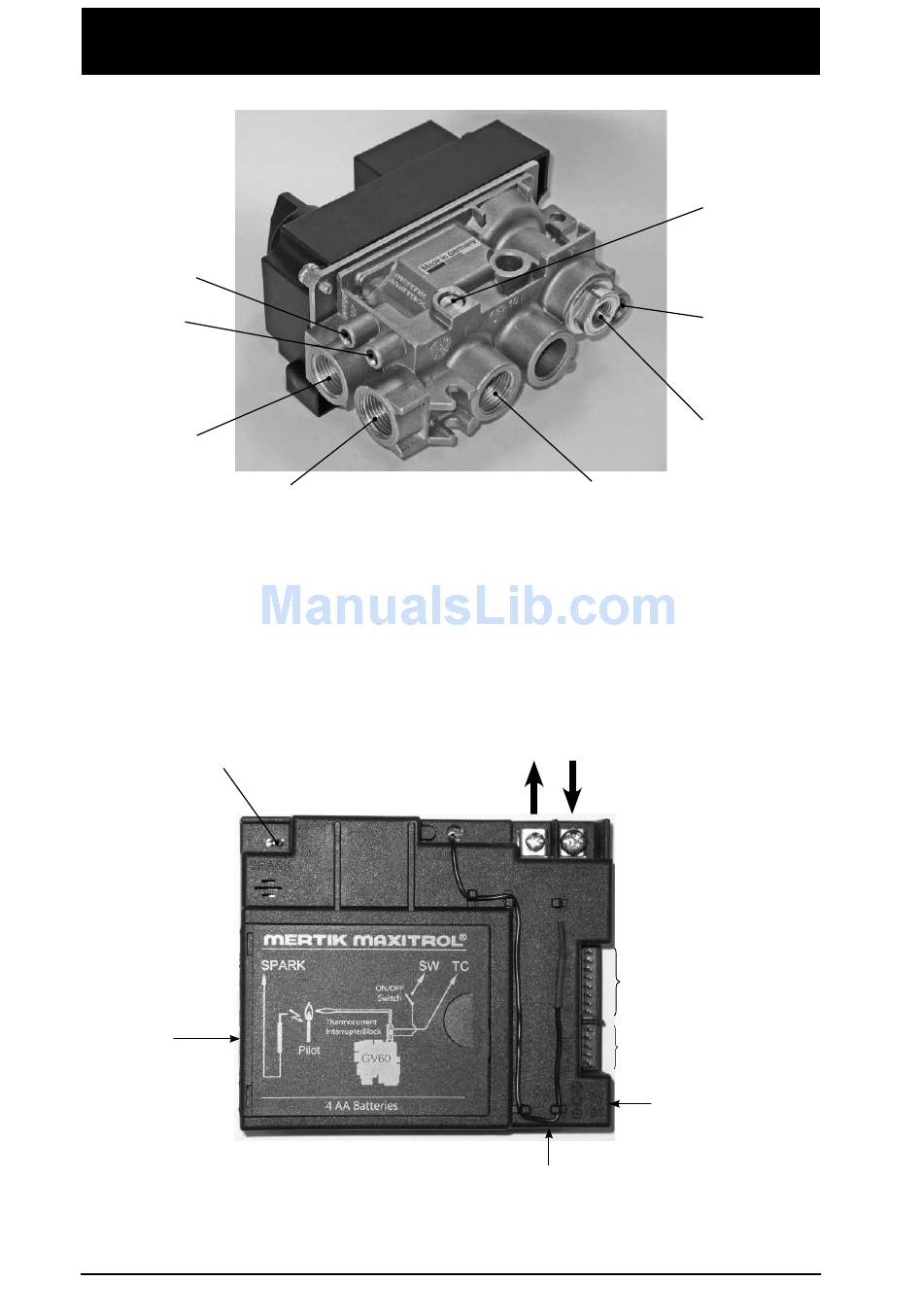

Figure 18: Gas regulator block - Rear
Piezo cable
connection
AUX:
Electrical
connection
for gas valve
"rear burner"
Figure 19: Receiver - Top
Bellfi res
GAS LINE INSTALLATION
Thermocouple
voltage / current
OUT - connection (yellow)
44
Gas connection for gas valve
to the "rear burner"
Thermocouple
voltage / current
IN - connection (red)
SW TC
Connection
8 wire cable
gas regulator block
Connection for
external operating
(option) Domotic
6 VDC Adapter
connection
(option)
RESET button
Installation instructions
Adjustment
Screw
Minimum
Burner pressure
Pilot light
connection
Thermocouple
interrupter
connection
