Bellfires View Bell Medium 3 CF Installation Manual page 32

FLEXIBLE CONCENTRIC FLUE 4" x 6⅝" SYSTEM CONNECTION POSSIBILITIES
Appliance: Concentric fl ue connection 5⅛" x 7⅞"
Y
Appliance:
View Bell Medium 3

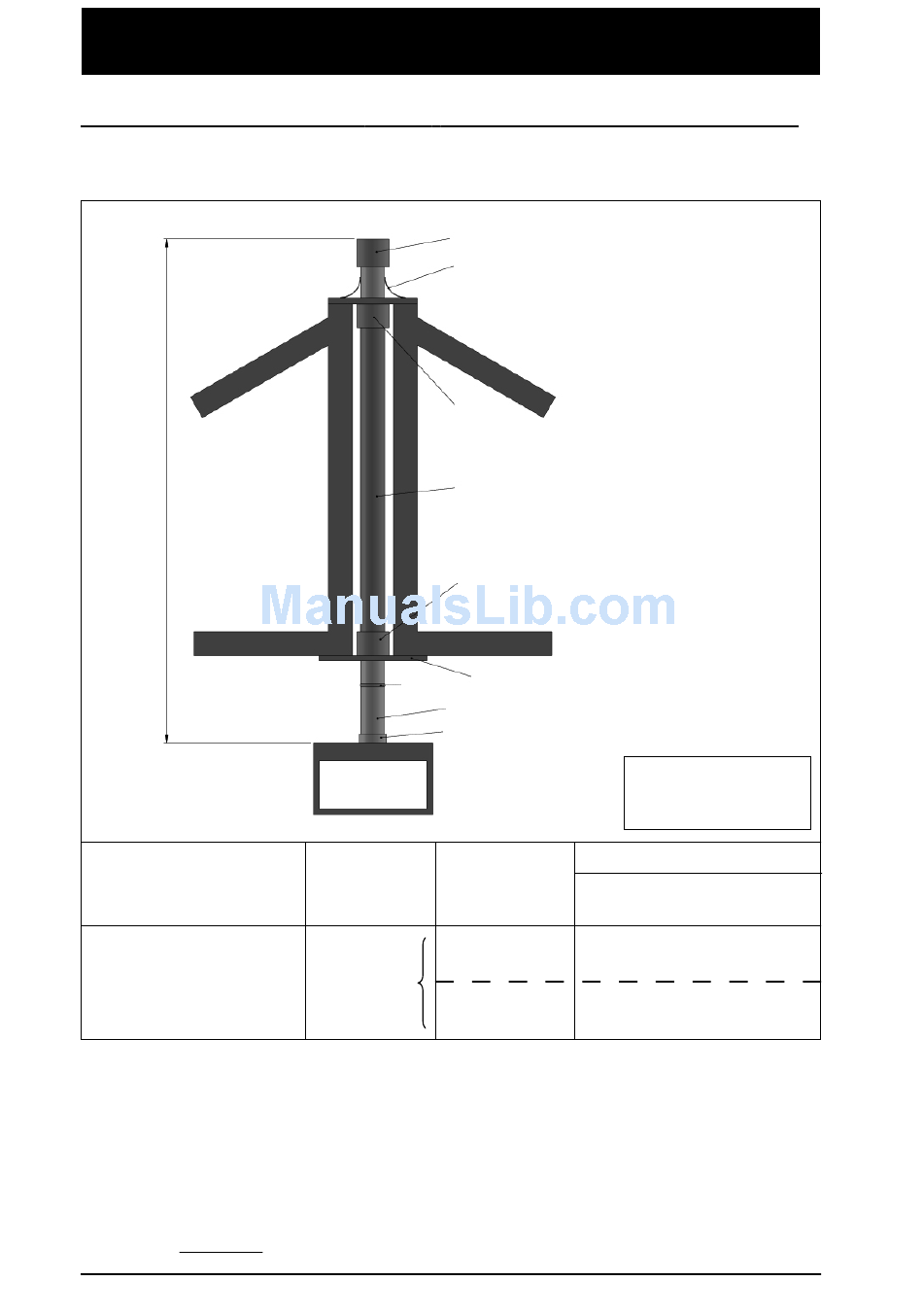

Figure 9: Vertical chimney outlet using an existing lined chimney
(Flexible 4" and/or rigid 4" x 6⅝")
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
Bellfi res
VENT INSTALLATION
2, 3, 4, 5
30
36
34
36
26
23
6 to 17
101 + 140 (or 1)
Gas appliance
Distance Y
(min.-max.)
72" - 144"
(2.0 - 4.0 m)
144" - 432"
(4.0 - 12.0 m)
32
Item descriptions:
see Vent Installation
Page 22-27
Assemble restriction plate:
Concentric connection
on appliance is 5⅛" x 7⅞"
Width: B = 65 mm
Width: B = 80 mm
Installation instructions
