Mantel clearances
Any mantel piece made of combustible material should be placed at least 2" from the
side and top of the fi replace opening. Minimum mantel clearances are shown in fi gure
3 to 5.
Ceiling Minimum 20"
from opening
Combustible
mantel piece
Non combustible
Insulation plate / board

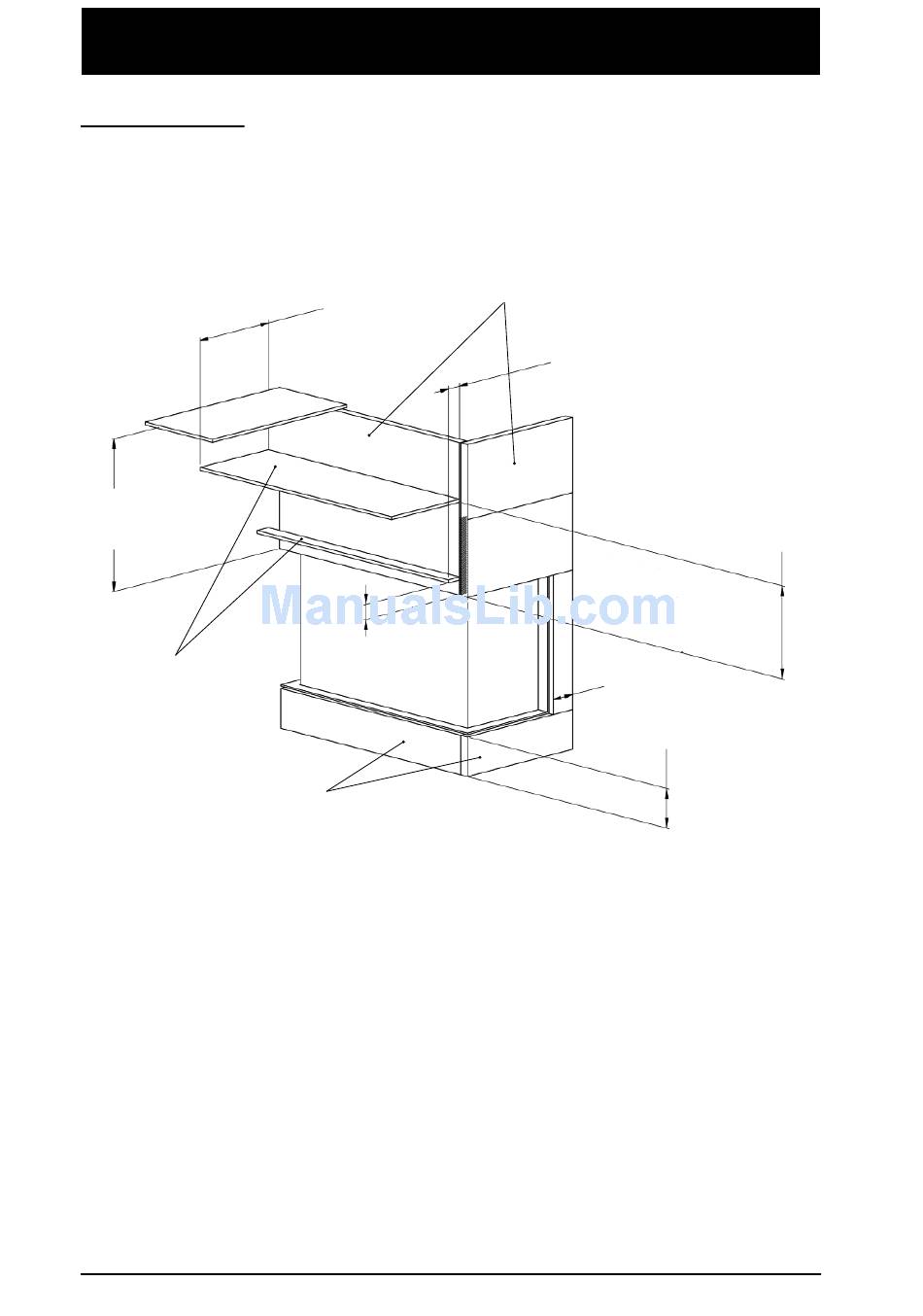

Figure 3: Mantel clearances
Bellfi res
CLEARANCES
Insulation plate / board
12" Max. depth
2" Min.
from opening
16
Non combustible
2" Max. depth
2" Min.
4" Min. to
combustible
(or place a non combustible
hearth (fl oor stone) with a depth
of minimal 12 in (30 cm) in front
of the full width of the glass)
Installation instructions
12" Min.
from opening
