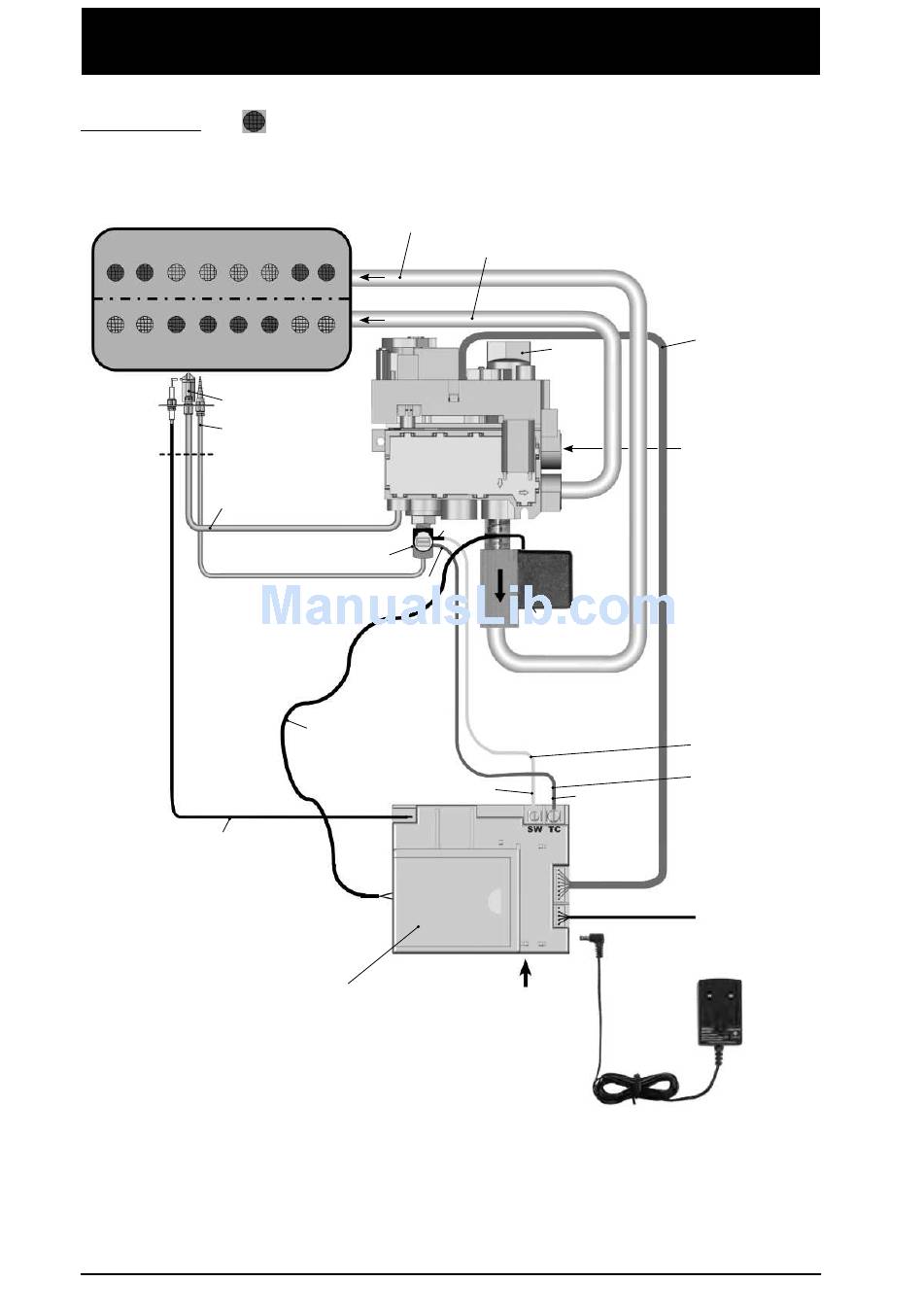

DIAGRAM ELECTRICITY AND GAS

Double burner:
"Rear burner"
"Front burner"
Pilot light
Thermocouple
Pilot light gas pipe
Thermocouple interruptor
Ignition(piezo)cable
Bellfi res
: Perforation pattern "Centre Fire" double burner.
Gas pipe "Rear burner"
GAS
REGULATOR
BLOCK
"red"
2 Wire cable
AUX
Receiver
(with battery compartment
for 4 AA-batteries)
68
Gas pipe "Front burner"
Motor-
knob
"black"
Gas valve
"Rear burner"
"yellow"
"red"
Button "RESET"
8 Wire
connecting
cable
Gas supply
connection
Thermo-electrical
cable SW
Thermo-electrical
cable TC
Connection cable
(option) for
external operating
(i.a. Domotica
systems)
AC power
adapter
110 VAC
(option)
Installation instructions
