Bellfires View Bell Medium 3 CF Installation Manual page 35

RIGID CONCENTRIC FLUE 5" x 8" SYSTEM CONNECTION
POSSIBILITIES and with wall outlet Ø5" x Ø8"
Appliance: Concentric fl ue connection 5⅛" x 7⅞"
Y
Gas appliance
Appliance:
View Bell Medium 3

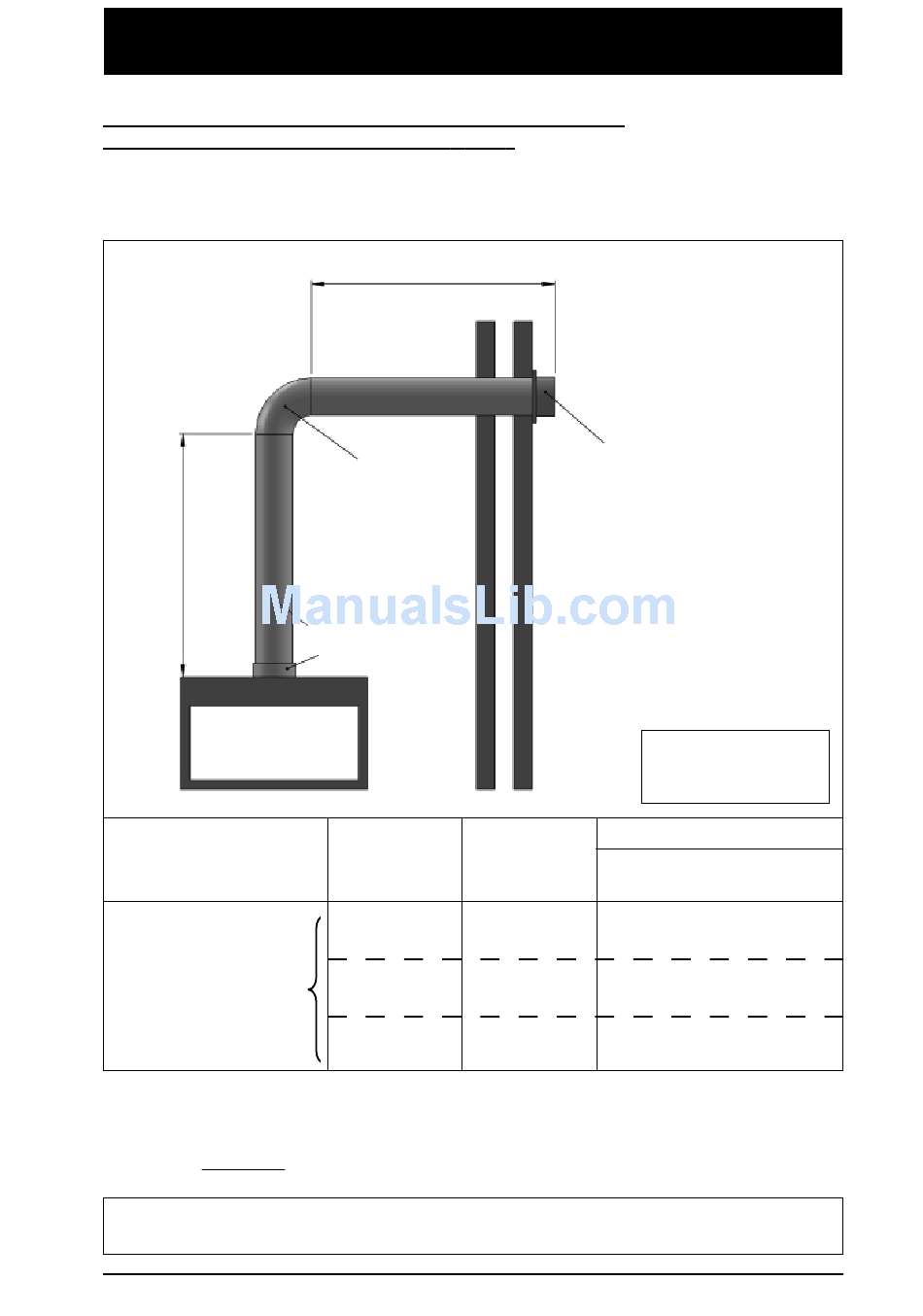

Figure 12: Horizontal wall termination
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
IMPORTANT :
For propane appliances: Always use a minimum of 12" rise (= 12" pipe length of
5" x 8") on top of the unit fi rst, before working further according to the table above.
Bellfi res
VENT INSTALLATION
X
121
106 to 117
101
Distance Y Distance X
(min.-max.) (min.-max.)
0" - 18"
(0 - 0.5 m)
18" - 36"
(0.5 - 1.0 m)
36" - 108"
(1.0 - 3.0 m)
35
102 to 105
Assemble restriction plate:
Concentric connection on
appliance is 5⅛" x 7⅞"
0" - 18"
(0 - 0.5 m)
0" - 54"
(0 - 1.5 m)
0" - 162"
(0 - 4.5 m)
Installation instructions
Item descriptions:
see Vent Installation
Page 22-27
-
-
-
