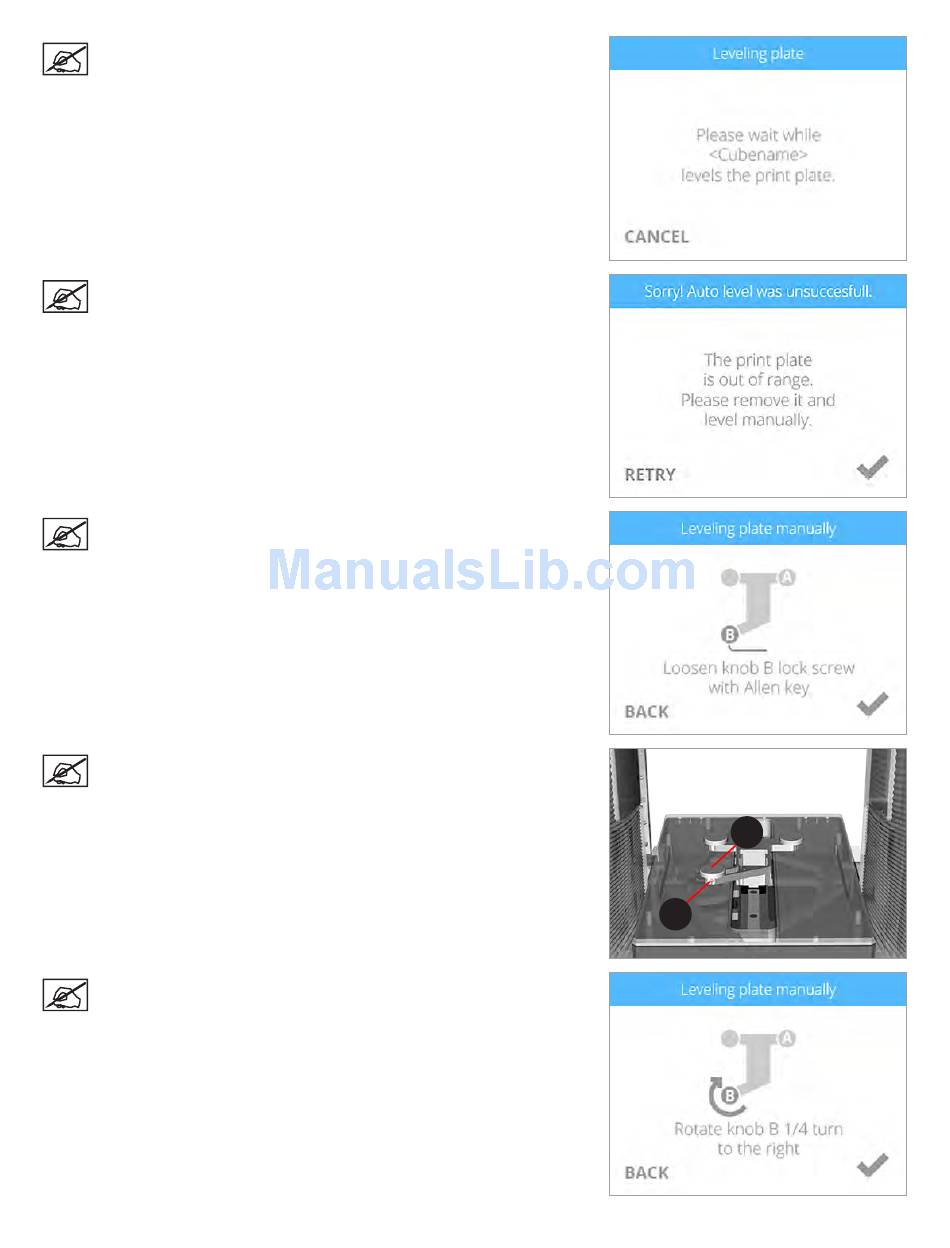

NOTE: The printer will begin the Auto Level procedure . This may

take a few minutes .

NOTE: If the print pad is not level, remove the print pad and select

the

checkmark

to continue . The print pad is magnetically attached

to the adjustment knobs . To remove it, lift up the front of the print

pad and pull it out of the printer .

NOTE: Follow the instructions on the touchscreen display . Use the

included 1 .5 mm Allen wrench to loosen the lock screws securing

the adjustment knobs to the bracket before turning the knobs .

Select the

checkmark

to continue .

NOTE: The lock screw (1) is located just below the adjustment knob

(2) . The lock screw for adjustment knob B can be accessed from the

front of the printer . The lock screw for adjustment knob A can be

accessed from behind the printer .

NOTE: Follow the instructions on the touchscreen display . Once the

adjustments have been made, select the

checkmark

to continue .
