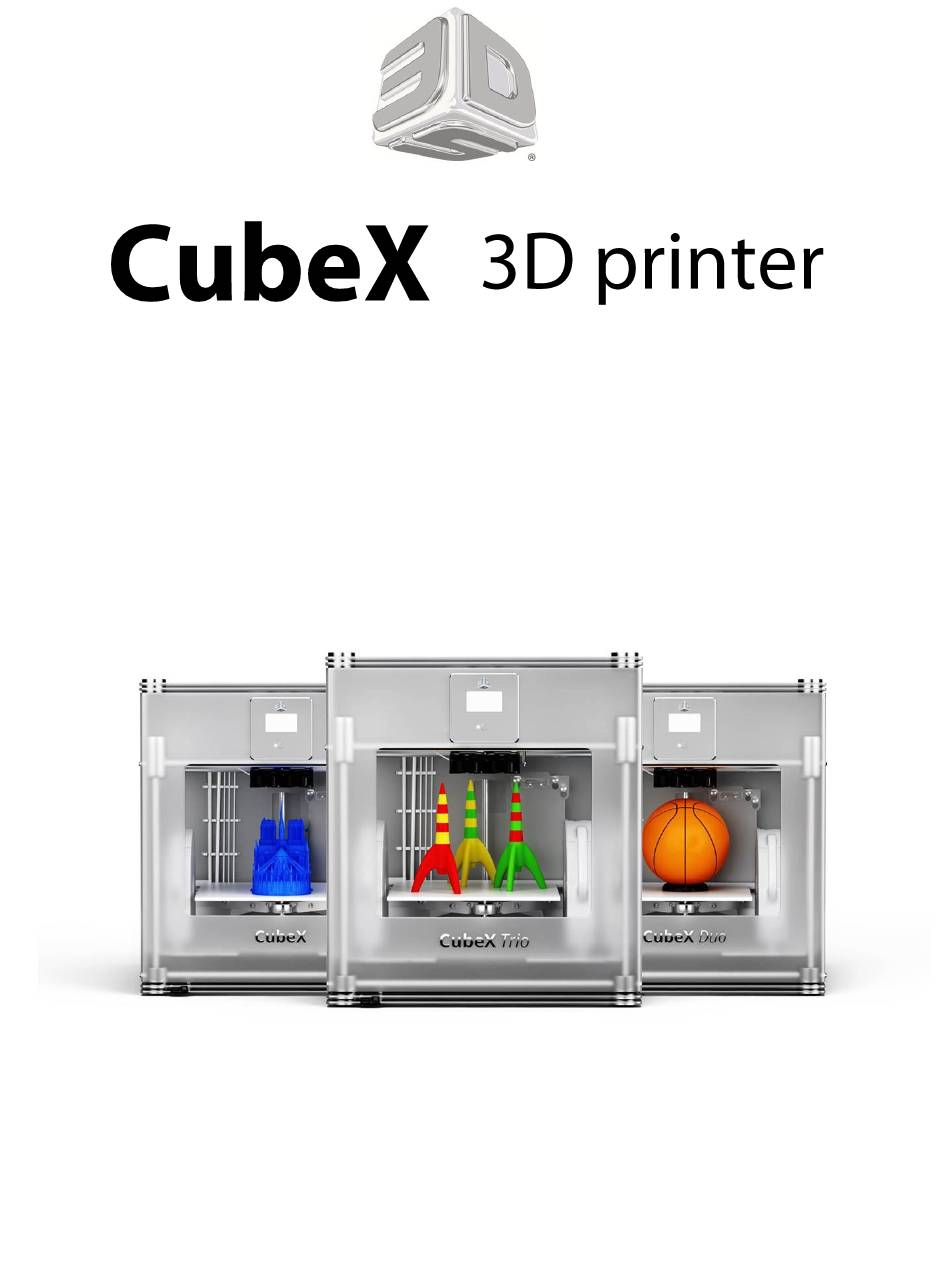

- Page 1 Print Tip Replacement...
- Page 2 CubeX 3D printer Print tip replacement So you are the owner of a CubeX and you have to replace a print tip? We have gathered information from what you need to how to do the print tip change. What you need: Print tip assembly 2.5mm hex driver...
- Page 3 Unplug the print tip from the Print jet sensor board and feed the wire down the hole to the print tip. Unfasten the print tip holding bolt. The print tip and print jet are assembled by sliding the print tip into the print jet and twisting it (as pictured).
- Page 4 Power on the CubeX printer. To clean the nozzles for levelling, put the CubeX printer into PJ-Control mode. Heat all of the print jets EXCEPT for the new one to 230° and clean of any plastic debris with pliers. Allow the Print Jets to cool...
- Page 5 Turn the CubeX printer off and unplug it from the mains power supply. Using the 2.5mm hex driver, tighten the print tip holding bolt (pictured) to lock the print tip in place.
- Page 6 Download the CubeX Trio calibration file FASTENING THE PRINT TIP ON A CUBEX A CubeX with a single print jet does not have a second or third nozzle to reference the print tip level. Instead you have to use the CubeX wiping stick.
- Page 7 Slowly raise the print pad until the print tip is touching it. Continue raising the print pad until there is approximately 0.5mm between the print pad and the CubeX wiping stick. Turn the CubeX printer off and unplug it from the mains power supply.
