UM1855
3.8

ETM trace debugging connector CN12

Terminal
1
3
5
7
9
11
13
15
17
19

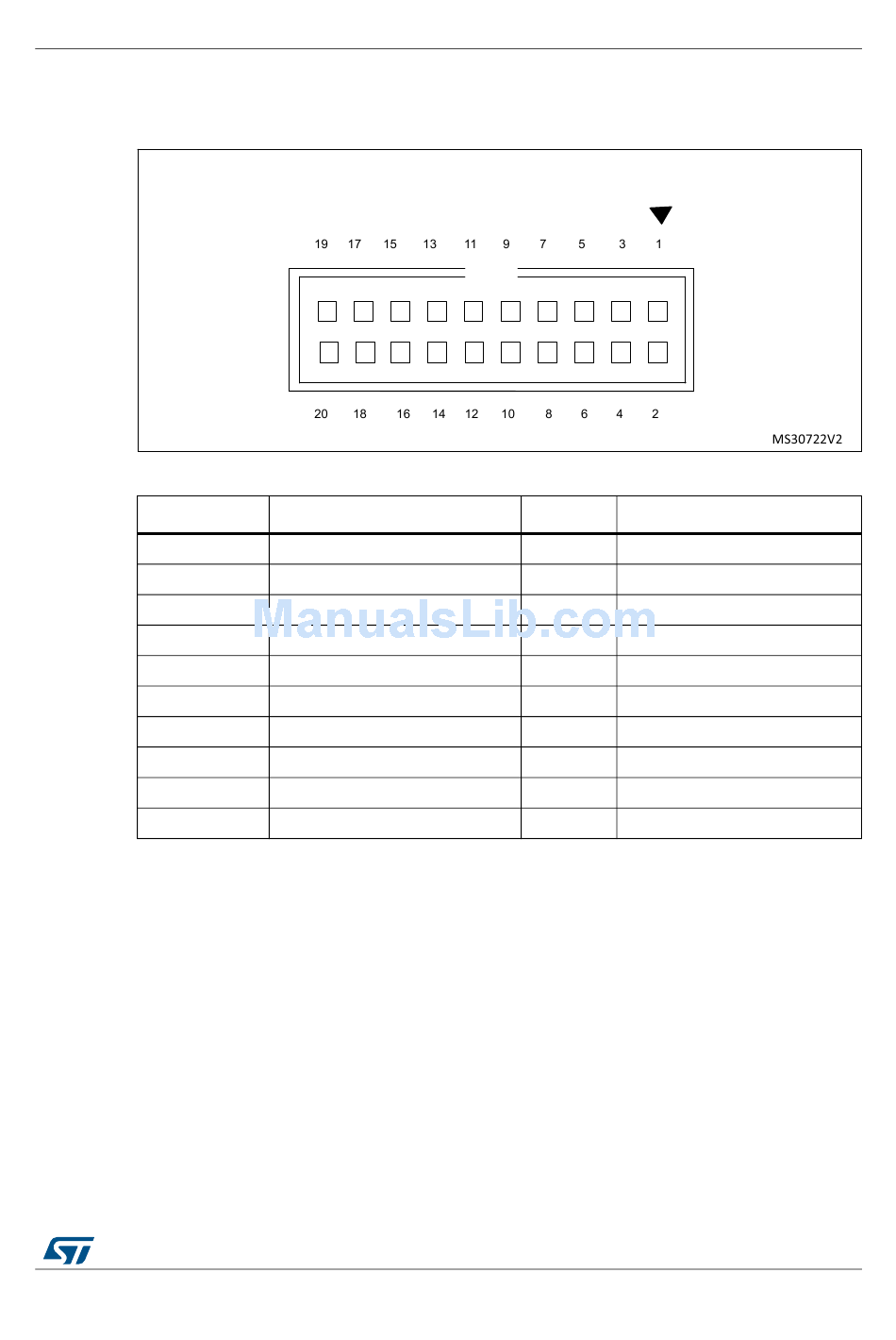

Figure 24. Trace debugging connector CN12 (top view)

Table 38. Trace debugging connector CN12

Function / MCU port
VDD power
GND
GND
KEY
GND
GND
GND
GND
GND
GND
DocID027351 Rev 3
Terminal Function / MCU port
2 TMS/PA13
4 TCK/PA14
6 TDO/PB3
8 TDI/PA15
10
12 TraceCLK/PE2
14 TraceD0/PE3 or SWO/PB3
16 TraceD1/PE4 or nTRST/PB4
18 TraceD2/PE5
20 TraceD3/PE6
Connectors
RESET#
67/100
