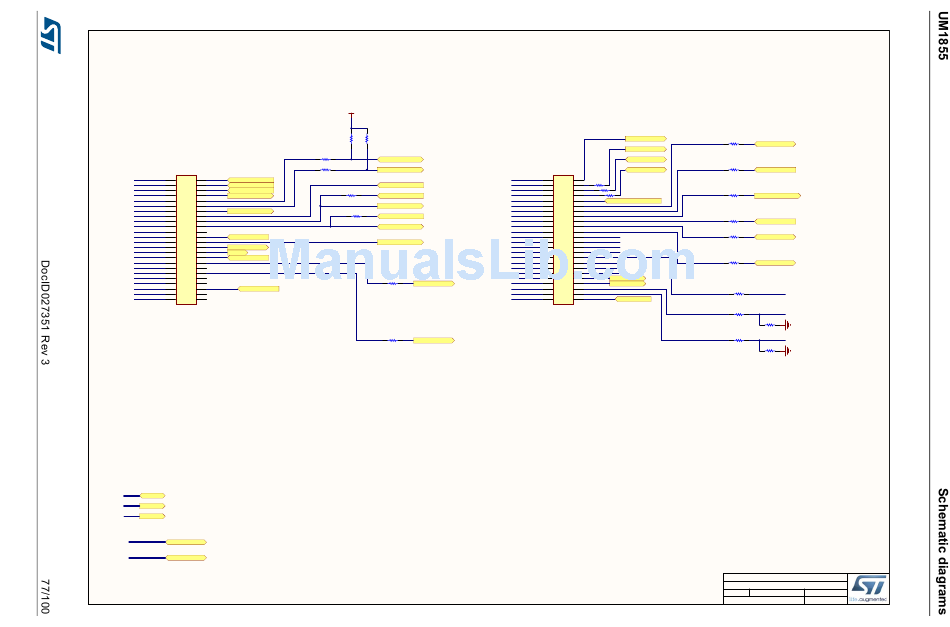

Figure 36. LCD glass module daughterboard connectors - schematic diagram

LCD Glass Connector
CN11
LCDCOM1 PA9
1 2 USBOTG_VBUS
LCDCOM0 PA8
3 4 uSD_DETECT
LCDCOM2 PA10
5 6 USBOTG_ID
LCDCOM3 PB9
7 8 CAN_TX
LCDSEG11 PB11
9 10
LCDSEG10 PB10
11 12
LCDSEG9 PB5
13 14 Comp2_OUT
LCDSEG14 PB14
15 16
LCDSEG13 PB13
17 18
LCDSEG12 PB12
19 20
LCDSEG17 PA15
21 22
LCDSEG16 PB8
23 24 CAN_RX
LCDSEG15 PB15
25 26
LCDSEG20 PC2
27 28 DFSDM_CKOUT
LCDSEG19 PC1
29 30 LED3
LCDSEG18 PC0
31 32 DMIC_DATIN
LCDSEG2 PA3
33 34
LCDSEG1 PA2
35 36
LCDSEG5 PB0
37 38
LCDSEG4 PA7
39 40
LCDSEG3 PA6
41 42
LCDSEG8 PB4
43 44 Comp2_INP
LCDSEG7 PB3
45 46
LCDSEG6 PB1
47 48
Header 24X2
D[0..15]
D[0..15]
A[16..19]
A[16..19]
A23
A23
LCDSEG[0..39]
LCDSEG[0..39]
LCDCOM[0..7]
LCDCOM[0..7]
VDD
R263 R264
1K2 1K2
R265 0
I2C2_SDA
R266 0
I2C2_SCL
NFC_MISO
R108
USBOTG_PRDY
0
NFC_SCK
R109
USBOTG_OVRCR
0
SWP_IO
NFC_MOSI
R111 0
OpAmp1_OUT
R107 0
SmartCard_CLK
LCD Glass Connector
uSD_CMD
uSD_CLK
uSD_D3
uSD_D2
CN14
LCDCOM7 PD2
1 2
LCDCOM6 PC12 R140 0
3 4
LCDCOM5 PC11 R141 0
5 6
LCDCOM4 PC10 R142 0
7 8
LCDSEG21 PB7
9 10 USART1/IrDA_RX_3V3
LCDSEG22 PC4
11 12
LCDSEG23 PC5
13 14
LCDSEG24 PC6
15 16
LCDSEG25 PC7
17 18
LCDSEG26 PC8 PC
19 20
LCDSEG27 PC9
21 22
LCDSEG28 PD8 D13
23 24
LCDSEG29 PD9 D14
25 26
LCDSEG30 PD10 D15
27 28
LCDSEG31 PD11 A16
29 30
LCDSEG32 PD12
31 32
LCDSEG33 PD13 A18
33 34
LCDSEG34 PD14 D0
35 36
LCDSEG35 PD15 D1
37 38
LCDSEG36 PE0
39 40 FMC_NBL0
LCDSEG37 PE1
41 42 FMC_NBL1
LCDSEG38 PE2
43 44
LCDSEG39 PE3
45 46
LCDSEG0 PA1
47 48 OpAmp1_INM
Header 24X2
R143 0
SmartCard_IO
R144 0
IDD_WAKEUP
R145 0
USBOTG_PPWR
R146 0
PT100_DATIN
R147 0
uSD_D0
R148 0
uSD_D1
R151 0 A17
R149 0 A23
R138
GND
100K
R150 0 A19
R139
GND
100K
Title: LCD_Glass
Project:
STM32L476G-EVAL
Size: A3 Reference: MB1144 Revision: B-02
Date: 6/24/2015 Sheet: 5 of 25
