Connectors
3.9

microSD card connector CN18

Terminal
1
2
3
4
5
3.10

ADC/DAC connector CN8

68/100

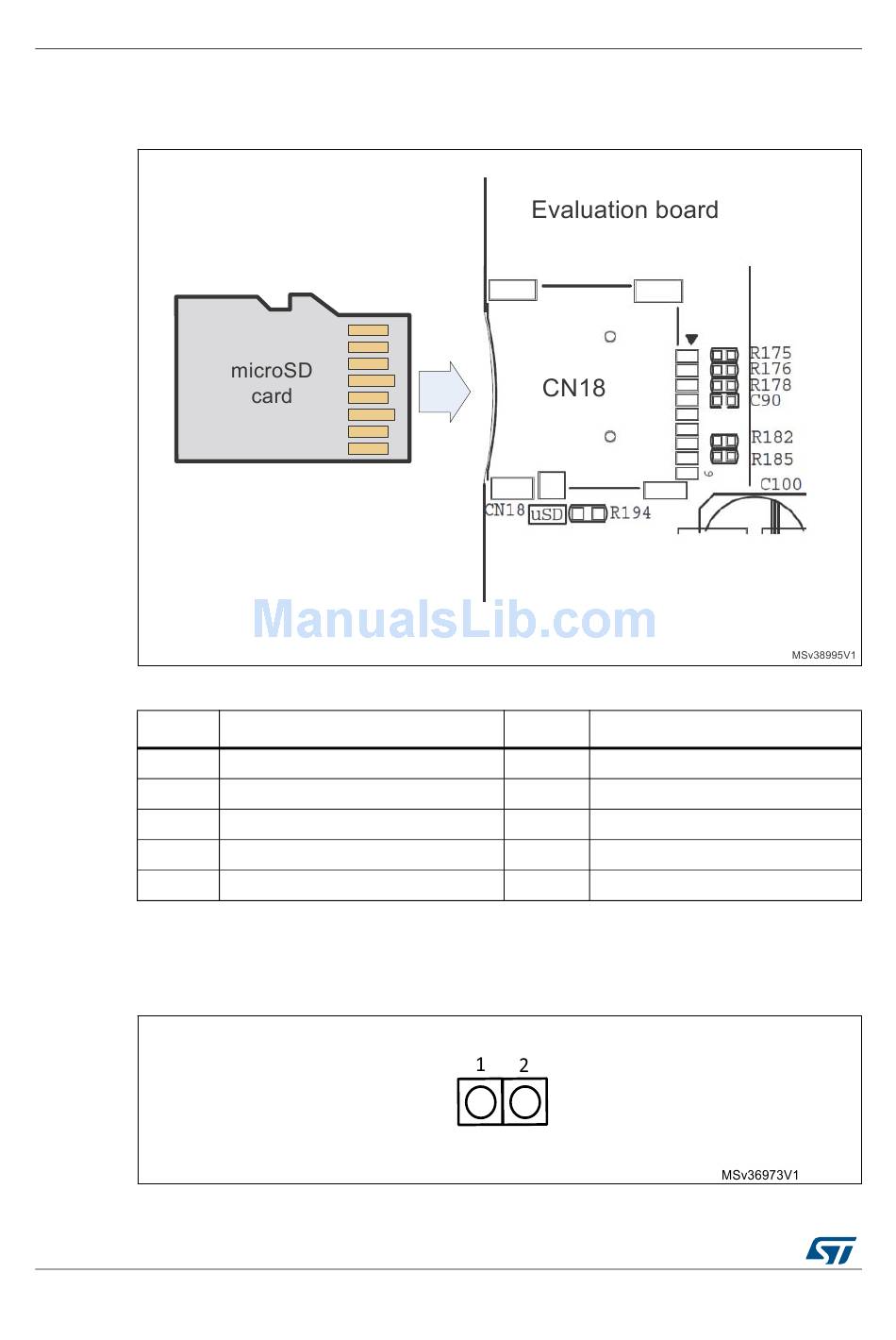

Figure 25. microSD card connector CN18

Table 39. microSD card connector CN18

Terminal name (MCU port)
SDIO_D2 (PC10)
SDIO_D3 (PC11)
SDIO_CMD (PD2)
VDD
SDIO_CLK (PC12)

Figure 26. Analog input-output connector CN8 (top view)

DocID027351 Rev 3
Terminal Terminal name (MCU port)
6
7 SDIO_D0 (PC8)
8 SDIO_D1 (PC9)
9
10 MicroSDcard_detect (PA8)
UM1855
Vss/GND
GND
