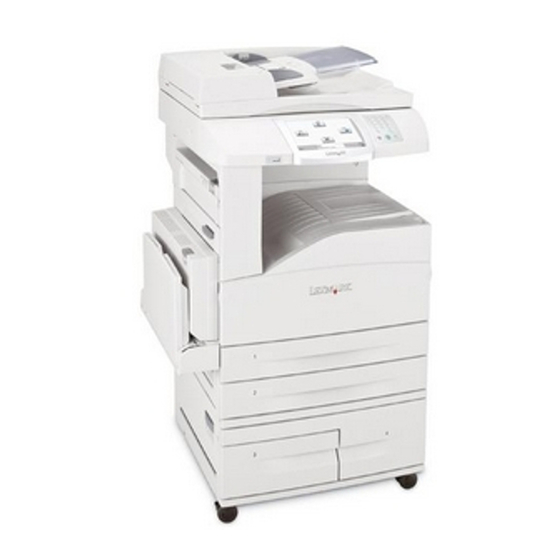

Page 1 X850e, X852e, and X854e MFP 7500-XXX • Table of contents • Start diagnostics • Safety and notices • Trademarks • Index Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
Page 2 Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. All other trademarks are the property of their respective owners.
Page 3: Table Of Contents
7500-XXX Table of contents Safety information..............xiii Preface .
Page 4 7500-XXX Stacker media bin block to stack media ..........1-22 Media size and weight .
Page 5 7500-XXX Start ................2-1 Using service checks .
Page 6 7500-XXX 284.04 Sensor (lower media exit) off jam B......... . .2-88 284.05 Sensor (lower media exit) static jam .
Page 7 7500-XXX Available tests ..............3-2 MOTOR TESTS .
Page 8 7500-XXX Maintenance Counter Value ............3-35 Reset Maintenance Counter .
Page 9 7500-XXX 2X 500-sheet drawer (2TM)–feed roll removal ........4-28 2X 500-sheet drawer (2TM)–feed roll one-way clutch removal .
Page 10 7500-XXX Bridge unit right shaft assembly removal ......... . .4-86 Bridge unit left shaft assembly removal .
Page 11 7500-XXX Paddle and roll exit assembly removal ..........4-163 Lower pinch guide assembly removal .
Page 12 7500-XXX Assembly 13: High capacity feed (HCF)–electrical ........7-26 Assembly 14: Finisher–bridge unit.
Page 13: Safety Information
7500-XXX Safety information • The safety of this product is based on testing and approvals of the original design and specific components. The manufacturer is not responsible for safety in the event of use of unauthorized replacement parts. • The maintenance information for this product has been prepared for use by a professional service person and is not intended to be used by others.
Page 14 7500-XXX Sicherheitshinweise • Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung für die Sicherheit übernommen. • Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen Wartungsfachmann bestimmt.
Page 15 7500-XXX Informació de Seguretat • La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics. El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades. •...
Page 16: Preface
7500-XXX Preface Service information for the Lexmark X850e, X852Ee, and X854e is contained within two service manuals: • MFP Service Manual–Contains specific service information for the MFP and includes the options error codes. • Options Service Manual–Contains specific service information for the 2X 500-Sheet Drawer (2TM), High Capacity Feeder, and Finisher.
Page 17: General Information
7500-XXX 1. General information Options and features This chapter describes features for the 2X 500-Sheet drawer, high capacity feeder, and finisher for the Lexmark™ X850e, X852e, and X854e MFP. 2X 500-Sheet drawer (2TM) General information...
Page 18: 500-Sheet Drawer (2Tm) Theory
7500-XXX 2X 500-Sheet drawer (2TM) theory Driving force transmission path The rotating force of the 2 tray/tandem tray drive motor is transmitted through the gears to components that need mechanical driving force as shown below. MPF/Transport drive motor assembly Vertical drive gear ASM Gear18T MPF pick roll ASM...
Page 19: Media Transport
7500-XXX Media transport Media transport path Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 4 Tray 3 Pick roll Pick roll Separation roll Separation roll Feed roll Feed roll Upper pinch roll...
Page 20: Layout Of Media Transport Path
7500-XXX Layout of media transport path The following is a cross section of the laser printer and the optional 2 tray module, showing main components directly associated with the media path and transport. Main components associated with the media transport Exit 2 media exit roll assembly Exit 2 media exit pinch rolls Option exit 2...
Page 21: Media Tray Assembly
7500-XXX Media tray assembly It is necessary to adjust the front side guide, rear side guide, and end guide on the media tray assembly to match the media size. Front media tray guide and rear media tray guide To adjust the front media tray guide to different media sizes, move it to the front or rear. The front and rear media tray guides come into contact with the front and rear edges of the media and hold it in position.
Page 22: Sensor (Pre-Feed)
7500-XXX Sensor (pre-feed) This sensor detects a media jam in the media tray assembly by the media position and sensor on/off time. The sensor on/off state is monitored by media passing through the sensor (pre-feed) sensing area. Media feed lift motor Sensor (pre-feed) Sensor (media level) Sensor (media out)
Page 23: Main Components
7500-XXX Main components Switch (2TM/TTM left door interlock) The left door interlock switch detects open/close of the left door assembly. Sensor (tray 3 feed-out) The sensor (tray 3 feed-out) detects media fed from tray 3 or tray 4. Sensor (tray 4 feed-out) The sensor (tray 4 feed-out) detects media fed from tray 4.
Page 24: Switch (Media Size)
7500-XXX Switch (media size) The following table gives on/off states for the switch (media size), corresponding to the media sizes on the media tray assembly. Note: The switches (media size) are denoted by “S/W2”, “S/W4”, “S/W3”, “S/W5”, and “S/W1”, respectively, from the left side.
Page 25: High Capacity Feeder
7500-XXX High capacity feeder General information...
Page 26: Media Feeding
7500-XXX Media feeding Outline The HCF feeds media from the tray to the printer through the HCF media feed unit assembly and the HCF media transport roll assembly. HCF media feed unit assembly The pick roll feeds media from the tray. The feed roll and the separation roll feed media from the pick roll to the HCF media transport roll assembly.
Page 27 7500-XXX The sensor (tray 5 feed-out) detects the presence of media fed from the tray and controls the media feed lift motor stop and the transport motor speed. It also detects media jams to identify the media jam zone. Separation roll Feed roll Pick roll HCF media...
Page 28: Hcf Media Feed Unit Assembly Operation
7500-XXX HCF media feed unit assembly operation Upon receiving the feed start signal from the controller, the HCF activates the pick solenoid after a preset time has passed to press the pick roll against the media in the tray. After a preset time has passed, after receiving the feed start signal, the HCF feed lift motor rotates forward to feed media from the tray to the feed roll side with the pick roll.
Page 29: Hcf Media Transport Roll Assembly Operation
7500-XXX HCF media transport roll assembly operation Upon receiving the feed start signal from the controller the HCF activates the HCF transport motor at a high speed after a preset time has passed. This rotating power of the HCF transport motor is transmitted to the HCF media transport roll assembly, and the media from the HCF media feed unit assembly is transferred to the printer.
Page 30: Hcf Media Feed Unit Assembly Sensor/Motor Functions
7500-XXX HCF media feed unit assembly sensor/motor functions Functions of the sensors and motors of the media feed unit assembly are outlined below. • HCF media feed lift motor–is a stepping motor that rotates (forward) the pick roll and feed roll to send media from the tray to the HCF media transport roll assembly.
Page 31: Status Monitoring
7500-XXX Status monitoring This function includes detection of static media jams, interlocking, and insertion of the HCF media tray assembly. Static media jam detection This function checks the status of all relevant sensors on the media path to detect media jams. When media is present on the sensor, it is treated as a static jam.
Page 32: Tray Insertion Detection
7500-XXX Tray insertion detection The sensor (HCF media tray set) checks whether the tray is properly set. This check is constant while the power is on. Printing operation is inhibited if the sensor (HCF media tray set) off (tray is not present) is detected before printing starts.
Page 33: Media Size Detection
7500-XXX Media size detection When media is loaded in the tray, the media size is automatically detected by the rear media edge guide that is attached to the media tray assembly and aligned with the side of the media. The position of the rear media edge guide is detected by the sensor (HCF media size L) and the sensor (HCF media size R).
Page 34: Tray Lifting
7500-XXX Tray lifting Tray lift operation starts automatically when the HCF media tray is inserted with media loaded. Media is lifted and stops at the feeding position. At the same time, detection of no media and remaining media volume becomes available. HCF feed lift motor Feed lift gear bracket asm Bottom plate...
Page 35: Sensor (Media Out)
7500-XXX If the HCF media tray is not lifted, the media out actuator remains in the sensing area of the sensor (media out), while blocking the light transmission of the sensor (media out). Media out is detected regardless of the presence of media in the tray.
Page 36: Sensor (Media Level)
7500-XXX • If the sensor (media level) is off when the power is turned on, the HCF regards the HCF media tray as having been removed, and determines the remaining media volume based on the time from the media feed lift motor forward/reverse rotation until the sensor (media level) comes on.
Page 37: Finisher
7500-XXX Finisher The optional finisher performs staples and punches, and stacks media transferred from the Lexmark X850e, X852e, or X854e MFP. Output is stacked in the upper media bin or separately collated in the stacker media bin. Bridge unit assembly...
Page 38: Stacker Media Bin Block To Stack Media
7500-XXX Stacker media bin block to stack media Punch unit Stacker media bin Bridge unit assembly Compiler tray Stapler Media size and weight The following shows media sizes and weights that the finisher can handle, as well as applicable functions for each media size.
Page 39: Media Size/Orientation And Applicable Functions
7500-XXX Media size/orientation and applicable functions Short edge Stacker tray Media first (SEF)/ Size description Long edge Offset Stack Stack Punch Staple first (LEF) stack 182 x 257 mm a(2) Executive 7.25 x 10.5 in. 184.2 x 27 0 mm a(2,3,4) a(2) Letter...
Page 40: Features
7500-XXX Features Media processing requested Destination of media No post-processing Upper media bin or stacker media bin Punching Upper media bin or stacker media bin Stapling Stacker media bin Punching and stapling Stacker media bin Finisher theory Media transport This section describes the transfer of media from the printer to a specified bin. The following figures illustrate layouts (front view) of sensors, rollers, and main blocks, as well as a layout (rear view) of the main components.
Page 41: Finisher Roll Assemblies
7500-XXX Finisher roll assemblies Upper media exit roll assembly— driven by drive motor (exit) Upper media transport roll assembly—driven by drive motor (buffer/transport) Finisher diverter gate Sub paddle— driven by drive motor (entrance/paddle) Eject clamp— Finisher media entrance driven by media eject clamp motor roll assembly—driven by drive motor (entrance/paddle)
Page 42: Finisher Motors
7500-XXX Finisher motors Drive motor (exit) Drive motor Media eject clamp motor (buffer/transport) Finisher diverter gate solenoid Media eject motor assembly Buffer diverter solenoid Drive motor (entrance paddle) Stacker bin lift motor assembly Bridge unit assembly When the printer designates the finisher, the media diverter gate in the printer activates and media is fed from the printer into the bridge unit assembly.
Page 43: From Bridge Unit Assembly To Punch
7500-XXX From bridge unit assembly to punch The media fed from the bridge unit assembly is fed into the finisher by the media entrance roll assembly located on the entrance section of the finisher which is driven by the drive motor (entrance/paddle). The media route inside the finisher is determined by the finisher diverter gate.
Page 44: From Punch To Compiler Unit Assembly
7500-XXX From punch to compiler unit assembly The media is transferred to the compiler unit assembly by the buffer roll assembly (driven by the motor (buffer/ transport)) and by the lower media exit roll assembly (driven by the drive motor (exit)). When the first media reaches the compiler unit assembly, the media eject clamp motor is activated to lower the media eject clamp so that the media eject clamp and the media eject shaft assembly can clamp the media.
Page 45 7500-XXX Sensor (lower media exit) Sub paddle—driven by drive motor (entrance/paddle) Eject clamp—driven Buffer roll assembly— by eject clamp motor driven by drive motor (buffer/transport) Media eject shaft assembly— driven by media eject motor asm Buffer diverter Compiler unit assembly Main paddle Lower media exit motor—driven by...
Page 46: From Compiler Unit Assembly To Stacker Media Bin
7500-XXX From compiler unit assembly to stacker media bin Stapled media on the compiler unit assembly (stapling mode) or aligned media (non-stapling mode) are held between the media eject clamp and the media eject shaft assembly. The media eject shaft assembly is driven by the media eject motor assembly to transfer media to the stacker media bin.
Page 47: Finisher
7500-XXX Finisher • Sensor (finisher media entrance) — A photo-reflective sensor detects whether media is fed from the bridge unit assembly to the finisher — It turns high (+5 V dc) while media is present within the sensing area. — When the level turns high due to the first media of the second set during multi-set printing, this sensor activates the buffer diverter solenoid to switch the buffer diverter gate so that the media goes in the buffer roll assembly’s circumferential direction.
Page 48: Punch Unit
7500-XXX Punch unit This section describes the media punching operation of the punch. Two types of punch are provided: the 2/3-hole type and the 2/4-hole type. The following explains the 2/3-hole type (2-hole/3-hole auto-switching). Every type has the same construction, except for the sensor (punch hole select) that is provided for the 2-hole type and 3-hole type only.
Page 49: Punching
7500-XXX Punching After punching positions are determined, the punch unit motor is activated to move the cam plate. With the movement of the cam plate, the pins descend along the guide holes to punch the media. This operation is performed for each sheet of media. The cam plate can lower the pins even while it is moving to the front or rear side.
Page 50: Detecting Punch Waste Full
7500-XXX Detecting punch waste full Punch waste is stored in the punch waste box. A sensor is provided to detect punch waste full. When punch waste full is detected, it is notified to the operator only once. Even if punch waste is not removed, the finisher can still punch media. However it can spread punch waste inside the machine.
Page 51: Compiler Unit Assembly
7500-XXX • Sensor (punch waste box set) — A photo-interrupter sensor that detects whether the waste box is properly set — When the punch waste box is properly set, the actuator of the box blocks the light transmission of the sensor, which turns the sensor to high (+5 V dc).
Page 52: Capacity Of Compiler Unit Assembly
7500-XXX Capacity of compiler unit assembly Media volume that can be stacked on the compiler unit assembly is limited as shown in the table below. The number of sheets depends on whether media is stapled or not, as well as on media size. If the number of sheets of one set to be stapled exceeds the limit, the exceeding sheets are not stacked on the compiler unit assembly, and are forcibly ejected to the stacker media bin without being stapled.
Page 53: Front Tamping
7500-XXX Front tamping Front tamping is used in the following cases. • In the non-staple mode • When executing front stapling (corner) The tamper positions during front tamping are shown below. Sensor (rear tamper HP) Sensor (front tamper HP) Rear Front Front tamper motor Rear tamper...
Page 54: Rear Tamping
7500-XXX Rear tamping Rear tamping is used in the following cases. • When executing rear stapling (corner) • When executing dual stapling The tamper positions during rear tamping are shown below. Sensor (rear tamper HP) Sensor (front tamper HP) Rear Front Front tamper motor Front tamper...
Page 55: Center Tamping
7500-XXX Center tamping Center tamping is used when executing rear stapling (straight). The tamper positions during center tamping are shown below. Sensor (front tamper HP) Sensor (rear tamper HP) Front Rear Front tamper motor Front tamper Rear tamper Rear tamper motor Position Description Front tamper home position–sensor (front tamper HP)
Page 56: Offsetting
7500-XXX Offsetting Offsetting is an operation to shift the position of media to be ejected to the stacker media bin so that boundaries between media units (sets of media, job units, etc.) can be easily recognized. Offsetting is executed for staple positions: •...
Page 57: Stapler
7500-XXX • Rear tamper motor — A stepping motor that moves the rear tamper for tamping — Clockwise rotation of this motor moves the rear tamper to the front side. Counterclockwise rotation of this motor moves the tamper to the rear side. Rear tamper Front tamper Sensor (rear...
Page 58: Media Sizes That Allow Stapling
7500-XXX • Rear Staple (Straight) [rear straight] Rear This type of stapling is applied for media with a width of less than 216 mm. The Stapler staples a set of media in parallel with the media edge after the front tamper aligns the media to the rear side.
Page 59: Stapling Multiple Size Media
7500-XXX Stapling multiple size media When sheets with different sizes and the same width (example: A4L and A3S) are present on the compiler unit assembly, all the sheets are stapled and then ejected to the stacker media bin. When sheets with different widths are present on the compiler unit assembly, stapling is stopped when a different width is detected.
Page 60: Stapler Unit Assembly
7500-XXX Stapler unit assembly The stapling operation is executed by closing the stapler unit assembly. The stapler unit assembly, containing the staple motor, the sensor (staple home), the sensor (self priming), and the sensor (low staple), is activated by the staple motor. Forward (clockwise) rotation of the motor drives the stapler to staple a set of sheets, and returns the stapling unit to the home position.
Page 61: Upper Media Bin
7500-XXX • Stapler unit motor (in the stapler unit assembly) — A DC motor to activate the stapler unit assembly for stapling — Clockwise rotation of this motor enables stapling, while counterclockwise rotation returns the stapler unit assembly. Stapler carriage motor asm Stapler rack gear Sensor (stapler carriage HP)
Page 62: Stacker Media Bin
7500-XXX Stacker media bin The stacker media bin goes up and down to an appropriate position according to the volume of media fed from the compiler unit assembly so as to properly stack media to a full stack. Operation The stacker media bin moves to an appropriate position according to the volume of media fed from the compiler unit assembly.
Page 63 7500-XXX The stacker media bin lowers according to the volume of media it contains. If any obstacle under the tray hinders the tray from lowering, stacker lower safety warning is detected, and the stacker media bin is stopped. Eject clamp motor Sensor (stacker bin level 1) Sensor (media eject clamp HP)
Page 64: Full Stack Detection
7500-XXX Full stack detection A full stack is detected when media in the stacker media bin becomes full to prevent media jam or falling of media to the floor. The stacker media bin can stack up to approximately 3000 sheets. The media volume in the stacker media bin is detected at every 10% (approximately 300 sheets) and notified to the Controller.
Page 65 7500-XXX • Sensor (stacker bin no media) — A photo-interrupter sensor that detects that the stacker media bin is at the highest position; it also detects no media. — When the actuator attached to the carriage assembly right enters the sensing area, the emitted light is blocked, which turns the sensor to high (+5 V).
Page 66: Power Supply And Interlock
7500-XXX Power supply and interlock The finisher is equipped with the following interlock switches. • Switch (finisher front door interlock)–Turns off when the cover assembly front opens, shutting off the Interlock +24 V dc line in the finisher. • Switch (eject cover interlock)–Turns off when the cover eject on the right side opens, shutting off the Interlock +24 V dc line in the finisher.
Page 67: Tools Required For Service
7500-XXX Tools required for service Flat-blade screwdriver #1 Phillips screwdriver, magnetic #2 Phillips screwdriver, magnetic #2 Phillips screwdriver, magnetic short-blade Needle nose pliers Diagonal side cutters Spring hook 5.5 mm hex driver, magnetic Analog or digital multi-meter Parallel wrap plug 1319128 Twinax/serial debug cable 1381963 Coax/serial debug cable 1381964 Acronyms...
Page 68 7500-XXX Power-on Reset POST Power-on Self Test Pages Per Minute Parallel Synchronous Communications Position Sensing Device Pulse Width Modulation RFID Radio Frequency Identification Raster Imaging Processor Read only Memory Revolutions Per Minute SDRAM Synchronous Dual Random Access Memory Short Edge Feed SIMM Single Inline Memory Module Start of scan...
Page 69: Diagnostic Information
7500-XXX 2. Diagnostic information Start CAUTION: Unplug the power cord from the electrical outlet before you connect or disconnect any cable or electronic board or assembly for personal safety and to prevent damage to the printer. Disconnect any connections between the printer and PCs/peripherals. CAUTION: The MFP weighs approximately 70 kg (154 lb) and requires at least four people to lift it safely.
Page 70: Confirm The Installation Status
The following is an example of the events that occur during the POR sequence: Turn the machine on. The Lexmark splash screen appears with a progress bar in the center until the code is loaded. The scanner exposure lamp flashes several times.
Page 71: Error Code Messages - 2X 500-Sheet Drawer (2Tm)
7500-XXX Error code messages - 2X 500-sheet drawer (2TM) Error code or Error contents Description/Action message 243.00 Sensor (pre-feed) on jam (tray The pre-feed sensor 3 is not turned on within the 3 media feed) specified time after the tray 3 feed lift motor is turned on. Paper jam Go to “243.00 Sensor (pre-feed) on jam (tray 3 media...
Page 72 7500-XXX Error code or Error contents Description/Action message 244.05 Sensor (tray 4 feed-out) static Media remains on the sensor (tray 4 feed-out). Paper jam Go to “244.05 Sensor (tray 4 feed-out) static jam” on page 2-22. Check areas C, tray 4 Tray 3 media size mismatch in The media length detected by the sensor (registration) length...
Page 73: Service Checks - 2X 500-Sheet Drawer (2Tm)
7500-XXX Service checks - 2X 500-sheet drawer (2TM) 243.00 Sensor (pre-feed) on jam (tray 3 media feed) Step Check Check the media condition. Replace the media. Go to step 2. Is the media in the tray crumpled or damaged? Check the media size setup. Go to step 3.
Page 74: Sensor (Tray 3 Feed-Out) On Jam (Tray 3 Media Feed)
7500-XXX Step Check Check the tray 3 media feed lift motor for proper Go to step 11. Go to step 9. operation. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Printer Motor Tests. 4. Touch Tray 3 feed mtr. Does the above media feed lift motor operate properly? Check the tray 3 media feed lift motor for proper Replace the media...
Page 75 7500-XXX Step Check Check the media size setup. Go to step 3. Replace the media or change the media Does the size of media in use match the size set for size setup. tray 3? Check the tray 3 rolls. Go to step 4.
Page 76: Sensor (Tray 2 Feed-Out) On Jam (Tray 3 Media Feed)
7500-XXX Step Check Check the tray 3 sensor (pre-feed) for proper operation. Go to step 10. Go to step 9. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Pre-feed. Remove the media tray assembly.
Page 77 7500-XXX Step Check Check the tray 3 rolls. Go to step 4. Clean or replace the feed roll, separation Pull out tray 3, and check it. roll, and pick roll. Are the feed roll, separation roll, and pick roll for Go to “2X 500- transport free of excess wear and contamination?
Page 78: Sensor (Registration) On Jam (Tray 3 Media Feed)
7500-XXX Step Check Check the sensor (tray 3 feed-out) for proper Replace the sensor Replace the connection. (tray 3 feed-out). connection. “2X 500- Is the above sensor connected properly? Go to sheet drawer (2TM)–sensor (tray 3 feed-out) removal” on page 4-37.
Page 79 7500-XXX Step Check Check the media position. Remove the media. Go to step 5. Open the printer left door assembly, and visually check Does the media touch the sensor (registration)? Check the media position. Remove the media. Go to step 6. Open the 2TM/TTM left door assembly, and visually check it.
Page 80: Sensor (Tray 3 Feed-Out) Static Jam
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2X 500- sheet drawer (2TM)–2TM/TTM controller card assembly removal” on page 4-43. Go to step 12. Perform a print test. Replace the printer Problem solved.
Page 81: Sensor (Tray 4 Feed-Out) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Refer to the Printer Service Manual. 244.00 Sensor (tray 4 feed-out) on jam (tray 4 media feed) Step Check Check the media condition. Replace the media.
Page 82: Sensor (Tray 3 Feed-Out) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Check the tray 4 pre-feed sensor for proper connection. Replace the sensor Replace the (pre-feed). connection. Is the above sensor connected properly? “2X 500- Go to sheet drawer (2TM)–sensor (pre-feed) removal” on page 4-25. Check the 2TM/TTM controller card assembly and the Go to step 8.
Page 83 7500-XXX Step Check Check the media size setup. Go to step 3. Replace the media or change the media Does the media size in use match the size set for size setup. tray 4? Check the tray 4 rolls. Go to step 4. Clean or replace the feed roll, separation Pull out tray 4, and check it.
Page 84: Sensor (Tray 2 Feed-Out) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Check the sensor (tray 3 feed-out) for proper operation. Replace the sensor Go to step 9. (tray 3 feed-out). 1. Enter the Diagnostics Menu. “2X 500- Go to 2. Touch INPUT TRAY TESTS. sheet drawer 3. Touch Sensor Test. (2TM)–sensor 4.
Page 85 7500-XXX Step Check Check the tray 4 rolls. Go to step 4. Clean or replace the feed roll, separation Pull out tray 4, and check it. roll, and pick roll. Are the feed roll, separation roll, and pick roll for Go to “2X 500- transport free of excess wear and contamination?
Page 86: Sensor (Registration) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Check the sensor (tray 4 feed-out) for proper Replace the sensor Replace the connection. (tray 3 feed-out). connection. “2X 500- Is the above sensor connected properly? Go to sheet drawer (2TM)–sensor (tray 3 feed-out) removal” on page 4-37.
Page 87 7500-XXX Step Check Check the media position. Remove the media. Go to step 5. Open the printer left door assembly, and visually check Does the media touch the sensor (registration)? Check the media position. Remove the media. Go to step 6. Open the 2TM/TTM left door assembly, and visually check it.
Page 88: Sensor (Pre-Feed) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2X 500- sheet drawer (2TM)–2TM/TTM controller card assembly removal” on page 4-43. Go to step 12. Perform a print test. Replace the printer Problem solved.
Page 89 7500-XXX Step Check Check the sensor (tray 4 pre-feed) for proper operation. Ensure the Feed unit Go to step 6. front guide is 1. Enter the Diagnostics Menu. properly installed. 2. Touch INPUT TRAY TESTS. Go to step 7. 3. Touch Sensor Test. 4.
Page 90: Sensor (Tray 4 Feed-Out) Static Jam
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2X 500- sheet drawer (2TM)–2TM/TTM controller card assembly removal” on page 4-43. Go to step 13. Perform a print test. Replace the printer Problem solved.
Page 91: Tray 3 Lift Up / No Tray Failure
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Refer to the Printer Service Manual. 943.00 Tray 3 lift up / no tray failure Step Check Check the media. Go to step 2.
Page 92: Tray 4 Lift Up / No Tray Failure
7500-XXX Step Check Check the tray 3 sensor (media level) for proper Go to step 8. Go to step 7. operation. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Media level. Remove the media tray assembly, and move the pick roll with your finger in an up and down motion.
Page 93 7500-XXX Step Check Check the tray. Go to step 3. Replace the tray lift sector gear 12T or Are the tray lift sector gear 12T of tray 4 or the any other damaged surrounding parts of it damaged? components. Check the tray 4 media feed lift motor for proper Go to step 6.
Page 94: 2Tm/Ttm Controller Card Assembly Communication Failure
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2X 500- sheet drawer (2TM)–2TM/TTM controller card assembly removal” on page 4-43. Go to step 10. Perform a print test. Replace the printer Problem solved.
Page 95: Tray 4 Media Size Failure
7500-XXX Step Check Check the tray 3 switch (media size) for proper Go to step 4. Install the switch operation. (media size) for tray 3 properly. Pull out tray 3, and visually check it. Go to “2X 500- Is the switch (media size) for tray 3 installed properly? sheet drawer (2TM)–switch (media size)
Page 96: 2Tm/Ttm Left Door Assembly Open
7500-XXX Step Check Check the tray 4 switch (media size) for proper Go to step 4. Install the switch operation. (media size) for tray 4 properly. Pull out tray 4, and visually check it. Go to “2X 500- Is the tray 4 switch (media size) installed properly? sheet drawer (2TM)–switch (media size)
Page 97: No Media In The Select Media Tray
7500-XXX Step Check Check the switch (2TM/TTM left door interlock) for Go to step 4. Go to step 3. proper operation. 1. Enter the Diagnostics Menu. 2. Touch BASE Sensor Test. 3. Touch Cover and Door. 4. Touch Door C 2TM/TTM. Open the 2TM/TTM left door assembly, and visually check it.
Page 98: Media Size Mismatch In Width
7500-XXX Step Check Check the sensor (media out) for proper operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Media out. 1.
Page 99: Tray 3 Media Size Mismatch In Length
7500-XXX Step Check Check the media. Go to step 3. Set the parts properly. Pull out each tray, and visually check it. Are the front media tray guide assembly and rear media tray guide on tray 3 and tray 4 set properly? Check the switches (media size) for proper installation.
Page 100 7500-XXX Step Check Check the tray 3 switch (media size) for proper Go to step 5. Install the switch installation. (media size) for tray 3 properly. Pull out tray 3, and visually check it. Go to “2X 500- Is the switch (media size) for tray 3 installed properly? sheet drawer (2TM)–switch (media size)
Page 101: Tray 4 Media Size Mismatch In Length
7500-XXX Step Check Check the sensor (registration) for proper operation. Go to step 12. Go to step 11. 1. Enter the Diagnostics Menu. 2. Touch BASE Sensor Test. 3. Touch Media Path. 4. Touch Registration. Open the printer left door assembly, and visually check Does the operator panel display change every time the actuator on the above sensor operates? Check the sensor (registration) for proper connection.
Page 102 7500-XXX Step Check Check the media. Go to step 3. Set the parts properly. Are the front media tray guide assembly and rear media tray guide on tray 4 set properly? Pull out tray 4, and visually check it. Check the tray 4 switch (media size) for proper Go to step 5.
Page 103 7500-XXX Step Check Check the sensor (registration) for proper operation. Go to step 12. Go to step 11. 1. Enter the Diagnostics Menu. 2. Touch BASE Sensor Test. 3. Touch Media Path. 4. Touch Registration. Open the printer left door assembly, and visually check Does the operator panel display change every time the actuator on the above sensor operates? Check the sensor (registration) for proper connection.
Page 104: Error Code Messages - Hcf
7500-XXX Error code messages - HCF Error code or Error Contents Description/Action message 245.00 Sensor (tray 5 feed-out) on jam The sensor (tray 5 feed-out) is not turned on within the specified time after the HCF feed lift motor is turned Paper jam Check areas K, “245.00 Sensor (tray 5 feed-out) on jam”...
Page 105: Service Checks - Hcf
7500-XXX Service checks - HCF 245.00 Sensor (tray 5 feed-out) on jam Step Check Check the paper path. Go to step 2. Clean or replace the appropriate roll, and Open the HCF top door assembly. clean the paper path. Open the HCF media feed unit assembly. Go to “HCF pick Check these items by turning them with your fingers.
Page 106 7500-XXX Step Check Check the sensor (pre-feed) for proper connection. Replace the sensor Replace the (pre-feed). connection. Is the above sensor connected properly? “HCF sensor Go to (pre-feed) removal” on page 4-63. Check the HCF feed unit cable assembly for proper Go to step 6.
Page 107: Sensor (Tray 2 Feed-Out) On Jam
7500-XXX Step Check Perform a print test. Replace the HCF Problem solved. controller card Does the error still occur? assembly. Go to “HCF controller card assembly removal” on page 4-78. Go to step 13. Perform a print test. Replace the printer Problem solved.
Page 108: Sensor (Registration) On Jam
7500-XXX Step Check Check the sensor (tray 2 feed-out) on the printer for Go to step 5. Go to step 4. proper operation. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 2. 5.
Page 109 7500-XXX Step Check Are the HCF media transport roll assembly and the roll Go to step 3. Clean or replace the attached on the HCF top door assembly free of excess appropriate roll, and wear and contamination? clean the paper path.
Page 110: Sensor (Tray 5 Feed-Out) Static Jam
7500-XXX 245.03 Sensor (tray 5 feed-out) static jam Step Check Check the paper path. Go to step 2. Clean or replace the appropriate roll, and Open the HCF top door assembly. clean the paper path. Open the HCF media feed unit assembly. Go to “HCF pick Check these items by turning them with your fingers.
Page 111 7500-XXX Step Check Check the HCF feed lift motor for proper operation. Go to step 8. Go to step 7. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Printer Motor Tests. 4. Touch Tray 5 feed mtr. Does the above motor operate properly? Check the HCF feed lift motor for proper connection.
Page 112: Hcf Unit Media Tray Lift Failure
7500-XXX 945.00 HCF unit media tray lift failure Step Check Check sensor (HCF media level) for proper operation. Go to step 9. Go to step 2. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4.
Page 113: Hcf Unit Nvm R/W Failure
7500-XXX Step Check Check the HCF feed lift motor for proper connection. Replace the HCF Replace the feed lift motor. connection. Is the above motor connected properly? “HCF feed lift Go to motor removal” on page 4-58. Perform a print test. Replace the HCF Problem solved.
Page 114: Hcf Top Door Assembly Open
7500-XXX Step Check Check the HCF controller card assembly and printer Go to step 3. Replace the engine card assembly for proper connection. connection. Are the connectors connected to the HCF controller card assembly and are connectors P414 and P415 on the printer engine card assembly connected properly? Perform a print test.
Page 115: Hcf Unit Docking Failure Or Tray 5 Set Failure
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Refer to the Printer Service Manual. HCF unit docking failure or tray 5 set failure Step Check Check the HCF unit for proper installation. Go to step 2.
Page 116: No Media In The Selected Media Tray
7500-XXX Step Check Check the sensor (HCF media tray set) for proper Replace the sensor Replace the connection. (HCF media tray connection. set). Is the above sensor connected properly. Go to “HCF sensor (HCF media tray set) removal” on page 4-48.
Page 117 7500-XXX Step Check Perform a print test. Replace the HCF Problem solved. controller card Does the error still occur? assembly. Go to “HCF controller card assembly removal” on page 4-78. Go to step 6. Perform a print test. Replace the printer Problem solved.
Page 118: Error Code Messages - Finisher
7500-XXX Error code messages - finisher Error code or Error contents Description/action message 280.00 Sensor (bridge unit media The sensor (bridge unit media entrance) is not turned on entrance) on jam within the specified time after the sensor (fuser exit) in Paper jam the printer is turned on.
Page 119 7500-XXX Error code or Error contents Description/action message 283.00 Sensor (buffer path) on jam A The sensor (buffer path) is not turned on within the specified time after the sensor (finisher media entrance) Paper jam is turned on. Check areas G, Go to “283.00 Sensor (buffer path) on jam A”...
Page 120 7500-XXX Error code or Error contents Description/action message 284.03 Sensor (lower media exit) on Finisher sensor (lower media exit) not turned on within jam C the specified time after the sensor (buffer path) is turned Paper jam Check area G2 Go to “284.03 Sensor (lower media exit) on jam C”...
Page 121 7500-XXX Error code or Error contents Description/action message 287.03 Sensor (upper media exit) on The sensor (upper media exit) is not turned on within the jam C specified time after the sensor (finisher media entrance) Paper jam is turned on. Check area G1 At this time, the sensor (bridge unit media exit) is turned “287.03 Sensor (upper media exit) on jam C”...
Page 122 7500-XXX Error code or Error contents Description/action message 288.03 Sensor (diverter gate) Static Paper remains on the sensor (diverter gate) when the jam (to top bin) C finisher is in the upper bin exit mode. Paper jam At this time, both the sensor (finisher media entrance) Check area G1 and the sensor (bridge unit media exit) are turned off.
Page 123 7500-XXX Error code or Error contents Description/action message 982.01 Sensor (front tamper HP) off The sensor (front tamper HP) is not turned off within the failure specified time after the front tamper starts leaving from Service finisher the front tamper home position. error Or the sensor (front tamper HP) is turned on again after the sensor (front tamper HP) is turned off and the front...
Page 124 7500-XXX Error code or Error contents Description/action message 986.01 Sensor (media eject clamp HP) The sensor (media eject clamp HP) is not turned off off failure within 200 ms after the media eject clamp down starts. Service finisher “986.01 Sensor (media eject clamp HP) off error Go to failure”...
Page 125 7500-XXX Error code or Error contents Description/action message 995.00 Finisher NVM R/W failure A read/write error occurred on the NVM of the finisher controller card assembly. Service finisher “995.00 Finisher NVRAM R/W failure” on Go to page 2-146. 996.00 Finisher type failure An incorrect type of finisher is connected.
Page 126: Service Checks - Finisher
7500-XXX Service checks - finisher 280.00 Sensor (bridge unit media entrance) on Jam Step Check Check the media path. Go to step 2. Clean or replace the transport Open the bridge unit top cover assembly of the bridge belts and bridge unit assembly.
Page 127: Sensor (Bridge Unit Media Entrance) Static Jam A
7500-XXX Step Check Check the bridge unit drive motor connection. Replace the Replace the bridge unit drive connection. Is the above motor properly connected? motor. Go to “Bridge unit drive motor assembly removal” on page 4-90. Perform a print test. Replace the Problem solved.
Page 128: Sensor (Bridge Unit Media Entrance) Static Jam B
7500-XXX Step Check Check the bridge unit drive motor for proper operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher Motor Tests. 4. Touch Bridge unit drv mtr. Open the top cover on the bridge unit.
Page 129 7500-XXX Step Check Check the sensor (bridge unit media entrance) Replace the Replace the connection. sensor (bridge connection. unit media Is the above sensor connected properly? entrance). Go to “Sensor (bridge unit media entrance) removal” on page 4-93. Check the bridge unit drive motor for proper operation. Go to step 5.
Page 130: Sensor (Bridge Unit Media Exit) On Jam A
7500-XXX 281.00 Sensor (bridge unit media exit) On Jam A Step Check Check the media path. Go to step 2. Clean or replace the transport 1. Open the bridge unit top cover assembly of the belts and bridge bridge unit assembly. unit pinch rolls, 2.
Page 131: Sensor (Bridge Unit Media Exit) On Jam B
7500-XXX Step Check Perform a print test. Replace the Problem solved. bridge unit Does the error still occur? interface card assembly. Go to “Bridge unit interface card assembly removal” on page 4-194. Go to step 8. Perform a print test. Replace the Problem solved.
Page 132 7500-XXX Step Check Check the sensor (bridge unit media exit) connection. Replace the Replace the sensor (bridge connection. Is the above sensor connected properly? unit media exit). Go to “Sensor (bridge unit media exit) removal” on page 4-94. Check the bridge unit drive motor for proper operation. Go to step 7.
Page 133: Sensor (Bridge Unit Media Exit) On Jam C
7500-XXX 281.02 Sensor (bridge unit media exit) On Jam C Step Check Check the media path. Go to step 2. Clean or replace the transport 1. Open the bridge unit top cover assembly of the belts and bridge bridge unit assembly. unit pinch rolls, 2.
Page 134: Sensor (Bridge Unit Media Exit) Static Jam A
7500-XXX Step Check Perform a print test. Replace the Problem solved. bridge unit Does the error still occur? interface card assembly. Go to “Bridge unit interface card assembly removal” on page 4-194. Go to step 8. Perform a print test. Replace the Problem solved.
Page 135: Sensor (Finisher Media Entrance) On Jam
7500-XXX Step Check Check the bridge unit drive motor connection. Replace the Replace the bridge unit drive connection. Are the connectors of the bridge unit cable assembly motor. connected to the bridge unit drive motor and bridge unit interface card assembly? Go to “Bridge unit drive motor...
Page 136 7500-XXX Step Check Check sensor (bridge unit media exit) for proper Go to step 6. Go to step 4. operation. Perform the Bridge media exit test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4. Touch Media Path 1. 5.
Page 137: Sensor (Finisher Media Entrance) Static Jam A
7500-XXX Step Check Is the bridge unit drive motor connected properly? Replace the Replace the bridge unit drive connection. motor. Go to “Bridge unit drive motor assembly removal” on page 4-90. Perform a print test. Replace the Problem solved. bridge unit Does the error still occur? interface card assembly.
Page 138: Sensor (Buffer Path) On Jam A
7500-XXX Step Check Check the sensor (finisher media entrance) Replace the Replace the connection. sensor (finisher connector. media entrance). Is the above sensor connected properly? Go to “Sensor (finisher media entrance) removal” on page 4-175. Check the drive motor (entrance/paddle) for proper Go to step 5.
Page 139 7500-XXX Step Check Are the media entrance roll assembly and the media Go to step 3. Clean or replace entrance pinch guide pinch rolls free of damage, and the appropriate do they rotate smoothly? rolls and clean the paper path. Check the media path.
Page 140 7500-XXX Step Check Check the buffer diverter gate solenoid for proper Go to step 9. Go to step 8. operation. Perform the fin buffer solenoid test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher Tests. 4. Touch Fin buffer solenoid. 5.
Page 141 7500-XXX Step Check Check the drive motor (buffer/transport) for proper Go to step 13. Go to step 12. operation. Perform the drive motor (buffer/transport) test. Remove the finisher rear upper cover. Go to “Rear upper cover removal” on page 4-101. 1.
Page 142: Sensor (Buffer Path) On Jam B
7500-XXX 283.01 Sensor (buffer path) on jam B Step Check Check the media path. Go to step 2. Clean or replace the appropriate 1. Open the finisher front door assembly. rolls and clean 2. Remove the top cover and left upper cover. the media path.
Page 143 7500-XXX Step Check Check the sensor (buffer path) for proper operation. Go to step 9. Go to step 8. Perform the buffer path test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4. Touch Media Path 1. 5.
Page 144 7500-XXX Step Check Check the finisher diverter gate solenoid for proper Go to step 13. Go to step 12. operation. Perform the fin diverter solenoid test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher Tests. 4. Touch Fin diverter solenoid. 5.
Page 145: Sensor (Buffer Path) Static Jam A
7500-XXX 283.02 Sensor (buffer path) static jam A Step Check Check the sensor (buffer path) for proper operation. Go to step 3. Go to step 2. Perform the buffer path test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3.
Page 146: Sensor (Buffer Path) Static Jam B
7500-XXX 283.03 Sensor (buffer path) static jam B Step Check Check the sensor (buffer path) for proper operation. Go to step 3. Go to step 2. Perform the buffer path test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3.
Page 147: Sensor (Buffer Path) Static Jam C
7500-XXX 283.04 Sensor (buffer path) static jam C Step Check Check the sensor (buffer path) for proper operation. Go to step 3. Go to step 2. Perform the buffer path test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3.
Page 148: Sensor (Lower Media Exit) Off Jam A
7500-XXX 284.00 Sensor (lower media exit) off jam A. Step Check Check the media path. Go to step 2. Clean or replace the lower media Open the finisher front door assembly. Check the lower exit roll assembly, media exit roll assembly by turning it with your fingers. and clean the media path.
Page 149: Sensor (Lower Media Exit) On Jam A
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 284.01 Sensor (lower media exit) on jam A Step Check Check the media path.
Page 150 7500-XXX Step Check Check the sensor (buffer path) connection. Replace the Replace the sensor (buffer connection. Is the above sensor connected properly? path). Go to “Sensor (buffer path) removal” on page 4-170. Check the drive motor (buffer/transport) for proper Go to step 9. Go to step 8.
Page 151: Sensor (Lower Media Exit) On Jam B
7500-XXX Step Check Check the sensor (lower media exit) for proper Go to step 13. Go to step 12. operation. Perform the sensor (lower media exit) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 152 7500-XXX Step Check Are the buffer pinch guide pinch rolls free of damage? Go to step 5. Clean or replace the appropriate roller, and clean the media path. Check the sensor (buffer path) for proper operation. Go to step 7. Go to step 6.
Page 153 7500-XXX Step Check Check the sensor (diverter gate) for proper operation. Go to step 11. Go to step 10. Perform the sensor (diverter gate) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4. Touch Media Path 2. 5.
Page 154: Sensor (Lower Media Exit) On Jam C
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 284.03 Sensor (lower media exit) on jam C Step Check Check the media path.
Page 155 7500-XXX Step Check Check the sensor (buffer path) connection. Replace the Replace the sensor (buffer connection. Is the above sensor connected properly? path). Go to “Sensor (buffer path) removal” on page 4-170. Check the drive motor (buffer/transport) for proper Go to step 9. Go to step 8.
Page 156: Sensor (Lower Media Exit) Off Jam B
7500-XXX Step Check Check the sensor (lower media exit) for proper Go to step 13. Go to step 12. operation. Perform the sensor (lower media exit) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 157 7500-XXX Step Check Check the sensor (lower media exit) for proper Go to step 5. Go to step 4. operation. Perform the sensor (lower media exit) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 158: Sensor (Lower Media Exit) Static Jam
7500-XXX 284.05 Sensor (lower media exit) static jam Step Check Check the sensor (lower media exit) for proper Go to step 3. Go to step 2. operation. Perform the sensor (lower media exit) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3.
Page 159 7500-XXX Step Check Check the drive motor (exit) for proper operation. Go to step 7. Go to step 6. Perform the drive motor (exit) test. “Rear Remove the finisher rear upper cover. Go to upper cover removal” on page 4-101. 1.
Page 160: Finisher Eject Set Jam
7500-XXX 285.00 Finisher eject set jam Step Check Check the media path. Go to step 2. Clean or replace the media eject Check the media eject shaft by turning it with your shaft assembly fingers. and clean the media path. Is the media eject shaft assembly installed properly, meaning does it rotate smoothly? Check the media eject clamp motor for proper...
Page 161: Sensor (Compiler Media In) Static Jam
7500-XXX Step Check Check the sensor (compiler media in) connection. Replace the Replace the sensor (compiler connection. Are the connections of the compiler unit cable media in). assembly properly connected? Go to “Sensor (compiler media in) removal” on page 4-150. Perform a print test.
Page 162: Sensor (Upper Media Exit) On Jam A
7500-XXX Step Check Check the sensor (compiler media in) connection. Replace the Replace the sensor (compiler connection. Is the above sensor connected properly? media in). Go to “Sensor (compiler media in) removal” on page 4-150. Check the media eject motor assembly. Go to step 7.
Page 163 7500-XXX Step Check Are the four media entrance pinch guide pinch rolls of Go to step 3. Clean or replace the entrance pinch guide assembly and media the appropriate entrance roll assembly free of damage? roller and clean the media path. Check the media path.
Page 164: Sensor (Upper Media Exit) Off Jam A
7500-XXX Step Check Check the drive motor (buffer/transport/connection. Replace the drive Replace the motor (buffer/ connection. Is the above motor properly connected? transport). Go to “Drive motor (buffer/ transport) and belt (buffer/ transport) removal” on page 4-192. Perform a print test. Replace the Problem solved.
Page 165 7500-XXX Step Check Check the sensor (upper media exit) and the main Replace the Replace the sensor cable assembly connections. sensor (upper connection. media exit). Is the above sensor connected properly? Go to “Sensor (upper media exit) removal” on page 4-181.
Page 166: Sensor (Upper Media Exit) On Jam B
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 287.02 Sensor (upper media exit) on jam B Step Check Check the media path.
Page 167 7500-XXX Step Check Check the sensor (upper media exit) for proper Go to step 7. Go to step 6. operation. Perform the sensor (upper media exit) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 168: Sensor (Upper Media Exit) On Jam C
7500-XXX 287.03 Sensor (upper media exit) on jam C Step Check Check the media path. Go to step 2. Clean or replace the appropriate 1. Open the finisher front door assembly. roller, and clean 2. Remove the top cover and left upper cover. the media path.
Page 169: Sensor (Upper Media Exit) Off Jam B
7500-XXX Step Check Check the drive motor (buffer/transport) for proper Go to step 9. Go to step 8. operation. Perform the drive motor (buffer/transport) test. Remove the finisher rear upper cover. Go to “Rear upper cover removal” on page 4-101. 1.
Page 170 7500-XXX Step Check Check the sensor (upper media exit) for proper Replace the Go to step 4. operation. finisher controller card assembly. Perform the sensor (upper media exit) test. Go to “Finisher 1. Enter the Diagnostics Menu. controller card 2. Touch FINISHER TESTS. assembly 3.
Page 171: Sensor (Upper Media Exit) Static Jam A
7500-XXX Step Check Check the drive motor (exit) for proper operation. Go to step 9. Go to step 8. Perform the drive motor (exit) test. “Rear Remove the finisher rear upper cover. Go to upper cover removal” on page 4-101. 1.
Page 172 7500-XXX Step Check Check the sensor (upper media exit) and the main Replace the Replace the sensor cable assembly connection. sensor (upper connection. media exit). Is the above sensor connected properly? Go to “Sensor (upper media exit) removal” on page 4-181.
Page 173: Sensor (Upper Media Exit) Static Jam B
7500-XXX 287.06 Sensor (upper media exit) static jam B Step Check Check the sensor (upper media exit) for proper Go to step 3. Go to step 2. operation. Perform the sensor (upper media exit) test. 1. Enter the Diagnostics Menu. 2.
Page 174: Sensor (Upper Media Exit) Static Jam C
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 287.07 Sensor (upper media exit) static jam C Step Check Check the sensor (upper media exit) for proper Go to step 3.
Page 175: Sensor (Diverter Gate) On Jam
7500-XXX Step Check Check the drive motor (buffer/transport) connection. Replace the drive Replace the motor (buffer/ connection. Is the above motor connected properly? transport). Go to “Drive motor (buffer/ transport) and belt (buffer/ transport) removal” on page 4-192. Perform a print test. Replace the Problem solved.
Page 176 7500-XXX Step Check Are the media entrance pinch guide pinch roll on the Go to step 5. Clean or replace entrance pinch guide assembly and the media the appropriate entrance roll assembly free of damage? transport belts and bridge unit pinch rolls, and clean the media path.
Page 177 7500-XXX Step Check Check the sensor (diverter gate) for proper operation. Go to step 11. Go to step 10. Perform the sensor (diverter gate) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4. Touch Media Path 2. 5.
Page 178: Sensor (Diverter Gate) Static Jam (To Top Bin) A
7500-XXX 288.01 Sensor (diverter gate) static jam (to top bin) A Step Check Check the sensor (diverter gate) for proper operation. Go to step 3. Go to step 2. Perform the sensor (diverter gate) test. 1. Enter the Diagnostics Menu. 2.
Page 179: Sensor (Diverter Gate) Static Jam (To Top Bin) B
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 288.02 Sensor (diverter gate) static jam (to top bin) B Step Check Check the sensor (diverter gate) for proper operation.
Page 180: Sensor (Diverter Gate) Static Jam (To Top Bin) C
7500-XXX Step Check Is the drive motor (entrance/paddle) connected Replace the drive Replace the properly? motor (entrance/ connection. paddle). Go to “Drive motor (entrance/ paddle) and belt (entrance/ paddle) removal” on page 4-177. Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly.
Page 181: Sensor (Diverter Gate) Static Jam (To Stacker Bin) A
7500-XXX Step Check Check the drive motor (entrance/paddle) for proper Go to step 5. Go to step 4. operation. Perform the drive motor (entrance/paddle) test. Remove the rear upper cover. Go to “Rear upper cover removal” on page 4-101. 1. Enter the Diagnostics Menu. 2.
Page 182 7500-XXX Step Check Is the sensor (diverter gate) connected properly? Replace the Replace the sensor (diverter connection. gate). Go to “Sensor (diverter gate) removal” on page 4-187. Check the drive motor (entrance/paddle) for proper Go to step 5. Go to step 4. operation.
Page 183: Sensor (Diverter Gate) Static Jam (To Stacker Bin) B
7500-XXX 288.05 Sensor (diverter gate) static jam (to stacker bin) B Step Check Check the sensor (diverter gate) for proper operation. Go to step 3. Go to step 2. Perform the sensor (diverter gate) test. 1. Enter the Diagnostics Menu. 2.
Page 184: Sensor (Diverter Gate) Static Jam (To Stacker Bin) C
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 288.06 Sensor (diverter gate) static jam (to stacker bin) C Step Check Check the sensor (diverter gate) for proper operation.
Page 185: Finisher Communication Failure
7500-XXX Step Check Check the main drive cable assembly connection. Replace the drive Replace the motor (entrance/ connection. Are the connections of the main drive cable assembly paddle). properly connected? Go to “Drive motor (entrance/ paddle) and belt (entrance/ paddle) removal”...
Page 186: Stacker Bin Failure
7500-XXX 981.00 Stacker bin failure Step Check Check the vertical transport mechanism of the stacker Remove Go to step 2. bin for obstacles and deformation. obstacles. Are the any obstacles in the vertical transport mechanism of the stacker bin? Is there any deformation in the vertical transport Replace Go to step 3.
Page 187: Stacker Bin Upper Limit Failure
7500-XXX Step Check Check the stacker bin lift motor assembly. Go to step 9. Go to step 8. Perform the stacker bin lift motor test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher tests. 4. Touch Stacker lift mtr. 5.
Page 188 7500-XXX Step Check Check the sensor (stacker bin level 2) for proper Go to step 5. Go to step 4. operation. Perform the sensor (stacker bin level2) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 189: Stacker Bin Lower Limit Failure
7500-XXX Step Check Check the stacker bin lift motor assembly. Go to step 10. Go to step 9. Perform the stacker bin lift motor test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher tests. 4. Touch Stacker lift mtr. 5.
Page 190 7500-XXX Step Check Check the sensor (stacker bin level 1) for proper Go to step 6. Go to step 5. operation. Perform the sensor (stacker bin level1) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 191 7500-XXX Step Check Check the sensor (stacker bin level encoder) for proper Go to step 10. Go to step 9. operation. Perform the sensor (stacker bin level encoder) test. Remove the rear upper cover. Go to “Rear upper cover removal” on page 4-101.
Page 192: Sensor (Front Tamper Hp) On Failure
7500-XXX 982.00 Sensor (front tamper HP) on failure Step Check Check the tamper mechanism by moving it with your Go to step 2. Replace the fingers. media compiler unit assembly. Does the tamper mechanism operate smoothly? “Media Go to compiler unit assembly removal”...
Page 193: Sensor (Front Tamper Hp) Off Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 982.01 Sensor (front tamper HP) off failure Step Check Check the tamper mechanism by moving it with your Go to step 2.
Page 194: Sensor (Rear Tamper Hp) On Failure
7500-XXX Step Check Check the front tamper drive motor for proper Go to step 6. Go to step 5. operation. Perform the front tamper motor test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher Motor Tests. 4.
Page 195 7500-XXX Step Check Check the sensor (rear tamper HP) for proper Go to step 4. Go to step 3. operation. Perform the sensor (rear tamper HP) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 196: Sensor (Rear Tamper Hp) Off Failure
7500-XXX 983.01 Sensor (rear tamper HP) off failure Step Check Check the tamper mechanism by moving it with your Go to step 2. Replace the fingers. media compiler unit assembly. Does the tamper mechanism operate smoothly? “Media Go to compiler unit assembly removal”...
Page 197: Sensor (Punch Unit Hp) On Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 984.00 Sensor (punch unit HP) on failure Step Check Check the punch unit by moving it with your fingers. Go to step 2.
Page 198: Sensor (Punch Unit Hp) Off Failure
7500-XXX Step Check Check the punch unit motor for proper operation. Go to step 6. Go to step 5. Perform the punch unit motor test. “Rear upper Remove the rear upper cover. Go to cover removal” on page 4-101. 1. Enter the Diagnostic Menu. 2.
Page 199: Sensor (Punch Carriage Shift Hp) On Failure
7500-XXX Step Check Are the sensor (punch unit HP) and punch sensor Replace the Replace the cable assembly connected properly? sensor (punch connection. unit HP). Go to “Sensor (punch hole select), sensor (punch cam front), and sensor (punch unit HP) removal”...
Page 200 7500-XXX Step Check Check the sensor (punch carriage shift HP) for proper Go to step 4. Go to step 3. operation. Perform the sensor (punch carriage shift HP) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 201: Sensor (Punch Carriage Shift Hp) Off Failure
7500-XXX 985.01 Sensor (punch carriage shift HP) off failure Step Check Check the punch carriage by moving it with your Go to step 2. Remove fingers. obstructions. Does the punch carriage move back and forth smoothly? Check the sensor (punch carriage shift HP) for proper Go to step 4.
Page 202: Sensor (Media Eject Clamp Hp) On Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine Does the error still occur? card assembly. Refer to the Printer Service Manual. 986.00 Sensor (media eject clamp HP) on failure Step Check Check the media eject clamp mechanism by opening Go to step 2.
Page 203: Sensor (Media Eject Clamp Hp) Off Failure
7500-XXX Step Check Is the media eject clamp motor connected properly? Replace the Replace the media eject connection. clamp motor. Go to “Media eject clamp motor assembly removal” on page 4-143. Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly.
Page 204: Sensor (Media Eject Shaft Hp) On Failure
7500-XXX Step Check Check the media eject clamp motor for proper Go to step 6. Go to step 5. operation. Remove the rear upper cover. Go to “Rear upper cover removal” on page 4-101. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 205 7500-XXX Step Check Check the sensor (media eject shaft HP) connection. Replace the Replace the sensor (media connection. Are the connections of the main sensor cable eject shaft HP). assembly properly connected? Go to “Sensor (media eject shaft HP) removal” on page 4-156.
Page 206: Sensor (Media Eject Shaft Hp) Off Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. 987.01 Sensor (media eject shaft HP) off failure Step Check Check the media eject shaft assembly by rotating it Go to step 2.
Page 207: Sensor (Punch Unit Side Reg) On Failure
7500-XXX Step Check Is the media eject motor assembly connected Replace the Replace the properly? media eject connection. motor assembly. Go to “Media eject motor assembly removal” on page 4-155. Check the media eject clutch assembly. Go to step 8. Go to step 7.
Page 208 7500-XXX Step Check Check the sensor (punch unit side reg1) for proper Go to step 3. Go to step 4. operation. Perform the sensor (punch unit side reg1) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 209: Sensor (Punch Unit Side Reg) Off Failure
7500-XXX Step Check Check the punch carriage shift motor assembly. Go to step 7. Go to step 6. Perform the punch carriage shift motor test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher Tests. 4. Touch Punch carriage shift mtr. 5.
Page 210 7500-XXX Step Check Check the sensor (punch unit side reg1) for proper Go to step 3. Go to step 4. operation. Perform the sensor (punch unit side reg1) test. 1. Enter the Diagnostics Menu. 2. Touch FINISHER TESTS. 3. Touch Sensor Test. 4.
Page 211: Stapler Unit Failure
7500-XXX Step Check Check the punch carriage shift motor assembly. Go to step 7. Go to step 6. Perform the punch carriage shift motor test. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Finisher Tests. 4. Touch Punch carriage shift mtr. 5.
Page 212: Sensor (Stapler Carriage Hp) On Failure
7500-XXX Step Check Perform a print test stapled document. Replace the Problem solved. printer engine Does the error still occur? card assembly. Refer to the Printer Service Manual. 990.00 Sensor (stapler carriage HP) on failure Step Check Check the stapler by moving it with your fingers. Go to step 2.
Page 213: Sensor (Stapler Carriage Hp) Off Failure
7500-XXX Step Check Perform a print test stapled document. Replace the Problem solved. printer engine Does the error still occur? card assembly. Refer to the Printer Service Manual. 990.01 Sensor (stapler carriage HP) off failure Step Check Check the stapler by moving it with your fingers. Go to step 2.
Page 214: Finisher Nvram R/W Failure
7500-XXX Step Check Perform a print test on a stapled document. Replace the Problem solved. printer engine Does the error still occur? card assembly. Refer to the Printer Service Manual. 995.00 Finisher NVRAM R/W failure Step Check Turn the finisher off and on several times. Go to step 2.
Page 215: Bridge Unit Top Cover Open
7500-XXX Step Check Check the finisher controller card assembly Replace the Problem solved. connections. finisher controller card assembly. Are the connections of the finisher controller card assembly properly connected? Go to “Finisher controller card assembly removal” on page 4-195 Check the printer engine card assembly connections. Replace the Problem solved.
Page 216 7500-XXX Step Check Check the bridge unit top cover assembly on the bridge Reshape the Go to step 3. unit assembly for shape and operation. actuator so it fits into the cover Is the actuator of the bridge unit top cover assembly sensor.
Page 217: Finisher Front Door Open
7500-XXX Finisher front door open Step Check Open and close the finisher front door assembly. Go to step 2. Check the finisher front door Does it open or close smoothly? assembly for installation, correct deformations, or replace it. Go to “Finisher front door assembly...
Page 218: Finisher Eject Cover Open
7500-XXX Finisher eject cover open Step Check Check the switch (eject cover interlock) installation. Go to step 2. Reinstall the switch (media Is the switch (eject cover interlock) installed properly? eject cover). Check the operation of the switch (eject cover Go to step 4.
Page 219: No Punch Waste Box
7500-XXX Step Check Is the sensor (upper media bin full) connected Replace the Replace the properly? sensor (upper connection. media bin full). Go to “Sensor (upper media bin full) removal” on page 4-185. Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly.
Page 220: Punch Waste Box Full
7500-XXX Step Check Perform a print test. Replace the Problem solved. bridge interface Does the error still occur? card assembly. Go to “Bridge unit interface card assembly removal” on page 4-194. Go to step 5. Perform a print test. Replace the Problem solved.
Page 221: Stacker Media Bin Full (Mix Size)
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. Stacker media bin full (mix size) Step Check Check the stacker bin for obstructions. Remove the Go to step 2.
Page 222 7500-XXX Step Check Is the sensor (stacker bin level 2) connected properly? Replace the Replace the sensor (stacker connection. bin level 2). Go to “Sensor (stacker bin level 2) removal” on page 4-111. Check the encoder of the sensor (stacker bin level Go to step 7.
Page 223: Stacker Media Bin Full (No Mix)
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. Stacker media bin full (no mix) Step Check Check the stacker bin for obstructions. Remove the Go to step 2.
Page 224 7500-XXX Step Check Is the sensor (stacker bin level 2) connected properly? Replace the Replace the sensor (stacker connection. bin level 2). Go to “Sensor (stacker bin level 2) removal” on page 4-111. Check the encoder of the sensor (stacker bin level Go to step 7.
Page 225: Stacker Lower Safety Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. finisher controller Does the error still occur? card assembly. Go to “Finisher controller card assembly removal” on page 4-195. Stacker lower safety failure Step Check Check the vertical transport mechanism of the stacker Remove Go to step 2.
Page 226: Stacker Set Over Count Failure
7500-XXX Step Check Check the sensor (stacker bin level 2) connection. Replace the Replace the sensor (stacker connection. Are the connections of the main sensor cable bin level 2). assembly properly connected? Go to “Sensor (stacker bin level 2) removal” on page 4-111.
Page 227: Staple Cartridge Empty
7500-XXX Staple cartridge empty Step Check Check the staple cartridge for new and unused staples. Go to step 2. Refill the cartridge with Does the staple cartridge have a sufficient amount of new and unused new and unused staples? staples. Check the staple cartridge for correct installation.
Page 228 7500-XXX 2-160 Options Service Manual...
Page 229: Diagnostic Aids
7500-XXX 3. Diagnostic aids This chapter explains the tests and procedures to identify printer failures and to verify that repairs have corrected the problem. Accessing service menus Access the following menus to identify problems with the printer and run diagnostic tests. Diagnostics Menu 1.
Page 230: Diagnostics Menus
7500-XXX Diagnostics Menus Entering Diagnostics Menus Turn off the printer. Press and hold the 3 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds. Available tests Tests appear on the LCD in the order shown: MOTOR TESTS “MOTOR TESTS”...
Page 231 7500-XXX Tray 1 feed mtr Tray 2 feed mtr Tray 3 feed mtr Tray 4 feed mtr Tray 5 feed mtr MPF pick solenoid Duplex drv mtr Diverter solenoid Exit 2 cooling fan Tray 1 lift mtr Tray 2 lift mtr Tray 3 lift mtr Tray 4 lift mtr Tray 5 lift mtr...
Page 232 7500-XXX “Feed Tests” on page 3-10. Feed Tests Sensor Test “Sensor Test (input tray)” on page 3-11. OUTPUT BIN TESTS Feed Tests “Feed Tests (output bins)” on page 3-12. Feed To All Bins “Feed To All Bins” on page 3-12. “Sensor Test (output bin)”...
Page 233: Motor Tests
7500-XXX MOTOR TESTS The tests in this group allow you to test specific motors, and on some motors run them forward or reverse. To run the MOTOR TESTS: Touch MOTOR TESTS from the Diagnostics Menu. Touch the test to run. The following Finisher Motor Tests are available: •...
Page 234: Print Tests
7500-XXX PRINT TESTS To run the Print Tests: Touch PRINT TESTS from the Diagnostics Menu. Touch [Input Source] to verify that the printer can generate output from that source’s media. Touch Printing Quality Test Pages to view information about the printer’s current settings and to test the printer’s ability to generate quality output.
Page 235: Print Quality Pages Content By Report Page Number
7500-XXX Print Quality Pages Content by Report Page Number Page Content Number General printer information includes: • A circular graphic with spokes emanating from a dark center • Device Information • (Envelope Enhance) • Engine Setting 1 to 4 • Edge to Edge •...
Page 236: Dram Test
7500-XXX Release the button and the shading is removed. Back Touch Back to exit the test. DRAM Test The DRAM Test is used to check the validity of standard and optional DRAM memory. The test writes patterns of data to DRAM to verify that each bit in memory can be set and read correctly. To run the DRAM Test: Touch HARDWARE TESTS from the Diagnostics Menu.
Page 237: Cache Test
7500-XXX CACHE Test This test is used to verify the printer processor cache. To run the CACHE Test: Touch HARDWARE TESTS from the Diagnostics Menu. Touch CACHE Test. CACHE Test Testing... appears on the LCD. Then the message Resetting the Printer appears. While the CACHE test executes, the power LED is green. The printer automatically performs a POR.
Page 238: Duplex Tests
7500-XXX DUPLEX TESTS Quick Test This test prints a duplex version of the Quick Test that can be used to verify that the correct placement of the top margin on the back side of a duplex page. You can run one duplexed page (Single), or continue printing duplexed pages (Continuous) until is pressed Stop Make sure either letter or A4 size paper is loaded in the default paper source.
Page 239: Sensor Test (Input Tray)
7500-XXX To run the Input Tray Tests: Touch INPUT TRAY TESTS from the Diagnostics Menu. Touch the input source. Input source Appears on the LCD Tray 1 Feeding... Tray 1 Tray 2 Feeding... Tray 2 Tray 3 Feeding... Tray 3 Tray 4 Feeding...
Page 240: Output Bin Tests
7500-XXX Hcf unit docking Testing... appears on the LCD with the sensor’s current state (Open or Closed). Hcf media tray set Testing... appears on the LCD with the sensor’s current state (Open or Closed). After selecting a specific sensor, you can manipulate the printer in such a way as to toggle the sensor between its two values (Open or Closed).
Page 241: Sensor Test (Output Bin)
7500-XXX Sensor Test (output bin) This test is used to verify that a specific output bin’s sensors are working correctly. To run the Output Bin Sensor Test Touch OUTPUT BIN TESTS from the Diagnostics Menu. Touch Sensor Test. The panel displays each installed bin, one bin per line. When you select an output bin, the panel displays the selected output bin in the header row, and then displays the name of each of the bin’s sensors.
Page 242: Hole Punch Test
7500-XXX Hole Punch Test This test is used to verify that media can be fed to a finisher output bin and then hole punched. No information is printed on the feed test pages. To run the Hole Punch Test: Touch FINISHER TESTS from the Diagnostics Menu. Touch Hole Punch Test.
Page 243 7500-XXX Available Bin Level Sensors Sensor Name Description Fin upper bin full Sensor (upper media bin full) Stacker bin level1 Sensor (stacker bin level 1) Stacker bin level2 Sensor (stacker bin level 2) Stacker bin upper limit Sensor (stacker bin upper limit) Stacker bin no media Sensor (stacker bin no media) Stacker bin level encod...
Page 244: Base Sensor Test
7500-XXX After selecting one of the available sensors, you can manually toggle the sensor between its two values (Open or Closed). The LCD displays Open when the sensor is open, and Closed when the sensor is closed. Press Stop to exit the test. BASE SENSOR TEST This test verifies that the sensors in the base machine are operating properly.
Page 245: Device Tests
7500-XXX Media Path Sensors Sensor Name Description Registration Sensor (registration) Fuser exit Sensor (fuser exit) Exit1 shift hp Sensor (exit 1 media shift HP) Exit2 Sensor (exit 2) Exit2 shift hp Sensor (exit 2 media shift HP) To test any of the displayed sensors, you must manipulate the appropriate area of the printer so the sensor’s value will toggle.
Page 246: Power Off
7500-XXX While this test runs, the following graphic appears: Formatting Disk DO NOT POWER OFF This test cannot be interrupted once it has begun. After the test finishes, either Disk Test/Clean Test Passed or Disk Test/Clean Test Failed appears on the LCD. Press Stop to clear the final message and return to DEVICE TESTS.
Page 247: Printer Setup
7500-XXX PRINTER SETUP To enter the PRINTER SETUP screen, touch PRINTER SETUP from the Diagnostics Menu. The following graphic appears on the LCD: PRINTER SETUP U.S. Defaults Printed Page Count Perm Page Count Serial Number NV26T470 Medium Envelope Entrance Engine Setting 1 Back Submit Defaults...
Page 248: Printed Page Count
7500-XXX Printed Page Count The value of this setting enables you to gauge the amount of usage on a device. The Printed Page Count cannot be reset by the servicer. Permanent Page Count The value of this setting indicates the total number of pages that have been printed by the printer. The Permanent Page Count cannot be reset.
Page 249: Edge To Edge
7500-XXX The Configuration ID setting allows you to set both Configuration IDs simultaneously. To set one or both Configuration IDs: From the PRINTER SETUP menu, touch the icon to the right of the Configuration ID menu item. The screen displays the value of both Configuration IDs. By default, the cursor appears on the Configuration ID 1 line.
Page 250: Parallel Strobe Adjustment (Par S Strobe Adj)
7500-XXX Parallel Strobe Adjustment (Par S Strobe Adj) This setting enables you to adjust the amount of time the strobe is sampled in order to determine if valid data is available on the parallel port. Each time this value is incremented by 1, the strobe is sampled 50 ns longer. Each time this value is decreased by 1, the strobe is sampled 50 ns less.
Page 251 7500-XXX Touch Display Log, and a graphic similar to the following appears on the LCD: Each logged event is identified by the text that appeared when the event occurred. For instance, if the log recorded a 900 Service Error, the Display Log would show 900 Service RIP Software. Log entries appear in chronological order.
Page 252: Print The Event Log
7500-XXX Print the Event Log Each page of the printed Event Log report has the title Event Log at the top of each page followed by the model name and serial number. The following is a sample of a printed Event Log: Model and Serial number XXX-XXXX...
Page 253: Scanner Tests
7500-XXX SCANNER TESTS ASIC Test This operation performs a diagnostic test on the scanner ASIC that cycles through all of the scanner ASIC's memory. To perform the ASIC Test: Touch SCANNER TESTS from the Diagnostics Menu. Touch ASIC Test. During this test, ASIC Test Running... appears on the LCD. At the completion of this test, ASIC Test Passed or ASIC Test Failed appears on the LCD.
Page 254: Scanner Manual Registration
7500-XXX Scanner Manual Registration Note: All scanner and ADF manual registration alignment verifications must be done in standard user mode, not in configuration or diagnostic mode. Note: You should verify the printer registration alignment before conducting the manual scanner registration “REGISTRATION”...
Page 255: Testing The Manual Scanner Registration
7500-XXX Testing the manual scanner registration Note: Machine must be in Standard User Mode. To properly position the registration test original page on the flatbed scanner and the ADF side 1 and ADF side 2, follow the graphic below: Warning: Ensure that the registration test original page is properly positioned according to the diagrams or registration and margins cannot be properly adjusted.
Page 256: Analyzing The Manual Scanner Registration Copies
7500-XXX Analyzing the manual scanner registration copies To analyze the manual scanner registration of the flatbed, ADF side 1, and ADF side 2, hold the test copy according to the diagram below. Compare the three copies to the registration test original page for image placement. Ideally, the image should be centered on the page by measuring the paper edge arrows or the black lines with a ruler.
Page 257 7500-XXX Make required adjustments and touch Submit. Note: All reference to Side Registration in the graphic below, refers to the left side edge. Turn the machine off and then back on in order to make a copy. Using the registration test original page, make a copy using the flatbed scanner and the ADF side 1 and ADF side 2 to verify adjustments for accuracy.
Page 258: Scanner Manual Registration Factory Defaults
7500-XXX Decreasing the registration value moves the text toward the lead edge of the page and narrows the lead margin; increasing the registration value moves the text away from the lead edge of the page and widens the lead margin. The entire image moves up or down on the page; therefore, no compression or expansion of the image occurs to preserve the lead margin.
Page 259: Sensor Test (Scanner Tests)
7500-XXX Sensor Test (Scanner Tests) To perform the Sensor Test: Touch SCANNER TESTS from the Diagnostics Menu. Touch Sensor Test. The following example appears on the LCD: Platen length APS 1 Platen length APS 2 ADF left cover interlock ADF pre registration ADF registration Sheet through ADF inverter...
Page 260: Exiting Diagnostics Menu
7500-XXX Exiting Diagnostics Menu From the Diagnostics Menu, touch Back until a graphic appears with Exit Diag Menu in the lower right corner. Touch Exit Diag Menu to perform a POR, and the following graphic appears on the LCD: Copy E-Mail Menus Ready.
Page 261: Configuration Menu
7500-XXX Configuration Menu Entering Configuration Menu Turn off the printer. Press and hold the 2 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds. Available menus Maintenance Count Value “Maintenance Counter Value” on page 3-35. Reset Maintenance Counter “Reset Maintenance Counter”...
Page 262 7500-XXX Wipe Disk “Exiting Configuration Menu” on page 3-50. Font Sharpening “Font Sharpening” on page 3-48. Require Standby “Require Standby” on page 3-49. Short edge Printing “Short Edge Printing” on page 3-49. Tray Low Message “Tray Low Message” on page 3-49.
Page 263: Maintenance Counter Value: 20
7500-XXX Maintenance Counter Value The Maintenance Page Count is used to track general printer usage. A print job containing a single printed side will increment the Maintenance Count by one while a print job containing two printed sides (a duplex print job) will increment it by two.
Page 264: Registration
7500-XXX REGISTRATION Print registration makes sure the printing is properly aligned on the page. This setting allows separate Left Margin settings for each media tray. (The Top Margin setting is the same for all trays.) The Registration menu item enables you to: •...
Page 265: Quick Test
7500-XXX “Quick Test” on page 3-10. Perform a Quick Test. See Margin Setting Range Units Top Margin 0..50 1/300 inch Tray 1 Left Margin -50..50 1/300 inch Tray 2 Left Margin -50..50 1/300 inch Tray 3 Left Margin -50..50 1/300 inch Tray 4 Left Margin -50..50 1/300 inch...
Page 266: Print Quality Pages (Configuration Menu)
7500-XXX The printer always uses media from its default input source to print this test, except when the default source only supports envelopes. In this case, the printer automatically uses media from Tray 1. To generate the most accurate and useful registration information, print the Quick Test on letter- or A4-size paper. If the default input source is empty, the printer stops printing and Load [Input Source] with [Paper Type] [Paper Size] IR appears on the LCD.
Page 267: Size Sensing
7500-XXX SIZE SENSING This setting controls whether the printer automatically registers the size of paper installed in an input source equipped with size sensing hardware. Size sensing Input source Length Width ✓ Multipurpose feeder (integrated MPF) ✓ ✓ Tray 1 (integrated 500-sheet drawer) ✓...
Page 268: A5/Statement
7500-XXX A5/Statement Due to engine limitations, Trays 1 through 4 cannot simultaneously sense A5- and statement-size paper. The value of this setting determines which of the two paper sizes these trays will sense automatically. This setting will apply to all automatic trays, but not to the MP Feeder. The MP Feeder can support these paper sizes regardless of the value of this setting.
Page 269: Factory Defaults
Warning: This operation cannot be undone. This setting enables you to restore all of the printer’s settings to the base printer settings, the network settings, or to remove all Lexmark Embedded Solutions applications (LES). To restore the Factory Default settings: Touch Factory Defaults from the Configuration Menu.
Page 270: Format Fax Storage
7500-XXX Format Fax Storage This setting enables you to format the non-volatile storage used for storing faxes. To change this setting: Touch Format Fax Storage from the Configuration Menu. Note: If an advanced password has been established, you must enter this password in order to change the setting.
Page 271: Paper Prompts
7500-XXX Paper Prompts When a tray is out of the indicated paper size, a prompt is sent to the user to load paper in a tray. This setting controls the tray the user is directed to fill. Selections are Auto (default), MP Feeder, and Manual Paper. To change this setting: Touch Paper Prompts from the Configuration Menu.
Page 272 7500-XXX When you touch Enable (encryption) or Disable (formatting), Contents will be lost. Continue? appears on the LCD. Touch No to cancel or Yes to proceed. If you touch Yes, the printer performs the selected action on the hard disk. The following graphic appears when the encryption process is selected: Encrypting Disk DO NOT POWER OFF...
Page 273 7500-XXX The panel provides many progress indicators during the two-stage process. 1/2 indicates that the process is currently in the first stage. 0% indicates the progress of the current stage of the process. The progress bar indicates the overall completion of the entire process by filling in throughout each separate stage.
Page 274: Wipe Disk
7500-XXX Formatting Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%. After completion, the panel returns to Disk Encryption. Wipe Disk This setting provides you with a tool for erasing the contents of a disk. Warning: Wipe Disk removes a disk's data in such a way that it cannot be recovered.
Page 275 7500-XXX If you touch No, the device cancels the Wipe Disk process and returns to the Configuration Menu. If you touch Yes, the following screen appears: Wiping Disk ½ DO NOT POWER OFF The panel provides the following progress indicators during the execution of this process: 1/2 indicates that the process is currently in the first stage.
Page 276: Font Sharpening
7500-XXX When the first stage of the process completes, the printer displays the following graphic and then begins the second stage of the process: Wiping Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%.
Page 277: Require Standby
Touch Back to cancel and return to the Configuration Menu. Touch Submit to save the change. LES Applications This disables all installed Lexmark Embedded Solution applications. The default is Enabled. To change this setting: Touch LES Applications from the Configuration Menu.
Page 278: Key Repeat Initial Delay
7500-XXX Key Repeat Initial Delay When a key is touched repeatedly, this is the delay before the key begins repeating. The delay ranges from .25 seconds to 5 seconds. The default is 1 second. Values are given in increments of .25 seconds. To change this setting: Touch Key Repeat Initial Delay from the Configuration Menu.
Page 279: Repair Information
7500-XXX 4. Repair information Warning: Read the following before handling electronic parts. Handling ESD-sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic discharge (ESD). To prevent damage to ESD-sensitive parts, use the following instructions in addition to all the usual precautions, such as turning off power before removing logic boards: •...
Page 280: Removal Procedures
7500-XXX Removal procedures CAUTION: Remove the power cord from the printer or electrical outlet before you connect or disconnect any cable or electronic board or assembly for personal safety and to prevent damage to the printer. Disconnect any connections between the printer and PCs/peripherals. CAUTION: The printer weighs approximately 47.7 kg (105 lb) and requires at least two people to lift it safely.
Page 281: 500-Sheet Drawer (2Tm) Removals
7500-XXX 2X 500-sheet drawer (2TM) removals Right Rear Front Left 2X 500-sheet drawer (2TM)—top cover removal Remove tray 3. Remove one screw securing the top cover (A). Remove the top cover (A). Front Repair information...
Page 282: 500-Sheet Drawer (2Tm)-Foot Cover Removal
7500-XXX 2X 500-sheet drawer (2TM)—foot cover removal Remove tray 4. Remove the right cover. See “2X 500-sheet drawer (2TM)–right cover removal” on page 4-4. Remove the two screws securing the foot cover (A). Remove the foot cover (A). Front 2X 500-sheet drawer (2TM)—right cover removal Remove the three screws securing the right cover (A).
Page 283: 500-Sheet Drawer (2Tm)-Left Cover Removal
7500-XXX 2X 500-sheet drawer (2TM)—left cover removal Remove the two screws securing the left cover (A). ‘Remove the left cover (A). Left 2X 500-sheet drawer (2TM)—rear cover removal Remove the four screws securing the rear cover (A). Remove the rear cover (A). Rear Repair information...
Page 284: 500-Sheet Drawer (2Tm)-2Tm/Ttm Left Door Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—2TM/TTM left door assembly removal “2X 500-sheet drawer (2TM)–left cover removal” on page 4-5. Remove the 2TM/TTM left cover. See Open the 2TM/TTM left door assembly. Remove the one screw securing the 2TM/TTM left door support strap (A) to the unit. Remove the screw securing the bracket (B) to the unit.
Page 285: 500-Sheet Drawer (2Tm)-Caster Removal
7500-XXX 2X 500-sheet drawer (2TM)—caster removal Remove tray 3. Remove tray 4. Place the right side down. Remove the three screws securing the caster (A). Remove the caster (A). Front Repair information...
Page 286: 500-Sheet Drawer (2Tm)-Switch (Media Size) Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—switch (media size) assembly removal Note: This removal procedure applies to both tray 3 and tray 4. Remove tray 3. Remove tray 4. Disconnect the switch (media size) selector (A). Remove one screw securing the switch (media size) selector (A). Remove the switch (media size) selector (A).
Page 287: 500-Sheet Drawer (2Tm)-Media Feed Unit Assembly Removal (Tray 3)
7500-XXX 2X 500-sheet drawer (2TM)—media feed unit assembly removal (tray 3) Remove tray 3. Remove the 2TM/TTM left cover. See “2X 500-sheet drawer (2TM)–left cover removal” on page 4-5. Open the 2TM/TTM left door assembly (A). Remove one screw securing the 2TM/TTM left door support strap (B). Release the plastic bosses on both ends of the vertical turn guide (C).
Page 288 7500-XXX Remove the media feed unit assembly (E) in the direction of the arrow. Clamp Harness Connector Left 4-10 Options Service Manual...
Page 289: 500-Sheet Drawer (2Tm)-Media Feed Unit Assembly Removal (Tray 4)
7500-XXX 2X 500-sheet drawer (2TM)—media feed unit assembly removal (tray 4) Remove tray 4. Open the 2TM/TTM left door assembly (A). Remove one screw securing the 2TM/TTM left door support strap (B). Remove the plastic bosses on both ends of the vertical turn guide (C). Remove the vertical turn guide (C).
Page 290: 500-Sheet Drawer (2Tm)-Media Tray Guides Removal
7500-XXX 2X 500-sheet drawer (2TM)—media tray guides removal Remove the media tray. Remove the two e-rings securing the metal bottom plate (A) to the media tray using a small prying tool. Push the front hinge point (B) in the direction of the arrow to release the front boss from the metal bottom plate (A).
Page 291 7500-XXX Remove the two screws securing the two pinion gears (C) to the media tray. Remove the pinion gears (C). Remove the front media guide assembly (D) and the rear media guide (E). Front Note: Before re-installing the pinion gears (C), slide the front media tray guide (D) and the rear media tray guide (E) to their outward most positions.
Page 292: 500-Sheet Drawer (2Tm)-Media Tray End Guide Removal
7500-XXX 2X 500-sheet drawer (2TM)—media tray end guide removal Remove the media tray. Remove the media tray guides. See “2X 500-sheet drawer (2TM)–media tray guides removal” on page 4-12. Remove the media side guide actuator (A). Turn the media tray upside down, and remove the two hooks securing the actuator link (B) to the media tray.
Page 293 7500-XXX Turn the media tray right side up, and slide the media end guides (D) toward the center of the media tray and remove them. Hook End guide Front 4-15 Repair information...
Page 294: 500-Sheet Drawer (2Tm)-Tray Lift Gear Group Removal
7500-XXX 2X 500-sheet drawer (2TM)—tray lift gear group removal Remove the media tray from the machine. Remove the two screws securing bracket (A). Remove the tray lift sector gear 12 tooth (B). Remove the tray lift gear 13 tooth (C) from bracket (A). Remove the tray lift gear 13/60 tooth (D) from bracket (A).
Page 295: 500-Sheet Drawer (2Tm)-Media Feed Lift Motor Removal
7500-XXX 2X 500-sheet drawer (2TM)—media feed lift motor removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11.
Page 296: 500-Sheet Drawer (2Tm)-Lift Coupling Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—lift coupling assembly removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11.
Page 297: 500-Sheet Drawer (2Tm)-Tray Lift One-Way Gear Clutch Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—tray lift one-way gear clutch assembly removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11.
Page 298 7500-XXX Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A). 4-20 Options Service Manual...
Page 299: 500-Sheet Drawer (2Tm)-Media Feed Unit Drive Gear - 13 Tooth Removal
7500-XXX 2X 500-sheet drawer (2TM)—media feed unit drive gear - 13 tooth removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)”...
Page 300: 500-Sheet Drawer (2Tm)-Media Out Actuator Removal
7500-XXX 2X 500-sheet drawer (2TM)—media out actuator removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11.
Page 301: 500-Sheet Drawer (2Tm)-Sensor (Media Level) Removal
7500-XXX 2X 500-sheet drawer (2TM)—sensor (media level) removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11.
Page 302: 500-Sheet Drawer (2Tm)-Sensor (Media Out) Removal
7500-XXX 2X 500-sheet drawer (2TM)—sensor (media out) removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11.
Page 303: 500-Sheet Drawer (2Tm)-Sensor (Pre-Feed) Removal
7500-XXX 2X 500-sheet drawer (2TM)—sensor (pre-feed) removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)” on page 4-11. Remove the sensor (pre-feed) (A) from the feed unit front guide (B).
Page 304: 500-Sheet Drawer (2Tm)-Media Feed Unit Drive Gear - 28 / 21 Tooth Removal
7500-XXX 2X 500-sheet drawer (2TM)—media feed unit drive gear - 28 / 21 tooth removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)”...
Page 305: 500-Sheet Drawer (2Tm)-Media Feed Unit Drive Gear - 29 Tooth Removal
7500-XXX 2X 500-sheet drawer (2TM)—media feed unit drive gear - 29 tooth removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)”...
Page 306: 500-Sheet Drawer (2Tm)-Feed Roll Removal
7500-XXX 2X 500-sheet drawer (2TM)—feed roll removal Remove the media tray assembly. Move the feed unit front guide (A) in the direction of the arrow. Release the hook securing the feed roll (B) to the shaft (C). Remove the feed roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 307: 500-Sheet Drawer (2Tm)-Feed Roll One-Way Clutch Removal
7500-XXX 2X 500-sheet drawer (2TM)—feed roll one-way clutch removal Remove the media tray assembly. Remove the feed roll. See “2X 500-sheet drawer (2TM)–feed roll removal” on page 4-28. Remove the feed roll one-way clutch (A) from the shaft (B). Front 4-29 Repair information...
Page 308 7500-XXX 2X 500-sheet drawer (2TM)—feed roll one-way gear 22 tooth removal Remove the media tray assembly. Remove the feed roll. See “2X 500-sheet drawer (2TM)–feed roll removal” on page 4-28. Remove the feed roll one-way clutch. See “2X 500-sheet drawer (2TM)–feed roll one-way clutch removal”...
Page 309: 500-Sheet Drawer (2Tm)-Separation Roll One-Way Friction Clutch Removal
7500-XXX 2X 500-sheet drawer (2TM)—separation roll one-way friction clutch removal Remove the media tray assembly. Remove the separation roll. See “2X 500-sheet drawer (2TM)–separation roll removal” on page 4-32. Remove the separation roll spacer (A) from the shaft (B). Remove the separation roll one-way friction clutch (C). Front 4-31 Repair information...
Page 310: 500-Sheet Drawer (2Tm)-Separation Roll Removal
7500-XXX 2X 500-sheet drawer (2TM)—separation roll removal Remove the media tray assembly. Move the feed unit front guide (A) in the direction of the arrow. Release the hook securing the separation roll (B) to the shaft (C). Front Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 311: 500-Sheet Drawer (2Tm)-Pick Roll Idler Gear - 33 Tooth Removal
7500-XXX 2X 500-sheet drawer (2TM)—pick roll idler gear - 33 tooth removal Remove the media tray assembly. Remove the pick roll. See “2X 500-sheet drawer (2TM)–pick roll removal” on page 4-34. Remove the pick roll drive gear - 25 tooth. See “2X 500-sheet drawer (2TM)–pick roll drive gear 25 tooth removal”...
Page 312: 500-Sheet Drawer (2Tm)-Pick Roll Removal
7500-XXX 2X 500-sheet drawer (2TM)—pick roll removal Remove the media tray assembly. Move the front guide (A) in the direction of the arrow. Release the hook securing the pick roll (B) to the shaft (C). Remove the pick roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 313: 500-Sheet Drawer (2Tm)-Pick Roll Drive Gear 25 Tooth Removal
7500-XXX 2X 500-sheet drawer (2TM)—pick roll drive gear 25 tooth removal Remove the media tray assembly. Remove the pick roll. See “2X 500-sheet drawer (2TM)–pick roll removal” on page 4-34. Remove the pick roll drive gear 25 tooth (A) from shaft (B). Front 4-35 Repair information...
Page 314: 500-Sheet Drawer (2Tm)-Feed Unit Drive Gear - 27 Tooth Removal
7500-XXX 2X 500-sheet drawer (2TM)—feed unit drive gear - 27 tooth removal “2X 500-sheet drawer (2TM)–media feed unit assembly Remove the media feed unit assembly. See removal (tray 3)” on page 4-9 “2X 500-sheet drawer (2TM)–media feed unit assembly removal (tray 4)”...
Page 315: 500-Sheet Drawer (2Tm)-Sensor (Tray 3 Feed-Out) Removal
7500-XXX 2X 500-sheet drawer (2TM)—sensor (tray 3 feed-out) removal Open the 2TM/TTM left door assembly. Remove the two screws securing the upper bracket (A). Disconnect the connector from the sensor (tray 3 feed-out) (B). Release the hooks securing the sensor (tray 3 feed-out) (B) to the upper bracket (A). Remove the sensor (tray 3 feed-out) (B).
Page 316: 500-Sheet Drawer (2Tm)-Sensor (Tray 4 Feed-Out) Removal
7500-XXX 2X 500-sheet drawer (2TM)—sensor (tray 4 feed-out) removal Open the 2TM/TTM left door assembly. Remove the screw securing the 2TM/TTM left door support strap (A). Remove the two screws securing the lower bracket (B). Disconnect the connector from the sensor (tray 4 feed-out) (C). Release the hooks securing the sensor (tray 3 feed-out) (C) to the lower bracket (B).
Page 317: 500-Sheet Drawer (2Tm)-Upper Media Transport Roll Removal
7500-XXX 2X 500-sheet drawer (2TM)—upper media transport roll removal Open the 2TM/TTM left door assembly. Remove the two screws securing the upper bracket (A). Disconnect the connector from the upper bracket (A). Remove the large e-clip securing the 2TM/TTM media transport roll assembly (B). Remove the bearing (C).
Page 318: 500-Sheet Drawer (2Tm)-Lower Media Transport Roll Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—lower media transport roll assembly removal Open the 2TM/TTM left door assembly. Remove the two screws securing the lower bracket (A). Disconnect the connector from the lower bracket (A). Remove the large e-clip securing the 2TM/TTM media transport roll assembly (B). Remove the bearing (C).
Page 319: 500-Sheet Drawer (2Tm)-Left Door Pinch Roll Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—left door pinch roll assembly removal Note: This procedure can be used for both the upper and left lower door pinch roll assembly. Open the 2TM/TTM left door assembly. Remove the four screws securing the bracket (A) to the left door assembly (A). Remove the bracket (A).
Page 320: 500-Sheet Drawer (2Tm)-Switch (2Tm/Ttm Left Door Interlock) Removal
7500-XXX 2X 500-sheet drawer (2TM)—switch (2TM/TTM left door interlock) removal Open the 2TM/TTM left door assembly. Remove the one screw securing the bracket (A). Disconnect the connector from the switch (2TM/TTM left door interlock) (B). Release the hooks securing the switch (2TM/TTM left door interlock) (B) to the bracket (A). Remove the switch (2TM/TTM left door interlock) (B).
Page 321: 500-Sheet Drawer (2Tm)-2Tm/Ttm Controller Card Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—2TM/TTM controller card assembly removal “2X 500-sheet drawer (2TM)–rear cover removal” on page 4-5. Remove the rear cover. See Disconnect all the connectors from the 2TM/TTM controller card assembly (A). Remove the four screws securing the 2TM/TTM controller card assembly (A). Remove the 2TM/TTM controller card assembly (A).
Page 322: 500-Sheet Drawer (2Tm)-Transport Clutch Removal
7500-XXX 2X 500-sheet drawer (2TM)—transport clutch removal “2X 500-sheet drawer (2TM)–rear cover removal” on page 4-5. Remove the rear cover. See Disconnect the connector from the machine to the bracket (A). Remove the two screws securing the bracket (A) to the frame assembly. Rear Remove the bracket (A).
Page 323: 500-Sheet Drawer (2Tm)-Drive Motor Assembly Removal
7500-XXX 2X 500-sheet drawer (2TM)—drive motor assembly removal “2X 500-sheet drawer (2TM)–rear cover removal” on page 4-5. Remove the rear cover. See Disconnect the connector harness from the 2TM/TTM drive motor assembly (A). Remove two screws securing the 2TM/TTM drive motor assembly (A) to the machine. Remove the 2TM/TTM drive motor assembly (A).
Page 324: High Capacity Feeder (Hcf) Removals
7500-XXX High capacity feeder (HCF) removals Right Rear Front Left HCF top cover removal Pull out the HCF media tray. Remove the four screws securing the HCF top cover (B). Remove the HCF top cover (B). 4-46 Options Service Manual...
Page 325: Hcf Right Cover Removal
7500-XXX HCF right cover removal Pull out the HCF media tray. Remove the four screws securing the HCF right cover (A). Remove the HCF right cover (A). 4-47 Repair information...
Page 326: Hcf Sensor (Hcf Media Tray Set) Removal
7500-XXX HCF sensor (HCF media tray set) removal Pull out the HCF media tray. Remove the HCF left cover. See “HCF left cover removal” on page 4-51. Remove the HCF rear cover. See “HCF rear cover removal” on page 4-51. Disconnect the connector from the sensor (HCF media tray set) (A).
Page 327: Hcf Sensor (Hcf Media Size) Removal
7500-XXX HCF sensor (HCF media size) removal Note: This procedure can be applied to HCF sensor (media size L) and the HCF sensor (media size R). “HCF media tray assembly removal” on page 4-54. Remove the HCF media tray. See Remove the HCF top cover.
Page 328: Hcf Caster Removal
7500-XXX HCF caster removal Remove the HCF unit from the printer. Place the machine so the HCF left cover faces down. Remove the three screws securing the HCF caster (A) to the unit. Remove the HCF caster (A). 4-50 Options Service Manual...
Page 329: Hcf Left Cover Removal
7500-XXX HCF left cover removal Remove the five screws securing the HCF left cover (A) to the unit. Remove the HCF left cover (A). HCF rear cover removal Remove the four screws securing the HCF rear cover (A) to the unit. Remove the HCF rear cover (A).
Page 330: Hcf Media Tray Front Cover Removal
7500-XXX HCF media tray front cover removal Pull out the HCF media tray. Remove the five screws securing the HCF media tray front cover (A) to the HCF media tray. Remove the HCF media tray front cover (A). Note: Ensure that the HCF media tray assembly contains no media when the bottom plate (B) is raised after replacing the HCF media tray front cover (A).
Page 331: Hcf Media Long Edge Guide Assembly Removal
7500-XXX HCF media long edge guide assembly removal Pull out the HCF media tray. Remove the e-clip securing the media long edge guide assembly (A) to the HCF media tray. Lift the media long edge guide assembly (A) upward to release it from the hinges on the HCF media tray. Remove the media long edge guide assembly (A).
Page 332: Hcf Media Tray Assembly Removal
7500-XXX HCF media tray assembly removal Pull out the HCF media tray assembly (A) from the unit. Release the two bearing slides (B) by inserting a prying tool into the two holes while pulling the HCF media tray (A) from the frame assembly (B). Remove the HCF media tray (A) from the frame assembly.
Page 333: Hcf Lift Cables Removal
7500-XXX HCF lift cables removal “HCF media tray assembly removal” on page 4-54. Remove the HCF media tray assembly. See Remove the tray lift gear bracket. See “HCF tray lift gear bracket removal” on page 4-57. Remove the HCF media tray front cover. See “HCF media tray front cover removal”...
Page 334 7500-XXX Move the bushing (J) inward in the direction of the arrow (4) to remove it from the tray. Move the tray lift shaft assembly (B) outward in the direction of the arrow (5) to remove it from the tray. Move the tray lift shaft pulley (C) inward in the direction of arrow (6) to detach the front cables (K).
Page 335: Hcf Tray Lift Gear Bracket Removal
7500-XXX HCF tray lift gear bracket removal “HCF media tray assembly removal” on page 4-54. Remove the HCF media tray assembly. See Remove the two e-clips with a prying tool securing the plastic retainer (A). Remove the plastic retainer (A). Remove the media tray lift shaft gear 51T (B).
Page 336: Hcf Media Feed Unit Assembly Removal
7500-XXX HCF media feed unit assembly removal “HCF media tray assembly removal” on Remove the HCF media tray assembly from the printer. See page 4-54. Remove the two screws securing the media feed unit assembly (A) on the front side. Pull the media feed unit assembly (A) out of the machine in the direction of the arrow.
Page 337: Hcf Feed Lift Gear Bracket Removal
7500-XXX HCF feed lift gear bracket removal “HCF media tray assembly removal” on Remove the HCF media tray assembly from the printer. See page 4-54. Remove the HCF media feed unit assembly. See “HCF media feed unit assembly removal” on page 4-58.
Page 338: Hcf Separation Gear Group Removal
7500-XXX HCF separation gear group removal “HCF media tray assembly removal” on Remove the HCF media tray assembly from the printer. See page 4-54. Remove the HCF media feed unit assembly. See “HCF media feed unit assembly removal” on page 4-58.
Page 339: Hcf Media Tray Lift Coupling Assembly Removal
7500-XXX HCF media tray lift coupling assembly removal “HCF media tray assembly removal” on Remove the HCF media tray assembly from the printer. See page 4-54. Remove the HCF media feed unit assembly. See “HCF media feed unit assembly removal” on page 4-58.
Page 340: Hcf Pick Solenoid Assembly Removal
7500-XXX HCF pick solenoid assembly removal “HCF media tray assembly removal” on Remove the HCF media tray assembly from the printer. See page 4-54. Remove the HCF media feed unit assembly. See “HCF media feed unit assembly removal” on page 4-58.
Page 341: Hcf Sensor (Pre-Feed) Removal
7500-XXX HCF sensor (pre-feed) removal Open the HCF top door. Open the HCF feed unit assembly. Remove the three screws securing the upper guide (A) to the HCF feed unit assembly (B). Remove the upper guide (A). Remove the connector from the sensor (pre-feed) (C). Remove the one screw securing the sensor (pre-feed) (C) to the HCF feed unit assembly (B).
Page 342: Hcf Media Out Actuator Removal
7500-XXX HCF media out actuator removal Open the HCF top door. Open the HCF feed unit assembly. Remove the e-clip securing the media out actuator (A) to the HCF media feed unit assembly (B). Remove the media out actuator (A). E-clip 4-64 Options Service Manual...
Page 343: Hcf Sensor (Media Level) Removal
7500-XXX HCF sensor (media level) removal Open the HCF top door. Open the HCF feed unit assembly. Disconnect the connector from the sensor (HCF media level) (A). Release the hooks securing the sensor (HCF media level) (A) from the HCF feed unit assembly (B). Remove the sensor (HCF media level) (A).
Page 344: Hcf Sensor (Media Out) Removal
7500-XXX HCF sensor (media out) removal Open the HCF top door. Open the HCF feed unit assembly. Remove the connector from the sensor (HCF media out) (A). Release the hooks securing the sensor (HCF media out) (A) to the HCF feed unit assembly (B). Remove the sensor (HCF media out) (A).
Page 345: Hcf Pick Roll Shaft Assembly Removal
7500-XXX HCF pick roll shaft assembly removal Open the HCF top door. Open the HCF feed unit assembly. Remove the HCF pick roll assembly. See “HCF pick roll assembly removal” on page 4-68. Use a prying tool to remove the e-clip securing the HCF pick roll shaft assembly (A) to the HCF media feed unit assembly (B).
Page 346: Hcf Pick Roll Assembly Removal
7500-XXX HCF pick roll assembly removal Open the HCF top door. Open the HCF feed unit assembly. Push the two ends of the HCF pick roll assembly (A) inward, and move it upward in the direction of the arrow to release it from the HCF media feed unit assembly (B). Remove the HCF pick roll assembly (A).
Page 347: Hcf Feed Roll Assembly Removal
7500-XXX HCF feed roll assembly removal Open the HCF top door. Open the HCF feed unit assembly. Push the two ends of the HCF feed roll assembly (A) inward, and move it upward in the direction of the arrow to release it from the HCF media feed unit assembly (B). Remove the HCF feed roll assembly (A).
Page 348: Hcf Separation Roll Shaft Assembly Removal
7500-XXX HCF separation roll shaft assembly removal “HCF media tray assembly removal” on page 4-54. Remove the HCF media tray assembly. See Remove the HCF media feed unit assembly. See “HCF media feed unit assembly removal” on page 4-58. Remove the HCF feed lift motor. See “HCF feed lift motor removal”...
Page 349: Hcf Separation Roll Assembly Removal
7500-XXX HCF separation roll assembly removal Open the HCF top door. Open the HCF feed unit assembly. Push the two ends of the HCF separation roll assembly (A) inward, and move it upward in the direction of the arrow to release it from the HCF media feed unit assembly (B). Remove the HCF separation roll assembly (A).
Page 350: Hcf Top Door Assembly Removal
7500-XXX HCF top door assembly removal Remove the HCF unit from the printer. Remove the HCF top cover. See “HCF top cover removal” on page 4-46. Remove the HCF rear cover. See “HCF rear cover removal” on page 4-51. Open the HCF top door assembly. Remove the two screws securing the bracket (A) to the frame assembly (B).
Page 351: Hcf Switch (Top Door Interlock) Removal
7500-XXX Lift the HCF top door (E) and remove the shaft (C) from the hole in the frame assembly (B). Remove the HCF top door spring L (F) from the slot in the frame assembly (B). Remove the HCF top door assembly. Remove the shaft (C).
Page 352: Hcf Sensor (Tray 5 Feed-Out) Removal
7500-XXX HCF sensor (tray 5 feed-out) removal Remove the HCF unit from the printer. Remove the HCF right cover. See “HCF right cover removal” on page 4-47. Open the HCF top door assembly. Remove the two screws securing the bracket (B) to the unit. Remove the bracket (B).
Page 353: Hcf Media Transport Roll Assembly Removal
7500-XXX HCF media transport roll assembly removal Remove the HCF unit from the printer. Remove the HCF right cover. See “HCF right cover removal” on page 4-47. Use needle nose pliers to remove the e-clip on the front side securing the HCF media transport roll assembly (A) to the unit.
Page 354: Hcf Media Transport Motor Assembly Removal
7500-XXX HCF media transport motor assembly removal Remove the HCF unit from the printer. Remove the HCF rear cover. See “HCF rear cover removal” on page 4-51. Disconnect the connector from the HCF transport motor (A). Release the harness from the clamp. Remove the three screws securing the HCF transport motor (A) to the unit.
Page 355: Hcf Switch (Unit Docking Interlock) Removal
7500-XXX HCF switch (unit docking interlock) removal “HCF right cover removal” on page 4-47. Remove the HCF right cover. See Remove the HCF media tray. Disconnect the connector from the HCF switch (HCF unit docking interlock) (A). Release the hooks securing the HCF switch (HCF unit docking interlock) (A) to the unit. Remove the HCF switch (HCF unit docking interlock) (A).
Page 356: Hcf Controller Card Assembly Removal
7500-XXX HCF controller card assembly removal “HCF rear cover removal” on page 4-51. Remove the HCF rear cover. See Disconnect all connectors from the HCF controller card assembly (A). Remove the four screws securing the HCF controller card assembly (A) to the unit. Remove the HCF controller card assembly (A).
Page 357: Finisher Removals
7500-XXX Finisher removals Finisher removal Disconnect the finisher power cord and the finisher connection cable from the rear of the printer. Release the hook securing the bridge unit hookup cover (A) to the finisher. Hook Right Rear Remove the bridge unit hookup cover (A). Disconnect the bridge unit connection from the finisher.
Page 358 7500-XXX Open the finisher front door assembly (B) on the front of the finisher. Pull the finisher docking latch assembly (C) outward in the direction of the arrow, and pull the finisher away from the printer. Close the finisher front door assembly. 4-80 Options Service Manual...
Page 359: Bridge Unit Assembly Removal
7500-XXX Remove the two screws securing the finisher docking bracket (D) to the printer. Remove the finisher docking bracket (D). Replacement note: When docking the finisher to the printer, make sure the boss on the finisher docking bracket (D) is inserted into the hole on the finisher docking latch assembly (C). The finisher should be firmly locked into position.
Page 360 7500-XXX Remove the bridge unit assembly (B) from the printer. 4-82 Options Service Manual...
Page 361: Bridge Unit Rear Cover Removal
7500-XXX Bridge unit rear cover removal “Bridge unit assembly removal” on page 4-81. Remove the bridge unit assembly. See Remove the two screws securing the bridge unit rear cover (A) to the bridge unit assembly (B). Remove the bridge unit rear cover (A). 4-83 Repair information...
Page 362: Bridge Unit Top Cover Assembly Removal
7500-XXX Bridge unit top cover assembly removal “Bridge unit rear cover removal” on page 4-83. Remove the bridge unit rear cover. See Open the bridge unit top cover assembly (A). Remove the six screws securing the bridge unit top cover assembly (A) to the bridge unit assembly (B). Lift the bridge unit top cover assembly (A) upward in the direction of the arrow.
Page 363: Bridge Unit Drive Belt And Bridge Unit Drive Pulley Removal
7500-XXX Bridge unit drive belt and bridge unit drive pulley removal “Bridge unit rear cover removal” on page 4-83. Remove the bridge unit rear cover. See Use a prying tool to remove the e-clip securing the bridge unit drive pulley (A) to the bridge unit assembly (B).
Page 364: Bridge Unit Right Shaft Assembly Removal
7500-XXX Bridge unit right shaft assembly removal “Bridge unit rear cover removal” on page 4-83. Remove the bridge unit rear cover. See Remove the bridge unit transport belt and bridge unit drive pulley. See “Bridge unit drive belt and bridge unit drive pulley removal”...
Page 365: Bridge Unit Left Shaft Assembly Removal
7500-XXX Bridge unit left shaft assembly removal Open the bridge unit top cover assembly. Use a prying tool to remove the front e-clip securing the 4 mm ball bearing (A) to the bridge unit left shaft (B). Front Move the bridge unit left shaft (B) rearward as shown. Remove the bridge unit left shaft (B) from the two transport belts (C).
Page 366: Bridge Unit Idler Rolls Removal
7500-XXX Bridge unit idler rolls removal Open the bridge unit top cover assembly. Remove the bridge unit left shaft assembly. See “Bridge unit left shaft assembly removal” on page 4-87. Move the two transport belts (A) away from the two bridge unit idler rolls (B). Lift the two bridge unit idler rolls upward to release them from the bridge unit assembly (C).
Page 367: Bridge Unit Transport Belt Removals
7500-XXX Bridge unit transport belt removals “Bridge unit rear cover removal” on page 4-83. Remove the bridge unit rear cover. See Open the bridge unit top cover assembly. Remove the bridge unit right shaft assembly. See “Bridge unit right shaft assembly removal” on page 4-86.
Page 368: Bridge Unit Drive Motor Assembly Removal
7500-XXX Bridge unit drive motor assembly removal “Bridge unit rear cover removal” on page 4-83. Remove the bridge unit rear cover. See Remove the bridge unit drive belt. See “Bridge unit drive belt and bridge unit drive pulley removal” on page 4-85.
Page 369: Bridge Unit Entrance Guide Removal
7500-XXX Bridge unit entrance guide removal “Bridge unit rear cover removal” on page 4-83. Remove the bridge unit rear cover. See Open the bridge unit top cover assembly. Remove the two screws securing the bridge unit entrance guide (A) to the bridge unit assembly (B). Remove the bridge unit entrance guide (A).
Page 370: Sensor (Bridge Unit Top Cover Interlock) Removal
7500-XXX Sensor (bridge unit top cover interlock) removal “Bridge unit assembly removal” on page 4-81. Remove the bridge unit assembly. See Place the bridge unit assembly upside down. Remove the screw securing the bracket (A) to the bridge unit assembly (B). Disconnect the cable from the sensor (bridge unit top cover interlock) (C).
Page 371: Sensor (Bridge Unit Media Entrance) Removal
7500-XXX Sensor (bridge unit media entrance) removal “Bridge unit assembly removal” on page 4-81. Remove the bridge unit assembly. See Place the bridge unit assembly upside down. Remove the screw securing the bracket (A) to the bridge unit assembly (B). Disconnect the connector from the sensor (bridge unit media entrance) (C).
Page 372: Sensor (Bridge Unit Media Exit) Removal
7500-XXX Sensor (bridge unit media exit) removal “Bridge unit assembly removal” on page 4-81. Remove the bridge unit assembly. See Place the bridge unit upside down. Remove the screw securing the bracket (A) to the bridge unit (B). Connector Disconnect the connector from the sensor (bridge unit media exit) (C). Release the hooks securing the sensor (bridge unit media exit) (C) to the bracket (A).
Page 373: Bridge Unit Pinch Roller Removal
7500-XXX Bridge unit pinch roller removal Open the bridge unit top cover assembly (A). Remove the six bridge unit pinch rollers (B) by gently pulling them out of the bridge unit top cover assembly. Remove the six springs (C). 4-95 Repair information...
Page 374: Top Cover Removal
7500-XXX Top cover removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-97. Remove the four screws securing the top cover (A) to the finisher. Remove the top cover (A).
Page 375: Upper Media Bin Assembly Removal
7500-XXX Upper media bin assembly removal Loosen the two screws securing the upper media bin assembly (A) to the finisher. Right Lift the upper media bin assembly (A) upward in the direction of the arrow. Remove the upper media bin assembly (A). 4-97 Repair information...
Page 376: Right Eject Cover Removal
7500-XXX Right eject cover removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the two screws securing the right eject cover (A) to the finisher. Right Remove the right eject cover (A).
Page 377: Stacker Media Bin Assembly Removal
7500-XXX Stacker media bin assembly removal Release the two hooks securing the stacker media bin assembly (A) to the finisher. Lift the stacker media bin assembly (A) upward. Remove the stacker media bin assembly. (A). Right lower low voltage power supply (LVPS) cover removal Remove the two screws securing the right lower LVPS cover (A) to the finisher.
Page 378: Rear Lower Cover Removal
7500-XXX Rear lower cover removal “Rear upper cover removal” on page 4-101 Remove the rear upper cover. See Remove the four screws securing the rear lower cover (A) to the finisher. Remove the rear lower cover (A). 4-100 Options Service Manual...
Page 379: Rear Upper Cover Removal
7500-XXX Rear upper cover removal Release the hook of the bridge unit hookup cover (A) to the finisher. Disconnect the bridge unit harness from the finisher. Remove the four screws securing the rear upper cover (B) to the finisher. Hook Remove the rear upper cover (B).
Page 380: Upper Media Bin Front Cover Removal
7500-XXX Upper media bin front cover removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-97. Remove the two screws securing the upper media bin front cover (A). Remove the upper media bin front cover (A).
Page 381: Switch (Finisher Front Door Interlock) Removal
7500-XXX Switch (finisher front door interlock) removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch waste box (A). Remove the three screws in the front securing the punch waste chute (B). Gently pull down the punch waste chute (B) to gain better access to the switch (finisher front door interlock) (C).
Page 382: Finisher Front Door Assembly Removal
7500-XXX Finisher front door assembly removal Open the finisher front door assembly (A). Remove the three screws securing the finisher front door assembly. Remove the finisher front door assembly. Replacement note: Make sure the actuator molded in the finisher front door assembly properly engages the switch (finisher front door interlock) (B).
Page 383: Left Lower Cover Removal
7500-XXX Left lower cover removal Open the finisher front door assembly. Remove the two screws securing the left lower cover (A). Remove the left lower cover (A). 4-105 Repair information...
Page 384: Left Upper Cover Removal
7500-XXX Left upper cover removal Open the finisher front door assembly. Remove the two screws securing the left upper cover (A). Remove the left upper cover (A). 4-106 Options Service Manual...
Page 385: Carriage Lift Belt Left Removal
7500-XXX Carriage lift belt left removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-104. Move the slip clutch gear 24T (A) toward the rear to disengage the stacker bin (B). Move the stacker bin (B) down to its lowest position after being disengaged.
Page 386 7500-XXX Remove the two screws securing the bin bracket (C) to the left carriage bracket (D). Remove the spring (E) from the left carriage lift assembly. Remove the screw securing the upper belt clamp (F) to the left carriage bracket (D). Remove the upper belt clamp (F).
Page 387: Carriage Lift Belt Right Removal
7500-XXX Carriage lift belt right removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-104. Move the slip clutch gear 24T (A) toward the rear to disengage the stacker bin (B). Move the stacker bin (B) to its lowest position.
Page 388 7500-XXX Remove the two screws securing the bin bracket (C) to the right carriage bracket (D). Remove the spring (E) from the right carriage bracket (D). Remove the screw securing the upper belt clamp (F) to the right carriage bracket (D). Remove the upper belt clamp (F).
Page 389: Sensor (Stacker Bin Level 1) Removal
7500-XXX Sensor (stacker bin level 1) removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Disconnect the connector from the sensor (stacker bin level 1) (A). Front Connector Remove the screw securing the sensor (stacker bin level 1) (A) to the finisher.
Page 390: Sensor (Stacker Bin Level Encoder) Removal
7500-XXX Sensor (stacker bin level encoder) removal See“Rear upper cover removal” on page 4-101. Remove the rear upper cover. Disconnect the connector from the sensor (stacker bin level encoder) (A). Release the harness from the clamp. Remove the screw securing the bracket (B) from the stacker bin lift motor assembly (C). Connector Clamp Rear...
Page 391: Sensor (Stacker Bin Upper Limit) Or Sensor (Stacker Bin No Media) Removal
7500-XXX Sensor (stacker bin upper limit) or sensor (stacker bin no media) removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the stacker media bin assembly. See “Stacker media bin assembly removal” on page 4-99.
Page 392 7500-XXX Replacement note: Make sure that the yellow connector is plugged into the sensor (stacker bin no media) (C). Rear White connector Yellow connector 4-114 Options Service Manual...
Page 393: Stacker Bin Lift Motor Assembly Removal
7500-XXX Stacker bin lift motor assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the rear lower cover. See “Rear lower cover removal” on page 4-100. Loosen the four screws securing the plate (A). Move the plate (A) toward the right as shown.
Page 394 7500-XXX Move the slip clutch gear 24T (B) toward the rear to disengage the stacker bin (C). Move the stacker bin (C) to the lowest position. Note: Make sure the stacker bin (C) is at the lowest position before continuing. Disconnect the connector from the sensor (stacker bin level encoder) (D).
Page 395 7500-XXX Remove the screw securing the bracket (F) to the stacker bin lift motor assembly (G). Remove the bracket (F). Connector Clamp Release the hook securing the encoder (H) to the stacker bin lift motor assembly (G). Remove the encoder. Remove the three screws securing the stacker bin lift motor assembly (G) to the finisher.
Page 396: Punch Carriage Assembly Removal
7500-XXX Punch carriage assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the connector from the sensor (punch carriage shift HP) (A). “Top cover removal” on page 4-96.
Page 397 7500-XXX Remove the two screws on the front securing the punch carriage assembly (B) to the finisher. Front While moving the belt (buffer/transport) (E) to the left as shown, pull the punch carriage assembly (B) gently out of the rear of the finisher. Warning: Do not force the punch carriage assembly (B) out of the finisher.
Page 398: Punch Carriage Shift Motor Assembly Removal
7500-XXX Punch carriage shift motor assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118. Remove the two screws securing the cover (A) to the punch carriage assembly (B). Remove the cover (A).
Page 399: Sensor (Punch Unit Side Registration Pair) With Bracket Removal
7500-XXX Sensor (punch unit side registration pair) with bracket removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118.
Page 400: Punch Unit Assembly Removal
7500-XXX Punch unit assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118. Remove the screw securing the cover (A) to the punch unit assembly (B). Remove the cover (A).
Page 401: Punch Media Stop Assembly Removal
7500-XXX Punch media stop assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118. “Punch unit assembly removal” on page 4-122.
Page 402: Punch Unit Motor Assembly Removal
7500-XXX Punch unit motor assembly removal Open the finisher front door assembly. Remove the rear upper cover. See“Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118. Disconnect the connector from the punch unit motor assembly (A). Disconnect the connector from the sensor (punch unit motor encoder) (B).
Page 403: Sensor (Punch Unit Motor Encoder) Removal
7500-XXX Sensor (punch unit motor encoder) removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118. Disconnect the connector from the punch unit motor assembly (A). Disconnect the connector from the sensor (punch unit motor encoder) (B).
Page 404: Sensor (Punch Hole Select), Sensor (Punch Cam Front), And Sensor (Punch Unit Hp) Removal
7500-XXX Sensor (punch hole select), sensor (punch cam front), and sensor (punch unit HP) removal Open the finisher front door assembly. “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the punch carriage assembly. See “Punch carriage assembly removal”...
Page 405 7500-XXX Replacement note: Make sure the color coded connectors are connected to the proper sensors, as shown. Connector Blue Black Connector White 4-127 Repair information...
Page 406: Sensor (Punch Carriage Shift Hp) Removal
7500-XXX Sensor (punch carriage shift HP) removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-118. Remove the one screw securing the bracket (A) to the punch carriage unit (B). Release the hooks securing the sensor (punch carriage shift HP) (C) to the bracket (A).
Page 407: Sensor (Punch Waste Box Set) Removal
7500-XXX Sensor (punch waste box set) removal Open the finisher front door assembly. Pull the punch waste box. Disconnect the connector from the sensor (punch waste box set) (A). Release the hooks securing the sensor (punch waste box set) (A) to the finisher. Connector Remove the sensor (punch waste box set) (A).
Page 408: Sensor (Punch Waste Box Full) Removal
7500-XXX Sensor (punch waste box full) removal Open the finisher front door assembly. Remove the punch waste box (A) from the finisher. Disconnect the connector from the sensor (punch waste box full) (B). Release the hooks securing the sensor (punch waste box full) (B) to the finisher. Connector Remove the sensor (punch waste box full) (B).
Page 409: Stapler Unit Frame Removal
7500-XXX Stapler unit frame removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the staple cartridge. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. “Rear lower cover removal” on page 4-100.
Page 410 7500-XXX Disconnect the connector P8308 from the finisher controller card assembly (B). Remove the screw securing the ground wire (C) to the finisher. Release the harness from the clamp. Clamp P8308 Rear Remove the media stacker bin lift motor assembly. See “Stacker media bin assembly removal”...
Page 411: Stapler Unit Assembly Removal
7500-XXX Stapler unit assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the staple cartridge. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. “Rear lower cover removal” on page 4-100.
Page 412 7500-XXX Remove the screw securing the stapler cover (E) to the stapler unit assembly (F). Remove the stapler cover (E). Disconnect the two connectors from the stapler unit assembly (F). Disconnect the connector from the sensor (stapler carriage HP) (G). Remove the two screws securing the bracket (H) to the stapler carriage assembly (D).
Page 413: Sensor (Stapler Carriage Hp) Removal
7500-XXX Sensor (stapler carriage HP) removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the staple cartridge. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. “Rear lower cover removal” on page 4-100.
Page 414: Media Eject Unit Assembly Removal
7500-XXX Media eject unit assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the upper media bin assembly. See “Upper media bin assembly removal”...
Page 415 7500-XXX Remove the screw securing the eject clamp lever assembly (C) from the shaft (D) on the rear of the finisher. Remove the eject clamp lever assembly (C). Remove the e-clip securing the shaft (D) to the rear of the finisher. Remove the 8 mm bushing (E) on the rear side.
Page 416 7500-XXX Remove the e-clip securing the shaft (F) to the front of the finisher. Remove the 8 mm bushing (E) on the front side. E-clip Front Gently move the left side of the media eject unit assembly (G) out of the finisher followed by the right side. Note: Do not force the media eject unit assembly out of the finisher.
Page 417 7500-XXX Replacement notes • Do not force the media eject unit assembly into the finisher. Insert the right side before the left side. • Make sure the media eject unit assembly properly actuates the switch (eject cover interlock) (H) without binding.
Page 418: Sub Paddle Removal
7500-XXX Sub paddle removal “Upper media bin assembly removal” on page 4-97. Remove the upper media bin assembly. See Gently remove the two sub paddles (A) from the two shafts (B). Replacement note: Make sure the sub paddles are properly installed as shown in the figure. The paddles must not come in contact with the media eject unit assembly (C).
Page 419: Sub Paddle Drive Shaft Assembly Removal
7500-XXX Sub paddle drive shaft assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-136.
Page 420 7500-XXX Loosen the two screws securing the belt tensioner bracket (D) to the rear of the finisher. Release the hook of the sub paddle drive gear 23T (E) from the sub paddle drive shaft assembly (B). Remove the sub paddle drive gear 23T (E). Remove the e-clip and the 6 mm bushing (C).
Page 421: Media Eject Clamp Motor Assembly Removal
7500-XXX Media eject clamp motor assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-97. Remove the two media eject unit springs (A) attached to the media eject unit assembly (B) by pushing them downward.
Page 422: Sensor (Media Eject Clamp Hp) Removal
7500-XXX Replacement note: When replacing the bracket, turn the media eject clamp gear 70T (F) so that it interacts with the sensor (media eject clamp HP). Sensor (media eject clamp HP) removal Remove the rear upper cover. See “Rear upper cover removal” on page 4-101.
Page 423: Switch (Eject Cover Interlock) Removal
7500-XXX Switch (eject cover interlock) removal “Upper media bin assembly removal” on page 4-97. Remove the upper media bin assembly. See Disconnect the connector from the switch (eject cover interlock) (A). Release the harness from the two clamps. Remove the screw securing the bracket (B) to the finisher. Remove the bracket (B) from the square hole in the finisher.
Page 424: Media Compiler Unit Assembly Removal
7500-XXX Media compiler unit assembly removal See“Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the rear lower cover. See “Rear lower cover removal” on page 4-100.
Page 425 7500-XXX Disconnect the connector P8309 from the finisher controller card assembly (B). Release the harness from the clamps. Clamp P8309 Rear Remove the screw securing the media compiler unit assembly (C) to the finisher. This screw is found inside the finisher. Inside view 4-147 Repair information...
Page 426 7500-XXX Release the media compiler assembly (C) by pushing the front lock and the rear lock inward to release the front boss and the rear boss from the finisher. Right Rear view Front view Lock Lock Remove the harness from any additional parts. Remove the media compiler unit assembly through the inside of the finisher and out the front.
Page 427: Sensor (Front Tamper Hp) And Sensor (Rear Tamper Hp) Removals
7500-XXX Sensor (front tamper HP) and sensor (rear tamper HP) removals “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the rear lower cover. See “Rear lower cover removal”...
Page 428: Sensor (Compiler Media In) Removal
7500-XXX Sensor (compiler media in) removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the rear lower cover. See “Rear lower cover removal”...
Page 429: Media Eject Shaft Assembly Removal
7500-XXX Media eject shaft assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Move the slip clutch gear 24T (A) toward the rear as shown to disengage the stacker bin (B). Move the stacker bin down as shown to its lowest position after it is disengaged.
Page 430 7500-XXX Move the media eject shaft assembly toward the rear and outward as shown. E-clips E-clip Front Rear Remove the media eject shaft assembly (E). Rear 4-152 Options Service Manual...
Page 431: Clamp Paddle Removal
7500-XXX Clamp paddle removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the media eject shaft assembly. See “Media eject shaft assembly removal” on page 4-151.
Page 432: Media Eject Clutch Assembly Removal
7500-XXX Media eject clutch assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Disconnect the connector from the sensor (media eject shaft HP) (A). Release the harness from the clamp. Disconnect the connector from the media eject clutch (B). Release the harness from the clamp.
Page 433: Media Eject Motor Assembly Removal
7500-XXX Media eject motor assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the media eject clutch. See “Media eject clutch assembly removal” on page 4-154. Disconnect the connector from the media eject motor assembly (A). Disconnect the connector from the sensor (media bin level 2) (B).
Page 434: Sensor (Media Eject Shaft Hp) Removal
7500-XXX Sensor (media eject shaft HP) removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Disconnect the connector from the sensor (media eject shaft HP) (A). Rotate the media eject clutch actuator (B) by hand so it clears the sensor (media eject shaft HP) (A). Release the hooks securing the sensor (media eject shaft HP) (A) to the bracket (C).
Page 435: Sensor (Lower Media Exit) Removal
7500-XXX Sensor (lower media exit) removal Open the finisher front door assembly. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-97. Disconnect the connector from the sensor (lower media exit) (A). Remove the harness from the clamps. Remove the two screws securing the bracket (B) to the finisher.
Page 436 7500-XXX Note: The upper media bin vertical cover (C) has slots that make access to the screws easier, as shown. Right Access slots Remove the bracket (B). Release the hooks securing the sensor (lower media exit) (A) to the bracket. Remove the sensor (lower media exit) (A).
Page 437: Lower Media Exit Roll Assembly Removal
7500-XXX Lower media exit roll assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the upper media bin assembly. See “Upper media bin assembly removal”...
Page 438 7500-XXX Front view Rear view Release the hook of the lower exit roll drive pulley 20T (C) from the lower media exit roll assembly (F). Remove the lower exit roll drive pulley 20T (C). 4-160 Options Service Manual...
Page 439 7500-XXX Remove the 6 mm ball bearing (G). Use a prying tool to remove the e-clip on the front of the finisher securing the lower media exit roll assembly (F) to the finisher. 4-161 Repair information...
Page 440 7500-XXX Remove the 6 mm bushing (H). E-clip Front Move the lower media exit roll assembly (F) towards the rear and outward, as shown. Rear Remove the lower media exit roll assembly (F). 4-162 Options Service Manual...
Page 441: Paddle And Roll Exit Assembly Removal
7500-XXX Paddle and roll exit assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the rear lower cover. See “Rear lower cover removal”...
Page 442 7500-XXX Loosen the two screws securing the belt tensioner bracket (D) to the finisher and move it upward, as shown. Replacement note: When replacing the belt tensioner bracket (D), tighten the screws in the order shown. Remove the belt (paddle/entrance) (E) from the main paddle drive pulley/gear 44/20T (F). Release the hook from the main paddle shaft drive pulley 17T (G) inside the finisher.
Page 443 7500-XXX Remove the main paddle shaft assembly. Rear 4-165 Repair information...
Page 444 7500-XXX Replacement notes: • The tension of the belt (exit) (A) and the belt (paddle/entrance) (E) is automatically adjusted by the force of the spring attached to the belt tensioner bracket (A and D). • Tighten the screws in the order shown. First Right Second...
Page 445: Lower Pinch Guide Assembly Removal
7500-XXX Lower pinch guide assembly removal Open the finisher front door assembly. Open the lower pinch guide assembly (A) by lifting it upward. Remove the screw securing the lower pinch guide assembly (A) to the finisher. Move the lower pinch guide assembly (A) upward and outward. Front Remove the lower pinch guide assembly (A).
Page 446: Finisher Diverter Gate Removal
7500-XXX Finisher diverter gate removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Open the lower pinch guide assembly (A) to the right. Open the upper pinch guide assembly (B) to the right. Remove the finisher diverter gate solenoid.
Page 447: Buffer Diverter Gate Removal
7500-XXX Buffer diverter gate removal Open the finisher front door assembly. Move the lower pinch guide assembly (A) to the right. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. “Buffer diverter gate solenoid removal” on page 4-180.
Page 448: Sensor (Buffer Path) Removal
7500-XXX Sensor (buffer path) removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the top cover. See “Top cover removal” on page 4-96. “Left lower cover removal” on page 4-105.
Page 449: Buffer Roll Assembly Removal
7500-XXX Buffer roll assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Open the finisher front door assembly. Remove the stapler unit cartridge. Move the stapler unit assembly by hand as far to the rear as it will go. Lower the buffer pinch guide assembly (A).
Page 450 7500-XXX Loosen the two screws securing the belt tensioner bracket (E) to the finisher and move it downward, as shown. Remove the belt (buffer/transport) (F) from the buffer roll drive gear 46T (G). E-clip Second First Use a prying tool to remove the e-clip securing the buffer roll drive gear 23/53T (G). Remove the buffer roll drive gear 53/23T (G).
Page 451: Buffer Pinch Guide Assembly Removal
7500-XXX Buffer pinch guide assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the stapler unit frame. See “Stapler unit frame removal”...
Page 452: Media Entrance Pinch Guide Assembly Removal
7500-XXX Media entrance pinch guide assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the left lower cover. See “Left lower cover removal” on page 4-105. “Left upper cover removal” on page 4-106.
Page 453: Sensor (Finisher Media Entrance) Removal
7500-XXX Sensor (finisher media entrance) removal Open the front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the top cover. See “Top cover removal” on page 4-96. “Left lower cover removal” on page 4-105.
Page 454: Media Entrance Roll Assembly Removal
7500-XXX Media entrance roll assembly removal “Finisher front door assembly removal” on page 4-104. Remove the finisher front door assembly. See Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the left upper cover. See “Left upper cover removal”...
Page 455: Drive Motor (Entrance/Paddle) And Belt (Entrance/Paddle) Removal
7500-XXX Move the media entrance roll assembly (H) toward the rear, downward, and then forward. Remove the media entrance roll assembly (H) through the inside of the finisher. Note: When removing the media entrance roll assembly (H), do not touch the rubber surface. Replacement notes: •...
Page 456 7500-XXX Remove the two screws securing the bracket (D) to the finisher. Connector Remove the bracket (D). Remove the two screws securing the bracket (D) to the drive motor (entrance/paddle) (C). Remove the drive motor (entrance/paddle) (C). Remove the belt (entrance/paddle) (B). Replacement notes: •...
Page 457: Finisher Diverter Gate Solenoid Removal
7500-XXX Finisher diverter gate solenoid removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Disconnect the connector from the finisher diverter gate solenoid (A). Release the harness from the clamp. Remove the two screws securing the bracket (B) to the finisher.
Page 458: Buffer Diverter Gate Solenoid Removal
7500-XXX Buffer diverter gate solenoid removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Disconnect the connector from the buffer diverter gate solenoid (A). Release the harness from the clamp. Remove the two screws securing the buffer diverter gate solenoid to the finisher.
Page 459: Sensor (Upper Media Exit) Removal
7500-XXX Sensor (upper media exit) removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the top cover. See “Top cover removal” on page 4-96. Disconnect the connector from the sensor (upper media exit) (A). Connector Rear Left...
Page 460: Upper Media Exit Roll Assembly Removal
7500-XXX Upper media exit roll assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the top cover. See “Top cover removal” on page 4-96. “Drive motor (exit) assembly and belt (exit) removal” on Remove the drive motor (exit).
Page 461 7500-XXX Remove the two front and two rear screws securing the upper exit guide assembly (B). Remove the upper exit guide assembly. Remove the two front screws and the two rear screws securing the bracket (C) to the finisher. Front Rear Remove the bracket (C).
Page 462 7500-XXX Release the hook from the upper media exit roll drive gear 20T(D). Remove the upper media exit roll drive gear 20T. Remove the 6 mm bushing. Use a prying tool to remove the e-clip securing the upper media exit roll assembly (F) to the front of the finisher.
Page 463: Sensor (Upper Media Bin Full) Removal
7500-XXX Sensor (upper media bin full) removal Open the finisher front door assembly. Remove the screw securing the bracket (A) to the upper media bin vertical cover (B). Move the bracket frontward and downward to gain access to the harness and connector. Release the harness from the clamp.
Page 464: Upper Pinch Guide Assembly Removal
7500-XXX Upper pinch guide assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the drive motor (buffer/transport). See “Drive motor (buffer/transport) and belt (buffer/ transport) removal” on page 4-192.
Page 465: Sensor (Diverter Gate) Removal
7500-XXX Sensor (diverter gate) removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the top cover. See “Top cover removal” on page 4-96. “Left lower cover removal” on page 4-105.
Page 466: Upper Media Transport Roll Assembly Removal
7500-XXX Upper media transport roll assembly removal Open the finisher front door assembly. Remove the rear upper cover. See “Rear upper cover removal” on page 4-101. Remove the top cover. See “Top cover removal” on page 4-96. “Left lower cover removal” on page 4-105.
Page 467 7500-XXX Remove the two screws securing the bracket (D). Note: It is not necessary to remove the bracket from the finisher; it should only be slightly moved to provide better access to the two upper media transport roll drive pulleys 20T(E). Loosen the two screws securing the belt tensioner bracket (F) to the finisher, and move the bracket downward as shown.
Page 468: Drive Motor (Exit) Assembly And Belt (Exit) Removal
7500-XXX Drive motor (exit) assembly and belt (exit) removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Loosen the two screws securing the belt tensioner bracket (A) to the finisher, and move it down as shown. Remove the belt (exit) (B) from the drive motor (exit) assembly (C).
Page 469 7500-XXX Remove the two screws securing the bracket (D) to the finisher. Remove the bracket (D). Remove the two screws securing the drive motor (exit) assembly to the bracket (D). Connector Remove the drive motor (exit) assembly (C). Replacement notes: •...
Page 470: Drive Motor (Buffer/Transport) And Belt (Buffer/Transport) Removal
7500-XXX Drive motor (buffer/transport) and belt (buffer/transport) removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the two screws securing the bracket (A) on the rear of the finisher. Move the bracket slightly. Note: It is not necessary to remove the bracket from the finisher. It should only be slightly moved to provide better access to the drive motor (buffer/transport) (B) for removal.
Page 471 7500-XXX Disconnect the connector from the drive motor (buffer/transport). Remove the two screws securing the bracket (E) to the finisher. Remove the bracket. Remove the two screws securing the drive motor (buffer/transport) to the bracket. Remove the drive motor (buffer/transport). Remove the belt (buffer/transport) (D).
Page 472: Bridge Unit Interface Card Assembly Removal
7500-XXX Bridge unit interface card assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Disconnect all the connectors from the bridge unit interface card assembly (A). Remove the two screws securing the bridge unit interface card assembly (A) to the finisher. Connector Connectors Rear...
Page 473: Finisher Controller Card Assembly Removal
7500-XXX Finisher controller card assembly removal “Rear upper cover removal” on page 4-101. Remove the rear upper cover. See Remove the rear lower cover. See “Rear lower cover removal” on page 4-100. Loosen the four screws securing the plate (A) to the finisher. Move the plate (A) to the right and outward.
Page 474: Finisher Low Voltage Power Supply (Lvps) Removal
7500-XXX Finisher low voltage power supply (LVPS) removal “Rear lower cover removal” on page 4-100. Remove the right lower cover. See Disconnect all the connectors from the finisher LVPS (A). Remove the two screws securing the finisher LVPS (A) to the finisher. Rear Remove the finisher LVPS (A).
Page 475: Component Locations
7500-XXX 5. Component locations 2TM components 2TM/TTM clutch 2TM/TTM controller card assembly 2TM/TTM drive motor Component locations...
Page 476 7500-XXX Sensor (media level) Sensor (media out) Sensor (pre-feed) Switch (2TM/TTM Switch (media size) left door interlock) Sensor (tray 3 feed out) Sensor (tray 4 feed out) Options Service Manual...
Page 477: Hcf Components
7500-XXX HCF components Switch (HCF top door interlock) Sensor (media Sensor (tray 5 level) feed out) HCF main connector Sensor (media out) Switch (HCF unit docking) Component locations...
Page 478 7500-XXX Sensor (HCF media size L) Sensor (HCF media size R HCF transport motor HCF feed lift motor HCF controller card asm Sensor (HCF media tray set) Options Service Manual...
Page 479: Finisher Components
7500-XXX Finisher components Bridge unit assembly Bridge unit drive motor Sensor (bridge unit media entrance) Sensor (bridge unit media exit) Sensor (bridge unit top cover interlock) Component locations...
Page 480: Stacker Lift And Stapler
7500-XXX Stacker lift and stapler Sensor (stacker bin upper limit) Sensor (stacker bin level 2) Sensor (stacker bin no media) Sensor (stacker bin level 1) Switch (finisher front door interlock) Stapler carriage motor assembly Sensor (stapler carriage HP) Bottom view Options Service Manual...
Page 481: Punch Unit
7500-XXX Punch unit Punch carriage shift motor assembly Sensor (punch carriage shift HP) Sensor (punch unit HP) Sensor (punch hole select) Sensor (punch unit side registration 2) Sensor (punch Sensor (punch unit side cam front) registration 1) Punch unit motor assembly Sensor (punch waste box set) Sensor (punch...
Page 482: Diverter And Media Eject
7500-XXX Diverter and media eject Sensor (media eject clamp HP) Media eject clamp motor Buffer diverter solenoid Media diverter solenoid Switch (eject cover interlock) Sensor (lower media exit) Media eject and media compiler Media eject motor asm Sensor ( front tamper HP) Front tamper motor...
Page 483: Buffer, Upper Exit, Lower Exit, And Drive Motors
7500-XXX Buffer, upper exit, lower exit, and drive motors Sensor (upper media exit) Sensor (upper media bin full) Drive motor (exit) Drive motor (buffer/transport) Sensor (diverter gate) Sensor (finisher media entrance) Sensor (buffer path) Drive motor (entrance/paddle) Finisher controller card assembly Finisher controller Bridge unit interface card assembly...
Page 484: Cabling
7500-XXX Cabling Finisher media entrance sensor cable assembly Upper media exit sensor cable assembly Upper media bin full cable assembly Lower media exit sensor cable sssembly Compiler unit cable assembly Buffer path sensor cable assembly Main sensor cable assembly LVPS cable assembly AC power cord assembly...
Page 485 7500-XXX Diverter gate sensor upper cable assembly Punch main drive cable assembly Diverter gate sensor lower cable assembly Punch waste box set cable assembly Interlock switch cable assembly 5-11 Component locations...
Page 486 7500-XXX Main drive cable assembly Punch waste box full cable assembly Bridge unit connect cable assembly Stapler unit cable assembly Bridge unit interface card cable assembly Finisher interface cable assembly 5-12 Options Service Manual...
Page 487: Electronic Component Diagrams
7500-XXX Electronic component diagrams See the following 17”X11” folded diagrams. 5-13 Component locations...
Page 488 7500-XXX 5-14 Options Service Manual...
Page 489: Preventive Maintenance
Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover • Possible safety exposure from any non-Lexmark attachments Lubrication specifications Lubricate only when parts are replaced or as needed, not on a scheduled basis. Use of lubricants other than those specified can cause premature failure.
Page 490 7500-XXX Options Service Manual...
Page 491: Parts Catalog
7500-XXX 7. Parts catalog How to use this parts catalog The following legend is used in the parts catalog: Asm- Part Units/ Units/ Description Index number option • Asm-index: Identifies the assembly and the item in the diagram. For example 3-1 indicates Assembly 3 and item number 1 in the table.
Page 492: Assembly 1: 2X 500-Sheet Drawer (2Tm)-Covers
7500-XXX Assembly 1: 2X 500-sheet drawer (2TM) covers — Options Service Manual...
Page 493 7500-XXX Assembly 1: 2X 500-sheet drawer (2TM) covers — Asm- Part Units/ Units/ Description Index number option 40X0689 Right cover 40X0687 Top cover 40X0688 Foot cover 40X0691 Locking caster 40X0690 Left cover Parts catalog...
Page 494: Assembly 2: 2X 500-Sheet Drawer (2Tm)-Media Tray And Media Feed Units
7500-XXX Assembly 2: 2X 500-sheet drawer (2TM) media tray and media feed — units Options Service Manual...
Page 495 7500-XXX Assembly 2: 2X 500-sheet drawer (2TM) media tray and media feed units — Asm- Part Units/ Units/ Description Index number option 40X0570 Switch (media size) 40X0569 Media tray catch kit includes: • Media tray catch • Media tray slide (2 each) 40X0581 Media feed unit assembly (this comes assembled) 40X0572...
Page 496: Assembly 3: 2X 500-Sheet Drawer (2Tm)-Media Tray
7500-XXX Assembly 3: 2X 500-sheet drawer (2TM) media tray — Options Service Manual...
Page 497 7500-XXX Assembly 3: 2X 500-sheet drawer (2TM) media tray — Asm- Part Units/ Units/ Description Index number option 40X0573 Media tray assembly (this comes assembled) • Media tray assembly • Labels (2 each) 40X0578 Media tray end guide kit includes: •...
Page 498: Assembly 4: 2X 500-Sheet Drawer (2Tm)-Media Feed Unit
7500-XXX Assembly 4: 2X 500-sheet drawer (2TM)–media feed unit Options Service Manual...
Page 499 7500-XXX Assembly 4: 2X 500-sheet drawer (2TM)–media feed unit Asm- Part Units/ Units/ Description Index number option 40X0581 Media feed unit assembly (this comes assembled) 40X0582 Media feed lift motor 40X0585 Media feed drive gear kit includes: • Media feed unit drive gear 13T •...
Page 500: Assembly 5: 2X 500-Sheet Drawer (2Tm)-Left Door
7500-XXX Assembly 5: 2X 500-sheet drawer (2TM)–left door 7-10 Options Service Manual...
Page 501 7500-XXX Assembly 5: 2X 500-sheet drawer (2TM)–left door Asm- Part Units/ Units/ Description Index number option 40X0692 Sensor (tray 3 feed-out) kit includes: • Sensor (tray 3 feed-out) • Sensor protector 40X0695 2TM/TTM media transport roll assembly includes: • 2TM/TTM media transport roll assembly •...
Page 502: Assembly 6: 2X 500-Sheet Drawer (2Tm)-Drive And Electrical
7500-XXX Assembly 6: 2X 500-sheet drawer (2TM)–drive and electrical 7-12 Options Service Manual...
Page 503 7500-XXX Assembly 6: 2X 500-sheet drawer (2TM)–drive and electrical Asm- Part Units/ Units/ Description Index number option 40X0701 2TM drive gear kit includes: • 2TM drive gear 22T/40T • 2TM drive gear 126T • 2TM drive gear 60T • 2TM drive gear 37T (2 each) •...
Page 504: Assembly 7: High Capacity Feed (Hcf)-Covers And Media Tray
7500-XXX Assembly 7: High capacity feed (HCF)–covers and media tray 7-14 Options Service Manual...
Page 505 7500-XXX Assembly 7: High capacity feed (HCF)–covers and media tray Asm- Part Units/ Units/ Description Index number option 40X0738 Top cover 40X0745 HCF docking bracket kit • HCF docking bracket • HCF docking bracket screw (2 each) 40X0746 Inner front cover 40X0740 HCF docking latch kit includes: •...
Page 506: Assembly 8: High Capacity Feed (Hcf)-Media Tray
7500-XXX Assembly 8: High capacity feed (HCF)–media tray 7-16 Options Service Manual...
Page 507 7500-XXX Assembly 8: High capacity feed (HCF)–media tray Asm- Part Units/ Units/ Description Index number option 40X0747 HCF media tray front cover assembly (this comes assembled) 40X0740 Docking latch kit includes: • Docking latch • Spring 40X0749 HCF media long edge guide kit (this comes assembled) includes: •...
Page 508: Assembly 9: High Capacity Feed (Hcf)-Media Tray Lift
7500-XXX Assembly 9: High capacity feed (HCF)–media tray lift 7-18 Options Service Manual...
Page 509 7500-XXX Assembly 9: High capacity feed (HCF)–media tray lift Asm- Part Units/ Units/ Description Index number option 40X0750 HCF rear media guide kit includes: • HCF rear media guide • Screw 40X0966 Media tray separation brush 40X0751 HCF front media guide kit includes: •...
Page 510: Assembly 10: High Capacity Feed (Hcf)-Media Feed Unit
7500-XXX Assembly 10: High capacity feed (HCF)–media feed unit 7-20 Options Service Manual...
Page 511 7500-XXX Assembly 10: High capacity feed (HCF)–media feed unit Asm- Part Units/ Units/ Description Index number option 40X0758 HCF feed unit assembly (this comes assembled) 40X0759 HCF feed lift motor 40X0760 HCF feed lift gear bracket assembly 40X0913 Ball bearing 6 mm 40X0761 HCF separation drive gear kit includes: •...
Page 512: Assembly 11: High Capacity Feed (Hcf)-Media Feed Unit
7500-XXX Assembly 11: High capacity feed (HCF)–media feed unit 7-22 Options Service Manual...
Page 513 7500-XXX Assembly 11: High capacity feed (HCF)–media feed unit Asm- Part Units/ Units/ Description Index number option 40X0758 HCF feed unit assembly (this comes assembled) 40X0764 HCF feed unit latch kit includes: • HCF feed unit latch (2 each) • Spring •...
Page 514: Assembly 12: High Capacity Feed (Hcf)-Top Door And Transport
7500-XXX Assembly 12: High capacity feed (HCF)–top door and transport 7-24 Options Service Manual...
Page 515 7500-XXX Assembly 12: High capacity feed (HCF)–top door and transport Asm- Part Units/ Units/ Description Index number option 40X0773 HCF top door kit includes: • HCF top door • HCF top door shaft • HCF top door spring R • HCF top door spring L 40X0553 Switch (HCF top door interlock) 40X0774...
Page 516: Assembly 13: High Capacity Feed (Hcf)-Electrical
7500-XXX Assembly 13: High capacity feed (HCF)–electrical 7-26 Options Service Manual...
Page 517 7500-XXX Assembly 13: High capacity feed (HCF)–electrical Asm- Part Units/ Units/ Description Index number option 40X0779 HCF main cable assembly 40X0778 HCF controller card assembly 7-27 Parts catalog...
Page 518: Assembly 14: Finisher-Bridge Unit
7500-XXX Assembly 14: Finisher–bridge unit Asm- Part Units/ Units/ Description Index number option 40X0811 Bridge unit assembly 40X0810 Bridge unit assembly docking screw (2 each) 7-28 Options Service Manual...
Page 519: Assembly 15: Finisher–Bridge Unit Top Cover Assembly
7500-XXX Assembly 15: Finisher–bridge unit top cover assembly Asm- Part Units/ Units/ Description Index number option 40X0813 Bridge unit top cover assembly 40X0812 Bridge unit pinch roll kit includes: • Bridge unit pinch roll (6 each) • Spring (6 each) 7-29 Parts catalog...
Page 520: Assembly 16: Finisher-Bridge Unit Lower Assembly
7500-XXX Assembly 16: Finisher–bridge unit lower assembly 7-30 Options Service Manual...
Page 521 7500-XXX Assembly 16: Finisher–bridge unit lower assembly Asm- Part Units/ Units/ Description Index number option 40X0814 Bridge unit rear cover 40X0822 Bridge unit right shaft kit includes: • 6 mm bushing - front • Bridge unit right shaft assembly • 6 mm bushing - rear 40X0820 Transport belts (2 each) 40X0821...
Page 522: Assembly 17: Finisher-Covers
7500-XXX Assembly 17: Finisher–covers 7-32 Options Service Manual...
Page 523 7500-XXX Assembly 17: Finisher–covers Asm- Part Units/ Units/ Description Index number option 40X0829 Top cover 40X0831 Upper media bin assembly 40X0830 Upper media bin vertical cover 40X0832 Right eject cover 40X0833 Stacker media bin 40X0834 Right lower LVPS cover 40X0835 Caster 40X0836 Rear lower cover...
Page 524: Assembly 18: Finisher-Covers And Front Door
7500-XXX Assembly 18: Finisher–covers and front door 7-34 Options Service Manual...
Page 525 7500-XXX Assembly 18: Finisher–covers and front door Asm- Part Units/ Units/ Description Index number option 40X0839 Upper media bin front cover 40X0841 Finisher front door assembly (this comes assembled) 40X0840 Switch (finisher front door interlock) 40X0842 Finisher docking latch kit includes: •...
Page 526: Assembly 19: Finisher-Stacker Bin Lift
7500-XXX Assembly 19: Finisher–stacker bin lift 7-36 Options Service Manual...
Page 527 7500-XXX Assembly 19: Finisher–stacker bin lift Asm- Part Units/ Units/ Description Index number option 40X0846 Carriage lift belt kit includes: • Carriage lift belt • Belt clamp (2 each) • Spring • Roll (2 each) 40X0847 Sensor (stacker bin level) 40X0849 Stacker slip clutch pulley kit includes: •...
Page 528: Assembly 20: Finisher-Punch
7500-XXX Assembly 20: Finisher–punch 7-38 Options Service Manual...
Page 529 7500-XXX Assembly 20: Finisher–punch Asm- Part Units/ Units/ Description Index number option 40X0854 Punch carriage shift motor assembly 40X0855 Punch carriage assembly 40X0856 Sensor (punch unit side reg) assembly • Sensor (punch unit side reg1) • Sensor (punch unit side reg2) •...
Page 530: Assembly 21: Finisher-Stapler
7500-XXX Assembly 21: Finisher–stapler 7-40 Options Service Manual...
Page 531 7500-XXX Assembly 21: Finisher–stapler Asm- Part Units/ Units/ Description Index number option 40X0870 Stapler unit cable assembly 40X0869 Stapler carriage kit includes: • Stapler carriage wire guide • Stapler carriage assembly 40X0871 Stapler carriage motor assembly 40X0872 Stapler carriage rack gear 40X0868 Stapler unit cover 40X0850...
Page 532: Assembly 22: Finisher-Media Eject
7500-XXX Assembly 22: Finisher–media eject 7-42 Options Service Manual...
Page 533 7500-XXX Assembly 22: Finisher–media eject Asm- Part Units/ Units/ Description Index number option 40X0873 Media eject unit assembly (this comes assembled) 40X0874 Sub paddle 40X0875 Sub paddle drive shaft kit includes: • Sub paddle drive shaft assembly • Knob 40X0882 Switch (eject cover interlock) 40X1388 Bushing 8 mm...
Page 534: Assembly 23: Finisher-Eject And Compiler Unit
7500-XXX Assembly 23: Finisher–eject and compiler unit 7-44 Options Service Manual...
Page 535 7500-XXX Assembly 23: Finisher–eject and compiler unit Asm- Part Units/ Units/ Description Index number option 40X0883 Media compiler unit assembly (this comes assembled) 40X0850 Sensor (rear tamper HP) 40X0850 Sensor (front tamper HP) 40X0825 Sensor (compiler media in) 40X0886 Media eject shaft assembly 40X0887 Clamp paddle 40X0888...
Page 536: Assembly 24: Finisher-Lower Exit Drive
7500-XXX Assembly 24: Finisher–lower exit drive 7-46 Options Service Manual...
Page 537 7500-XXX Assembly 24: Finisher–lower drive Asm- Part Units/ Units/ Description Index number option 40X0892 Sensor (lower media exit) with bracket 40X0893 Sensor (lower media exit) 40X0894 Static eliminator brush 40X0895 Lower media exit roll assembly 40X0896 Main paddle shaft kit includes: (this comes assembled) •...
Page 538: Assembly 25: Finisher-Buffer And Entrance Drive
7500-XXX Assembly 25: Finisher–buffer and entrance drive 7-48 Options Service Manual...
Page 539 7500-XXX Assembly 25: Finisher–buffer and entrance drive Asm- Part Units/ Units/ Description Index number option 40X0901 Lower pinch guide assembly (this comes assembled) 40X0902 Finisher diverter gate 40X0903 Buffer diverter gate 40X0824 Magnetic catch 40X0888 Bushing 6 mm 40X0904 Buffer upper guide assembly 40X0893 Sensor (buffer path) 40X0905...
Page 540: Assembly 26: Finisher-Buffer, Transport, And Upper Drive
7500-XXX Assembly 26: Finisher–buffer, transport, and upper drive 7-50 Options Service Manual...
Page 541 7500-XXX Assembly 26: Finisher–transport and upper drive Asm- Part Units/ Units/ Description Index number option 40X0918 Upper media exit pinch roll assembly 40X0893 Sensor (upper media exit) 40X0919 Upper media exit roll assembly 40X0908 Sensor (upper media bin full) 40X0824 Magnetic catch 40X0888 Bushing 6 mm...
Page 542: Assembly 27: Finisher-Electronics
7500-XXX Assembly 27: Finisher–electronics 7-52 Options Service Manual...
Page 543: Index
7500-XXX Assembly 27: Finisher–electronics Asm- Part Units/ Units/ Description Index number option 40X0931 Bridge unit interface card assembly 40X0932 Bridge unit connect cable assembly 40X0933 Bridge unit interface card cable assembly 40X0934 Finisher controller card assembly 40X0935 AC power cord assembly 40X0936 Finisher LVPS card assembly 7-53...
Page 544 7500-XXX Assembly 28: Finisher–cables 1 7-54 Options Service Manual...
Page 545 7500-XXX Assembly 28: Finisher–cables 1 Asm- Part Units/ Units/ Description Index number option 40X0942 Upper media exit sensor cable assembly 40X0940 Finisher media entrance sensor cable assembly 40X0941 Buffer path sensor cable assembly 40X0937 Main sensor cable assembly 40X0946 Finisher LVPS cable assembly 40X0892 Sensor (lower media exit) assembly •...
Page 546 7500-XXX Assembly 29: Finisher–cables 2 Asm- Part Units/ Units/ Description Index number option 40X0922 Diverter gate sensor upper cable assembly 40X0944 Punch main drive cable assembly 40X0950 Diverter gate sensor lower cable assembly 40X0865 Punch waste box set cable assembly 40X0947 Interlock switch cable assembly 40X0945...
Page 547 7500-XXX Assembly 30: Finisher–cables 3 Asm- Part Units/ Units/ Description Index number option 40X0938 Main drive cable assembly 40X0930 Punch waste box full cable assembly 40X0932 Bridge unit connect cable assembly 40X0931 Bridge unit interface card assembly 40X0939 Finisher interface cable assembly 40X0870 Stapler unit cable assembly 7-57...
Page 548 7500-XXX 7-58 Options Service Manual...
Page 549 7500-XXX Index 3-35 Maintenance Counter Value 3-41 Min Copy Memory accessing service menus 3-40 Panel Menus 1-51 acronyms 3-43 Paper Prompts 3-40 PPDS Emulation 3-38 Print Quality Pages belts 3-36 4-192 REGISTRATION buffer/transport 3-37 4-177 Quick Test entrance/paddle 3-49 4-190 Require Standby exit 3-35...
Page 550 7500-XXX 3-22 Display the Event Log 243.03 sensor (registration) on jam (tray 3 media feed) 3-24 2-10 Print the Event Log 2-12 FINISHER TESTS 243.04 sensor (tray 3 feed-out) static jam 3-14 Feed Tests 244.00 sensor (tray 4 feed-out) on jam (tray 4 media 3-14 2-13 Hole Punch Test...
Page 551 7500-XXX 2-33 288.05 sensor (diverter gate) static jam (to stacker bin) tray 4 media size mismatch in length 2-115 ESD-sensitive parts 3-50 288.06 sensor (diverter gate) static jam (to stacker bin) exiting Configuration Menu 2-116 3-32 exiting Diagnostics Menu 2-23 943.00 tray 3 lift up / no tray failure 2-24 944.00 tray 4 lift up / no tray failure...
Page 552 7500-XXX 1-24 features 1-30 functions of sensors along the media path 4-101 rear upper cover 1-22 media size and weight removal procedures 1-24 media transport removals–2X 500-sheet drawer (2TM) 1-50 power supply and interlock 4-43 2TM/TTM controller card assembly 1-32 punch unit 2TM/TTM left door assembly 1-46...
Page 553 7500-XXX 4-83 4-130 bridge unit rear cover sensor (punch waste box full) 4-86 4-129 bridge unit right shaft assembly sensor (punch waste box set) 4-84 4-149 bridge unit top cover assembly sensor (rear tamper HP) 4-89 4-111 bridge unit transport belts sensor (stacker bin level 1) 4-169 4-111...
Page 554 7500-XXX 4-72 HCF top door assembly 4-57 HCF tray lift gear bracket theory repair information 2X 500-sheet drawer (2TM) 1-24 finisher 1-51 tools required ii-xiii safety information safety inspection guide sensors 4-97 upper media bin assembly 4-93 bridge unit media entrance 4-181 upper media exit pinch roll assembly 4-94...
Page 555: Part Number Index
7500-XXX Part number index Description Page 40X0553 Switch (HCF top door interlock) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-25 40X0569 Media tray catch kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 556 7500-XXX 7-17 40X0749 HCF media long edge guide kit (this comes assembled) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-19 40X0750 HCF rear media edge guide kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 557 7500-XXX 7-33 40X0836 Rear lower cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-33 40X0837 Bridge unit hookup cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 558 7500-XXX 7-43 7-45 7-47 40X0888 Bushing 6 mm - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-45 40X0889 Media eject shaft gear 39T - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 559 7500-XXX 7-55 40X0940 Finisher media entrance sensor cable assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-55 40X0941 Buffer path sensor cable assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 560 7500-XXX I-12 Options Service Manual...
Page 561 HCF Controller 7500 Options SIG GND Switch (HCF Unit Card Assembly PF08 Sensor(Tray 5 Docking Switch Close(L)+5VDC Docking) Service Manual Feed Out) SIG GND HCF Tray5 Feed Out Paper SNR(H)+5VDC +5VDC HCF Pick SIG GND Sensor Solenoid HCF Tray Set(L)+5VDC (Media Tray Set) +5VDC PF01...
Page 562 7500 Options Service Manual Stacker Bin Level SNR1 Clock SIG GND Sensor Stacker Bin Level SNR2 Clock Stacker Bin Level SNR1(L)+5VDC Buffer Diverter (Stacker Bin Level 1) +5VDC +5VDC Solenoid Stacker Bin Level SNR2(L)+5VDC Stacker Bin Level SNR1 Clock Buffer div solenoid(pull)(L)+24VDC SIG GND Stacker Bin Level...
