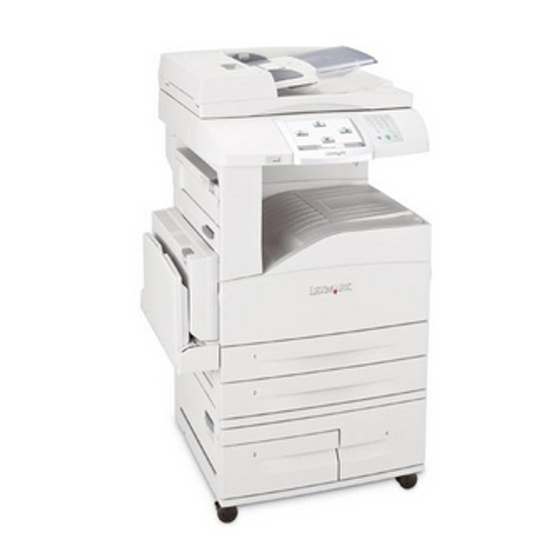

Page 1 X850e, X852e, and X854e MFP 7500-XXX • Table of contents • Start diagnostics • Safety and notices • Trademarks • Index Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
Page 2 Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company.
Page 3: Table Of Contents
7500-XXX Table of contents Notices ............. . xv Laser notice .
Page 4 7500-XXX Names and functions of components ...........1-45 Scanner unit assembly .
Page 5 7500-XXX 243.01 Sensor (tray 3 feed-out) on jam (tray 3 media feed) ......2-68 243.02 Sensor (tray 2 feed-out) on jam (tray 3 media feed) .
Page 6 7500-XXX 845.00 CCD failure .............2-142 845.01 CCD initialization (lamp on) failure .
Page 7 7500-XXX 980.00 2TM/TTM controller card assembly communication failure ..... 2-177 980.03 Exit interface card assembly communication failure ......2-178 980.04 Duplex controller card assembly communication failure .
Page 8 7500-XXX Printing the registration test original page ......... .3-26 Testing the manual scanner registration .
Page 9 7500-XXX Media tray side guides removal ........... 4-26 Media tray end guide removal .
Page 10 7500-XXX PC cartridge cooling fan removal ..........4-102 Sensor (fuser exit) removal .
Page 11 7500-XXX ADF left cover assembly removal ..........4-168 Left cover pinch roll assembly removal .
Page 12 7500-XXX 2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3) ....4-243 2000-sheet dual input (TTM)–2TM/TTM media transport roll assembly removal ..4-246 2000-sheet dual input (TTM)–sensor (tray 3 feed-out) removal .
Page 13 7500-XXX Exit 2 sensor (standard bin full exit 2) removal ........4-330 Exit 2 cooling fan removal .
Page 14 7500-XXX Assembly 37: 2000-sheet dual input (TTM)–left door ........7-76 Assembly 38: 2000-sheet dual input (TTM)–drive and electrical .
Page 15: Notices
7500-XXX Notices Laser notice The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Page 16 7500-XXX Avisos sobre el láser Se certifica que, en los EE.UU., esta impresora cumple los requisitos para los productos láser de Clase I (1) establecidos en el subcapítulo J de la norma CFR 21 del DHHS (Departamento de Sanidad y Servicios) y, en los demás países, reúne todas las condiciones expuestas en la norma IEC 60825-1 para productos láser de Clase I (1).
Page 17 7500-XXX Huomautus laserlaitteesta Tämä kirjoitin on Yhdysvalloissa luokan I (1) laserlaitteiden DHHS 21 CFR Subchapter J -määrityksen mukainen ja muualla luokan I laserlaitteiden IEC 60825-1 -määrityksen mukainen. Luokan I laserlaitteiden ei katsota olevan vaarallisia käyttäjälle. Kirjoittimessa on sisäinen luokan IIIb (3b) 5 milliwatin galliumarsenidilaser, joka toimii aaltoalueella 770 - 795 nanometriä.
Page 18 7500-XXX xviii MFP Service Manual...
Page 19: Safety Information
7500-XXX Safety information • The safety of this product is based on testing and approvals of the original design and specific components. The manufacturer is not responsible for safety in the event of use of unauthorized replacement parts. • The maintenance information for this product has been prepared for use by a professional service person and is not intended to be used by others.
Page 20 7500-XXX Sicherheitshinweise • Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung für die Sicherheit übernommen. • Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen Wartungsfachmann bestimmt.
Page 21 7500-XXX Informació de Seguretat • La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics. El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades. •...
Page 22: Preface
7500-XXX Preface Service information for the Lexmark X850e, X852Ee, and X854e is contained within two service manuals: • MFP Service Manual–Contains specific service information for the MFP and includes the options error codes. • Options Service Manual–Contains specific service information for the 2X 500-Sheet Drawer (2TM), High Capacity Feeder, and Finisher.
Page 23: General Information
7500-XXX 1. General information The Lexmark™ X850e, X852e, and X854e MFP are high-performance departmental monochrome MFPs with reliable, high-capacity input designed to meet the needs of rigorous business applications. Automatic 2-sided printing is included as a standard features. This manual is a standard service manual containing information required for maintenance.
Page 24: Operating Systems - Printer Driver
7500-XXX Operating systems — printer driver ® Windows® • Microsoft ® • Linux ® • • Novell • UNIX Emulation ® • 6 emulation ® • PostScript • PPDS Migration Tool Fonts • PCL 6 emulation — Scalable: 89 (84 plus 5 special) —...
Page 25: Media Types
7500-XXX Media types • Plain paper, envelopes, card stock, transparencies, paper labels Media weights • Plain paper: 17 to 28 lb. • Card stock: Up to 90 lb. index Size and weight — without finisher • Size: W x D x H — 25 x 26 x 33 in. (640 x 649 x 832 mm) •...
Page 26: Printer Overview
7500-XXX Printer overview CAUTION: Do not set up this product or make any electrical or cabling connections, such as the power cord or options and features, during a lightning storm. Basic model The following illustration shows a printer with its base features. Operator panel Exit 2 (used in...
Page 27: Configured Model
7500-XXX Configured model The following illustration shows a fully configured printer. Items denoted with an asterisk (*) are options. Operator Exit 2 panel (Used in conjunction with duplex unit) Duplex unit Bridge unit* (Used in conjunction with finisher) Multipurpose feeder (MPF) Finisher* Tray 3 and tray 4...
Page 28: Printer Theory
7500-XXX Printer theory Driving force transmission path Media transport motor The rotating force of the transport motor is transmitted through the gear and the pulley (25 tooth) to components that need mechanical driving force as shown in the following diagram. Media transport motor Pulley25T Gear exit...
Page 29 7500-XXX PC cartridge motor The rotating force of the PC cartridge motor is transmitted through the gears to components that need a mechanical driving force as shown in the following diagram. PC cartridge motor Drum Magnetic Roll Transfer roll The driving force transmitted to the PC cartridge drives the drum. The driving force is then transmitted to the transfer roll assembly by direct contact with the drum.
Page 30: Media Transport
7500-XXX Media transport Media transport path Media is supplied from the MPF, tray 1 or tray 2, and is transported to the printer along the media transport path shown below. Tray 2 Tray 1 Pick roll Pick roll MPF pick roll MPF Transport Roll ASM Separation roll Separation roll...
Page 31 7500-XXX Media transport path layout The following is a cross section of the laser printer, showing main components directly associated with the media path and transport. Main components associated with transport of media Exit 2 media exit roll ASM Exit 2 media exit pinch rolls Exit 2 Exit 2 media transport roll ASM Exit 1 media exit roll ASM...
Page 32: Functions Of Main Components
7500-XXX Functions of main components • Media tray assembly • Media feed unit assembly • • Xerographics • Fuser • Drive • Electrical components and rolls Media tray assembly It is necessary to adjust the front media tray guide assembly, rear media tray guide and media tray end guide of the media tray assembly to match the media size.
Page 33: Media Tray Assembly
7500-XXX Media tray assembly Media end guide Rear media tray guide Bottom plate Front media tray guide assembly Detection of media size The media size set for the media tray assembly is transmitted to the switch (media size) by moving these guides. The media size is detected by the on/off information of these switches.
Page 34 7500-XXX Sensor (media level) This sensor detects by the actuator position whether media in the media tray assembly is lifted. When the flag of the actuator unblocks the sensing area of the sensor (media level), the sensor detects that the media has been lifted.
Page 35: Multi-Purpose Feeder (Mpf)
7500-XXX Multi-purpose feeder (MPF) The MPF is a mechanical unit suppling media to the printer. The driving force from the transport motor of the dual drive motor assembly is transmitted to the MPF feed roll to feed media. MPF pick roll The MPF pick roll feeds media set on the MPF and into the feeder.
Page 36: Detecting Media Size
7500-XXX Detecting media size The size of media on the MPF is transmitted by moving the MPF side guide, and is determined by the printer engine card assembly. Media sizes that can be automatically detected are as follows: Media size Width (mm) Feed length (mm) Side-guide stopper (min.)
Page 37: Registration
7500-XXX Registration Sensor (registration) The sensor (registration) must be installed before the registration roll assembly can detect whether media exists in the registration path. Registration clutch The registration clutch transmits the drive force of the main motor to the registration roll assembly. Transport roll assembly The transport roll assembly feeds paper from the tray 2, TTM, and optional tray to the PC cartridge and fuser.
Page 38: Printhead Assembly
7500-XXX charges on the rear surface of the media. Thus, the toner image is transferred from the drum surface to the media surface. PC cartridge Transfer roll assembly Printhead assembly The printhead scans the drum surface with a laser beam. It consists of four components: laser diode (LD) card assembly, printhead motor, polygon mirror, and start of scan card assembly.
Page 39 7500-XXX Conceptual diagram of an image created by scanning SOS card ASM LD card ASM Polygon mirror Printhead motor 1-17 General information...
Page 40: Fuser
7500-XXX Fuser Heat roll The heat roll is a hollow metal tube with a coated surface. This tube is heated by the inner heater lamp. The heat is applied to the media passing between the heat roll and pressure roll, fusing the toner on the media. Pressure roll The pressure roll is a metal shaft coated with sponge rubber.
Page 41: Exit
7500-XXX Fuser exit sensor The fuser exit sensor detects the arrival of media at the detection point in the exit area of the fuser, and also detects the ejection of media from this point. Center thermistor Pressure roll thermistor Rear thermistor Pressure roll Sub heater lamp 2 Heat roll...
Page 42 7500-XXX Media diverter gate The media diverter gate switches the media transport path. When the media diverter gate is lifted, media is fed to the standard bin exit 1. When it is lowered, media is fed to the standard bin exit 2. Media diverter gate Sensor (standard Exit 1 media...
Page 43: Drive
7500-XXX Drive Media transport motor The media transport motor is a DC brushless motor that drives the exit 1 media exit shaft assembly, fuser assembly, registration roll assembly. PC cartridge motor The PC cartridge motor is a DC brushless motor that drives the PC cartridge, mag roll and transfer roll assembly.
Page 44: Electrical Components And Controller
7500-XXX Electrical components and controller Switch (main power) Turning on/off the switch, power supplies/cuts off the main power of the printer. Finisher AC output Supplies power to the finisher from the main LVPS (low voltage power supply) card assembly. Switch (printer front door interlock) and switch (printer left door interlock) The switch is a safety switch to cut off a 24 VDC power supply from the LVPS card assembly to the high volt power supply (HVPS) card assembly, printer engine card assembly and to the dual motor assembly, while the printer front door assembly and the printer left door assembly are open.
Page 45 7500-XXX Registration roll assembly Switch (PC cartridge interlock) Switch (main power) Switch (printer left door interlock) Switch (printer front door interlock) Fuser cooling fan AC drive card assembly Switch (printer left lower door interlock) LVPS Rear Printer engine card asm HVPS AC power input socket...
Page 46: Control
7500-XXX Control Media size control Media tray assembly feeding The following table gives the states (on/off) of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches on the switch (media size) are denoted by “S/W2”, “S/W4”, “S/W3”, “S/W5”, and “S/W1” respectively from the left side.
Page 47: Printhead Control
7500-XXX Printhead control Rotation of printhead motor The on/off control of the printhead motor is performed according to the mode of operation as shown below. Operation mode PRINTHEAD motor on/off Standby mode Always off Print mode Turns on upon receiving the signal from the controller, and turns off after a preset time has passed from the end of printing.
Page 48: Xerographic Process During A Print Cycle
7500-XXX Xerographic Process During a Print Cycle Heat roll Pressure Fuser ASM roll Cleaning blade Charge roll Drum Laser beam Transfer roll PC cartridge Magnetic roll Paper 1-26 MFP Service Manual...
Page 49 7500-XXX Charge The Charge Roll places a uniform negative electrostatic charge on the surface of the drum. The drum surface is made of a photoconductive material that holds an electrical charge as long as the drum remains in darkness. Light striking the drum discharges the surface charge. HVPS Charge roll (-VDC)
Page 50 7500-XXX The charge roll is a conductive roll that is positioned slightly above the surface of the drum. The HVPS supplies the charge roll with two voltages; a negative DC charge voltage and an AC discharge voltage that is used for electrically cleaning the drum.
Page 51 7500-XXX The Printhead also helps to clean and prepare the drum by scanning the surface of the drum at the beginning of each individual printer cycle. This action discharges a residual DC charge that may still remain on the Drum from the last print cycle.
Page 52 7500-XXX The toner adhering to the Magnet Roll is always in contact with the drum surface. When a less negative point on the drum (a discharged area) comes in contact with the more negative charged toner on the Magnet Roll, toner transfers from the Magnet Roll to that point on the drum.
Page 53 7500-XXX Transfer As the paper travels between the Transfer Roll and the drum surface, the Transfer Roll applies a positive charge to the back of the printing paper. This positive charge transfers the negative charged toner image from the drum surface to the top surface of the paper.
Page 54 7500-XXX Cleaning The Cleaning Blade removes any toner that remains on the drum after the transfer process. The toner that the Cleaning Blade removes is collected inside the sealed PC Cartridge and reused. Used Toner Cleaning Blade Charge roll DRUM Discharge At both the start and the end of each individual printer cycle, the HVPS supplies the charge roll with an AC voltage that is used to electrically clean the drum.
Page 55: Safety System Diagram
7500-XXX Safety system diagram Fuser cooling fan Switch Switch Switch Printhead (PC Cartridge (Printer front (Printer left Printhead interlock) door interlock) door interlock) Dual drive motor ASM motor PC cartridge Transport motor motor Printer engine card ASM Printhead motor Fuser cooling control Fuser unit ASM...
Page 56: Document Scanning
7500-XXX Document scanning The document scanning section of this machine consists of a scanner that reads a single-sheet document placed on the platen glass and a document feeder that can transport a multiple-sheet document and flip the sheets for two-sided scanning. This ADF employs a constant velocity transport system that scans images by feeding the document at a constant speed over the specified position (scan position) where the carriage (full/half rate carriage) of the scanner unit assembly is fixed.
Page 57: Document Scanning At Adf
7500-XXX The full rate carriage and half rate carriage travel to read the document. The exposure lamp is installed on the full rate carriage. As the full rate carriage travels, the document on the platen glass is scanned and exposed with the exposure lamp. In conjunction with the full rate carriage, the half rate carriage travels half of the stroke of the full rate carriage.
Page 58 7500-XXX First the pick roll moves down and presses the document on the document tray to enable document feed. The pick roll moves down with the normal rotation of the pick roll position motor assembly and it moves up with the reverse rotation of the pick roll position motor assembly.
Page 59: Scan Control
7500-XXX ADF transport roll assembly ADF registration roll assembly Scan control Scanning of the image illuminated with the exposure lamp of the full rate carriage is controlled by changing the feed speed according to the copy magnification. The document sheet stopping at the scan feed reference position is then fed to the scan position when the scan signal is sent from the main unit of the machine after the predetermined time lapse following the paper detection at sensor (ADF registration).
Page 60: Simplex Document
7500-XXX ADF exit roll assembly Document Inverter gate Simplex document For two simplex document sheets, feed is performed in the following sequence: The first document sheet is fed to the ADF transport roll assembly. (see Pre-feed) The document is fed to the ADF registration roll assembly, and then fed to the scan feed reference position.
Page 61: Duplex Document
7500-XXX Sensor (ADF pre-registration) 2nd documant 1st document Duplex document The ADF scans the image on Side 1 (side facing up when set on the tray), inverts the document sheet, scans the image on Side 2 (side facing down when set on the tray), and then ejects the document sheet while inverting Therefore, the duplex document sheet is ejected with Side 2 up as with the simplex document sheet.
Page 62 7500-XXX When the sensor (ADF pre-registration) detects the lead edge of document sheet (Side 1), the inverter solenoid assembly is turned on to release the nipped ADF exit roll assembly and exit pinch roll and the ADF registration motor decelerates and stops. After the predetermined time, the ADF registration motor starts rotating in the reverse direction (CCW direction) to drive the ADF registration roll assembly and ADF feed-out roll assembly in the exit direction in order to feed the document sheet (Side 1).
Page 63: Image Data Flow
7500-XXX Image data flow The image date from the document set on the scanner unit assembly or ADF goes through the following components before it is printed at the Engine section. Document Lens CCD image sensor Scanner controller card assembly Scanner Engine RIP card assembly...
Page 64: Drive Torque Transfer Scheme
7500-XXX Drive torque transfer scheme ADF feed motor assembly The rotational force of the ADF feed motor assembly is transferred to each document feeding roll as shown below. ADF feed motor assembly ADF drive belt Feed drive rear pulley 14/32/37 Feed/pick drive gear 20T Transport roll drive belt Feed/pick drive...
Page 65: Adf Registration Motor
7500-XXX ADF registration motor The rotational force of the ADF registration motor is transferred to each document feeding roll as shown below. Gear layout ADF registration motor Registration roll drive belt Registration drive gear/pulley 21/54T Registration drive belt Exit/feed-out drive Registration roll pulley 25/28 drive gear 28T...
Page 66 7500-XXX Feed/pick drive gear 20T Feed drive gear/pulley14/32/37T ADF feed motor assembly Transport roll drive Feed roll drive gear 26T gear pulley 20/50T Pick roll idler gear 36T Exit roll drive pulley 20T ADF registration motor Pick roll drive gear 34T Pick roll Registration main drive Exit roll assembly...
Page 67: Names And Functions Of Components
7500-XXX Names and functions of components The sections below describe the functions of main components of the scanner. Scanner unit assembly Sensor (platen length APS 1) Sensor (platen length APS 2) The document length in the slow scanning direction is detected by a combination of the two reflector sensors. Switch (platen interlock) A switch that detects whether the ADF is open and determines the timing of platen document size detection.
Page 68: Adf
7500-XXX Scanner cooling fan A fan that prevents overheating of the scanner controller card assembly and exposure lamp. Scanner drive motor assembly Exposure lamp PS card assembly (under the carriage) Sensor (platen length APS1) Scanner cooling fan Sensor (platen ADF angle length APS2) actuator assembly Sensor...
Page 69 7500-XXX Sensor (pick roll position HP) A sensor that detects the home position of the pick roll. ADF Document Set LED An LED that illuminates when a document is set on the ADF Document Tray. Switch (ADF left cover interlock) A switch that detects whether the ADF left cover assembly is open.
Page 70 7500-XXX Sensor (ADF pre-registration) The ADF sensor (ADF pre-registration) is installed immediately upstream from the ADF transport roll assembly to detect that the preceding document sheet has left the ADF transport roll assembly, triggering the pre-feed of the next document sheet. Sensor (ADF registration) The sensor (ADF registration) is installed upstream from the ADF registration roll assembly to detect that the preceding document sheet has left the ADF registration roll assembly, triggering the pre-registration of the next...
Page 71 7500-XXX Sensor (ADF pre-registration) ADF feed motor assembly Sensor (sheet through) ADF registration motor Sensor (ADF registration) Inverter solenoid assembly Sensor (ADF inverter) Sensor (ADF APS 3) Sensor (ADF APS 2) Sensor (ADF APS 1) 1-49 General information...
Page 72: Control
7500-XXX Control Document size detection at scanner unit assembly The width (fast-scan-directional size) of the document sheet on the Platen Grass is detected with the CCD image sensor, and the length (slow-scanning-directional size) is detected with the sensor (platen length APS 1) and the sensor (platen length APS 2).
Page 73 7500-XXX Shown below are the combinations of document size, detection range in the fast scanning direction, and sensors. Width (Fast scanning Length (Slow scanning direction) Area direction: mm) Document Size Fast Detection Sensor (platen Sensor (platen scanning Range length APS 1) length APS 2) Width Japanese Post...
Page 74: Adf Document Size Detection
7500-XXX Width (Fast scanning Length (Slow scanning direction) Area direction: mm) Document Size Fast Detection Sensor (platen Sensor (platen scanning Range length APS 1) length APS 2) Width A4 LEF 297.2 289–307 A3 SEF 297.2 O: Detectable by default. N: Detectable by replacing the document size marked as O with the system data having the same detection information.
Page 75 7500-XXX The standard document sizes to be identified by the same given detection information are defined on an area-by-area basis. Each area is to be set in the system data. Document tray media size actuator Sensor (document tray width 1) Sensor (document tray width 2) Sensor (document tray width 3) 1-53...
Page 76 7500-XXX The table below shows the combinations of document sizes and sensors. Width (Fast scanning direction) Length (Slow scanning direction) Area Sensor (document tray width *) Sensor (document tray length *) Document Size 5.5 X 8.5 SEF A5 SEF B5 SEF 8 X 10 SEF 8 X 10.5 SEF A5 LEF...
Page 77: Document Scanning Steps
7500-XXX Document scanning steps The CCD image sensor is used to read image data from the document. To stabilize the read image data, the CCD image sensor output is adjusted and the read image data is compensated. The CCD image sensor output is adjusted with the gain/offset voltage of the amplifier in the analog circuit. This adjustment includes AGC and AOC.
Page 78: Tandem Tray Theory
7500-XXX Tandem tray theory 1-56 MFP Service Manual...
Page 79: Driving Force Transmission Path
7500-XXX Driving force transmission path 2 tray / tandem tray drive motor assembly The rotating force of the 2 tray / tandem tray motor is transmitted through the gears to components that require mechanical driving force as shown below. 2TM/TTM drive motor TTM drive gear (22/40) 2TM/TTM clutch TTM drive gear (38T)
Page 80: Media Transport
7500-XXX Media transport Media transport path Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 4 Tray 3 Pick roll Pick roll Separation roll Separation roll Feed roll Feed roll Upper pinch roll...
Page 81 7500-XXX Media transport path The following is a cross section of the printer and the tandem tray module, showing the main components directly associated with the media path and transport. Exit 2 media exit roll ASM Exit 2 media exit pinch rolls Exit 2 Exit 2 media transport roll ASM Exit 1 media exit roll ASM...
Page 82: Media Tray Assembly
7500-XXX Media tray assembly Media feed unit assembly It is necessary to adjust the front and rear side guides in the media tray assembly to match the media size. Front media guide / rear media guide The front media guide can be adjusted to different media sizes by moving it to the front or rear. These guides come into contact with the front and rear edges of the media and hold it in position.
Page 83 7500-XXX Tray 4 media tray assembly Rear lift cables Rear media guide Front media guide Bottom plate F/R lift cable F/L lift cable Media feed unit assembly Since the tray 3 and tray 4 are functionally equivalent in terms of the switch (TTM media size), sensor (media out), sensor (media level) and sensor (pre-feed), only the components of one tray are described here.
Page 84 7500-XXX Sensor (media level) This sensor detects by the actuator position whether media in the media tray assembly is lifted. When the flag of the actuator leaves the sensor (media level) sensing area, the sensor detects that the media has been lifted. Sensor (pre-feed) This sensor detects a media jam in the media tray assembly by the media position and sensor on/off time.
Page 85: Main Components
7500-XXX Main components Switch (2TM/TTM left door interlock) The left door interlock switch detects open/close of the left door assembly. Sensor (tray 3 feed-out) The sensor (tray 3 feed-out) detects media fed from the tray 3 or tray 4. Sensor (tray 4 feed-out) The sensor (tray 4 feed-out) detects media fed from the tray 4.
Page 86 7500-XXX Switch (tandem tray media size) The following table gives on/off states of the switches on the switch (TTM media size), corresponding to the media sizes of the media tray assembly. Note: The switches (TTM media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 87: Duplex
7500-XXX Duplex Duplex drive motor The rotating force of the drive motor is transmitted through the gears to components that need mechanical driving force as shown below. Duplex drive motor Duplex drive gear 33/74T Duplex drive gear 33/74T Duplex drive gear 28T Duplex drive gear 28T Duplex drive gear 33T Duplex media transport roll asm...
Page 88: Media Transport
7500-XXX Media transport Media transport path With the duplex installed, media is supplied from the MPF, tray 1 or tray 2, and is transported to the printer along the media transport path shown below. Tray 1 Tray 2 Pick roll Pick roll MPF pick roll MPF Transport Roll ASM...
Page 89 7500-XXX Layout of media transport path The main components associated with the media path and transport with the duplex installed. Exit 2 media exit roll ASM Exit 2 media exit pinch rolls Exit 2 Exit 2 media transport roll ASM Exit 1 media exit roll ASM Duplex Exit 1 media exit pinch rolls...
Page 90 7500-XXX Duplex media transport roll assembly The two duplex media transport roll assemblies and the duplex media center transport roll assembly re-feeds the media printed on the front side through the duplex to print on the rear side. Duplex controller card assembly The duplex controller card assembly that contains a CPU controls media feed in the duplex upon receiving a command from the printer engine card assembly and sensor/switch information.
Page 91: Exit 2
7500-XXX Exit 2 Exit 2 drive motor The rotating force of the exit 2 drive motor is transmitted through the gears to components that need mechanical driving force as shown below. Exit 2 drive motor Exit 2 drive gear 19T Exit 2 drive gear 19T Exit 2 drive gear 19/44T Exit 2 media exit roll asm...
Page 92: Media Transport
7500-XXX Media transport Media transport path With the exit 2 installed, media is supplied from the MPF, tray 1, or tray 2 and is transported to the printer along the media transport path shown below. Tray 1 Tray 2 MPF pick roll Pick roll Pick roll MPF Transport Roll ASM...
Page 93: Drive Motor
7500-XXX Layout of media transport path The following figure illustrates the main components directly associated with the media path and transport with the exit 2 installed. Exit 2 media exit roll ASM Exit 2 media exit pinch rolls Exit 2 Exit 2 media transport roll ASM Exit 1 media exit roll ASM Duplex...
Page 94 7500-XXX Exit interface card assembly (located in the printer) The exit interface card assembly contains a CPU and controls media feed in the exit 2 upon receiving a command from the printer engine card assembly and sensor/switch information. Exit 2 left door assembly The left door assembly detects open/close of the exit 2.
Page 95: Tools Required For Service
7500-XXX Exit 2 transport roll assembly and media exit roll assembly The exit 2 transport roll assembly and exit 2 media exit roll assembly are rollers used to eject media to the exit 2 standard bin or to feed media to the duplex. Sensor (exit 2 media shift HP) Sensor (standard bin full exit 2) Exit 2 media exit roll asm...
Page 96: Acronyms
7500-XXX Acronyms 2 Tray Module Alternating Current Automatic Document Feeder Automatic Paper Size ASIC Application Specific Integrated Circuit Customer Replaceable Unit Customer Setup Counterclockwise Clockwise Direct Current DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory Enhanced Data Out Electrophotographic Process EPROM Erasable Programmable Read-only Memory...
Page 97 7500-XXX TVOC Total Volatile Organic Compound Used Parts Return Volts V ac Volts alternating current V dc Volts direct current 1-75 General information...
Page 98 7500-XXX 1-76 MFP Service Manual...
Page 99: Diagnostic Information
7500-XXX 2. Diagnostic information Start CAUTION: Unplug the power cord from the printer or electrical outlet before you connect or disconnect any cable or electronic board or assembly for personal safety and to prevent damage to the printer. Disconnect any connections between the printer and PC peripherals. CAUTION: The MFP weighs approximately 106 kg (233 lb) and requires at least four people to lift it safely.
Page 100: Confirm The Installation Status
The following is an example of the events that occur during the POR sequence: Turn the machine on. The Lexmark splash screen appears with a progress bar in the center until the code is loaded. The scanner exposure lamp flashes several times.
Page 101: Control Panel
7500-XXX Control panel PQRS WXYZ Callout Control panel item Function A liquid crystal display (LCD) which shows home screen buttons, menus, menu items, and values. Allows for making selections within Copy, Fax, and so on. Indicator light Gives information about the status of the MFP using the colors red and green.
Page 102 7500-XXX Dial Pause Press to cause a two- or three-second dial pause in a fax number. The button only functions within the Fax menu or with fax functions. Press from the home screen to redial a fax number. When outside of the Fax menu, fax function, or home screen, pressing Dial Pause causes an error beep.
Page 103: Home Screen And Home Screen Buttons
7500-XXX Home screen and Home screen buttons After the MFP is turned on and a short warm-up period occurs, the LCD shows the following basic screen which is referred to as the Home screen. Use the Home screen buttons to initiate an action such as copy, fax, or scan, to open the menu screen, or to respond to messages.
Page 104 7500-XXX Touch to access the File Transfer Protocol (FTP) menus. A document can be scanned directly to an FTP site. Touch to access the Fax menus. Other buttons may appear on the Home screen. They are: Button Button name Function Release Held Faxes There are held faxes with a scheduled hold time previously set.
Page 105 7500-XXX Unlock Device This button appears on the screen when the MFP is locked. The control panel buttons and shortcuts cannot be used while it appears and no default copy starts may occur. To unlock the MFP: 1 Touch Unlock Device to open a PIN entry screen. 2 Enter the correct PIN to unlock the numeric keypad (0—9) and the Backspace button on the control panel.
Page 106: Using The Lcd Touch-Screen Buttons
7500-XXX Using the LCD touch-screen buttons The following section provides information on navigating through several screens. Only a few are chosen to demonstrate the use of the buttons. Sample screen one Copy from Sides (Duplex) Letter (8.5 x 11 in.) Portrait 1-sided to 1-sided Copy to...
Page 107 7500-XXX Button Button name Function or description Touch the left arrow button to scroll left to: Left arrow button • Reach a decreased value shown by an illustration. • See a full text field on the left. Touch the right arrow button to scroll right to: Right arrow button •...
Page 108: Sample Screen Two
7500-XXX Sample screen two Unknown paper size. Copy from: Letter (8.5 x 11 in.) Legal (8.5 x 14 in.) Executive (7.25 x 10.5 in.) Folio (8. 5 x 13 in.) Statement (5.5 x 8.5 in.) A4 (210 x 297 mm) Cancel Continue Information on touch-screen buttons...
Page 109: Other Touch-Screen Buttons
7500-XXX Button Button name Function or description “Cancel Jobs” on page 2-7. Cancel Job Cancel Continue Touch Continue after a menu item or value on a screen is selected and more changes need to be made for a job from the original screen.
Page 110: Features
7500-XXX Button Button name Function or description Done Allows specifying that a job is finished. For example, when scanning an original document, one could indicate that the last page is scanned, and then printing the job would begin. Done Back Touch the Back button to return to the previous screen, and no settings are saved on the screen where it was touched.
Page 111: Error Code Messages
7500-XXX Error code messages Error code or Error contents Description/Action message 200.00 Sensor (registration) off The sensor (registration) is not turned off within the jam (too long) specified time after the registration clutch is turned Paper jam Check area A Go to “200.00 Sensor (registration) off jam (too long)”...
Page 112 7500-XXX Error code or Error contents Description/Action message 230.00 Sensor (duplex wait) on jam The sensor (duplex wait) is not turned on within the specified time after the exit2 motor is turned on. Paper jam Go to “230.00 Sensor (duplex wait) on jam” on Check areas page 2-52.
Page 113 7500-XXX Error code or Error contents Description/Action message 243.00 Sensor (pre-feed) on jam The sensor (pre-feed) is not turned on within the (tray 3 media feed) specified time after the tray 3 feed lift motor is Paper jam turned on. Check area TTM equipped machines, go to “243.00 Sensor...
Page 114 7500-XXX Error code or Error contents Description/Action message 244.02 Sensor (tray 2 feed-out) on The sensor (tray 2 feed-out) is not turned on within jam (tray 4 media feed) the specified time after the sensor (tray 4 feed-out) Paper jam is turned on.
Page 115 7500-XXX Error code or Error contents Description/Action message 280.00 Sensor (bridge unit media Sensor (bridge unit media entrance) is not turned on entrance) on jam within the specified time after the sensor (fuser exit) Paper jam in the printer is turned on. Check areas Refer to the Options Service Manual.
Page 116 7500-XXX Error code or Error contents Description/Action message 283.01 Sensor (buffer path) on jam B Sensor (buffer path) is not turned on within the specified time after the sensor (finisher media Paper jam entrance is turned on. Check area At this time, the sensor (diverter gate) is turned on. Refer to the Options Service Manual.
Page 117 7500-XXX Error code or Error contents Description/Action message 284.05 Sensor (lower media exit) Paper remains on the sensor (lower media exit). static jam Paper jam Refer to the Options Service Manual. Check area H 285.00 Finisher set eject jam Finisher sensor (compiler media in) is not turned on within the specified time after the media eject motor Paper jam is turned on.
Page 118 7500-XXX Error code or Error contents Description/Action message 287.06 Sensor (upper media exit) Paper remains on the sensor (upper media exit). static jam B Paper jam At this time, the sensor (bridge unit media exit) is off state but the finisher sensor (finisher media Check areas entrance) is turned on.
Page 119 7500-XXX Error code or Error contents Description/Action message 290.00 Switch (sheet through) static The system detected that the sensor (sheet through) is on. Scanner jam Go to “290.00 Switch (sheet through) static jam” Remove all on page 2-87. originals from the scanner.
Page 120 7500-XXX Error code or Error contents Description/Action message 290.14 Sensor (ADF inverter) on jam After the sensor (ADF registration) turned on during (Inverting) the Invert operation, the sensor (ADF inverter) did Scanner jam not turn on within the specified time. Remove all Go to “290.14 Sensor (ADF inverter) on jam...
Page 121 7500-XXX Error code or Error contents Description/Action message 291.03 Sensor (ADF inverter) off jam After the sensor (ADF registration) turned off during the Read operation of the last document, the sensor Scanner jam (ADF inverter) did not turn off within the specified time.
Page 122 7500-XXX Error code or Error contents Description/Action message 295.04 Too Long Size Jam The system detected a document with the following length in the Slow Scan Direction: Scanner jam • Simplex mode: 672.4mm or longer Remove all • Duplex mode: 480.1mm or longer originals from Go to “295.04 Too long size jam”...
Page 123 7500-XXX Error code or Error contents Description/Action message 842.00 Scanner communication Controller detected a communication failure. failure Communication timeout Service scanner Go to “842.00 Scanner communication failure” failure on page 2-128. 842.01 Scanner communication Controller detected a communication failure packet failure timeout.
Page 124 7500-XXX Error code or Error contents Description/Action message 843.10 ADF RAM test failure The ADF controller card assembly RAM has failed in the read/write operation. Service scanner (It checks at the time of power on) failure Go to “843.10 ADF RAM test failure” on page 2-134.
Page 125 7500-XXX Error code or Error contents Description/Action message 844.00 Exposure lamp failure A failure has occurred with the exposure lamp. Service Go to “844.00 Exposure lamp failure” on scanner page 2-139. failure 844.01 White reference/exposure The large platen glass is not properly installed or lamp Illumination failure missing Service...
Page 126 7500-XXX Error code or Error contents Description/Action message 847.01 Fax storage The remaining memory available on the hard drive is too small. Service fax Go to “847.01 Fax failure” on page 2-148. 848.00 Fax modem/configuration ID The device does not have a modem installed, even mismatch though its configuration ID indicates that a modem Service...
Page 127 7500-XXX Error code or Error contents Description/Action message 909.00 Zero cross failure The zero cross engine has failed. Service zero Go to “909.00 Zero cross failure” on page 2-152. cross 910.00 Transport motor stop failure Due to the malfunction in the control system of the printer engine card assembly, the transport motor Service motor does not stop when media is not transported.
Page 128 7500-XXX Error code or Error contents Description/Action message 919.01 Exit 2 unit assembly Exit 2 unit assembly is missing or damaged. connection failure Service std. Go to “919.01 Exit 2 unit assembly connection bin 2 failure” on page 2-160. 920.00 Fuser unit assembly on time During the warm-up period, the control thermistor failure...
Page 129 7500-XXX Error code or Error contents Description/Action message 928.00 PC cartridge RFID A communication error occurred between the PC communication failure cartridge RFID tag in the PC cartridge and the RFID Service PC ASIC on the printer engine card assembly. cartridge Go to “928.00 PC cartridge RFID communication...
Page 130 7500-XXX Error code or Error contents Description/Action message 944.00 Media tray 4 lift up / no tray The tray 4 sensor (media level) is not turned on failure within the specified time after the tray 4 media feed Service tray 4 lift motor is turned on.
Page 131 7500-XXX Error code or Error contents Description/Action message 950.30 EPROM mismatch failure This error code indicates a mismatch between the through RIP card assembly and the interconnect card 950.60 assembly. Service Warning: In the event of replacement of any one of NVRAM the following components: mismatch...
Page 132 7500-XXX Error code or Error contents Description/Action message 956.01 RIP card assembly processor The RIP card assembly has exceeded safe over temperature failure operating temperature. Service system board Go to “956.01 RIP card assembly processor over temperature failure” on page 2-176.
Page 133 7500-XXX Error code or Error contents Description/Action message 981.02 Stacker bin lower limit failure The stacker bin abnormally lowers beyond the specified lower limit position (full stack). Service finisher error Refer to the Options Service Manual. 982.00 Sensor (front tamper HP) on The sensor (front tamper HP) is not turned on after failure the front tamper starts moving to the front tamper...
Page 134 7500-XXX Error code or Error contents Description/Action message 986.00 Sensor (eject clamp HP) on The sensor (eject clamp HP) is not turned on within failure 500 ms after the eject clamp up starts. Service finisher error Refer to the Options Service Manual. 986.01 Sensor (eject clamp HP) off The sensor (eject clamp HP) is not turned off within...
Page 135 7500-XXX Error code or Error contents Description/Action message 995.00 Finisher NVM R/W failure A read/write error occurred on the NVM of the finisher controller card assembly. Service finisher NV Refer to the Options Service Manual. 996.00 Finisher type failure An incorrect type of finisher is connected. Service wrong Refer to the Options Service Manual.
Page 136 7500-XXX Error code or Error contents Description/Action message Close door D Duplex left door open The duplex left cover is open. Go to “Duplex left door assembly open” on page 2-181. Close door E Exit 2 left door open The exit 2 left door is open. Go to “Exit 2 left door assembly open”...
Page 137 7500-XXX Error code or Error contents Description/Action message Remove Standard bin 2 full. Media in standard bin 2 is at maximum capacity. paper from Go to “Standard bin 2 full” on page 2-191. standard output bin Scanner ADF Switch (ADF left cover The system detected that the switch (ADF left cover cover open interlock) open...
Page 138: Service Checks
7500-XXX Service checks 200.00 Sensor (registration) off jam (too long) Step Check Check the media position. Remove the Go to step 2. media. Open the printer left door assembly and visually check it. Does the media touch the sensor (registration)? Check the roll.
Page 139: Sensor (Registration) Static On Jam
7500-XXX 200.01 Sensor (registration) static on jam Step Check Check the media position. Remove the Go to step 2. media. Open the printer left door assembly and visually check it. Does the media touch the sensor (registration)? Check the sensor (registration) for proper operation. Go to step 4.
Page 140: Sensor (Fuser Exit) On Jam
7500-XXX 201.00 Sensor (fuser exit) on jam Step Check Check the media position. Remove the Go to step 2. media. Does the media touch the sensor (fuser exit)? Open the printer left door assembly and visually check it. Check the fuser exit actuator. Replace the fuser Go to step 3.
Page 141: Sensor (Fuser Exit) Off Jam
7500-XXX Step Check Check the registration clutch connection. Replace the Replace the registration clutch. connection. Is the registration clutch properly connected? Go to “Registration clutch assembly removal” on page 4-80. Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly.
Page 142: Sensor (Fuser Exit) Off (Too Short) Jam
7500-XXX 202.01 Sensor (fuser exit) off (too short) jam Step Check Check the media position. Remove the Go to step 2. media. Open the printer left door assembly and visually check it. Does the media touch the sensor (fuser exit)? Check the fuser unit assembly for a media jam.
Page 143: Sensor (Fuser Exit) Static Jam
7500-XXX 202.02 Sensor (fuser exit) static jam Step Check Check the media position. Remove the Go to step 2. media. Open the printer left door assembly and visually check it. Does the media touch the sensor (fuser exit). Open the printer left door assembly and visually check it.? Check the sensor (fuser exit) for operation.
Page 144 7500-XXX Step Check Check the drive power transmission. Go to step 5. Replace damaged components. Does the exit 1 media exit roll assembly and the other gears rotate smoothly? Go to “Exit 1 media shift assembly removal” on page 4-105.‘ Check the sensor (fuser exit) for operation.
Page 145: Sensor (Exit 2) Off Jam
7500-XXX Step Check Check the media diverter solenoid for proper operation. Go to step 13. Go to step 12. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Printer Motor Test. 4. Touch Diverter solenoid. Open the printer left door assembly. Does the above component operate normally? Check the media diverter solenoid for proper Replace the media...
Page 146 7500-XXX Step Check Check the drive power transmission. Go to step 6. Replace damaged parts. Do the exit 2 media exit roll assembly and the other gears rotate smoothly? Go to “Exit 2 unit assembly removal” on page 4-315. Check the sensor (exit 2) for proper operation. Go to step 8.
Page 147: Sensor (Exit 2) On Jam In Standard Bin Or Finisher
7500-XXX 203.02 Sensor (exit 2) on jam in standard bin or finisher Step Check Check the position of the media diverter solenoid. Go to step 2. Go to step 3. Is the media diverter gate facing toward exit 1? Check the media diverter gate for an obstruction. Remove any Go to step 3.
Page 148: Sensor (Exit 2) Static Jam
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Go to “Printer engine card assembly removal” on page 4-117. 203.03 Sensor (exit 2) static jam Step Check Check the media position. Remove the media.
Page 149: Sensor (Duplex Wait) On Jam
7500-XXX 230.00 Sensor (duplex wait) on jam Step Check Check the media position. Remove the media. Go to step 2. Does the media remain in the exit 2? Open the exit 2 left door assembly, and visually check it. Check the roll. Go to step 3.
Page 150 7500-XXX Step Check Check the sensor (duplex wait) for proper connection. Replace the sensor Replace the (duplex wait). connection. Is the above sensor connected properly? Go to “Duplex sensor (duplex wait) removal” on page 4-307. Perform a print test. Replace the exit Problem solved.
Page 151 7500-XXX Step Check Check the drive power transmission. Go to step 6. Replace damaged components. Do the exit 2 media exit roll assembly and the other gears rotate smoothly? Go to “Exit 2 unit assembly removal” on page 4-315. Check the exit 2 drive motor for proper operation. Go to step 8.
Page 152: Sensor (Duplex Wait) Static Jam
7500-XXX 230.01 Sensor (duplex wait) static jam Step Check Check the paper position. Remove the paper. Go to step 2. Open the duplex left door assembly, and visually check Does the paper touch the duplex wait actuator? Check the sensor (duplex wait) for proper operation. Go to step 4.
Page 153 7500-XXX Step Check Check the roll. Go to step 4. Clean or replace the duplex media Open the duplex left door assembly. transport roll assembly. Is the duplex media transport roll assembly free of excess wear and contamination? Go to “Duplex media transport rolls removal”...
Page 154 7500-XXX Step Check Perform a 2 sided print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Go to “Printer engine card assembly removal” on page 4-117. 231.01 Sensor (registration) on jam (duplex paper feed) Step Check Check the paper position.
Page 155 7500-XXX Step Check Check the drive power transmission. Go to step 8. Replace damaged components. Open the duplex left door assembly. Go to “Duplex Do the duplex media center transport roll assembly and media center the other gears rotate smoothly? transport roll removal”...
Page 156: Sensor (Pre-Feed) On Jam (Tray 1 Feed)
7500-XXX 241.00 Sensor (pre-feed) on jam (tray 1 feed) Step Check Check the media condition. Replace the Go to step 2. damaged media Is the media in the tray crumpled or damaged? with new. Check the media size setup. Go to step 3. Replace the media, or change Does the media size, in use, match the size set for tray 1?
Page 157: Sensor (Registration) On Jam (Tray 1 Feed)
7500-XXX Step Check Check the media feed lift motor for proper operation of Re-install the Go to step 10. tray 1. media feed lift motor for tray 2 as Replace the media feed lift motor for tray 1 with one from it previously was tray 2.
Page 158: Sensor (Pre-Feed) On Jam (Tray 2 Feed)
7500-XXX Step Check Check the sensor (registration) for proper operation. Go to step 7. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TEST. 3. Touch Media Path. 4. Touch Registration. Open the printer left door assembly. Does the display on the operator panel change every time the sensor actuator operates? Check the sensor (registration) connection.
Page 159 7500-XXX Step Check Check the rolls for tray 2. Go to step 4. Clean or replace the feed roll, Remove tray 2 and check it. separation roll, and pick roll. Are the feed roll, separation roll, and pick roll free of excess wear and contamination? Go to “Feed roll...
Page 160: Sensor (Tray 2 Feed-Out) On Jam (Tray 2 Feed)
7500-XXX Step Check Check the media feed lift motor in tray 2 for proper Install the media Go to step 10. operation. feed lift motor for tray 1 as it Replace the media feed lift motor for tray 2 with the one previously was from tray 1.
Page 161 7500-XXX Step Check Check the sensor (tray 2 feed-out) for proper operation. Go to step 7. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor test. 4. Touch Tray 2. 5. Touch Media out. Open the printer left lower door assembly and check it.
Page 162: Sensor (Registration) On Jam (Tray 2 Feed)
7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal” on page 4-117. 242.02 Sensor (registration) on jam (tray 2 feed) Step Check Check the media condition. Replace the media Go to step 2.
Page 163 7500-XXX Step Check Check the sensor (registration) connection. Replace the Replace the sensor connection. Is the sensor (registration) properly connected? (registration). Go to “Sensor (registration) removal” on page 4-81. Check the sensor (tray 2 feed-out) for proper operation. Go to step 10. Go to step 9.
Page 164: Sensor (Tray 2 Feed-Out) Static Jam
7500-XXX 242.03 Sensor (tray 2 feed-out) static jam Step Check Check the media position. Remove the Go to step 2. media. Does the media touch the sensor (tray 2 feed-out)? Open the printer left lower door assembly, and visually check it. Check the sensor (tray 2 feed-out) for proper operation.
Page 165 7500-XXX Step Check Check the media position. Remove the media. Go to step 5. Open the 2TM/TTM left door assembly, and visually check it. Does the media touch the sensor (pre-feed) of the tray 3 media feed unit assembly? Check the tray 3 sensor (pre-feed) for proper operation. Go to step 7.
Page 166: Sensor (Tray 3 Feed-Out) On Jam (Tray 3 Media Feed)
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2000-sheet dual input (TTM)– 2TM/TTM controller card assembly removal” on page 4-274. Go to step 12. Perform a print test. Replace the printer Problem solved.
Page 167 7500-XXX Step Check Check the sensor (tray 3 feed-out) for proper operation. Go to step 7. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Feed-out. Open the 2TM/TTM left door assembly, and visually check it.
Page 168: Sensor (Tray 2 Feed-Out) On Jam (Tray 3 Media Feed)
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Go to “Printer engine card assembly removal” on page 4-117. 243.02 Sensor (tray 2 feed-out) on jam (tray 3 media feed) Step Check Check the media condition.
Page 169: Sensor (Registration) On Jam (Tray 3 Media Feed)
7500-XXX Step Check Check the sensor (tray 2 feed-out) for proper Replace the sensor Replace the connection. (tray 2 feed-out). connection. Is the above sensor connected properly? Go to “Sensor (tray 2 feed-out) removal” on page 4-83. Check the sensor (tray 3 feed-out) for proper operation. Go to step 10.
Page 170 7500-XXX Step Check Check the media size setup. Go to step 3. Replace the media or change the media Does the media size in use match the size set for tray size setup. Check the tray 3 rolls. Go to step 4. Clean or replace the feed roll, separation Pull out tray 3, and check it.
Page 171: Sensor (Tray 3 Feed-Out) Static Jam
7500-XXX Step Check Check the sensor (tray 3 feed-out) for proper Replace the sensor Replace the connection. (tray 3 feed-out). connection. Is the above sensor connected properly? Go to “2000-sheet dual input (TTM)– sensor (tray 3 feed- out) removal” on page 4-247.
Page 172: Sensor (Tray 4 Feed-Out) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Check the sensor (tray 3 feed-out) for proper Replace the sensor Replace the connection. (tray 3 feed-out). connection. Is the above sensor connected properly? Go to “2000-sheet dual input (TTM)– sensor (tray 3 feed- out) removal” on page 4-247.
Page 173 7500-XXX Step Check Check the tray 4 sensor (pre-feed) for proper operation. Go to step 7. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 4. 5. Touch Feed-out. Remove the media tray assembly.
Page 174 7500-XXX Step Check Remove the tray 4 media transport assembly from the Staighten the metal Go to step 11. TTM. tab with needle nose plyiers or replace the Go to “2000-sheet dual input (TTM)–tray 4 media tray 4 media transport assembly removal” on page 4-229.
Page 175: Sensor (Tray 3 Feed-Out) On Jam (Tray 4 Media Feed)
7500-XXX 244.01 Sensor (tray 3 feed-out) on jam (tray 4 media feed) Step Check Check the media condition. Replace the media. Go to step 2. Is the media in the tray crumpled or damaged? Check the media size setup. Go to step 3. Replace the media, or change the media Does the media size in use match the size set for tray...
Page 176 7500-XXX Step Check Check the sensor (tray 3 feed-out) for proper operation. Go to step 10. Go to step 9. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Feed-out. Open the 2TM/TTM left door assembly, and visually check it.
Page 177: Sensor (Tray 2 Feed-Out) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2000-sheet dual input (TTM)– 2TM/TTM controller card assembly removal” on page 4-274. Go to step 12. Perform a print test. Replace the printer Problem solved.
Page 178 7500-XXX Step Check Check the sensor (tray 2 feed-out) for proper operation. Go to step 8. Go to step 7. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 2. 5. Touch Feed-out. Open the printer left lower door assembly, and visually check it.
Page 179: Sensor (Registration) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Go to “Printer engine card assembly removal” on page 4-117. 244.03 Sensor (registration) on jam (tray 4 media feed) Step Check Check the media condition.
Page 180: Sensor (Pre-Feed) On Jam (Tray 4 Media Feed)
7500-XXX Step Check Check the sensor (registration) for proper connection. Replace the sensor Replace the (registration). connection. Is the above sensor connected properly? Go to “Sensor (registration) removal” on page 4-81. Check the sensor (tray 4 feed-out) for proper operation. Go to step 10.
Page 181 7500-XXX Step Check Check the media size setup. Go to step 3. Replace the media or change the media Does the media size in use match the size set for size setup. tray 4? Check the tray 4 rolls. Go to step 4. Clean or replace the feed roll, separation Pull out tray 4, and check it.
Page 182: Sensor (Tray 4 Feed-Out) Static Jam
7500-XXX Step Check Check the tray 4 media feed lift motor for proper Reinstall the media Replace the 2TM/ operation. feed lift motor for TTM controller card tray 3 as it assembly. Replace the media feed lift motor for tray 4 with that for previously was, and tray 3.
Page 183: Sensor (Registration) On Jam (Mpf Pick)
7500-XXX Step Check Check the sensor (tray 4 feed-out) for proper Replace the sensor Replace the connection. (tray 4 feed-out). connection. Is the above sensor connected properly? Go to “2000-sheet dual input (TTM)– sensor (tray 4 feed- out) removal” on page 4-241.
Page 184 7500-XXX Step Check Check the roll. Go to step 7. Clean or replace the MPF feed roll Remove the MPF pick unit asm. assembly. Is the MPF feed roll assembly free of excess wear and Go to “MPF feed contamination? unit assembly removal”...
Page 185: Switch (Sheet Through) Static Jam
7500-XXX 290.00 Switch (sheet through) static jam Step Check Check the sensor (sheet through). Go to step 2. Remove any media or media Is the feed media path free of media or media fragments? fragments. Check the sensor (sheet through) for operation. Go to step 4.
Page 186 7500-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or assembly free of excess wear? the ADF separation roll guide assembly.
Page 187 7500-XXX Step Check Check the feed drive motor connection. Replace the ADF Replace the feed drive motor connection. Is the above motor connected properly? assembly. Go to “ADF feed drive motor assembly removal” on page 4-172. Check the sensor (sheet through) for operation. Go to step 10.
Page 188: Sensor (Adf Pre-Registration) On Jam Adf Simplex Side 1
7500-XXX 290.02 Sensor (ADF pre-registration) on jam ADF simplex side 1 Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear?
Page 189 7500-XXX Step Check Check the sensor (ADF pre registration) for operation. Go to step 7. Go to step 6. Perform the sensor (ADF pre registration) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 190: Sensor (Adf Pre-Registration) Off Jam
7500-XXX 290.03 Sensor (ADF pre-registration) off jam Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 191 7500-XXX Step Check Check the sensor (ADF pre registration) for operation. Go to step 8. Go to step 7. Perform the sensor (ADF pre registration) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 192: Sensor (Adf Pre-Registration) Static Jam
7500-XXX Step Check Check the ADF registration motor for connection. Replace the ADF Replace the registration connection. Is the above motor connected properly? motor. Go to “ADF registration motor removal” on page 4-201. Place an undamaged document in the ADF, and perform a Replace the ADF Go to step 13.
Page 193: Sensor (Adf Registration) On Jam Adf Simplex Side
7500-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the Go to step 5. ADF test. ADF controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-167. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 194 7500-XXX Step Check Check the sensor (ADF registration) for operation. Go to step 6. Go to step 5. Perform the sensor (ADF registration) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4.
Page 195: Sensor (Adf Registration) On Jam Side 2
7500-XXX 290.12 Sensor (ADF registration) on jam side 2 Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 196 7500-XXX Step Check Check the feed drive motor for correct operation. Go to step 9. Go to step 8. Perform the feed drive motor test. Open the ADF left cover assembly. Remove the ADF rear cover. Go to “ADF rear cover removal”...
Page 197: Sensor (Adf Registration) Off Jam
7500-XXX 290.13 Sensor (ADF registration) off jam Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 198: Sensor (Adf Inverter) On Jam (Inverting))
7500-XXX Step Check Check the registration motor (forward or reverse) test. Go to step 8. Go to step 7. Perform the registration motor test. Open the ADF left cover assembly. Remove the ADF rear cover. Go to “ADF rear cover removal”...
Page 199 7500-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll assembly or roll guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 200 7500-XXX Step Check Check the ADF registration motor for connection. Replace the ADF Replace the registration motor. connection. Is the above motor connected properly? Go to “ADF registration motor removal” on page 4-201. Check the sensor (ADF registration) for operation. Go to step 10.
Page 201: Sensor (Adf Registration) Off Jam (Inverting)
7500-XXX 290.15 Sensor (ADF registration) off jam (inverting) Step Check Check the original document condition. Go to step 2. Remove damaged Is the original document free of paper clips and staples as original well as damage such as creases, tears, holes or document and excessive wear? replace with a...
Page 202 7500-XXX Step Check Check the sensor (ADF pre registration) for operation. Go to step 8. Go to step 7. Perform the sensor (ADF pre registration) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 203 7500-XXX Step Check Check the inverter solenoid assembly for operation. Go to step 12. Go to step 11. Perform the inverter solenoid test. Open the ADF left cover assembly. Remove the ADF front cover assembly. Go to “ADF front cover assembly removal” on page 4-166.
Page 204: Sensor (Adf Width Aps 1) Static Jam
7500-XXX Step Check Place an undamaged document in the ADF, and perform Replace the Problem solved. a ADF test. RIP card assembly. Does the error remain? Go to “RIP card assembly removal” on page 4-128. 290.21 Sensor (ADF width APS 1) static jam Step Check Check the sensor (ADF width APS 1).
Page 205: Sensor (Adf Width Aps 2) Static Jam
7500-XXX 290.22 Sensor (ADF width APS 2) static jam Step Check Check the sensor (ADF width APS 2). Go to step 2. Remove any media or media Is the feed media path free of media or media fragments? fragments. Check the sensor (ADF width APS 2) for operation. Go to step 4.
Page 206: Sensor (Adf Registration) Static Jam
7500-XXX Step Check Check the sensor (ADF width APS 3) for operation. Go to step 4. Go to step 3. Perform the sensor (ADF width APS 3) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 207: Sensor (Adf Inverter) Off Jam (Inverting)
7500-XXX Step Check Check the sensor (ADF registration) for operation. Go to step 4. Go to step 3. Perform the sensor (ADF registration) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4.
Page 208 7500-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll assembly or roll guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 209: Sensor (Adf Inverter) On Jam
7500-XXX Step Check Check the ADF registration motor for connection. Replace the ADF Replace the registration motor. connection. Is the above motor connected properly? Go to “ADF registration motor removal” on page 4-201. Place an undamaged document in the ADF, and perform a Replace the ADF Go to step 9.
Page 210 7500-XXX Step Check Check the sensor (ADF inverter) for operation. Go to step 6. Go to step 5. Perform the sensor (ADF inverter) test. Open the ADF left cover assembly. Remove the ADF separation roll guide assembly. Go to “ADF separation roll guide assembly” on page 4-195.
Page 211: Sensor (Adf Inverter) Off Jam
7500-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Go to step 10. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-167. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 212 7500-XXX Step Check Check the sensor (ADF inverter) for operation. Go to step 6. Go to step 5. Perform the sensor (ADF inverter) test. Open the ADF left cover assembly. Remove the ADF separation roll guide assembly. Go to “ADF separation roll guide assembly” on page 4-195.
Page 213 7500-XXX Step Check Check the registration motor (forward or reverse) test. Go to step 11. Go to step 10. Perform the registration motor test. Open the ADF left cover assembly. Remove the ADF rear cover. Go to “ADF rear cover removal”...
Page 214: Sensor (Adf Inverter) Static Jam
7500-XXX 294.00 Sensor (ADF inverter) static jam Step Check Check the sensor (ADF inverter). Go to step 2. Remove any media or media Is the feed media path free of media or media fragments? fragments. Check the sensor (ADF inverter) for operation. Go to step 4.
Page 215: Sensor (Adf Pre-Registration) On Jam Side 2
7500-XXX 294.01 Sensor (ADF pre-registration) on jam side 2 Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 216 7500-XXX Step Check Check the registration motor (forward or reverse) test. Go to step 9. Go to step 8. Perform the registration motor test. Open the ADF left cover assembly. Remove the ADF rear cover. Go to “ADF rear cover removal”...
Page 217: Sensor (Adf Pre-Registration) Off Jam On Inverting
7500-XXX 294.02 Sensor (ADF pre-registration) off jam on inverting Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 218 7500-XXX Step Check Check the sensor (ADF pre registration) for operation. Go to step 8. Go to step 7. Perform the sensor (ADF pre registration) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 219: Size Mismatch Jam (Mix-Size)
7500-XXX Step Check Check the inverter solenoid assembly for connection. Replace the Replace the inverter solenoid connection. Is the above motor connected properly? assembly. Go to “Inverter solenoid assembly removal” on page 4-173. Check the registration motor (forward or reverse) test. Go to step 14.
Page 220 7500-XXX Step Check Check the sensor (ADF width APS 1) for operation. Go to step 2. Go to step 3. Perform the sensor (ADF width APS 1) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 221: Size Mismatch Jam (No Mix-Size)
7500-XXX Step Check Check the sensor (ADF width APS 3) for connection. Replace the Replace the sensor (ADF connection. Is the above sensor connected properly? width APS 3). Go to “Sensor (ADF width APS 3)” on page 4-186. Place an undamaged document in the ADF, and perform a Replace the ADF Go to step 9.
Page 222: Invalid Combine Size Jam
7500-XXX 295.02 Invalid combine size jam Step Check Check the document size. Go to step 2. Insert the proper size document into Is the correct size document being inserted into the ADF? the ADF. Check the document tray media guide position. Go to step 3.
Page 223: Too Short Size Jam
7500-XXX Step Check Check the sensor (ADF width APS 3) for operation. Go to step 10. Go to step 9. Perform the sensor (ADF width APS 3) test. Open the ADF left cover assembly. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3.
Page 224 7500-XXX Step Check Check the sensor (sheet through) for operation. Go to step 4. Go to step 3. Perform the sensor (sheet through) test. Open the ADF left cover assembly. Remove the ADF rear cover. Go to “ADF rear cover removal”...
Page 225: Too Long Size Jam
7500-XXX 295.04 Too long size jam Step Check Check the document size. Go to step 2. Insert the proper size document Is the correct size document being inserted into the ADF? into the ADF. Check the sensor (sheet through) for operation. Go to step 4.
Page 226: Image Pipeline Asic Failure
7500-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved. ADF test. card assembly. Does the error remain? Go to “RIP card assembly removal” on page 4-128. 841.00 Image pipeline ASIC failure Step Check Perform a POR.
Page 227: Scanner Communication Failure
7500-XXX 842.01 Scanner communication failure Step Check Check the scanner interface cable assembly connection Go to step 2. Replace the between the RIP card assembly and the scanner unit connection. assembly. Is the scanner interface cable assembly connected properly? Check all connections of the scanner controller card assembly. Go to step 3.
Page 228: Scanner Communication Failure
7500-XXX Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error remain when the power is turned off/on again? Go to “RIP card assembly removal” on page 4-128. 842.03 Scanner communication failure Step Check Check the scanner interface cable assembly connection Go to step 2.
Page 229: Scanner Unit Assembly - Adf Communication Failure
7500-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-143. Go to step 4. Perform a POR. Replace the RIP Problem solved.
Page 230: Scanner Unit Assembly Communication Failure
7500-XXX Step Check Check all connections of the ADF controller card assembly. Go to step 3. Replace all connections. Are the connections of the ADF controller card assembly connected properly? Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly.
Page 231: Sensor (Scanner Hp) Failure
7500-XXX 843.00 Sensor (scanner HP) failure Step Check Check the scanner carriage rails. Clean and Go to step 2. lubricate the Is there any foreign substance on the scanner rails? scanner carriage rails. Check the sensor (scanner HP) for operation. Go to step 4.
Page 232: Scanner Carriage Over Run Failure
7500-XXX 843.01 Scanner carriage over run failure Step Check Check the connections of the scanner controller card Go to step 2. Connect each assembly. connector of the scanner Are the connectors of the scanner controller card assembly controller card connected properly? assembly properly.
Page 233: Adf Pick Roll Position Lift Up Failure
7500-XXX Step Check Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly. Go to “ADF controller card assembly removal” on page 4-167. 843.12 ADF pick roll position lift up failure Step Check Check the feed/pick roll assembly.
Page 234: Scanner Unit Assembly Connection Failure
7500-XXX Step Check Check the pick roll position motor assembly for connection. Replace the Replace the pick roll position connection. Is the above motor connected properly? motor assembly. Go to “Pick roll position motor assembly removal” on page 4-182. Place an undamaged document in the ADF, and perform a Replace the Go to step 7.
Page 235: Scanner Unit Assembly Eeprom Sub System Failure
7500-XXX Step Check Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly. Go to “ADF controller card assembly removal” on page 4-167. 843.22 Scanner unit assembly EEPROM sub system failure Step Check Check the connection of each scanner controller card...
Page 236: Image Processing Failure
7500-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-143. 843.24 Image processing failure Step Check Check the connections of the scanner controller card Go to step 2.
Page 237: Scanner Controller Card Assembly Failure 2
7500-XXX Step Check Perform a POR. Replace the Problem solved. scanner PS card Does the error remain when the power is turned off/on again? assembly. Go to “Scanner PS card assembly removal” on page 4-154. 843.26 Scanner controller card assembly failure 2 Step Check Check the connection of each scanner controller card...
Page 238: White Reference/Exposure Lamp Illumination Failure
7500-XXX Step Check Check the exposure lamp for connection. Replace the Replace the exposure lamp. connection. Is the above component connected properly? Go to “Exposure lamp removal” on page 4-158. Check the exposure lamp PS card assembly. Replace the Replace the exposure lamp connection.
Page 239 7500-XXX Step Check Remove the large platen glass. Check the bottom of the large Clean the bottom Go to step 4. platen glass in the vicinity the white reference strip for of the large contamination. platen glass in the vicinity of the Is the vicinity of white reference strip contaminated? white reference strip.
Page 240: Ccd Failure
7500-XXX 845.00 CCD failure Step Check Check the CCD/lens assembly connection. Go to step 2. Replace the connection. Is the CCD/lens assembly connected properly? Check all the connections on the scanner controller card Replace the Replace the assembly. CCD/lens connection. assembly.
Page 241: Ccd Initialization (Lamp Off) Failure
7500-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-143. 845.02 CCD initialization (lamp off) failure Step Check Check the connection of the scanner controller card...
Page 242: Sensor (Adf Width Aps X) Failure
7500-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-143. Go to step 4. 846.01 Scanner communication failure Step Check Check the scanner interface cable assembly connection...
Page 243 7500-XXX Step Check Check the sensor (ADF width APS 1) for connection. Replace the Replace the sensor (ADF connection. Is the above sensor connected properly? width APS 1). Go to “Sensor (ADF width APS 1)” on page 4-184. Check the sensor (ADF width APS 2) for operation. Go to step 6.
Page 244: Scanner Unit Assembly Software Logic Failure
7500-XXX 846.12 Scanner unit assembly software logic failure Step Check Check the software version for the scanner controller card Go to step 2. Upgrade the assembly. software of the scanner controller Is the version of the software of the scanner controller card card assembly.
Page 245: Modem Failure
7500-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the Go to step 6. ADF test. scanner controller card Does the error remain? assembly. Go to “Scanner controller card assembly removal” on page 4-143. 847.00 Modem failure Step Check Confirm the configuration ID is set correctly.
Page 246: Fax Failure
7500-XXX 847.01 Fax failure Step Check Perform a POR. Perform format Problem solved. fax storage. Does the error remain? Warning: Perfor ming format fax storage will erase all fax information. Go to “Format Fax Storage” on page 3-42. Check the hard drive data and power connections. Replace the Problem solved.
Page 247: Hard Drive Failure
7500-XXX 849.00 Hard drive failure Step Check Check the hard drive data and power connections. Replace the Replace the hard drive. connections. Are the above connections connected properly? Go to “Hard drive removal” on page 4-130. Perform a POR. Replace the RIP Problem solved.
Page 248: Nvm Data Failure
7500-XXX Step Check Turn the printer off for 60 seconds. Replace the Problem solved. printer engine card Does the error occur when the power is turned off/on again? assembly. Go to “Printer engine card assembly removal” on page 4-117. Go to step 3. Perform a print test.
Page 249: Cpu Power To Access Nvm Failure
7500-XXX Step Check Turn the printer off for 60 seconds. Replace the Problem solved. printer engine card Does the error occur when the power is turned off/on again? assembly. Go to “Printer engine card assembly removal” on page 4-117. Go to step 3. Perform a print test.
Page 250: Ppm Data Failure
7500-XXX Step Check Check connector P419 on the printer engine card assembly. Replace the Replace the printer engine card connection. Is connector P419 on the printer engine card assembly assembly. properly connected? Go to “Printer engine card assembly removal” on page 4-117.
Page 251: Transport Motor Stop Failure
7500-XXX Step Check Turn the printer off for 60 seconds. Replace the Problem solved. printer engine card Does the error occur when the power is turned off/on again? assembly. Go to “Printer engine card assembly removal” on page 4-117. 910.00 Transport motor stop failure Step Check Check the dual drive motor assembly installation.
Page 252: Transport Motor Failure
7500-XXX 911.00 Transport motor failure Step Check Check the dual drive motor assembly for operation. Go to step 3 Go to step 2. Open the rear motor cover and check it. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 253: Printhead Assembly Failure
7500-XXX Step Check Check the dual drive motor assembly for proper installation. Go to step 4. Install the dual drive motor Open the rear motor cover and check it. assembly properly. Is the dual drive motor assembly installed properly? Check the rotation of the rotor in the dual drive motor Go to step 5.
Page 254: Fuser Cooling Fan Failure
7500-XXX Step Check Check the gear rotation for the toner cartridge guide Go to step 3. Replace the toner assembly. cartridge guide assembly. Remove the toner guide assembly. Does the gear, located at the lower part of the toner cartridge guide assembly, rotate smoothly? Check the toner cartridge guide assembly for pipe clogging.
Page 255: Pc Cartridge Cooling Fan Failure
7500-XXX Step Check Check the fuser cooling fan for operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3. Touch Printer Motor Test. 4. Touch Fuser cooling fan. Does the fuser cooling fan RPM increase? Check the fuser cooling fan for connection.
Page 256: Lvps Cooling Fan Failure
7500-XXX 917.00 LVPS cooling fan failure Step Check Check the LVPS cooling fan for proper installation. Go to step 2. Install the LVPS cooling fan Is the LVPS cooling fan installed properly? properly. Visually check the LVPS cooling fan for rotation. Go to step 3.
Page 257: Sensor (Exit 2 Media Shift Hp) Failure
7500-XXX Step Check Check the media shift motor for connection. Replace the media Replace the exit shift motor. connection. Is the above motor connected properly? Go to “Media shift motor removal” on page 4-107. Check the printer engine card assembly for connection Replace the exit Replace the P421 and the exit interface card assembly connector P431.
Page 258: Exit 2 Unit Assembly Connection Failure
7500-XXX Step Check Check the media shift motor for proper connection. Replace the media Replace the shift motor. connection. Is the above motor connected properly? Go to “Exit 2 unit assembly removal” on page 4-315. Perform a print test. Replace the exit Problem solved.
Page 259: Fuser Unit Assembly On Time Failure
7500-XXX 920.00 Fuser unit assembly on time failure Step Check Check the fuser unit assembly for a media jam. Remove the Go to step 2. media. Open the printer left door assembly and check it. Is there a media jam in the fuser unit assembly? Leave the printer powered on with the error code displayed Go to step 3.
Page 260: Center Thermistor Failure
7500-XXX 922.00 Center thermistor failure Step Check Check the fuser unit assembly for proper installation. Go to step 2. Install the fuser unit assembly Open the printer left door assembly and check it. properly. Is the fuser unit assembly installed properly? Check the fuser unit assembly connection.
Page 261: Fuser Operating Temperature Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal” on page 4-117. 925.00 Fuser operating temperature failure Step Check Check the fuser unit assembly for a media jam. Go to the step 2.
Page 262: Pc Cartridge Rfid Communication Failure
7500-XXX Step Check Check the sensor (RFID PC cartridge) connection. Replace the Replace the sensor (RFID PC connection. Is the sensor (RFID PC cartridge) properly connected? cartridge). Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly.
Page 263: Toner Cartridge Rfid Data Write Failure
7500-XXX Step Check Check the printhead assembly connection. Replace the Replace the printhead. connection. Is the printhead assembly properly connected? Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal”...
Page 264: Rip Card Assembly Communication Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal” on page 4-117. 939.00 RIP card assembly communication failure Step Check Perform a POR. Go to step 2.
Page 265 7500-XXX Step Check Check the tray 1 media feed lift motor for proper operation. Go to step 8. Go to step 5. Warning: Only perform this test with the paper tray assembly removed from the machine, or abnormal grinding noises will occur. 1.
Page 266: Media Tray 2 Lift Up / No Media Tray Failure
7500-XXX 942.00 Media tray 2 lift up / no media tray failure Step Check Check the media. Go to step 2. Load media properly. Pull out media tray 2 to visually check it. Is media loaded in tray 2? Check the media tray. Go to step 3.
Page 267: Tray 3 Lift Up / No Tray Failure
7500-XXX Step Check Check the tray 2 switch (media size) for proper connection. Replace the switch Replace the (media size). connection. Is the switch connected properly? Go to “Switch (media size) removal” on page 4-19. Perform a print test. Replace the Problem solved.
Page 268: Tray 4 Lift Up / No Tray Failure
7500-XXX Step Check Check the tray 3 sensor (media level) for proper Go to step 8. Go to step 7. operation. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Media level. Remove the media tray assembly, and move the pick roll with your finger in an up and down motion.
Page 269 7500-XXX Step Check Check the tray. Go to step 3. Replace the tray 4 lift gear assembly or Are the tray 4 lift gear assembly or the surrounding the obstacles. parts of it damaged? Go to “2000-sheet dual input (TTM)– tray 4 lift gear assembly removal”...
Page 270: Through 950.29 Eprom Mismatch Failure
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2000-sheet dual input (TTM)– 2TM/TTM controller card assembly removal” on page 4-274. Go to step 10. Perform a print test. Replace the printer Problem solved.
Page 271: Through 950.60 Eprom Mismatch Failure
7500-XXX If problem remains, replace the original panel assembly with Contact the next Problem solved. a new and not previously installed interconnect card level of support. assembly. Go to “Interconnect card assembly removal” on page 4-131. Does the error remain? 950.30 through 950.60 EPROM mismatch failure Warning: In the event of replacement of any one of the following components: •...
Page 272: Rip Card Assembly Nvram Failure
7500-XXX 951.XX RIP card assembly NVRAM failure Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Replace the RIP Problem solved.
Page 273: Interconnect Card Assembly Nvram Failure
7500-XXX Step Check Turn the printer off for 60 seconds. Replace the Problem solved. operator panel Does the error occur when the power is turned off/on again? assembly. Go to “Operator panel assembly removal” on page 4-136. Go to step 3. Perform a print test.
Page 274: Rip Card Assembly Processor Failure
7500-XXX Step Check Turn the printer off for 60 seconds. Replace the RIP Problem solved. card assembly. Does the error occur when the power is turned off/on again? Go to “RIP card assembly removal” on page 4-128. 956.00 RIP card assembly processor failure Step Check Perform a POR.
Page 275: Rip Card Assembly Fpga Failure
7500-XXX Step Check Turn the printer off for 60 seconds. Go to step 3. Problem solved. Does the error occur when the power is turned off/on again? Checking the RIP card assembly cooling fan and heatsink Replace the RIP Reattach the RIP attachment.
Page 276: Exit Interface Card Assembly Communication Failure
7500-XXX 980.03 Exit interface card assembly communication failure Step Check Check the exit interface card assembly for proper Go to step 2. Replace the connection. connection. Check the connection between the exit interface card Go to step 3. Replace the assembly P430 and the LVPS assembly P526.
Page 277: Engine Flicker Communication Failure
7500-XXX 980.05 Engine flicker communication failure Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Replace the Problem solved.
Page 278: 2Tm/Ttm Left Door Assembly Open
7500-XXX 2TM/TTM left door assembly open Step Check Check the 2TM/TTM left door assembly for opening and Go to step 2. Check the 2TM/TTM closing. left door assembly for deformation, and Does the 2TM/TTM left door assembly open or close reinstall it.
Page 279: Duplex Left Door Assembly Open
7500-XXX Duplex left door assembly open Step Check Check the duplex left door assembly for opening and Go to step 2. Check the duplex closing. left cover assembly for deformation and Does the duplex left door assembly open or close reinstall it.
Page 280: Media Size Mismatch In Width
7500-XXX Step Check Check the switch (exit 2 left door interlock) for proper Reconnect the Go to step 3. operation. connector of the printer engine card 1. Enter the Diagnostics Menu. assembly. 2. Touch BASE SENSOR TEST. 3. Touch Cover and Door. 4.
Page 281 7500-XXX Step Check Check the switch (media size) connection for tray 1 and/or Replace the Replace the tray 2. required switch connection. (media size). Is the switch (media size) properly connected for tray 1 and/or “Toner cartridge tray 2? guide assembly removal”...
Page 282: No Media In The Select Media Tray
7500-XXX Step Check Perform a print test. Replace the 2TM/ Problem solved. TTM controller card Does the error still occur? assembly. Go to “2000-sheet dual input (TTM)– 2TM/TTM controller card assembly removal” on page 4-274. Go to step 7. Perform a print test. Replace the printer Problem solved.
Page 283 7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal” on page 4-117. No media in the select media tray Step Check Check the media. Go to step 2.
Page 284: Paper Is Installed (Short Edge) In The Media Paper Tray
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Go to “Printer engine card assembly removal” on page 4-117. Paper is installed (short edge) in the media paper tray Step Check Is the media installed (short edge) orientation in the media...
Page 285: Pc Cartridge Rfid Failure
7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal” on page 4-117. PC cartridge RFID failure Step Check Check the PC cartridge installation. Go to step 2.
Page 286: Printer Front Door Open
7500-XXX Step Check Check the PC cartridge sensor connection. Replace the PC Reinstall the PC cartridge sensor cartridge sensor Is the PC cartridge sensor connector installed and connector. connector and functioning properly? ensure it connects to the PC cartridge properly. Check the switch (PC cartridge interlock) for proper Go to step 8.
Page 287: Printer Left Door Open
7500-XXX Step Check Check the switch (printer front door interlock) connection. Replace the switch Replace the (printer front door connection. Is the switch (printer front door interlock) properly interlock). connected? Go to “Switch (printer front door interlock) removal” on page 4-4.
Page 288: Printer Left Lower Door Open
7500-XXX Printer left lower door open Step Check Is the printer left lower door assembly opening and closing Go to step 2. Check the printer properly? front door assembly for deformation and reinstall it. Check the switch (printer front door interlock) for operation. Go to step 4.
Page 289: Standard Bin 2 Full
7500-XXX Step Check Check the sensor (standard bin full exit 1) for operation. Go to step 5. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TEST. 3. Touch Exit level. 4. Touch Standard bin full 1. Does the display, on the operator panel, change every time the sensing area is blocked? Check the sensor (standard bin full 1) connection.
Page 290: Scanner Missing Failure
7500-XXX Step Check Check the sensor (standard bin full exit 2) connection. Replace the Replace the sensor (standard connection. Is the sensor (standard bin full exit 2) properly connected? bin full exit 2). Go to step 4. Go to “Exit 2 sensor (standard bin full exit 2) removal”...
Page 291: Switch (Adf Left Cover Interlock) Open
7500-XXX Switch (ADF left cover interlock) open Step Check Check the actuator of the ADF left cover assembly. Go to step 2. Replace the ADF left cover Is the above actuator present and attached properly? assembly. Go to “ADF left cover assembly removal”...
Page 292 7500-XXX Step Check Check the toner cartridge guide assembly. Go to step 4. Replace toner cartridge guide Remove the toner cartridge guide assembly. assembly. Does the gear, located on the lower part of the toner cartridge guide assembly, rotate smoothly? Check the pipe, located on the lower part of the toner Go to step 5.
Page 293: Toner Cartridge Near Empty
7500-XXX Toner cartridge near empty Step Check Does the toner cartridge contain toner? Go to step 2. Replace the toner cartridge. Check the toner cartridge for proper installation. Problem solved Go to step 3. Remove the toner cartridge and reinstall it. Does it install properly? Check the gear rotation in the toner cartridge guide Go to step 4.
Page 294: Toner Cartridge Rfid Failure
7500-XXX Step Check Checking the sensor (RFID toner cartridge) connection. Replace the Replace the sensor (RFID connection. Is the sensor (RFID toner cartridge) properly connected? toner cartridge). • Perform a print test. Replace the Problem solved. printer engine card • Does the error continue? assembly.
Page 295: Tray 1 Media Size Failure
7500-XXX Step Check Checking the toner cartridge guide assembly. Remove the Replace the toner Go to step 4. top cover assembly. Is the toner cartridge guide assembly cartridge. damaged? Go to “Toner cartridge guide assembly removal” on page 4-95. Checking the sensor (RFID toner cartridge). Is the above Replace the Go to step 5.
Page 296: Tray 2 Media Size Failure
7500-XXX Tray 2 media size failure Step Check Check the media. Go to step 2. Load media properly. Is media loaded, in media tray 2, properly? Pull out media tray 2 to visually check it. Check the media. Go to step 3. Set the guides properly.
Page 297 7500-XXX Step Check Check the roll for tray 1. Go to step 6. Clean or replace the feed roll, Pull out tray 1 and check it. separation roll, and pick roll. Is the feed roll, separation roll, and pick roll free of excess wear and contamination? Check the media position.
Page 298: Tray 2 Media Size Mismatch In Length
7500-XXX Step Check Perform a print test. Replace the Problem solved. printer engine card Does the error continue? assembly. Go to “Printer engine card assembly removal” on page 4-117. Tray 2 media size mismatch in length Step Check Check the media. Go to step 2.
Page 299 7500-XXX Step Check Check the roll. Go to step 8. Clean or replace the transport roll Open the printer left door assembly and check it. assembly. Is the transport roll assembly free of excess wear and Go to “Transfer contamination? roll assembly removal”...
Page 300: Tray 3 Media Size Failure
7500-XXX Tray 3 media size failure Step Check Check the media. Go to step 2. Load media properly. Pull out tray 3, and visually check it. Is the media loaded in tray 3 properly? Check the media. Go to step 3. Set the parts properly.
Page 301: Tray 4 Media Size Failure
7500-XXX Tray 4 media size failure Step Check Check the media. Go to step 2. Load media properly. Pull out tray 4, and visually check it. Is the media loaded in tray 4 properly? Check the media. Go to step 3. Set the parts properly.
Page 302: Tray 3 Media Size Mismatch In Length
7500-XXX Tray 3 media size mismatch in length Step Check Check the media. Go to step 2. Load media properly. Pull out tray 3, and visually check it. Is the media loaded in tray 3 properly? Check the media. Go to step 3. Set the parts properly.
Page 303 7500-XXX Step Check Check the roll. Go to step 10. Clean or replace the registration roll Open the printer left door assembly, and visually check assembly. Go to “Registration Is the registration roll assembly for transport free of roll assembly excess wear and contamination? removal”...
Page 304: Tray 4 Media Size Mismatch In Length
7500-XXX Tray 4 media size mismatch in length Step Check Check the media. Go to step 2. Load media properly. Pull out tray 4, and visually check it. Is the media loaded in tray 4 properly? Check the media. Go to step 3. Set the parts properly.
Page 305 7500-XXX Step Check Check the roll. Go to step 9. Clean or replace the media transport roll Open the printer left door assembly, and visually check assembly. Go to “2000-sheet Is the media transport roll assembly for transport free of dual input (TTM)–...
Page 306: Image Quality Trouble
7500-XXX Step Check Perform a print test. Replace the printer Problem solved. engine card Does the error still occur? assembly. Go to “Printer engine card assembly removal” on page 4-117. Image quality trouble Troubleshooting Note: First, get a printout as a base, and follow the symptom table to identify the possible failing FRU’s. Image quality symptoms: •...
Page 307: Image Quality
7500-XXX Image Quality Faint print (Low contrast) Leading edge Trailing edge Before starting, check the media route for foreign objects, such as staples, clips, and scraps, in the media path. Step Check Check the media condition. Problem solved. Go to step 2. Load new, dry, recommended media, and perform a print test.
Page 308 7500-XXX Step Check Check the image development process. Go to step 7. Go to step 9. Perform a print test. Turn off the printer power while printing. Carefully remove the PC cartridge, and check the developed image formed on the drum right before the transfer roll assembly.
Page 309: Blank Print (No Print)
7500-XXX Blank print (no print) Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the toner cartridge. Problem solved. Go to step 2. Install a new toner cartridge. Re-print the defective image. Is the image density normal? Check the transfer roll assembly.
Page 310 7500-XXX Step Check Check the printhead installation. Go to step 8. Go to step 7. Is the printhead assembly installed properly with four screws? Check the printhead assembly installation. Problem solved. Go to step 8. Install the printhead assembly properly, and perform a print test.
Page 311: Solid Black
7500-XXX Solid black Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the toner cartridge. Problem solved. Go to step 2. Install a new toner cartridge. Re-print the defective image. Is the image density normal? Check connector JHAB1 on the RIP card assembly.
Page 312 7500-XXX Vertical blank lines (white stripes in media transport direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Is the media transfer route and the media path clear of Go to step 3.
Page 313 7500-XXX Step Check Check the heat roll and pressure roll. Replace the fuser Go to step 9. unit assembly. Remove the fuser unit assembly. Caution: Allow the fuser unit assembly to cool down. Is there contamination or cracks on the heat roll or pressure roll? Check the printer engine card assembly.
Page 314: Horizontal Bands
7500-XXX Horizontal bands Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, and recommended media. Re-print the defective image. Does the error continue? Are the media transfer route and the media path free of Go to step 3.
Page 315 7500-XXX Step Check Check the image transfer process. Go to step 10. Go to step 9. Check the toner image formed on the drum after the transfer roll assembly passed. Is the toner image completely transferred on the media? Check the HVPS card assembly. Problem solved.
Page 316: Vertical Stripes
7500-XXX Vertical stripes Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Are the media transfer route and the media path free of Go to step 3.
Page 317 7500-XXX Step Check Check the laser beam route. Go to step 8. Remove debris, or clean the Check for debris between the transfer roll assembly and transfer roll the PC drum. assembly window. Check the printhead assembly window for contamination. Is there any debris in the laser beam route or the printhead assembly window? Check the heat roll and pressure roll.
Page 318: Horizontal Stripes
7500-XXX Horizontal stripes Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove obstacles or Check the media route for contamination or obstacles.
Page 319 7500-XXX Step Check Check the image transfer process. Go to step 9. Go to step 10. Check the toner image formed on the drum after the transfer roll assembly passed. Is the toner image completely transferred on the media? Check the HVPS. Problem solved.
Page 320: Partial Lack
7500-XXX Partial lack Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media path free of contamination or debris? contamination.
Page 321 7500-XXX Spots Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media route free of contamination or debris? contamination.
Page 322: After Image
7500-XXX After image Leading edge Trailing edge The ghost appears on the media which, may be the image from the previous page or part of the page currently printing. Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media.
Page 323: Background (Fog)
7500-XXX Background (fog) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media path free of contamination or debris.
Page 324 7500-XXX Step Check Check the printer engine card assembly. Problem solved. Replace the RIP card assembly. Replace the printer engine card assembly. Go to “RIP card Perform a print test. assembly removal” on Does the error continue? page 4-128. 2-226 MFP Service Manual...
Page 325 7500-XXX Skew Leading edge Trailing edge The printed image is not paralleled with both sides of the media. Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for missing printer foot. Is the setup surface normal? Properly load media into the media tray assembly.
Page 326: Media Damage
7500-XXX Media damage Leading edge Trailing edge Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for missing printer foot. Is the setup surface normal? Check the media feed. Go to step 3.
Page 327: No Fuse
7500-XXX No fuse Leading edge Trailing edge Step Check Check the fuser unit assembly installation. Go to step 2. Problem solved. Check that the levers, on both sides of the fuser unit assembly, are pushed down. Re-print the defective image. Does the error continue? Check the media condition.
Page 328 7500-XXX Step Check Check the printer engine card assembly. Problem solved. Replace the RIP card assembly. Replace the printer engine card assembly. Go to “RIP card Perform a print test. assembly removal” on Does the error continue? page 4-128. 2-230 MFP Service Manual...
Page 329: Diagnostic Aids
7500-XXX 3. Diagnostic aids This chapter explains the tests and procedures to identify printer failures and to verify that repairs have corrected the problem. Accessing service menus Access the following menus to identify problems with the printer and run diagnostic tests. Diagnostics Menu 1.
Page 330: Diagnostics Menus
7500-XXX Diagnostics Menus Entering Diagnostics Menus Turn off the printer. Press and hold the 3 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds. Available tests Tests appear on the LCD in the order shown: MOTOR TESTS “MOTOR TESTS”...
Page 331 7500-XXX Tray 1 feed mtr Tray 2 feed mtr Tray 3 feed mtr Tray 4 feed mtr Tray 5 feed mtr MPF pick solenoid Duplex drv mtr Diverter solenoid Exit 2 cooling fan Tray 1 lift mtr Tray 2 lift mtr Tray 3 lift mtr Tray 4 lift mtr Tray 5 lift mtr...
Page 332 7500-XXX Feed Tests “Feed Tests” on page 3-10. Sensor Test “Sensor Test (input tray)” on page 3-11. OUTPUT BIN TESTS Feed Tests “Feed Tests (output bins)” on page 3-12. Feed To All Bins “Feed To All Bins” on page 3-12. Sensor Test “Sensor Test (output bin)”...
Page 333: Motor Tests
7500-XXX MOTOR TESTS The tests in this group allow you to test specific motors, and on some motors run them forward or reverse. To run the MOTOR TESTS: Touch MOTOR TESTS from the Diagnostics Menu. Touch the test to run. The following Finisher Motor Tests are available: •...
Page 334: Print Tests
7500-XXX PRINT TESTS To run the Print Tests: Touch PRINT TESTS from the Diagnostics Menu. Touch [Input Source] to verify that the printer can generate output from that source’s media. Touch Printing Quality Test Pages to view information about the printer’s current settings and to test the printer’s ability to generate quality output.
Page 335: Hardware Tests
7500-XXX Print Quality Pages Content by Report Page Number Page Content Number General printer information includes: • A circular graphic with spokes emanating from a dark center • Device Information • (Envelope Enhance) • Engine Setting 1 to 4 • Edge to Edge •...
Page 336: Dram Test
7500-XXX Release the button and the shading is removed. Back Touch Back to exit the test. DRAM Test The DRAM Test is used to check the validity of standard and optional DRAM memory. The test writes patterns of data to DRAM to verify that each bit in memory can be set and read correctly. To run the DRAM Test: Touch HARDWARE TESTS from the Diagnostics Menu.
Page 337: Cache Test
7500-XXX CACHE Test This test is used to verify the printer processor cache. To run the CACHE Test: Touch HARDWARE TESTS from the Diagnostics Menu. Touch CACHE Test. CACHE Test Testing... appears on the LCD. Then the message Resetting the Printer appears. While the CACHE test executes, the power LED is green. The printer automatically performs a POR.
Page 338: Duplex Tests
7500-XXX DUPLEX TESTS Quick Test This test prints a duplex version of the Quick Test that can be used to verify that the correct placement of the top margin on the back side of a duplex page. You can run one duplexed page (Single), or continue printing duplexed pages (Continuous) until is pressed Stop Make sure either letter or A4 size paper is loaded in the default paper source.
Page 339 7500-XXX To run the Input Tray Tests: Touch INPUT TRAY TESTS from the Diagnostics Menu. Touch the input source. Input source Appears on the LCD Tray 1 Feeding... Tray 1 Tray 2 Feeding... Tray 2 Tray 3 Feeding... Tray 3 Tray 4 Feeding...
Page 340: Output Bin Tests
7500-XXX Hcf unit docking Testing... appears on the LCD with the sensor’s current state (Open or Closed). Hcf media tray set Testing... appears on the LCD with the sensor’s current state (Open or Closed). After selecting a specific sensor, you can manipulate the printer in such a way as to toggle the sensor between its two values (Open or Closed).
Page 341: Finisher Tests
7500-XXX Sensor Test (output bin) This test is used to verify that a specific output bin’s sensors are working correctly. To run the Output Bin Sensor Test Touch OUTPUT BIN TESTS from the Diagnostics Menu. Touch Sensor Test. The panel displays each installed bin, one bin per line. When you select an output bin, the panel displays the selected output bin in the header row, and then displays the name of each of the bin’s sensors.
Page 342: Hole Punch Test
7500-XXX Hole Punch Test This test is used to verify that media can be fed to a finisher output bin and then hole punched. No information is printed on the feed test pages. To run the Hole Punch Test: Touch FINISHER TESTS from the Diagnostics Menu. Touch Hole Punch Test.
Page 343 7500-XXX Available Bin Level Sensors Sensor Name Description Fin upper bin full Sensor (upper media bin full) Stacker bin level1 Sensor (stacker bin level 1) Stacker bin level2 Sensor (stacker bin level 2) Stacker bin upper limit Sensor (stacker bin upper limit) Stacker bin no media Sensor (stacker bin no media) Stacker bin level encod...
Page 344: Base Sensor Test
7500-XXX After selecting one of the available sensors, you can manually toggle the sensor between its two values (Open or Closed). The LCD displays Open when the sensor is open, and Closed when the sensor is closed. Press Stop to exit the test. BASE SENSOR TEST This test verifies that the sensors in the base machine are operating properly.
Page 345: Device Tests
7500-XXX Media Path Sensors Sensor Name Description Registration Sensor (registration) Fuser exit Sensor (fuser exit) Exit1 shift hp Sensor (exit 1 media shift HP) Exit2 Sensor (exit 2) Exit2 shift hp Sensor (exit 2 media shift HP) To test any of the displayed sensors, you must manipulate the appropriate area of the printer so the sensor’s value will toggle.
Page 346: Power Off
7500-XXX While this test runs, the following graphic appears: Formatting Disk DO NOT POWER OFF This test cannot be interrupted once it has begun. After the test finishes, either Disk Test/Clean Test Passed or Disk Test/Clean Test Failed appears on the LCD. Press Stop to clear the final message and return to DEVICE TESTS.
Page 347: Printer Setup
7500-XXX PRINTER SETUP To enter the PRINTER SETUP screen, touch PRINTER SETUP from the Diagnostics Menu. The following graphic appears on the LCD: PRINTER SETUP U.S. Defaults Printed Page Count Perm Page Count Serial Number NV26T470 Medium Envelope Entrance Engine Setting 1 Back Submit Defaults...
Page 348: Printed Page Count
7500-XXX Printed Page Count The value of this setting enables you to gauge the amount of usage on a device. The Printed Page Count cannot be reset by the servicer. Permanent Page Count The value of this setting indicates the total number of pages that have been printed by the printer. The Permanent Page Count cannot be reset.
Page 349: Edge To Edge
7500-XXX The Configuration ID setting allows you to set both Configuration IDs simultaneously. To set one or both Configuration IDs: From the PRINTER SETUP menu, touch the icon to the right of the Configuration ID menu item. The screen displays the value of both Configuration IDs. By default, the cursor appears on the Configuration ID 1 line.
Page 350: Event Log
7500-XXX Parallel Strobe Adjustment (Par S Strobe Adj) This setting enables you to adjust the amount of time the strobe is sampled in order to determine if valid data is available on the parallel port. Each time this value is incremented by 1, the strobe is sampled 50 ns longer. Each time this value is decreased by 1, the strobe is sampled 50 ns less.
Page 351 7500-XXX Touch Display Log, and a graphic similar to the following appears on the LCD: Each logged event is identified by the text that appeared when the event occurred. For instance, if the log recorded a 900 Service Error, the Display Log would show 900 Service RIP Software. Log entries appear in chronological order.
Page 352: Print The Event Log
7500-XXX Print the Event Log Each page of the printed Event Log report has the title Event Log at the top of each page followed by the model name and serial number. The following is a sample of a printed Event Log: Model and Serial number XXX-XXXX...
Page 353: Scanner Tests
7500-XXX SCANNER TESTS ASIC Test This operation performs a diagnostic test on the scanner ASIC that cycles through all of the scanner ASIC's memory. To perform the ASIC Test: Touch SCANNER TESTS from the Diagnostics Menu. Touch ASIC Test. During this test, ASIC Test Running... appears on the LCD. At the completion of this test, ASIC Test Passed or ASIC Test Failed appears on the LCD.
Page 354: Scanner Manual Registration
7500-XXX Scanner Manual Registration Note: All scanner and ADF manual registration alignment verifications must be done in standard user mode, not in configuration or diagnostic mode. Note: You should verify the printer registration alignment before conducting the manual scanner registration process.
Page 355: Testing The Manual Scanner Registration
7500-XXX Testing the manual scanner registration Note: Machine must be in Standard User Mode. To properly position the registration test original page on the flatbed scanner and the ADF side 1 and ADF side 2, follow the graphic below: Warning: Ensure that the registration test original page is properly positioned according to the diagrams or registration and margins cannot be properly adjusted.
Page 356: Analyzing The Manual Scanner Registration Copies
7500-XXX Analyzing the manual scanner registration copies To analyze the manual scanner registration of the flatbed, ADF side 1, and ADF side 2, hold the test copy according to the diagram below. Compare the three copies to the registration test original page for image placement. Ideally, the image should be centered on the page by measuring the paper edge arrows or the black lines with a ruler.
Page 357 7500-XXX Make required adjustments and touch Submit. Note: All reference to Side Registration in the graphic below, refers to the left side edge. Turn the machine off and then back on in order to make a copy. Using the registration test original page, make a copy using the flatbed scanner and the ADF side 1 and ADF side 2 to verify adjustments for accuracy.
Page 358: Scanner Manual Registration Factory Defaults
7500-XXX Decreasing the registration value moves the text toward the lead edge of the page and narrows the lead margin; increasing the registration value moves the text away from the lead edge of the page and widens the lead margin. The entire image moves up or down on the page; therefore, no compression or expansion of the image occurs to preserve the lead margin.
Page 359 7500-XXX Sensor Test (Scanner Tests) To perform the Sensor Test: Touch SCANNER TESTS from the Diagnostics Menu. Touch Sensor Test. The following example appears on the LCD: Platen length APS 1 Platen length APS 2 ADF left cover interlock ADF pre registration ADF registration Sheet through ADF inverter...
Page 360: Exiting Diagnostics Menu
7500-XXX Exiting Diagnostics Menu From the Diagnostics Menu, touch Back until a graphic appears with Exit Diag Menu in the lower right corner. Touch Exit Diag Menu to perform a POR, and the following graphic appears on the LCD: Copy E-Mail Menus Ready.
Page 361: Configuration Menu
7500-XXX Configuration Menu Entering Configuration Menu Turn off the printer. Press and hold the 2 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds. Available menus Maintenance Count Value “Maintenance Counter Value” on page 3-35. Reset Maintenance Counter “Reset Maintenance Counter”...
Page 362 7500-XXX Wipe Disk “Exiting Configuration Menu” on page 3-50. Font Sharpening “Font Sharpening” on page 3-48. Require Standby “Require Standby” on page 3-49. Short edge Printing “Short Edge Printing” on page 3-49. Tray Low Message “Tray Low Message” on page 3-49.
Page 363: Maintenance Counter Value: 20
7500-XXX Maintenance Counter Value The Maintenance Page Count is used to track general printer usage. A print job containing a single printed side will increment the Maintenance Count by one while a print job containing two printed sides (a duplex print job) will increment it by two.
Page 364: Registration
7500-XXX REGISTRATION Print registration makes sure the printing is properly aligned on the page. This setting allows separate Left Margin settings for each media tray. (The Top Margin setting is the same for all trays.) The Registration menu item enables you to: •...
Page 365: Quick Test
7500-XXX “Quick Test” on page 3-10. Perform a Quick Test. See Margin Setting Range Units Top Margin 0..50 1/300 inch Tray 1 Left Margin -50..50 1/300 inch Tray 2 Left Margin -50..50 1/300 inch Tray 3 Left Margin -50..50 1/300 inch Tray 4 Left Margin -50..50 1/300 inch...
Page 366: Print Quality Pages (Configuration Menu)
7500-XXX The printer always uses media from its default input source to print this test, except when the default source only supports envelopes. In this case, the printer automatically uses media from Tray 1. To generate the most accurate and useful registration information, print the Quick Test on letter- or A4-size paper. If the default input source is empty, the printer stops printing and Load [Input Source] with [Paper Type] [Paper Size] IR appears on the LCD.
Page 367: Size Sensing
7500-XXX SIZE SENSING This setting controls whether the printer automatically registers the size of paper installed in an input source equipped with size sensing hardware. Size sensing Input source Length Width ✓ Multipurpose feeder (integrated MPF) ✓ ✓ Tray 1 (integrated 500-sheet drawer) ✓...
Page 368: Panel Menus
7500-XXX A5/Statement Due to engine limitations, Trays 1 through 4 cannot simultaneously sense A5- and statement-size paper. The value of this setting determines which of the two paper sizes these trays will sense automatically. This setting will apply to all automatic trays, but not to the MP Feeder. The MP Feeder can support these paper sizes regardless of the value of this setting.
Page 369: Factory Defaults
Warning: This operation cannot be undone. This setting enables you to restore all of the printer’s settings to the base printer settings, the network settings, or to remove all Lexmark Embedded Solutions applications (LES). To restore the Factory Default settings: Touch Factory Defaults from the Configuration Menu.
Page 370: Format Fax Storage
7500-XXX Format Fax Storage This setting enables you to format the non-volatile storage used for storing faxes. To change this setting: Touch Format Fax Storage from the Configuration Menu. Note: If an advanced password has been established, you must enter this password in order to change the setting.
Page 371: Paper Prompts
7500-XXX Paper Prompts When a tray is out of the indicated paper size, a prompt is sent to the user to load paper in a tray. This setting controls the tray the user is directed to fill. Selections are Auto (default), MP Feeder, and Manual Paper. To change this setting: Touch Paper Prompts from the Configuration Menu.
Page 372 7500-XXX When you touch Enable (encryption) or Disable (formatting), Contents will be lost. Continue? appears on the LCD. Touch No to cancel or Yes to proceed. If you touch Yes, the printer performs the selected action on the hard disk. The following graphic appears when the encryption process is selected: Encrypting Disk DO NOT POWER OFF...
Page 373 7500-XXX The panel provides many progress indicators during the two-stage process. 1/2 indicates that the process is currently in the first stage. 0% indicates the progress of the current stage of the process. The progress bar indicates the overall completion of the entire process by filling in throughout each separate stage.
Page 374: Wipe Disk
7500-XXX Formatting Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%. After completion, the panel returns to Disk Encryption. Wipe Disk This setting provides you with a tool for erasing the contents of a disk. Warning: Wipe Disk removes a disk's data in such a way that it cannot be recovered.
Page 375 7500-XXX If you touch No, the device cancels the Wipe Disk process and returns to the Configuration Menu. If you touch Yes, the following screen appears: Wiping Disk ½ DO NOT POWER OFF The panel provides the following progress indicators during the execution of this process: 1/2 indicates that the process is currently in the first stage.
Page 376: Font Sharpening
7500-XXX When the first stage of the process completes, the printer displays the following graphic and then begins the second stage of the process: Wiping Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%.
Page 377: Require Standby
Touch Back to cancel and return to the Configuration Menu. Touch Submit to save the change. LES Applications This disables all installed Lexmark Embedded Solution applications. The default is Enabled. To change this setting: Touch LES Applications from the Configuration Menu.
Page 378: Key Repeat Initial Delay
7500-XXX Key Repeat Initial Delay When a key is touched repeatedly, this is the delay before the key begins repeating. The delay ranges from .25 seconds to 5 seconds. The default is 1 second. Values are given in increments of .25 seconds. To change this setting: Touch Key Repeat Initial Delay from the Configuration Menu.
Page 379: Repair Information
7500-XXX 4. Repair information Warning: Read the following before handling electronic parts. Handling ESD-sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic discharge (ESD). To prevent damage to ESD-sensitive parts, use the following instructions in addition to all the usual precautions, such as turning off power before removing logic boards: •...
Page 380: Removal Procedures
7500-XXX Removal procedures CAUTION: Remove the power cord from the printer or electrical outlet before connecting or disconnecting any cable or electronic board or assembly for personal safety and to prevent damage to the printer. Disconnect any connections between the printer and PCs/peripherals. The MFP weighs approximately 70 kg (154 lb) and requires at least four people to lift it safely.
Page 381: Printer Front Left Cover Removal
7500-XXX Printer front left cover removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the printer front door assembly (A). Remove the one screw securing the front left cover (B) to the machine. Remove the printer front left cover (B).
Page 382: Switch (Printer Front Door Interlock) Removal
7500-XXX Switch (printer front door interlock) removal Note: First remove the bridge unit and finisher, if equipped. Refer to the Options Service Manual. Remove the top cover assembly. Go to“Top cover assembly removal” on page 4-5. Remove the printer front door assembly. Go to“Printer front door assembly removal”...
Page 383: Top Cover Assembly Removal
7500-XXX Top cover assembly removal Note: First remove the bridge unit and finisher, if equipped. Remove the operator panel assembly. See “Operator panel assembly removal” on page 4-136. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-6.
Page 384: Printer Front Door Assembly Removal
7500-XXX Printer front door assembly removal Open printer front door assembly (A). Remove the front door support strap (B) securing the printer front door assembly (A) to the printer by releasing the plastic hook. With the front door support strap (B) disconnected, place the printer front door assembly (A) in the lowermost position.
Page 385: Front Door Support Strap And Front Door Magnetic Catch Removal
7500-XXX Front door support strap and front door magnetic catch removal Open the printer front door assembly. Remove one screw securing the front door support strap (A) to the printer front door assembly (B). Remove the front door support strap (A). Release two hooks on the printer front door assembly securing the front door magnetic catch (C).
Page 386: Front Inner Cover Removal
7500-XXX Front inner cover removal Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-6. Remove the printer front left cover. See “Printer front left cover removal”...
Page 387: Right Upper Cover Removal
7500-XXX Right upper cover removal Note: First, remove the bridge unit, finisher and finisher docking bracket, if equipped. Remove two screws securing the right upper cover (A). Move the upper edge of the right upper cover (A) downward and outward as shown by the arrow. Move the lower edge of the right upper cover (A) downward to release the right upper cover (A).
Page 388: Right Lower Cover Removal
7500-XXX Right lower cover removal Remove the right upper cover. See “Right upper cover removal” on page 4-9. Pull out media Tray 1 and media Tray 2. Remove the right lower cover (A) by lifting it upward then outward. Note: The right lower cover may require some force to remove. Rear 4-10 MFP Service Manual...
Page 389: Rear Motor Cover Removal
7500-XXX Rear motor cover removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the controller box side cover. See “Controller box side cover removal” on page 4-18. Remove the two screws securing the rear motor cover (A). Open the rear motor cover (A) by swinging it outward in the direction of the arrow.
Page 390: Rear Lower Cover Removal
7500-XXX Rear lower cover removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the controller box lower cover. See “Controller box lower cover removal”...
Page 391: Rear Rip Card Cover Removal
7500-XXX Rear RIP card cover removal Loosen the two screws securing the rear RIP card cover (A). Remove the rear RIP card cover (A) by moving it in the direction of the arrow. Rear 4-13 Repair information...
Page 392: Option Hookup Cover Removal
7500-XXX Option hookup cover removal Remove the option hookup cover (A) from the rear lower cover (B) by moving it outward in the direction of the arrow. Rear 4-14 MFP Service Manual...
Page 393: Rear Upper Cover Removal
7500-XXX Rear upper cover removal Remove the scanner interface cable assembly (A). Remove the ADF interface cable assembly (B). Rear Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the controller box side cover. See “Controller box side cover removal”...
Page 394 7500-XXX Remove the rear upper cover (C). Rear 4-16 MFP Service Manual...
Page 395: Controller Box Lower Cover Removal
7500-XXX Controller box lower cover removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the two screws securing the controller box lower cover (A) to the machine. Remove the controller box lower cover (A). Rear 4-17 Repair information...
Page 396: Controller Box Side Cover Removal
7500-XXX Controller box side cover removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Release the two hooks securing the controller box side cover (A) to the machine. Remove the controller box side cover (A). Rear 4-18 MFP Service Manual...
Page 397: Switch (Media Size) Removal
7500-XXX Switch (media size) removal Note: This procedure can be applied to tray 1 or tray 2 switch (media size). Remove media Tray 1 and media Tray 2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine. Remove the connector from switch (media size) (A).
Page 398: Media Feed Unit Assembly 1 Removal
7500-XXX Media feed unit assembly 1 removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 399 7500-XXX Release the plastic bosses on both ends of the vertical turn mylar guide (A). Remove the vertical turn mylar guide (A). Warning: The vertical turn mylar guide will take extra force to remove. Be careful not to damage it. Release the harness from the plastic clamps on the machine.
Page 400 7500-XXX Remove the two screws securing the media feed unit assembly (B). Remove the media feed unit assembly (B) in the direction of the arrow. Clamp Front 4-22 MFP Service Manual...
Page 401: Media Feed Unit Assembly 2 Removal
7500-XXX Media feed unit assembly 2 removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 402 7500-XXX Release the plastic bosses on both ends of the vertical turn guide (A). Remove the vertical turn guide (A). Left 4-24 MFP Service Manual...
Page 403 7500-XXX Release the harness from the plastic clamps on the machine. Disconnect the harness connector from the machine. Remove the two screws securing the media feed assembly (B). Remove the media feed assembly (B) in the direction of the arrow. Clamp Harness connector...
Page 404: Media Tray Side Guides Removal
7500-XXX Media tray side guides removal Remove the media tray. Remove the two e-rings securing the metal bottom plate (A) to the media tray using a small prying tool. Push the front hinge point (B) in the direction of the arrow to release the front boss from the metal bottom plate (A).
Page 405 7500-XXX Remove the two screws securing the two pinion gears (C) to the media tray. Remove the pinion gears (C). 4-27 Repair information...
Page 406 7500-XXX Remove the front media guide assembly (D) and the rear media guide (E) by sliding them toward the center of the media tray assembly and lifting up. Front Note: Before reinstalling the pinion gears (C), slide the front media tray guide assembly (D) and the rear 4-28 MFP Service Manual...
Page 407 7500-XXX media guide (E) to their outward most positions. Ensure the media side guides slide smoothly. Front 4-29 Repair information...
Page 408: Media Tray End Guide Removal
7500-XXX Media tray end guide removal Remove the media tray. Remove the media tray side guides. See “Media tray side guides removal” on page 4-26. Remove the media side guide actuator (A). Front Hole Hook Lock lever Square hole 4-30 MFP Service Manual...
Page 409 7500-XXX Turn the media tray assembly upside down, and remove the screw and two hooks securing the actuator link (B) to the media tray. Release the boss on the media end guide actuator (C) from the hole in the actuator link (B) by moving the link in the direction of the arrow.
Page 410: Media Tray Lift Gear Group Removal
7500-XXX Media tray lift gear group removal Remove the media tray from the machine. Remove the two screws securing bracket (A). Remove the bracket (A). Remove the tray lift coupling gear 13 tooth (B) from bracket (A). Remove the tray lift gear 13/60 tooth (C) from bracket (A). Rear Note: Extra force is required to pull the tray lift coupling gear 13 tooth (B) and the tray lift gear 13/60 tooth (C) from bracket (A).
Page 411: Media Feed Lift Motor Removal
7500-XXX Media feed lift motor removal Remove the media feed unit. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Disconnect the harness from the media feed lift motor (A). Remove the two screws securing the media feed lift motor (A) to the media feed unit assembly (B).
Page 412: Tray Lift Coupling Assembly Removal
7500-XXX Tray lift coupling assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door. See “Printer left door assembly removal”...
Page 413: Tray Lift One Way Clutch / Gear Assembly Removal
7500-XXX Tray lift one way clutch / gear assembly removal Remove the media feed unit assembly. Go to“Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the harness from the bracket (A). Remove the three screws securing the bracket (A) to the media feed unit assembly.
Page 414 7500-XXX Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Note: Before reinstalling, ensure all gears and washers are securely attached to the bracket (A). 4-36 MFP Service Manual...
Page 415: Media Feed Unit Drive Gear - 13 Tooth Removal
7500-XXX Media feed unit drive gear - 13 tooth removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the harness from the bracket (A). Remove the three screws securing the bracket (A) to the media feed unit assembly.
Page 416: Media Out Actuator Removal
7500-XXX Media out actuator removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the two bosses on the media out actuator (A) to the media feed unit assembly. Remove the media out actuator (A).
Page 417: Sensor (Media Level) Removal
7500-XXX Sensor (media level) removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Disconnect the connector from the sensor (media level) (A). Release the hooks securing the sensor (media level) (A) to the media feed unit.
Page 418: Sensor (Media Out) Removal
7500-XXX Sensor (media out) removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the media out actuator. See “Media out actuator removal” on page 4-38.
Page 419: Sensor (Pre-Feed) Removal
7500-XXX Sensor (pre-feed) removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Release the hook securing the sensor (pre-feed) (A). Remove the sensor (pre-feed) (A) from the feed unit front guide (B). Disconnect the connector from the sensor (pre-feed) (A).
Page 420: Media Feed Unit Drive Gear - 28 / 21 Tooth Removal
7500-XXX Media feed unit drive gear - 28 / 21 tooth removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the harness from the bracket (A). Remove the three screws securing the bracket (A) to the media feed unit assembly.
Page 421: Media Feed Unit Drive Gear - 29 Tooth Removal
7500-XXX Media feed unit drive gear - 29 tooth removal Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the harness from the bracket (A). Remove the three screws securing the bracket (A) to the media feed unit assembly.
Page 422 7500-XXX Remove the media feed unit drive gear - 29 tooth (B). Harness Clamp Washer Rear Rear Note: Before reinstalling, ensure all gears and washers are securely attached to the bracket (A). 4-44 MFP Service Manual...
Page 423: Feed Roll Removal
7500-XXX Feed roll removal Remove the media tray. Move the feed unit front guide (A) in the direction of the arrow. Release the hook securing the feed roll (B) to the shaft (C). Remove the feed roll (B). Note: Do not touch the rubber surface of the feed roll (B). Hook Front 4-45...
Page 424: Feed Roll One Way Clutch Removal
7500-XXX Feed roll one way clutch removal Remove the media tray. Remove the feed roll. See “Feed roll removal” on page 4-45. Remove the feed roll one way clutch (A) from the shaft (B). Front 4-46 MFP Service Manual...
Page 425: Feed Roll One Way Gear 22 Tooth Removal
7500-XXX Feed roll one way gear 22 tooth removal Remove the media tray. Remove the feed roll. See “Feed roll removal” on page 4-45. Remove the feed roll one way clutch. See “Feed roll one way clutch removal” on page 4-46.
Page 426: Separation Roll One Way Friction Clutch Removal
7500-XXX Separation roll one way friction clutch removal Remove the media tray. Remove the separation roll. See “Separation roll removal” on page 4-49. Remove the separation roll spacer (A) from the shaft (B). Remove the separation roll one-way friction clutch (C) from the shaft (B). Front 4-48 MFP Service Manual...
Page 427: Separation Roll Removal
7500-XXX Separation roll removal Remove the media tray. Move the feed unit front guide (A) in the direction of the arrow. Release the hook securing the separation roll (B) to the shaft (C). Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B). Front Note: Before reinstalling, do not touch the rubber surface of the separation roll (B).
Page 428: Pick Roll Idler Gear 33 Tooth Removal
7500-XXX Pick roll idler gear 33 tooth removal Remove the media tray. Release the pick roll. See “Pick roll removal” on page 4-51. Remove the pick roll drive gear - 25 tooth. See “Pick roll drive gear 25 tooth removal” on page 4-52.
Page 429: Pick Roll Removal
7500-XXX Pick roll removal Remove the media tray. Move the media feed unit front guide (A) in the direction of the arrow. Release the hook securing the pick roll (B) to the shaft (C). Remove the pick roll (B). Note: Do not touch the rubber surface of the feed roll (B). Hook Front Note: Before reinstalling, do not touch the rubber surface of the pick roll (B).
Page 430: Pick Roll Drive Gear 25 Tooth Removal
7500-XXX Pick roll drive gear 25 tooth removal Remove the media tray. Remove the pick roll. See “Pick roll removal” on page 4-51. Remove the pick roll drive gear 25 tooth (A) from the shaft (B). Front 4-52 MFP Service Manual...
Page 431: Feed Unit Drive Gear 27 Tooth Removal
7500-XXX Feed unit drive gear 27 tooth removal Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20 “Media feed unit assembly 2 removal” on page 4-23. Remove the harness from the bracket (A). Remove the three screws securing the bracket (A) to the media feed unit assembly.
Page 432: Mpf Feed Unit Assembly Removal
7500-XXX MPF feed unit assembly removal Remove the MPF rear cover. “MPF rear cover removal” on page 4-58. Disconnect the connector. Release the harness from the clamp. Remove the two screws securing the MPF feed unit assembly (A). Remove the MPF feed unit assembly (A). Clamp Left Note: Before reinstalling, place the harness along the slot on the left of the MPF feed unit assembly (A) so it...
Page 433: Mpf Media Out Actuator And Upper Frame Removal
7500-XXX MPF media out actuator and upper frame removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. “MPF feed unit assembly removal” on page 4-54. Remove the two hooks securing the upper frame (A). Remove the upper frame (A) by moving it up and out in the direction of the arrow.
Page 434: Sensor (Mpf Media Out) Removal
7500-XXX Sensor (MPF media out) removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the two hooks securing the upper frame (A) to the MPF feed unit assembly. Remove the upper frame (A) by moving it up and out in the direction of the arrow.
Page 435: Mpf Transport Pinch Roll Assembly Removal
7500-XXX MPF transport pinch roll assembly removal Remove the MPF rear cover. Go to “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the two end screws securing the upper bracket (A) to the MPF feed unit assembly. Remove the upper bracket (A).
Page 436: Mpf Rear Cover Removal
7500-XXX MPF rear cover removal Remove the one screw securing the MPF rear cover (A). Remove the MPF rear cover (A). Connector Rear 4-58 MFP Service Manual...
Page 437: Mpf Feed Drive Gear Group Removal
7500-XXX MPF feed drive gear group removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the pickup spring (A) from the idler gear bracket assembly (B). Note: Leave the pickup spring (A) attached to the MPF feed drive gear pickup (C).
Page 438: Mpf Pressure Pad Removal
7500-XXX MPF pressure pad removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the MPF pick roll. See “MPF pick roll removal” on page 4-64.
Page 439: Mpf Transport Roll Assembly Removal
7500-XXX MPF transport roll assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the two end screws securing the upper bracket to the MPF feed unit assembly. Remove the upper bracket.
Page 440: Mpf Pick Solenoid / Pick Lever Removal
7500-XXX MPF pick solenoid / pick lever removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the MPF feed drive gear group. See “MPF feed drive gear group removal”...
Page 441: Mpf Feed Shaft Assembly Removal
7500-XXX MPF feed shaft assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the MPF pick roll. See “MPF pick roll removal”...
Page 442: Mpf Pick Roll Removal
7500-XXX MPF pick roll removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the two end screws securing the upper bracket (A) to the MPF feed unit assembly. Remove the upper bracket (A).
Page 443: Mpf Fold Down Tray Assembly Removal
7500-XXX MPF fold down tray assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the MPF upper frame. See “MPF media out actuator and upper frame removal”...
Page 444 7500-XXX Disconnect the connector leading to the MPF fold down tray assembly (E). Raise the MPF fold down tray assembly (E) to its upright position, and slide it to the side. Remove the MPF fold down tray assembly (E). Note: Before reinstalling the idler gear bracket assembly (B), ensure the wiring is not pinched. Front 4-66 MFP Service Manual...
Page 445: Vertical Drive Gear Assembly Removal
7500-XXX Vertical drive gear assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 446: Switch (Left Lower Door Interlock)
7500-XXX Switch (left lower door interlock) Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 447: Media Transport Roll Assembly / Gear Removal
7500-XXX Media transport roll assembly / gear removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 448: Printer Left Lower Door Assembly Removal
7500-XXX Printer left lower door assembly removal Open the printer left lower door assembly. Remove the two screws securing the bracket (A). Remove the bracket (A). Pull the cap of the hinge pin (B) out with a prying tool to remove the hinge pin (B) from the bracket (A). Remove the hinge pin (B).
Page 449: Printer Left Lower Pinch Roll Assembly Removal
7500-XXX Printer left lower pinch roll assembly removal Open the printer left lower door assembly. Remove the two screws securing the left lower pinch roll assembly (A) to the printer left lower door assembly (B). Note: The media guide (C) can be slightly lifted to gain better access to the attaching screws. Release two hooks securing the left lower pinch roll assembly (A) to the printer left lower door assembly (B).
Page 450: Left Lower Door Handle Assembly Removal
7500-XXX Left lower door handle assembly removal Open the printer left lower door assembly. Remove the printer left lower pinch roll assembly. See “Printer left lower pinch roll assembly removal” on page 4-71. Remove the left lower door handle (A). Remove the spring (B).
Page 451: Transfer Roll Assembly Removal
7500-XXX Transfer roll assembly removal Open the printer left door assembly. Release the two plastic hooks on the transfer roll assembly (A). Remove the transfer roll assembly (A) by lifting it upward. Note: When removing the transfer roll assembly (A), do not touch the roll surface. Hook Hook Left...
Page 452: Printer Left Door Support Strap Removal
7500-XXX Printer left door support strap removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Open the printer left door assembly (A). Remove the screw securing the printer left door support strap (B) to the printer left door (A). Remove the e-clip securing the shaft (C) to the printer.
Page 453: Printer Left Door Assembly Removal
7500-XXX Printer left door assembly removal Note: First, remove the duplex unit assembly if equipped. Open the printer left door assembly. Remove the screw securing the left door support strap (A) to the printer left door assembly (B). Remove the printer left door assembly (B) by lowering it then lifting upward. Front 4-75 Repair information...
Page 454: Switch (Printer Left Door Interlock) Removal
7500-XXX Switch (printer left door interlock) removal Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Open the printer left door assembly. Remove the one screw securing the bracket (A) to the printer. Remove the bracket (A). Disconnect the connector from the switch (printer left door interlock) (B).
Page 455: Transfer Roll Guide Assembly Removal
7500-XXX Transfer roll guide assembly removal Open the printer left door assembly. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-75. Remove the transfer roll assembly. See “Transfer roll assembly removal” on page 4-73. Release the two hooks securing the transfer roll guide assembly (A) to the printer left door assembly (B).
Page 456: Printer Left Door Assembly Handle Removal
7500-XXX Printer left door assembly handle removal Open the printer left door assembly. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-75. Remove the transfer roll guide assembly. See “Transfer roll guide assembly removal” on page 4-77.
Page 457: Registration Roll Assembly Removal
7500-XXX Registration roll assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 458: Registration Clutch Assembly Removal
7500-XXX Registration clutch assembly removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 459: Sensor (Registration) Removal
7500-XXX Sensor (registration) removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-75.
Page 460: Mpf/Transport Drive Motor Assembly Removal
7500-XXX MPF/transport drive motor assembly removal Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear lower cover. See “Rear lower cover removal” on page 4-12. Open the printer left door assembly. Remove the e-clip with needle nose pliers. Note: This e-clip is located inside the machine behind the printer left door.
Page 461: Sensor (Tray 2 Feed-Out) Removal
7500-XXX Sensor (tray 2 feed-out) removal Remove the MPF rear cover. See “MPF rear cover removal” on page 4-58. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-54. Remove the printer left door assembly. See “Printer left door assembly removal”...
Page 462: Switch (Pc Cartridge Interlock) Removal
7500-XXX Switch (PC cartridge interlock) removal Remove the printer front left cover. See “Printer front left cover removal” on page 4-3. Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the PC cartridge. Remove the toner cartridge. Remove the printer front door assembly.
Page 463 7500-XXX Remove the two screws securing the laser opening guide (B). Release the harness from the clamp on the laser opening guide (B). Disconnect the connector from the laser opening guide (B). Front 4-85 Repair information...
Page 464 7500-XXX Remove the laser opening guide (B) by lifting it upward then outward in the direction of the arrow. Remove the four screws securing the PC cartridge guide (C). Guide assembly Screws Left view Guide assembly Connector Cover Left Harness assembly 4-86 MFP Service Manual...
Page 465 7500-XXX Slide the PC cartridge guide (C) toward the left side and disconnect the connector from the PC cartridge sensor connector. Remove the two hooks securing the transfer roll power contact (E). While pressing the PC cartridge drive coupler (F), lift the front side of the PC cartridge guide assembly (C) upward.
Page 466 7500-XXX Harness Left Clamps 4-88 MFP Service Manual...
Page 467 7500-XXX Lift the right side of the PC cartridge guide assembly (C). Remove the screw (G) securing the switch (PC cartridge interlock) (H) to the PC cartridge guide assembly (C). Remove the switch (PC cartridge interlock) (H). Connector Front Remove the PC cartridge guide assembly (C) from the printer. 4-89 Repair information...
Page 468: Sensor (Humidity And Temperature) Removal
7500-XXX Sensor (humidity and temperature) removal Remove the printer front left cover. See “Printer front left cover removal” on page 4-3. Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the PC cartridge. Remove the toner cartridge. Remove the printer front door assembly.
Page 469 7500-XXX Remove the two screws securing the laser opening guide (B). Release the harness from the clamp on the laser opening guide (B). Disconnect the connector from the laser opening guide (B). Clamps Connector 4-91 Repair information...
Page 470 7500-XXX Remove the laser opening guide (B) by lifting it upward then outward in the direction of the arrow. Guide assembly Screws Left view Guide assembly Connector Cover Left Harness assembly Remove the four screws securing the PC cartridge guide (D). 4-92 MFP Service Manual...
Page 471 7500-XXX Slide the PC cartridge guide (D) toward the left side, and disconnect the connector from the PC cartridge sensor connector (E). Remove the two hooks securing the transfer roll power contact (F). While pressing the PC cartridge drive coupler (G), lift the front side of the PC cartridge guide (C) upward. Hook Hook Left...
Page 472: Sensor (Rfid Pc Cartridge) And Sensor (Rfid Toner Cartridge) Removal
7500-XXX Sensor (RFID PC cartridge) and sensor (RFID toner cartridge) removal Note: This removal applies to the sensor (RFID PC cartridge) (A) and the sensor (RFID toner cartridge) (B). Remove the top cover assembly. See “Top cover assembly removal” on page 4-5.
Page 473: Toner Cartridge Guide Assembly Removal
7500-XXX Toner cartridge guide assembly removal Remove the printer front left cover. See “Printer front left cover removal” on page 4-3. Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the PC cartridge. Remove the toner cartridge. PC cartridge Front Toner cartridge...
Page 474 7500-XXX While moving the toner cartridge guide assembly (A) to the left, release the toner add chute (B) from the frame. Remove the toner cartridge guide assembly (C) from the printer. Note: Remove all spilled toner from the printer. Note: Before reinstalling, ensure the shaft on the toner cartridge guide assembly is inserted into the toner add motor assembly (C).
Page 475: Toner Add Motor Assembly Removal
7500-XXX Toner add motor assembly removal Remove the printer front left cover. See “Printer front left cover removal” on page 4-3. Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the PC cartridge. Remove the toner cartridge. Remove the printer front door assembly.
Page 476: Fuser Cooling Fan Removal
7500-XXX Fuser cooling fan removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Disconnect the connector from the fuser cooling fan (A) from the dual drive motor assembly (B). Release the two hooks securing the fuser cooling fan (A) to the fan duct (C).
Page 477: Printhead Assembly Removal
7500-XXX Printhead assembly removal Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Open the printer front door assembly. See “Printer front door assembly removal” on page 4-6. Remove the PC cartridge. Remove the toner cartridge. Remove the printer front door assembly.
Page 478: Pc Cartridge Cooling Fan Duct Removal
7500-XXX PC cartridge cooling fan duct removal Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Disconnect the harness from the duct connector. Release the connector harness from the clamp on the PC cartridge cooling fan duct (A). Release the hook securing the PC cartridge cooling fan duct (A) to the toner cartridge guide assembly (B).
Page 479 7500-XXX Move the PC cartridge cooling fan duct (A) in the direction of the arrow while lifting the left side, to release the hook securing it to the toner cartridge guide assembly (B). Remove the PC cartridge cooling fan duct (A). Connector Hooks Connector...
Page 480: Pc Cartridge Cooling Fan Removal
7500-XXX PC cartridge cooling fan removal Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the PC cartridge cooling fan duct. See “PC cartridge cooling fan duct removal” on page 4-100. Disconnect the harness of the PC cartridge cooling fan (A) to the PC cartridge cooling fan duct (B). Release two hooks securing the PC cartridge cooling fan (A) to the PC cartridge cooling fan duct (B).
Page 481: Sensor (Fuser Exit) Removal
7500-XXX Sensor (fuser exit) removal Open the printer left door assembly. Remove the fuser unit. See “Fuser unit assembly removal” on page 4-104. Disconnect the connector from the sensor (fuser exit) (A). Remove the screw securing the bracket (B). Remove the three hooks securing the sensor (fuser exit) (A) to the bracket (B). Remove the sensor (fuser exit) (A).
Page 482: Fuser Unit Assembly Removal
7500-XXX Fuser unit assembly removal Open the printer left cover assembly. Loosen the two colored knobs securing the fuser unit (A). Pull on the two colored handles to remove the fuser unit (A). Left Handle Knob 4-104 MFP Service Manual...
Page 483: Exit 1 Media Shift Assembly Removal
7500-XXX Exit 1 media shift assembly removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear upper cover. See “Rear upper cover removal”...
Page 484 7500-XXX Remove the exit 1 media shift assembly (B) by lifting it upward and outward in the direction of the arrow. Connectors Left Left Note: When reinstalling the bracket (A), first release the hooks securing the plastic guide (C) that is attached to the bracket (A).
Page 485: Media Shift Motor Removal
7500-XXX Media shift motor removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear upper cover. See “Rear upper cover removal” on page 4-15.
Page 486: Sensor (Exit 1 Media Shift) Removal
7500-XXX Sensor (exit 1 media shift) removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. Remove the rear upper cover. See “Rear upper cover removal” on page 4-15. Open the printer left door assembly.
Page 487: Sensor (Exit 1 Bin Full) Removal
7500-XXX Sensor (exit 1 bin full) removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear upper cover. See “Rear upper cover removal”...
Page 488: Exit 1 Media Shift Gear Removal
7500-XXX Exit 1 media shift gear removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear upper cover. See “Rear upper cover removal”...
Page 489 7500-XXX Rear Right Boss 4-111 Repair information...
Page 490: Exit 1 Drive Belt Removal
7500-XXX Exit 1 drive belt removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal”...
Page 491: Dual Drive Motor Assembly Removal
7500-XXX Dual drive motor assembly removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Open the printer left door assembly. Remove the PC cartridge.
Page 492: High Voltage Power Supply (Hvps) Card Removal
7500-XXX High voltage power supply (HVPS) card removal Remove the printer front left cover. See “Printer front left cover removal” on page 4-3. Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Remove the PC cartridge. Remove the printer front door assembly.
Page 493: Switch (Main Power) Removal
7500-XXX Switch (main power) removal Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Open the printer front door assembly. Remove the right upper cover. See “Right upper cover removal” on page 4-9. Remove the screw securing the bracket (A). Slide the bracket (A) to the side and then upward in the direction of the arrow.
Page 494: Exit Interface Card Assembly Removal
7500-XXX Exit interface card assembly removal Remove the top cover assembly. See “Top cover assembly removal” on page 4-5. Disconnect all the connectors from the exit interface card assembly (A). Note: Connector P430 has a hook that must first be released. Remove the two screws securing the exit interface card assembly (A).
Page 495: Printer Engine Card Assembly Removal
7500-XXX Remove the exit 2 card assembly (A). P433 P434 P432 P430 P431 Printer engine card assembly removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11.
Page 496 7500-XXX Remove the printer engine card assembly (A). Connector Rear P404 P418 P407 P406 P402 P408 P403 P420 P405 P421 P419 P410 P412 P401 P422 P400 P409 P413 P417 P416 P414 P415 P411 4-118 MFP Service Manual...
Page 497: Lvps Card Assembly Removal
7500-XXX LVPS card assembly removal Remove the right upper cover. See “Right upper cover removal” on page 4-9. Disconnect the connectors from the LVPS card assembly (A). Note: The connectors P5, P521, P522, and P524 have hooks that must first be released. Remove the nine screws securing the LVPS card assembly (A) to the printer.
Page 498 7500-XXX Right Remove the LVPS card assembly (A). Note: Grasp the card by the edge; avoid touching the bottom of the LVPS assembly (A). 4-120 MFP Service Manual...
Page 499: Lvps Cooling Fan Removal
7500-XXX LVPS cooling fan removal Remove the right upper cover. See “Right upper cover removal” on page 4-9. Disconnect the connector from the LVPS cooling fan (A). Remove the two screws securing the LVPS cooling fan to the machine. Remove the LVPS cooling fan (A). Right Connector 4-121...
Page 500: Ac Drive Card Assembly Removal
7500-XXX AC drive card assembly removal Remove the RIP card chassis bracket. See “RIP card chassis bracket removal” on page 4-127. Remove the controller box side cover. See “Controller box side cover removal” on page 4-18. Remove all harnesses from the clamps on the controller cage (A). Remove the six screws securing the controller cage (A) to the printer.
Page 501 7500-XXX Remove the AC drive card assembly (B). Note: Before reinstalling, ensure that all electrical connections are properly connected. Connectors Harness clamp used P526 White wire Black wire Rear P8 (Not used) T12 (White wire) T11 (Black wire) P2 (Not used) 4-123 Repair information...
Page 502: Ac Power Input Socket Assembly Removal
7500-XXX AC power input socket assembly removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear lower cover. See “Rear lower cover removal”...
Page 503: Ac Power Input Socket Removal
7500-XXX AC power input socket removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear lower cover. See “Rear lower cover removal”...
Page 504: Finisher Ac Output Removal
7500-XXX Finisher AC output removal Remove the RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11. Remove the rear lower cover. See “Rear lower cover removal” on page 4-12.
Page 505: Rip Card Chassis Bracket Removal
7500-XXX RIP card chassis bracket removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Disconnect five connections from the RIP card assembly (A). Remove the two screws securing the RIP card chassis bracket (B) to the frame. Slide the RIP card chassis bracket (B) to the left and out of the frame.
Page 506: Rip Card Assembly Removal
7500-XXX RIP card assembly removal Warning: In the event of replacement of any one of the following components: • Operator panel assembly (universal) • Operator panel controller card assembly • RIP card assembly • Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above.
Page 507: Fax Interface Card Assembly Removal
7500-XXX Fax interface card assembly removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Disconnect the connection from the fax interface card assembly (A). Remove the two screws securing the fax interface card assembly (A) to the side of the RIP card chassis bracket (B).
Page 508: Hard Drive Removal
7500-XXX Hard drive removal Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13. Remove the RIP card chassis bracket. See “RIP card chassis bracket removal” on page 4-127. Remove the RIP card assembly. See “RIP card assembly removal”...
Page 509: Interconnect Card Assembly Removal
7500-XXX Interconnect card assembly removal Warning: In the event of replacement of any one of the following components: • Operator panel assembly (universal) • Operator panel controller card assembly • RIP card assembly • Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above.
Page 510: Scanner Removals
7500-XXX Scanner removals Rear Right Left Front 4-132 MFP Service Manual...
Page 511: Scanner Top Rear Cover Removal
7500-XXX Scanner top rear cover removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the rear upper cover. See “Rear upper cover removal” on page 4-15. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134.
Page 512: Scanner Left Cover Removal
7500-XXX Scanner left cover removal Remove the two screws securing the scanner left cover (A) to the scanner unit assembly. Disengage the rear side of scanner left cover (A) from the scanner unit assembly, and shift the scanner left cover (A) rearward. Release the two hooks securing the front side of scanner left cover (A), and remove the scanner left cover (A).
Page 513: Scanner Right Cover Removal
7500-XXX Scanner right cover removal Remove the two screws securing the scanner right cover (A) to the scanner unit assembly. Disengage the rear side of scanner right cover (A) from the scanner unit assembly, and shift the scanner right cover (A) rearward. Release the two hooks securing the front side of the scanner right cover (A), and remove the scanner right cover (A).
Page 514: Operator Panel Assembly Removal
7500-XXX Operator panel assembly removal Warning: In the event of replacement of any one of the following components: • Operator panel assembly (universal) • Operator panel controller card assembly • RIP card assembly • Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above.
Page 515: Usb Connector Removal
7500-XXX USB connector removal Remove the one screw securing the USB connector housing (A) to the operator panel assembly (B). Pull the USB connector housing (A) from the operator panel assembly (B). Remove the connector from the USB connector (C). Remove the USB connector (C) from the USB connector housing (A).
Page 516 7500-XXX Remove the operator panel user touch screen (D). Note: Before reinstalling the operator panel user touch screen (D), ensure that all connections are properly replaced. Note: Before reinstalling the operator panel assembly (B), ensure that all ground wires (A) are properly replaced.
Page 517: Operator Panel Controller Card Assembly Removal
7500-XXX Operator panel controller card assembly removal Remove the operator panel assembly. Go to “Operator panel assembly removal” on page 4-136. Remove one screw securing the ground wires (A) to the rear of the operator panel assembly (B). Remove the six screws securing the bottom cover (C) to the operator panel assembly (B). Remove the bottom cover (C) from the operator panel assembly (B).
Page 518: Operator Panel Inverter Card Assembly Removal
7500-XXX Operator panel inverter card assembly removal Remove the USB connector. Go to “USB connector removal” on page 4-137. Remove the operator assembly. Go to “Operator panel assembly removal” on page 4-136. Remove one screw securing the ground wires (A) to the rear of the operator panel assembly (B). Remove the six screws securing the bottom cover (C) the operator panel assembly (B).
Page 519: Scanner Unit Assembly Removal
7500-XXX Scanner unit assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the operator panel assembly. See “Operator panel assembly removal” on page 4-136. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134.
Page 520: Large Platen Glass Removal
7500-XXX Large platen glass removal Remove the two screws securing the large platen glass retainer (A) to the scanner unit assembly. Remove the large platen glass retainer (A). Gently lift the large platen glass (B) upward, and move it rightward in the direction of the arrow. Remove the large platen glass (B).
Page 521: Scanner Controller Card Assembly Removal
7500-XXX Scanner controller card assembly removal Remove the rear upper cover. See “Rear upper cover removal” on page 4-15. Remove the scanner top rear cover. See “Scanner top rear cover removal” on page 4-133. Remove the large platen glass. See “Large platen glass removal”...
Page 522 7500-XXX Connectors Connector Connector 4-144 MFP Service Manual...
Page 523: Small Platen Glass Removal
7500-XXX Small platen glass removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the operator panel assembly. See “Operator panel assembly removal” on page 4-136. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134.
Page 524: Ccd Card/Lens Assembly Removal
7500-XXX CCD card/lens assembly removal Remove the large platen glass. See “Large platen glass removal” on page 4-142. Remove the eight screws securing the cover (A) to the scanner unit assembly. Remove the cover (A). Disconnect the connections to the sensor (platen length APS 1) (B) and the sensor (platen length APS 2) (C).
Page 525 7500-XXX Connector 4-147 Repair information...
Page 526: Sensor (Platen Length Aps 1) Removal
7500-XXX Sensor (platen length APS 1) removal Remove the large platen glass. See “Large platen glass removal” on page 4-142. Remove the eight screws securing the cover (A) to the scanner unit assembly. Remove the cover (A). Disconnect the sensor (platen length APS 1) (B). Remove the screw securing the sensor (platen length APS 1) (B).
Page 527: Sensor (Platen Length Aps 2) Removal
7500-XXX Sensor (platen length APS 2) removal Remove the large platen glass. See “Large platen glass removal” on page 4-142. Remove the eight screws securing the cover (A) to the scanner unit assembly. Remove the cover (A). Disconnect the sensor (platen length APS 2) (B). Remove the screw securing the sensor (platen length APS 2) (B).
Page 528: Switch (Platen Interlock) Removal
7500-XXX Switch (platen interlock) removal Remove the operator panel assembly. See “Operator panel assembly removal” on page 4-136. Disconnect the connector from the switch (platen interlock) (A). Release the harness of the switch (platen interlock) (A) from the clamp. Remove the screw securing the switch (platen interlock) (A) to the scanner unit assembly. Remove the switch (platen interlock) (A).
Page 529: Sensor (Scanner Hp) Removal
7500-XXX Sensor (scanner HP) removal Remove the scanner top rear cover. See “Scanner top rear cover removal” on page 4-133. Remove the large platen glass. See “Large platen glass removal” on page 4-142. Gently move the scanner carriage (A) rightward to provide access to the sensor (scanner HP) (B). Release the hooks securing the sensor (scanner HP) (B) to the scanner unit assembly.
Page 530: Adf Angle Actuator Assembly Removal
7500-XXX ADF angle actuator assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134. Remove the scanner right cover. See “Scanner right cover removal” on page 4-135.
Page 531: Sensor (Adf Angle) Removal
7500-XXX Sensor (ADF angle) removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134. Remove the scanner right cover. See “Scanner right cover removal” on page 4-135.
Page 532: Scanner Ps Card Assembly Removal
7500-XXX Scanner PS card assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the large platen glass. See “Large platen glass removal” on page 4-142. Remove the CCD card/lens assembly. See “CCD card/lens assembly removal” on page 4-146.
Page 533: Scanner Drive Motor Assembly Removal
7500-XXX Scanner drive motor assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134. Remove the scanner right cover. See “Scanner right cover removal” on page 4-135.
Page 534: Scanner Cooling Fan Removal
7500-XXX Scanner cooling fan removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the scanner left cover. See “Scanner left cover removal” on page 4-134. Remove the scanner right cover. See “Scanner right cover removal” on page 4-135.
Page 535: Exposure Lamp Ps Card Assembly Removal
7500-XXX Exposure lamp PS card assembly removal Remove the large platen glass. See “Large platen glass removal” on page 4-142. Remove the screw securing the exposure lamp PS card assembly (A) to the scanner carriage (B). Move the exposure lamp PS card assembly rearward then release the two hooks securing it to the scanner carriage (B).
Page 536: Exposure Lamp Removal
7500-XXX Exposure lamp removal Remove the large platen glass. See “Large platen glass removal” on page 4-142. Gently move the scanner carriage (A) to the large opening of the frame to provide access to the front side of the exposure lamp (B). Release the hook and disconnect the connector from the exposure lamp (B).
Page 537: Adf Removals
7500-XXX ADF removals ADF unit assembly removal Warning: The ADF is very heavy; do not drop it, or damage will occur. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-160. Open the ADF to its full upright position. Remove the connection from the ADF to the rear of the scanner unit assembly.
Page 538: Platen Cushion Removal
7500-XXX Platen cushion removal Open the ADF unit assembly. Gently pull off the platen cushion (A) from the ADF. Note: Before reinstalling the platen cushion (A), position the ADF in its upright position, and place the platen cushion (A) on the large platen glass (B) flush with the left and top edges. Gently close the ADF to attach the platen cushion (A) to the ADF.
Page 539: Media Scan Guide Removal
7500-XXX Media scan guide removal Open the ADF unit assembly. Remove the screw securing the media scan guide (A) to the ADF unit assembly. Remove the media scan guide (A). Remove the two media scan guide springs (B) from the media scan guide (A). 4-161 Repair information...
Page 540: Adf Media Feed Assembly Removal
7500-XXX ADF media feed assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the ADF rear cover. See “ADF rear cover removal”...
Page 541 7500-XXX Note: When replacing the complete ADF media feed assembly, first remove the ADF left cover assembly and the ADF registration motor from the replacement part. Connectors Connectors Set screw Front Connectors Clamps P755 P755 P786 P786 P758 P758 Clamp Clamp Rear P754...
Page 542: Document Tray Assembly Removal
7500-XXX Document tray assembly removal Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Open the ADF left cover assembly. Release the wire clamp (A) that binds the harnesses together. Disconnect the two connectors P759 and P760 from the ADF controller card assembly (B).
Page 543: Adf Rear Cover Removal
7500-XXX ADF rear cover removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the three screws securing the ADF rear cover (A). Lift the ADF rear cover (A) upward. Remove the ADF rear cover (A). Rear 4-165 Repair information...
Page 544: Adf Front Cover Assembly Removal
7500-XXX ADF front cover assembly removal Open the ADF left cover assembly. Remove the screw securing the ADF front cover assembly (A). Lift the ADF front cover (A) upward. Remove the ADF left cover assembly (A). Front 4-166 MFP Service Manual...
Page 545: Adf Controller Card Assembly Removal
7500-XXX ADF controller card assembly removal Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Disconnect all connectors from the ADF controller card assembly (A). Remove the five screws securing the ADF controller card assembly (A). Remove the ADF controller card assembly (A).
Page 546: Adf Left Cover Assembly Removal
7500-XXX ADF left cover assembly removal Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Remove the ADF left cover media guide.
Page 547 7500-XXX Remove the harness from the rectangular opening of the side of the ADF left cover assembly. Note: Before reinstalling the ADF left cover assembly (E), ensure that the harness is properly routed and is not pinched. Note: Ensure that the harnesses are properly captured by the harness guide (I). Note: Ensure that the green ground wire (G) and the grounding plate (H) is reconnected.
Page 548 7500-XXX Connector Connector 4-170 MFP Service Manual...
Page 549: Left Cover Pinch Roll Assembly Removal
7500-XXX Left cover pinch roll assembly removal Open the ADF left cover assembly. Disconnect the connector from the sensor (pick roll position HP) (A). Remove the three screws securing the left cover pinch roll assembly (B). Remove the left cover pinch roll assembly (A). Connector Front 4-171...
Page 550: Adf Feed Drive Motor Assembly Removal
7500-XXX ADF feed drive motor assembly removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Remove the ADF registration motor. See “ADF registration motor removal” on page 4-201.
Page 551: Inverter Solenoid Assembly Removal
7500-XXX Inverter solenoid assembly removal Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Loosen the set screw securing the damper (A). Remove the damper (A). Disconnect the connector from the inverter solenoid assembly (B). Remove the screw securing the inverter solenoid assembly (B).
Page 552: Document Set Led Removal
7500-XXX Document set LED removal Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Disconnect the connector from the document set LED (A). Remove the screw securing the document set LED (A). Remove the document set LED (A).
Page 553: Sheet Through Actuator Removal
7500-XXX Sheet through actuator removal Open the ADF left cover assembly. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-181. Remove the ADF feed/pick roll assembly. See “ADF feed/pick roll assembly removal” on page 4-178.
Page 554 7500-XXX Remove the sheet through actuator (F). Note: Before reinstalling the rear bracket (E), replace any shims that were originally present. Spring 4-176 MFP Service Manual...
Page 555: Sensor (Pick Roll Position Hp) Removal
7500-XXX Sensor (pick roll position HP) removal Open the ADF left cover assembly. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-181. Disconnect the connector from the sensor (pick roll position HP) (A). Release the hooks securing sensor (pick roll position HP) (A) to the ADF left cover assembly (B).
Page 556: Adf Feed/Pick Roll Assembly Removal
7500-XXX ADF feed/pick roll assembly removal Warning: Do not touch the rubber surface of the feed roll or the pick roll. Turn the machine off. Warning: To reduce the chance of pick roll position errors and mechanical misalignments, ensure that the machine is turned off when replacing the ADF feed/pick roll assembly.
Page 557 7500-XXX Set gate Plate 4-179 Repair information...
Page 558: Document Set Actuator Removal
7500-XXX Document set actuator removal Open the ADF left cover assembly. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-181. Gently pry the document set actuator (A) from the ADF left cover assembly. Remove the document set actuator (A).
Page 559: Adf Left Cover Media Guide Removal
7500-XXX ADF left cover media guide removal Open the ADF left cover assembly. Remove the screw securing the ADF left cover media guide (A). Lift the ADF left cover media guide (A) upward, then remove the two bosses from the slot, and remove the two tabs from the holes.
Page 560: Pick Roll Position Motor Assembly Removal
7500-XXX Pick roll position motor assembly removal Open the ADF left cover assembly. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-181. Remove the document set actuator. See “” on page 4-179. Remove the screw from the green ground wire (A).
Page 561: Switch (Adf Left Cover Interlock) Removal
7500-XXX Switch (ADF left cover interlock) removal Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the screw and washer securing the switch (ADF left cover interlock) (A). Disconnect the two connections to the switch (ADF left cover interlock) (A) with needle nose pliers.
Page 562: Sensor (Adf Width Aps 1)
7500-XXX Sensor (ADF width APS 1) Open the ADF left cover assembly. Lift the separation roll guide assembly to its uppermost position. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Remove the two screws securing the sensor mount (A) to the ADF. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in which the required sensor is easily removed.
Page 563: Sensor (Adf Width Aps 2)
7500-XXX Sensor (ADF width APS 2) Open the ADF left cover assembly. Lift the separation roll guide assembly to its uppermost position. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Remove the two screws securing the sensor mount (A) to the ADF. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in which the required sensor is easily removed.
Page 564: Sensor (Adf Width Aps 3)
7500-XXX Sensor (ADF width APS 3) Open the ADF left cover assembly. Lift the separation roll guide assembly to its uppermost position. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Remove the two screws securing the sensor mount (A) to the ADF. Slide the sensor mount (A) from the under of the ADF transport roll (B), and move it to the position in which the required sensor is easily removed.
Page 565: Sensor (Adf Registration)
7500-XXX Sensor (ADF registration) Open the ADF left cover assembly. Lift the separation roll guide assembly to its uppermost position. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Remove the two screws securing the sensor mount (A) to the ADF. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in which the required sensor is easily removed.
Page 566: Sensor (Adf Pre-Registration)
7500-XXX Sensor (ADF pre-registration) Open the ADF left cover assembly. Lift the separation roll guide assembly to its uppermost position. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Remove the two screws securing the sensor mount (A) to the ADF. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in which the required sensor is easily removed.
Page 567: Sensor (Adf Inverter)
7500-XXX Sensor (ADF inverter) Open the ADF left cover assembly. Lift the separation roll guide assembly to its uppermost position. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Remove the two screws securing the sensor mount (A) to the ADF. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in which the required sensor is easily removed.
Page 568: Actuator/Media Guide Assembly Removal
7500-XXX Actuator/media guide assembly removal Open the ADF left cover assembly. Lift the separation roll guide assembly (A) to its uppermost position. Remove the two screws securing the actuator/media guide assembly (B) to the ADF. Remove the actuator/media guide assembly (B). Rear 4-190 MFP Service Manual...
Page 569: Inverter Gate Removal
7500-XXX Inverter gate removal Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-190. Flex the tab, and remove the boss from the hole. Remove the inverter gate (A). Boss ADF registration roll assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal”...
Page 570 7500-XXX Warning: Do not touch the rubber surface of the ADF registration roll assembly (H). Note: Before reinstalling the registration secondary drive belt (E), ensure that it is routed properly. Note: Loosen and then retighten the two screws that set the belt tension after tension spring (C) is attached. Plastic clip Front...
Page 571: Adf Feed-Out Roll Assembly Removal
7500-XXX ADF feed-out roll assembly removal Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-159. Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the ADF rear cover.
Page 572 7500-XXX Warning: Do not touch the rubber surface of the ADF exit roll assembly (G). Plastic clip Front Plastic clip 4-194 MFP Service Manual...
Page 573: Adf Separation Roll Guide Assembly
7500-XXX ADF separation roll guide assembly Open the ADF left cover assembly. Lift the separation roll guide assembly (A) to it uppermost position. Lift and remove the separation roll guide assembly (A). Note: Extra upward force is required to remove the separation roll guide assembly. Rear 4-195 Repair information...
Page 574: Adf Exit Roll Assembly Removal
7500-XXX ADF exit roll assembly removal Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Remove the ADF feed drive motor assembly.
Page 575 7500-XXX Remove the ADF exit roll assembly (H). Rear Rear Plastic clip Front 4-197 Repair information...
Page 576: Adf Transport Roll Assembly Removal
7500-XXX ADF transport roll assembly removal Open the ADF left cover assembly. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-166. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Remove the ADF feed drive motor assembly.
Page 577: Sensor (Document Set) Removal
7500-XXX Sensor (document set) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Disconnect the connector from the sensor (document set) (A). Release the hooks securing the sensor (document set) (A). Remove the sensor (document set) (A).
Page 578: Sensor (Sheet Through) Removal
7500-XXX Sensor (sheet through) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Disconnect the connector from the sensor (sheet through) (A). Release the hooks securing the sensor (sheet through) (A). Remove the sensor (sheet through) (A).
Page 579: Adf Registration Motor Removal
7500-XXX ADF registration motor removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-165. Remove the access cap (A). Disconnect the connector from the ADF registration motor (A). Remove the tension spring (B) from the ADF registration motor (A).
Page 580: Sensor (Document Tray Width 1) Removal
7500-XXX Sensor (document tray width 1) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the five screws securing the cover (A). Remove the cover (A). Remove the two screws securing the bracket (B). Remove the bracket (B). Remove the connector from the sensor (document tray width 1) (C).
Page 581: Sensor (Document Tray Width 2) Removal
7500-XXX Sensor (document tray width 2) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the five screws securing the cover (A). Remove the cover (A). Remove the two screws securing the bracket (B). Remove the bracket (B). Remove the connector from the sensor (document tray width 2) (C).
Page 582: Sensor (Document Tray Width 3) Removal
7500-XXX Sensor (document tray width 3) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the five screws securing the cover (A). Remove the cover (A). Remove the two screws securing the bracket (B). Remove the bracket (B). Remove the connector from the sensor (document tray width 3) (C).
Page 583: Sensor (Document Tray Length 1) Removal
7500-XXX Sensor (document tray length 1) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the five screws securing the cover (A). Remove the cover (A). Remove the connector from the sensor (document tray length 1) (B). Release the hook securing the sensor (document tray length 1) (B).
Page 584: Sensor (Document Tray Length 2) Removal
7500-XXX Sensor (document tray length 2) removal Open the ADF left cover assembly. Lift the document tray assembly. Remove the five screws securing the cover (A). Remove the cover (A). Remove the connector from the sensor (document tray length 2) (B). Release the hook securing the sensor (document tray length 2) (B).
Page 585: 2000-Sheet Dual Input (Ttm) Removals
7500-XXX 2000-sheet dual input (TTM) removals Rear Left Right Front 4-207 Repair information...
Page 586: 2000-Sheet Dual Input (Ttm)-Top Cover Removal
7500-XXX 2000-sheet dual input (TTM)–top cover removal Pull out tray 3 (A) and tray 4 (B). Remove one screw securing the top cover (C). Remove the top cover (C). 4-208 MFP Service Manual...
Page 587: 2000-Sheet Dual Input (Ttm)-Foot Cover Removal
7500-XXX 2000-sheet dual input (TTM)–foot cover removal Remove tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the right cover. See “2000-sheet dual input (TTM)–right cover removal”...
Page 588: 2000-Sheet Dual Input (Ttm)-Right Cover Removal
7500-XXX 2000-sheet dual input (TTM)–right cover removal Remove two screws securing the right cover (A). Remove the right cover (A) by lifting upward and outward in the direction of the arrow. Front 4-210 MFP Service Manual...
Page 589: 2000-Sheet Dual Input (Ttm)-Left Cover Removal
7500-XXX 2000-sheet dual input (TTM)–left cover removal Remove two screws securing the left cover (A). Remove the left cover (A). 4-211 Repair information...
Page 590: 2000-Sheet Dual Input (Ttm)-Rear Cover Removal
7500-XXX 2000-sheet dual input (TTM)–rear cover removal Remove four screws securing the rear cover (A). Remove the rear cover (A). Rear 4-212 MFP Service Manual...
Page 591: 2000-Sheet Dual Input (Ttm)-Caster Removal
7500-XXX 2000-sheet dual input (TTM)–caster removal Remove tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Place the right side down. Remove three screws securing the caster (A).
Page 592: 2000-Sheet Dual Input (Ttm)-Tray Support Roll Removal
7500-XXX 2000-sheet dual input (TTM)–tray support roll removal Remove tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the foot cover. See “2000-sheet dual input (TTM)–foot cover removal”...
Page 593 7500-XXX Remove the tray support rolls (B). Front E-ring 4-215 Repair information...
Page 594: 2000-Sheet Dual Input (Ttm)-Tray 4 Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 assembly removal Pull out the tray 4 assembly. Remove two screws securing the tray 4 transport assembly (A). Push the tray 4 transport assembly (A) into the machine in the direction of the arrow. Remove two screws securing the tray 4 stopper (B) to the lower part of tray 4 assembly (C).
Page 595: 2000-Sheet Dual Input (Ttm)-Tray 3 Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 assembly removal Remove the left cover. See “2000-sheet dual input (TTM)–left cover removal” on page 4-211. Open the 2TM/TTM left door assembly. Loosen the screw securing the tray 3 stopper (A). Move the tray 3 stopper (A) outward in the direction of the arrow while pulling out the tray 3 assembly (B). Remove the tray 3 assembly (B).
Page 596: 2000-Sheet Dual Input (Ttm)-Tray 3 Front Cover Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 front cover removal Pull out the tray 3 assembly. Remove two screws securing the tray 3 front cover (A) to tray 3 assembly (B). Remove the tray 3 front cover (A). 4-218 MFP Service Manual...
Page 597: 2000-Sheet Dual Input (Ttm)-Tray 3 Rear Cable Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 rear cable assembly removal Remove the left cover. See “2000-sheet dual input (TTM)–left cover removal” on page 4-211. Remove the tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove the tray 3 front cover.
Page 598 7500-XXX Move the rear lift cable pulley (D) toward the rear of the tray to release the two tray 3 rear cables (E) from the tray lift shaft assembly (B). Remove the two tray 3 rear cables (E) from the tray lift shaft assembly (B). 4-220 MFP Service Manual...
Page 599 7500-XXX Remove two E-clips with a prying tool securing the two small pulleys (F) on the rear of the frame assembly. Remove the two small guides (G) and the two small pulleys (F). Remove the E-clip with a prying tool securing the large guide (H) and the large pulley (I) to the frame assembly.
Page 600: 2000-Sheet Dual Input (Ttm)-Tray 3 Front Cable Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 front cable assembly removal Remove the left cover. See “2000-sheet dual input (TTM)–left cover removal” on page 4-211. Remove the tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove the tray 3 front cover.
Page 601: 2000-Sheet Dual Input (Ttm)-Media Guide Rack And Pinion Removal
7500-XXX Remove two E-clips with a prying tool securing the two small pulleys (D) on the front of the frame assembly. Remove two small guides (E) and the two small pulleys (D). Remove the tray 3 front cables (C) from the bottom plate (F). Note: Before re-installing: —...
Page 602 7500-XXX Remove the rack gears (C). E-ring E-ring Left 4-224 MFP Service Manual...
Page 603 7500-XXX Note: Before re-installing, move the two side guides (D) of the frame assembly (B) fully outward before installing the two pinion gears (A). 4-225 Repair information...
Page 604: 2000-Sheet Dual Input (Ttm)-Tray 3 Media Guide Lock Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 media guide lock assembly removal Remove the tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove the tray 3 front cover. See “2000-sheet dual input (TTM)–tray 3 front cover removal” on page 4-218.
Page 605: 2000-Sheet Dual Input (Ttm)-Tray 3 Mylar Actuator Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 mylar actuator removal Remove the tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove the tray 3 front cover. See “2000-sheet dual input (TTM)–tray 3 front cover removal” on page 4-218.
Page 606: 2000-Sheet Dual Input (Ttm)-Tray 4 Front Cover Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 front cover removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove two screws securing the tray 4 front cover (A). Remove the tray 4 front cover (A) by moving it upward in the direction of the arrow. Remove the four screws securing the bracket (B) to the tray.
Page 607: 2000-Sheet Dual Input (Ttm)-Tray 4 Media Transport Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 media transport assembly removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the tray 4 transport assembly (A). Note: Before re-installing, insert the tray 4 transport assembly (A) into the rails of the frame assembly (B). 4-229 Repair information...
Page 608: 2000-Sheet Dual Input (Ttm)-Tray 4 Rear Cables Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 rear cables removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–tray 4 front cover removal” on page 4-228.
Page 609 7500-XXX Place the tray 4 assembly back to its upright position. 4-231 Repair information...
Page 610 7500-XXX Remove two E-clips with a prying tool securing the two small pulleys (F) on the rear of the frame assembly. Remove two small guides (G) and two small pulleys (F). Remove the tray 4 rear cables (D) from the bottom plate (H). Note: Before re-installing: —...
Page 611: 2000-Sheet Dual Input (Ttm)-Tray 4 Front Cables Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 front cables removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–tray 4 front cover removal” on page 4-228.
Page 612 7500-XXX Place the tray 4 assembly back in its upright position. Remove two E-clips with a prying tool securing the two small pulleys (D) on the front of the frame assembly. Remove the two small guides (E) and the two small pulleys (D). Remove the tray 4 front cables (C) from the bottom plates (F).
Page 613: 2000-Sheet Dual Input (Ttm)-Tray 4 Media Guide Rack And Pinion Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 media guide rack and pinion removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Place the tray 4 assembly on its right side, as shown in the figure. Remove two e-clips securing the two pinion gears (A) to the frame assembly (B).
Page 614 7500-XXX Remove the rack gears (C). Note: Before re-installing, move the two side guides (D) of the frame assembly (B) fully outward before installing the two pinion gears (A). 4-236 MFP Service Manual...
Page 615: 2000-Sheet Dual Input (Ttm)-Tray 4 Media Guide Lock Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 media guide lock assembly removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–tray 4 front cover removal” on page 4-228.
Page 616: 2000-Sheet Dual Input (Ttm)-Tray 4 Mylar Actuator Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 mylar actuator removal Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–tray 4 front cover removal” on page 4-228.
Page 617: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Assembly Removal (Tray 4)
7500-XXX 2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4) Remove the tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216.
Page 618 7500-XXX Remove one screw securing the front bracket (B). Remove the front bracket (B). Move the media feed unit assembly (A) leftward and upward in the direction of the arrow to remove it. Remove the two screws securing the lower guide (C) to the media feed unit assembly (A). Remove the lower guide (C).
Page 619: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 4 Feed-Out) Removal
7500-XXX 2000-sheet dual input (TTM)–sensor (tray 4 feed-out) removal Remove the tray 3 assembly. See “2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217. Remove the tray 4 assembly. See “2000-sheet dual input (TTM)–tray 4 assembly removal” on page 4-216.
Page 620: 2000-Sheet Dual Input (Ttm)-Switch (Ttm Media Size) Removal
7500-XXX 2000-sheet dual input (TTM)–switch (TTM media size) removal Note: This removal procedure may be applied to tray 3 and tray 4. Remove the tray 3 assembly See (“2000-sheet dual input (TTM)–tray 3 assembly removal” on page 4-217) or tray 4 assembly (“2000-sheet dual input (TTM)–tray 4 assembly removal”...
Page 621: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Assembly Removal (Tray 3)
7500-XXX 2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3) Pull out the tray 3 assembly. Pull out the tray 4 assembly. Open the 2TM/TTM left door assembly. Remove one screw securing the 2TM/TTM left door support strap (A). Release the bosses on both sides securing the vertical turn guide (B).
Page 622 7500-XXX Release the harness from the clamp. Disconnect the connector from the machine. Front Connector Clamps 4-244 MFP Service Manual...
Page 623 7500-XXX Remove three screws securing the media feed unit assembly (D). Remove the media feed unit assembly (D) by pulling outward. Remove two screws securing the rear bracket (E) to the media feed unit assembly (D). Remove the rear bracket (E). Connector Clamps Front...
Page 624: 2000-Sheet Dual Input (Ttm)-2Tm/Ttm Media Transport Roll Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–2TM/TTM media transport roll assembly removal Open the left door assembly. Remove two screws securing the bracket (A). Disconnect the connector to the sensor (tray 3 feed-out) (B). Remove the bracket (A). Remove the large e-clip on the left securing the 2TM/TTM media transport roll assembly (C). Slide the bushing (D) to the right.
Page 625: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 3 Feed-Out) Removal
7500-XXX 2000-sheet dual input (TTM)–sensor (tray 3 feed-out) removal Open the left door assembly. Remove two screws securing the bracket (A). Disconnect the connector to the sensor (tray 3 feed-out) (B). Remove the bracket (A). Release the hooks securing the sensor (tray 3 feed-out) (B) to the bracket (A). Remove the sensor (tray 3 feed-out) (B).
Page 626: 2000-Sheet Dual Input (Ttm)-Media Feed Lift Motor Removal
7500-XXX 2000-sheet dual input (TTM)–media feed lift motor removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 627: 2000-Sheet Dual Input (Ttm)-Lift Coupling Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–lift coupling assembly removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 628: 2000-Sheet Dual Input (Ttm)-One-Way Clutch / Gear Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–one-way clutch / gear assembly removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 629 7500-XXX Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A). 4-251 Repair information...
Page 630: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Drive Gear 13 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–media feed unit drive gear 13 tooth removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 631: 2000-Sheet Dual Input (Ttm)-Media Out Actuator Removal
7500-XXX 2000-sheet dual input (TTM)–media out actuator removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 632: 2000-Sheet Dual Input (Ttm)-Sensor (Media Level) Removal
7500-XXX 2000-sheet dual input (TTM)–sensor (media level) removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 633: 2000-Sheet Dual Input (Ttm)-Sensor (Media Out) Removal
7500-XXX 2000-sheet dual input (TTM)–sensor (media out) removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 634: 2000-Sheet Dual Input (Ttm)-Sensor (Pre-Feed) Removal
7500-XXX 2000-sheet dual input (TTM)–sensor (pre-feed) removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239. Remove the sensor (pre-feed) (A) from the feed unit front guide (B).
Page 635: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Drive Gear 28 / 21 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–media feed unit drive gear 28 / 21 tooth removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)”...
Page 636: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Drive Gear 29 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–media feed unit drive gear 29 tooth removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 637: 2000-Sheet Dual Input (Ttm)-Feed Roll Removal
7500-XXX 2000-sheet dual input (TTM)–feed roll removal Remove the media tray assembly. Move the feed unit front guide (A) in the direction of the arrow. Release the hook securing the feed roll (B) to the shaft (C). Remove the feed roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 638: 2000-Sheet Dual Input (Ttm)-Feed Roll One-Way Clutch Removal
7500-XXX 2000-sheet dual input (TTM)–feed roll one-way clutch removal Remove the media tray assembly. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-259. Remove the feed roll one-way clutch (A) from the shaft (B). Front 4-260 MFP Service Manual...
Page 639: 2000-Sheet Dual Input (Ttm)-One-Way 22 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–one-way 22 tooth removal Remove the media tray assembly. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-259. “2000-sheet dual input (TTM)–feed roll one-way clutch Remove the feed roll one-way clutch. See removal”...
Page 640: 2000-Sheet Dual Input (Ttm)-Separation Roll One-Way Friction Clutch Removal
7500-XXX 2000-sheet dual input (TTM)–separation roll one-way friction clutch removal Remove the media tray assembly. Remove the separation roll. See “2000-sheet dual input (TTM)–separation roll removal” on page 4-263. Remove the separation roll spacer (A). Remove the separation roll one-way friction clutch (B). Front 4-262 MFP Service Manual...
Page 641: 2000-Sheet Dual Input (Ttm)-Separation Roll Removal
7500-XXX 2000-sheet dual input (TTM)–separation roll removal Remove the media tray assembly. Move the feed unit front guide (A) in the direction of the arrow. Release the hook securing the separation roll (B) to the shaft (C). Front 4-263 Repair information...
Page 642 7500-XXX Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B). Front Note: Before re-installing, do not touch the rubber surface of the separation roll (B). 4-264 MFP Service Manual...
Page 643: 2000-Sheet Dual Input (Ttm)-Pick Roll Idler Gear 33 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–pick roll idler gear 33 tooth removal Remove the media tray assembly. Remove the pick roll. See “2000-sheet dual input (TTM)–pick roll removal” on page 4-266. “2000-sheet dual input (TTM)–pick roll drive gear 25 Remove the pick roll drive gear 25 tooth. See tooth removal”...
Page 644: 2000-Sheet Dual Input (Ttm)-Pick Roll Removal
7500-XXX 2000-sheet dual input (TTM)–pick roll removal Remove the media tray assembly. Move the front guide (A) in the direction of the arrow. Release the hook securing the pick roll (B) to the shaft (C). Remove the pick roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 645: 2000-Sheet Dual Input (Ttm)-Pick Roll Drive Gear 25 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–pick roll drive gear 25 tooth removal Remove the media tray assembly. Remove the pick roll. See “2000-sheet dual input (TTM)–pick roll removal” on page 4-266. Remove the pick roll drive gear 25 tooth (A). Front 4-267 Repair information...
Page 646: 2000-Sheet Dual Input (Ttm)-Feed Unit Drive Gear 27 Tooth Removal
7500-XXX 2000-sheet dual input (TTM)–feed unit drive gear 27 tooth removal Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243 “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-239.
Page 647: 2000-Sheet Dual Input (Ttm)-2Tm/Ttm Left Door Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–2TM/TTM left door assembly removal Open the 2TM/TMM left door assembly. Remove one screw securing the 2TM/TTM left door support strap (A). Remove one screw securing the bracket (B). Remove the bracket (B). Move the 2TM/TTM left door assembly (C) toward the right and outward in the direction of the arrow. Remove the 2TM/TTM left door assembly (C).
Page 648: 2000-Sheet Dual Input (Ttm)-Switch (2Tm/Ttm Left Door Interlock) Removal
7500-XXX 2000-sheet dual input (TTM)–switch (2TM/TTM left door interlock) removal Open the left door assembly. Remove the screw securing the bracket (A). Remove the bracket (A). Disconnect the connector from the switch (2TM/TTM left door interlock) (B). Release the hooks securing the switch (2TM/TTM left door interlock) (B) to the bracket (A). Remove the switch (2TM/TTM left door interlock) (B).
Page 649: 2000-Sheet Dual Input (Ttm)-Tray 3 Lift Gear Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 3 lift gear assembly removal Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-212. Remove the media feed unit 3 assembly. See “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on page 4-243.
Page 650: 2000-Sheet Dual Input (Ttm)-Tray 4 Lift Gear Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–tray 4 lift gear assembly removal Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-212. Remove the controller card assembly. See “2000-sheet dual input (TTM)–2TM/TTM controller card assembly removal” on page 4-274.
Page 651: 2000-Sheet Dual Input (Ttm)-Drive Motor Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–drive motor assembly removal Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-212. Disconnect the connector from the 2TM/TTM drive motor (A). Remove two screws securing the 2TM/TTM drive motor (A). Remove the 2TM/TTM drive motor (A).
Page 652: 2000-Sheet Dual Input (Ttm)-2Tm/Ttm Controller Card Assembly Removal
7500-XXX 2000-sheet dual input (TTM)–2TM/TTM controller card assembly removal Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-212. Disconnect all the connectors from the 2TM/TTM controller card assembly (A). Remove four screws securing the 2TM/TTM controller card assembly (A). Remove the controller card assembly (A).
Page 653: 2000-Sheet Dual Input (Ttm)-Clutch Removal
7500-XXX 2000-sheet dual input (TTM)–clutch removal Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-212. Disconnect the connector from the machine to the bracket (A). Remove two screws securing the bracket (A) to the frame assembly. Remove the bracket (A).
Page 654: Duplex Unit Removals
7500-XXX — Ensure the harness does not come in contact with the gears. Duplex unit removals Right Rear Left Front 4-276 MFP Service Manual...
Page 655: Duplex Unit Assembly Removal
7500-XXX Duplex unit assembly removal Pull the option hookup cover (A) outward in the direction of the arrow to remove. Disconnect the connector of the duplex unit assembly harness from the machine. Release the duplex unit assembly harness clamp from the machine. Open the duplex unit assembly.
Page 656 7500-XXX Turn the two duplex docking locks (B) on the duplex unit assembly by 90 degrees counterclockwise to release the duplex unit assembly from the machine. Remove the duplex unit assembly. Release Hook Hook Hole Front Hole 4-278 MFP Service Manual...
Page 657: Duplex Docking Locks Removal
7500-XXX Duplex docking locks removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Open the duplex unit assembly. Turn the two duplex docking locks (A) 45 degrees, and release the hooks with needle nose pliers on the back side securing them to the duplex.
Page 658: Duplex Support Strap Removal
7500-XXX Duplex support strap removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-280 MFP Service Manual...
Page 659 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Left Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 660 7500-XXX Remove the duplex left door support strap (B) from the duplex unit assembly. Hook Left 4-282 MFP Service Manual...
Page 661: Duplex Drive Gear 28 Tooth Removal
7500-XXX Duplex drive gear 28 tooth removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-283 Repair information...
Page 662 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 663 7500-XXX Disconnect the connector of the harness from duplex drive motor assembly (D) to the duplex main cable assembly. Release the harness from the clamps of the duplex unit assembly. Remove the three screws securing the bracket (E) to the duplex unit assembly. Remove the bracket (E).
Page 664: Duplex Drive Gear 33 / 74 Tooth Removal
7500-XXX Duplex drive gear 33 / 74 tooth removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-286 MFP Service Manual...
Page 665 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 666 7500-XXX Disconnect the connector of the harness from duplex drive motor assembly (D) to the duplex main cable assembly. Release the harness from the clamps of the duplex unit assembly. Remove the three screws securing the bracket (E) to the duplex unit assembly. Remove the bracket (E).
Page 667: Duplex Drive Gear 33 Tooth Removal
7500-XXX Duplex drive gear 33 tooth removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-289 Repair information...
Page 668 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 669 7500-XXX Disconnect the connector of the harness from the duplex drive motor assembly (D) to the duplex main cable assembly. Release the harness from the clamps of the duplex unit assembly. Remove the three screws securing the bracket (E) to the duplex unit assembly. Remove the bracket (E).
Page 670: Duplex Drive Gear 42 Tooth Removal
7500-XXX Duplex drive gear 42 tooth removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-292 MFP Service Manual...
Page 671 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 672 7500-XXX Disconnect the connector of the harness from duplex drive motor assembly (D) to the duplex main cable assembly. Release the harness from the clamps of the duplex unit assembly. Remove the three screws securing the bracket (E) to the duplex unit assembly. Remove the bracket (E).
Page 673: Duplex Switch (Left Cover Interlock) Removal
7500-XXX Duplex switch (left cover interlock) removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-295 Repair information...
Page 674 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 675 7500-XXX Disconnect the connector from the switch (duplex left door interlock) (D). Release the hooks securing the switch (duplex cover interlock) (D) to the bracket (E). Remove the switch (duplex left door interlock) (D). Connector Hooks Rear 4-297 Repair information...
Page 676: Duplex Media In Actuator Removal
7500-XXX Duplex media in actuator removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-298 MFP Service Manual...
Page 677 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 678 7500-XXX Remove the spring (D) from the duplex wait actuator (E). Turn the duplex wait in actuator (E) 180 degrees, and move it rightward and upward in the direction of the arrow. Remove the duplex wait actuator (E). Left 4-300 MFP Service Manual...
Page 679: Duplex Drive Motor Assembly Removal
7500-XXX Duplex drive motor assembly removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-301 Repair information...
Page 680 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 681 7500-XXX Disconnect the connector of the harness from the duplex motor assembly (D) to the duplex main cable assembly. Release the harness from the clamps of the duplex unit assembly. Remove the two screws securing the duplex drive motor assembly (E) to the duplex unit assembly. Remove the duplex drive motor assembly (E).
Page 682: Duplex Controller Card Assembly Removal
7500-XXX Duplex controller card assembly removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-304 MFP Service Manual...
Page 683 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 684 7500-XXX Disconnect all the connectors to the duplex controller card assembly (D). Remove the two screws securing the duplex controller card assembly (D) to the duplex unit assembly. Remove the duplex controller card assembly (D). Right Connectors 4-306 MFP Service Manual...
Page 685: Duplex Sensor (Duplex Wait) Removal
7500-XXX Duplex sensor (duplex wait) removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-307 Repair information...
Page 686 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 687 7500-XXX Disconnect the connector of the harness from the sensor (duplex wait) (D). Release the hooks securing the sensor (duplex wait) (D) to the duplex unit assembly. Remove the sensor (duplex wait) (D). Hooks Connector Left 4-309 Repair information...
Page 688: Duplex Access Handle Removal
7500-XXX Duplex access handle removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the two screws securing the duplex lower guide (A) to the duplex unit assembly. Remove the duplex lower guide (A). Right 4-310 MFP Service Manual...
Page 689 7500-XXX Open the duplex unit assembly. Release the hook of the duplex left door support strap (B) securing the duplex left cover (C) to the duplex unit assembly. Remove the four screws securing the duplex left cover (C) to the duplex unit assembly. Remove the duplex left cover (C).
Page 690 7500-XXX Remove the three screws securing the bracket (E) to the duplex unit assembly. Remove the bracket (E). Remove the spring (F). Rotate the duplex left door handle (G) upward, and move in the direction of the arrow. Note: The metal shaft (H) may become detached. Remove the duplex left door handle (G).
Page 691: Duplex Media Transport Rolls Removal
7500-XXX Duplex media transport rolls removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the duplex controller card assembly. See “Duplex controller card assembly removal” on page 4-304. Remove the duplex drive gears 28T. See “Duplex drive gear 28 tooth removal”...
Page 692: Duplex Media Center Transport Roll Removal
7500-XXX Duplex media center transport roll removal Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-277. Remove the duplex controller card assembly. See “Duplex controller card assembly removal” on page 4-304. Remove the hooks of the two bushings (A) securing the duplex media transport center roll (B) to the duplex unit assembly.
Page 693: Exit 2 Removals
7500-XXX Exit 2 removals Exit 2 unit assembly removal Open the printer left door assembly (A). Lift the two levers (B) while pulling the exit 2 unit (C) outward in the direction of the arrow. Remove the exit 2 unit (C). Note: The rear side of the exit 2 unit (C) may require some force to disengage the electrical connector.
Page 694: Exit 2 Unit Docking Lever Removal
7500-XXX Exit 2 unit docking lever removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Remove the two exit 2 unit docking levers (A) with a prying tool from the brackets (B). Note: When removing the two exit 2 docking levers, ensure the brackets (B) are not bent or deformed. Remove the springs (C) from the brackets (B).
Page 695 7500-XXX “Exit 2 unit assembly removal” on page 4-315. Remove the exit 2 unit assembly. See Open the exit 2 unit assembly. Remove two screws securing the upper guide assembly (A) to the exit 2 unit assembly. Remove the upper guide assembly (A). Note: The exit 2 left door handle (B) may become detached.
Page 696: Exit 2 Diverter Gate Removal
7500-XXX Exit 2 diverter gate removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. Remove two screws securing the upper guide assembly (A) to the exit 2 unit assembly. Boss Front Remove the upper guide assembly (A).
Page 697: Exit 2 Left Cover Removal
7500-XXX Exit 2 left cover removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. Release two hooks securing the exit 2 left cover (A) to the exit 2 unit assembly. Move the exit 2 left cover (A) downward and outward in the direction of the arrow.
Page 698: Exit 2 Right Cover Removal
7500-XXX Exit 2 right cover removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the one screw securing the exit 2 front cover (A) to the exit 2 unit assembly.
Page 699 7500-XXX Gently pry apart, with a flat tip screwdriver, the boss on the right then the one on the left to separate the exit 2 unit assembly into two pieces. Note: The exit 2 unit assembly should be in two pieces. Remove the four screws securing the exit 2 right cover assembly (F) to the exit 2 unit assembly.
Page 700: Standard Bin Full Exit 2 Actuator Removal
7500-XXX Standard bin full exit 2 actuator removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly (A). “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 701: Exit 2 Actuator Removal
7500-XXX Exit 2 actuator removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 702: Exit 2 Switch (Exit 2 Left Door Interlock) Removal
7500-XXX Exit 2 switch (exit 2 left door interlock) removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 703 7500-XXX Remove the connector from the exit 2 switch (exit 2 left door interlock) (A). CONNECTOR FRONT Note: Before reinstalling the switch (exit 2 left door interlock) (A), ensure all the harnesses and connectors are properly installed. 4-325 Repair information...
Page 704: Exit 2 Media Shift Gear Removal
7500-XXX Exit 2 media shift gear removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 705: Exit 2 Media Diverter Solenoid Removal
7500-XXX Exit 2 media diverter solenoid removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 706: Exit 2 Sensor (Exit 2) Removal
7500-XXX Exit 2 sensor (exit 2) removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 707: Exit 2 Sensor (Exit 2 Media Shift Hp) Removal
7500-XXX Exit 2 sensor (exit 2 media shift HP) removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 708: Exit 2 Sensor (Standard Bin Full Exit 2) Removal
7500-XXX Exit 2 sensor (standard bin full exit 2) removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 709: Exit 2 Cooling Fan Removal
7500-XXX Exit 2 cooling fan removal Remove the exit 2 unit assembly. See “Exit 2 unit assembly removal” on page 4-315. Open the exit 2 unit assembly. “Exit 2 left cover removal” on page 4-319. Remove the exit 2 left cover. See Remove the exit 2 right cover.
Page 710 7500-XXX 4-332 MFP Service Manual...
Page 711: Component Locations
7500-XXX 5. Component locations Locations Printer boards HVPS LVPS Component locations...
Page 712: Printer Motors And Sensors
7500-XXX Printer motors and sensors Sensor (fuser exit) Sensor (RFID toner cartridge) Toner add motor PC cartridge cooling fan HVPS Switch (main power) Switch (printer front door interlock) MFP Service Manual...
Page 713 7500-XXX Sensor (exit 1 media shift HP) Sensor (standard bin full exit 1) Exit 1 media shift assembly Exit shift motor Fuser unit assembly Component locations...
Page 714 7500-XXX Sensor (RFID PC cartridge) Registration Sensor (humidity and clutch temperature) Sensor (registration) MFP Service Manual...
Page 715 7500-XXX Sensor (media level) Sensor (media out) Sensor (pre-feed) Switch (lower left door interlock) Sensor (tray 2 feed out) Component locations...
Page 716 7500-XXX Switch (printer left door interlock) Fuser cooling fan MPF transport drive motor assembly PC cartridge motor Transport (Drum unit motor) motor HCF hookup connector Printer engine Switch (media size) card assembly MFP Service Manual...
Page 717: Printer Switches
7500-XXX Printer switches Exit interface card assembly Switch (main power) HVPS card assembly Switch (printer front door interlock) Component locations...
Page 718: Cables
7500-XXX Cables Fuser AC cable assembly RFID sensor cable assembly Main power switch cable assembly MFP Service Manual...
Page 719 7500-XXX Switch (PC cartridge interlock switch) Interlock switch cable assembly HCF hookup connector Multi connect Multi connect Media size switch cable assembly 1 cable assembly 1 cable assenbly connects the following: connects the following: - LVPS - HVPS - LVPS cooling fan - Registration clutch - Toner add motor - Sensor (registration)
Page 720 7500-XXX Multi connect cable assembly 3 connects the following: - LVPS - LVPS cooling fan - Toner add motor - Exit interface card assembly - Fuser cable assembly (data) Dual drive motor cable assembly Media feed unit cable assembly AC power input MPF hookup socket and wiring cable assembly...
Page 721 7500-XXX RIP card cable assembly Printhead cable assembly Multi connect cable assembly 2 connects the following: - Fuser sensor cable assembly - Sensor (Tray 2 feed out) 5-11 Component locations...
Page 722 7500-XXX Exit Interface Cable Assembly 5-12 MFP Service Manual...
Page 723: Ttm Components
7500-XXX TTM components 2TM/TTM clutch assembly 2TM/TTM controller 2TM/TTM drive motor card assembly Sensor (media level) Sensor (media out) Sensor (pre-feed) Sensor (tray 4 feed out) Switch (2TM/TTM left door interlock) Sensor (tray 3 feed out) Switch (TTM media size) 5-13 Component locations...
Page 724: Duplex Components
7500-XXX Duplex components Switch (duplex left door interlock) Sensor (duplex wait) Duplex controller card assembly Duplex drive motor 5-14 MFP Service Manual...
Page 725: Exit 2 Components
7500-XXX Exit 2 components Switch (exit 2 left door interlock) Sensor (exit 2 media shift HP) Exit 2 drive motor Sensor (standard bin full exit 2) Sensor (exit 2) Not used Media shift motor Media diverter solenoid 5-15 Component locations...
Page 726 7500-XXX 5-16 MFP Service Manual...
Page 727: Preventive Maintenance
Damaged, missing, or altered parts, especially in the area of the on/off switch and the power supply • Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover • Possible safety exposure from any non-Lexmark attachments LEXMARK X850e, X852e, EVERY SERVICE CALL EVERY 300K...
Page 728: Lubrication Specifications
7500-XXX LEXMARK X850e, X852e, EVERY SERVICE CALL EVERY 300K NOTE: X854e Duplex Transport Roll Middle Clean Water or alcohol EXIT 2 Exit 2 Transport Roll Clean Water or alcohol Exit 2 Media Exit Roll Clean Water or alcohol FINISHER (if equipped)
Page 729 7500-XXX After replacing the kit, the maintenance count must be reset to zero to clear the “80 scheduled maintenance” message. To reset the maintenance count Turn off the printer Press and hold the 2 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds.
Page 730 7500-XXX MFP Service Manual...
Page 731: Parts Catalog
NS: (Not shown) in the assembly-Index column indicates that the part is procurable but is not pictured in the illustration. • PP: (Parts Packet) in the parts description column indicates the part is contained in a parts packet. Model name Configuration Machine type Speed Lexmark X850e Network 7500-000 35 PPM Lexmark X852e Network 7500-100 45 PPM...
Page 732: Assembly 1: Covers (1 Of 2)
7500-XXX Assembly 1: Covers (1 of 2) MFP Service Manual...
Page 733 7500-XXX Assembly 1: Covers (1 of 2) Part Units/ Units/ kit Description Index number mach or pkg 1—1 40X0553 Switch (printer front door interlock) 40X2366 Top cover assembly 40X2385 Printer front door assembly 40X0560 Front door magnetic catch 40X0561 Front door support strap 40X0562 Front inner cover 40X0960...
Page 734: Assembly 2: Covers
7500-XXX Assembly 2: Covers MFP Service Manual...
Page 735 7500-XXX Assembly 2: Covers Part Units/ Units/ kit Description Index number mach or pkg 1—1 40X2300 Rear motor cover 40X2382 TVOC filter assembly 40X2304 Rear RIP card cover 40X2306 Controller box side cover 40X2301 Rear Upper cover 40X2386 Rear lower cover (110V) 40X2387 Rear lower cover (220V) 40X0568...
Page 736: Assembly 3: Media Feed Unit
7500-XXX Assembly 3: Media feed unit MFP Service Manual...
Page 737 7500-XXX Assembly 3: Media feed unit Part Units/ Units/ kit Description Index number mach or pkg 40X0570 Switch (media size) 40X0569 Media tray catch kit includes: • Media tray catch • Media tray slide (2 each) 40X0572 Vertical turn guide 40X0571 Vertical turn mylar guide Parts catalog...
Page 738: Assembly 4: Media Feed Unit Exploded (Tray 1 And Tray 2)
7500-XXX Assembly 4: Media feed unit exploded (tray 1 and tray 2) Note: Applies to tray 3 and tray 4 MFP Service Manual...
Page 739 7500-XXX Assembly 4: Media feed unit exploded (tray 1 and tray 2) Part Units/ Units/ kit Description Index number mach or pkg 4—1 40X0581 Media feed unit assembly 40X0582 Media feed lift motor 40X0585 Media feed drive gear kit includes: •...
Page 740: Assembly 5: Media Tray
7500-XXX Assembly 5: Media tray 7-10 MFP Service Manual...
Page 741 7500-XXX Assembly 5: Media tray Part Units/ Units/ kit Description Index number mach or pkg 5—1 40X0573 Media tray assembly includes: (this comes assembled) • Media tray assembly • Labels (2 each) 40X0578 Media tray end guide kit includes: • Media tray end guide •...
Page 742: Assembly 6: Mpf Unit
7500-XXX Assembly 6: MPF unit 7-12 MFP Service Manual...
Page 743 7500-XXX Assembly 6: MPF unit Part Units/ Units/ kit Description Index number mach or pkg 6—1 40X0600 MPF rear cover 40X0599 MPF front cover 40X0595 MPF feed unit assembly 40X0608 MPF fold down tray assembly 40X0597 MPF unit cable assembly 40X0755 MPF pickup spring 40X0598...
Page 744: Assembly 7: Mpf Unit Feed
7500-XXX Assembly 7: MPF unit feed 7-14 MFP Service Manual...
Page 745 7500-XXX Assembly 7: MPF unit feed Part Units/ Units/ kit Description Index number mach or pkg 7—1 40X0605 MPF transport roll kit includes: • MPF transport shaft collar • MPF transport gear 18T • MPF transport roll assembly • Bushing 8 mm (2 each) 40X0603 MPF pick roll kit includes: •...
Page 746: Assembly 8: Left Lower Door And Transport
7500-XXX Assembly 8: Left lower door and transport 7-16 MFP Service Manual...
Page 747 7500-XXX Assembly 8: Left lower door and transport Part Units/ Units/ kit Description Index number mach or pkg 8—1 40X0609 Vertical drive gear assembly 40X0610 Switch (left lower door interlock) 40X1386 Bushing 6 mm (transport roll rear) 40X1387 Transport roll kit includes: •...
Page 748: Assembly 9: Left Door And Transfer Roll
7500-XXX Assembly 9: Left door and transfer roll 7-18 MFP Service Manual...
Page 749 7500-XXX Assembly 9: Left door and transfer roll Part Units/ Units/ kit Description Index number mach or pkg 9—1 40X0553 Switch (printer left door interlock) 40X0618 PC cartridge shutter link 40X0617 Transfer roll power contact 40X0616 Transfer roll assembly 40X0619 Transfer roll guide assembly 7-19 Parts catalog...
Page 750: Assembly 10: Printer Left Door
7500-XXX Assembly 10: Printer left door 7-20 MFP Service Manual...
Page 751 7500-XXX Assembly 10: Printer left door Part Units/ Units/ kit Description Index number mach or pkg 10—1 40X0620 Printer left door assembly (this comes assembled) 40X0624 Printer left door support strap 40X0623 Left door duplex entrance guide 40X0621 Printer left door assembly handle kit includes: •...
Page 752: Assembly 11: Registration
7500-XXX Assembly 11: Registration 7-22 MFP Service Manual...
Page 753 7500-XXX Assembly 11: Registration Part Units/ Units/ kit Description Index number mach or pkg 11—1 40X0628 Registration mylar guide assembly (this comes assembled) 40X0625 Registration roll assembly 40X0627 Sensor (registration) 40X0626 Registration clutch 40X0589 Sensor (tray 2 feed-out) 40X0630 Tray 2 feed-out sensor guide (this comes assembled) 7-23 Parts catalog...
Page 754: Assembly 12: Printhead, Cartridge Guides, And Fans
7500-XXX Assembly 12: Printhead, cartridge guides, and fans 7-24 MFP Service Manual...
Page 755 7500-XXX Assembly 12: Printhead, cartridge guide and fans Part Units/ Units/ kit Description Index number mach or pkg 12-1 40X0639 Toner add motor assembly 40X0636 Sensor (RFID toner cartridge) 40X0638 Toner cartridge guide kit includes: • Toner cartridge guide assembly •...
Page 756: Assembly 13: Fuser
7500-XXX Assembly 13: Fuser 7-26 MFP Service Manual...
Page 757 7500-XXX Assembly 13: Fuser Part Units/ Units/ kit Description Index number mach or pkg 13-1 40X0588 Sensor (fuser exit) 40X0645 Fuser exit actuator kit includes: • Shaft • Fuser exit actuator • Spring • Bracket 40X2307 Fuser assembly 110V (this comes assembled) 40X2308 Fuser assembly 220V (this comes assembled) 40X2378...
Page 758: Assembly 14: Standard Exit 1
7500-XXX Assembly 14: Standard Exit 1 7-28 MFP Service Manual...
Page 759 7500-XXX Assembly 14: Standard Exit 1 Part Units/ Units/ kit Description Index number mach or pkg 14-1 40X2384 Exit 1 media shift assembly (this comes assembled) 40X0657 Standard bin full exit 1 actuator kit includes: • Standard bin full exit 1 actuator shaft •...
Page 760: Assembly 15: Dual Unit Drive Motor
7500-XXX Assembly 15: Dual unit drive motor 7-30 MFP Service Manual...
Page 761 7500-XXX Assembly 15: Dual unit drive motor Part Units/ Units/ kit Description Index number mach or pkg 15—1 40X0660 Dual drive motor assembly 40X0659 Exit 1 drive belt 40X0661 Drive belt flange 40X2374 Transport motor support bushing 40X2309 MPF/transport drive motor assembly 40X2373 MPF drive gear 18T 40X2372...
Page 762: Assembly 16: Electrical
7500-XXX Assembly 16: Electrical 7-32 MFP Service Manual...
Page 763 HCF hookup connector assembly 40X2314 AC drive card assembly 110 V 40X2315 AC drive card assembly 220 V 40X2316 Printer engine card assembly X850e 40X2379 Printer engine card assembly X852e 40X2380 Printer engine card assembly X854e 40X2313 AC power input socket kit includes: •...
Page 764 7500-XXX Assembly 16 (continued): Electrical 7-34 MFP Service Manual...
Page 765 7500-XXX Assembly 16 (continued): Electrical Part Units/ Units/ kit Description Index number mach or pkg 16—1 40X2360 Fax interface card assembly 40X4652 RIP card chassis bracket assembly (this comes assembled) 40X2359 Interconnect card assembly 40X2369 Hard drive power cable assembly 40X2370 Hard drive data cable assembly Warning: In the event of replacement of any one of the following components:...
Page 766: Assembly 17: Covers And Operator Panel
7500-XXX Assembly 17: Covers and operator panel 7-36 MFP Service Manual...
Page 767 Operator panel user touch screen 40X2365 USB connecto2r/housing/cable 40X2203 Operator panel cable assembly 40X2399 USB cable assembly 40X2730 Operator panel bezel (X850e) 40X2731 Operator panel bezel (X852e) 40X2732 Operator panel bezel (X854e) 40X2205 Scanner left cover 40X2219 Scanner interface cable assembly...
Page 768: Assembly 18: Platen Glass
7500-XXX Assembly 18: Platen glass REAR 7-38 MFP Service Manual...
Page 769 7500-XXX Assembly 18: Platen glass Part Units/ Units/ kit Description Index number mach or pkg 18—1 40X2208 Large platen glass 40X2209 Large platen glass retainer cover 40X2210 Scanner controller card assembly 40X2211 CCD ribbon cable assembly 40X2212 Scanner main cable assembly 40X2213 Small platen glass front retainer 40X2214...
Page 770: Assembly 19: Lens And Sensors
7500-XXX Assembly 19: Lens and sensors REAR 7-40 MFP Service Manual...
Page 771 7500-XXX Assembly 19: Lens and sensors Part Units/ Units/ kit Description Index number mach or pkg 19—1 40X2220 CCD card/lens assembly 40X2320 Sensor (platen length APS 1) 40X2320 Sensor (platen length APS 2) 40X2222 Switch (platen interlock) 40X2223 Sensor (Scanner HP) 40X2223 Sensor (ADF angle) 40X2224...
Page 772: Assembly 20: Carriage Motor And Cooling Fan
7500-XXX Assembly 20: Carriage motor and cooling fan 7-42 MFP Service Manual...
Page 773 7500-XXX Assembly 20: Carriage motor and cooling fan Part Units/ Units/ kit Description Index number mach or pkg 20—1 40X2231 Scanner cooling fan 40X2229 Scanner drive motor tension spring 40X2228 Scanner drive motor assembly 40X2226 Scanner drive belt 7-43 Parts catalog...
Page 774: Assembly 21: Full/Half Rate Carriage
7500-XXX Assembly 21: Full/half rate carriage 7-44 MFP Service Manual...
Page 775 7500-XXX Assembly 21: Full/half rate carriage Part Units/ Units/ kit Description Index number mach or pkg 21—1 40X2233 Mirror retaining clip 40X2236 Exposure lamp PS ribbon cable 40X2353 Exposure lamp PS card assembly 40X2352 Exposure lamp PS card insulator 40X2234 Scanner 1st mirror 40X2237 Exposure lamp...
Page 776: Assembly 22: Adf Assembly
7500-XXX Assembly 22: ADF assembly 7-46 MFP Service Manual...
Page 777 7500-XXX Assembly 22: ADF assembly Part Units/ Units/ kit Description Index number mach or pkg 22-1 40X2240 ADF unit assembly (complete unit) 40X2239 Platen cushion 40X2206 Flatbed scanner unit assembly 40X2238 ADF mounting screw 7-47 Parts catalog...
Page 778: Assembly 23: Adf Covers And Components
7500-XXX Assembly 23: ADF covers and components 7-48 MFP Service Manual...
Page 779 7500-XXX Assembly 23: ADF covers and components Part Units/ Units/ kit Description Index number mach or pkg 23—1 40X2244 ADF rear cover 40X2246 Small hook/loop strip 40X2245 ADF front cover assembly 40X2242 Document tray assembly (this comes assembled) 40X2243 Document tray hinge 7-49 Parts catalog...
Page 780: Assembly 24: Adf Base
7500-XXX Assembly 24: ADF base Front 7-50 MFP Service Manual...
Page 781 7500-XXX Assembly 24: ADF base Part Units/ Units/ kit Description Index number mach or pkg 24—1 40X2257 ADF left hinge 40X2371 ADF registration pinch/frame assembly (this comes assembled) 40X2247 Large hook/loop strip 40X2330 Spring 40X2354 Registration pad 40X2355 Registration pad cover 40X2248 Solenoid/interlock cable assembly 40X2260...
Page 782: Assembly 25: Adf Feeder
7500-XXX Assembly 25: ADF feeder 7-52 MFP Service Manual...
Page 783 7500-XXX Assembly 25: ADF feeder Part Units/ Units/ kit Description Index number mach or pkg 25—1 40X2262 ADF left cover assembly (this comes assembled) 40X2265 Registration motor cable assembly 40X2266 ADF feed motor cable assembly 40X2264 Document set/sheet through cable assembly 40X2267 Left cover hinge retainer 40X2270...
Page 784: Assembly 26: Adf Left Cover Components
7500-XXX Assembly 26: ADF left cover components 7-54 MFP Service Manual...
Page 785 7500-XXX Assembly 26: ADF left cover components Part Units/ Units/ kit Description Index number mach or pkg 26—1 40X2223 Sensor (pick roll position HP) 40X2291 Plastic ring clip 6 mm 40X2280 ADF feed/pick roll assembly (this comes assembled) 40X2276 Left cover pinch roll assembly (this comes assembled) 40X2274 ADF left cover handle 40X2381...
Page 786: Assembly 27: Adf Media Guide
7500-XXX Assembly 27: ADF media guide 7-56 MFP Service Manual...
Page 787 7500-XXX Assembly 27: ADF media guide Part Units/ Units/ kit Description Index number mach or pkg 27—1 40X2290 Actuator/media guide assembly (this comes assembled) 40X2289 Inverter gate 40X2288 ADF main feed cable assembly 40X2223 Sensor (ADF pre-registration) 40X0589 Sensor (ADF registration) 40X2223 Sensor (ADF width APS 1) 40X2223...
Page 788: Assembly 28: Adf Feeder Roll
7500-XXX Assembly 28: ADF feeder roll 7-58 MFP Service Manual...
Page 789 7500-XXX Assembly 28: ADF feeder roll Part Units/ Units/ kit Description Index number mach or pkg 28—1 40X2383 ADF main feed assembly (this comes assembled) 40X2346 Manual feed drive wheel 40X2345 Manual feed drive belt 40X2291 Plastic ring clip kit includes: •...
Page 790: Assembly 29: Adf Motor Unit
7500-XXX Assembly 29: ADF motor unit 7-60 MFP Service Manual...
Page 791 7500-XXX Assembly 29: ADF motor unit Part Units/ Units/ kit Description Index number mach or pkg 29—1 40X2327 ADF feed motor assembly (this comes assembled) 40X2223 Sensor (sheet through) 40X2326 Tension spring 40X2325 ADF registration motor 7-61 Parts catalog...
Page 792: Assembly 30: Adf Document Tray
7500-XXX Assembly 30: ADF document tray 7-62 MFP Service Manual...
Page 793 7500-XXX Assembly 30: ADF document tray Part Units/ Units/ kit Description Index number mach or pkg 30—1 40X2242 Document tray assembly (this comes assembled) 40X2328 Sensor (document tray length 1) 40X2328 Sensor (document tray length 2) 40X2223 Sensor (document tray width 1) 40X2223 Sensor (document tray width 2) 40X2223...
Page 794: Assembly 31: 2000-Sheet Dual Input (Ttm)-Covers
7500-XXX Assembly 31: 2000-sheet dual input (TTM)–covers 7-64 MFP Service Manual...
Page 795 7500-XXX Assembly 31: 2000-sheet dual input (TTM)–covers Asm- Part Units/ Units/ Description Index number option 31-1 40X0687 Top cover 40X0688 Foot cover 40X0689 Right cover 40X0703 Tray support roll (4 each) 40X0691 Locking caster 40X0963 TTM media tray 4 assembly (this comes assembled) •...
Page 796: Assembly 32: 2000-Sheet Dual Input (Ttm)-Tray 3
7500-XXX Assembly 32: 2000-sheet dual input (TTM)–tray 3 7-66 MFP Service Manual...
Page 797 7500-XXX Assembly 32: 2000-sheet dual input (TTM)–tray 3 Asm- Part Units/ Units/ Description Index number option 32—1 40X0962 TTM media tray 3 assembly (this comes assembled) • TTM media tray 3 assembly • Label (2 each) 40X0712 Tray 3 media guide lock kit includes: •...
Page 798: Assembly 33: 2000-Sheet Dual Input (Ttm)-Tray 4
7500-XXX Assembly 33: 2000-sheet dual input (TTM)–tray 4 7-68 MFP Service Manual...
Page 799 7500-XXX Assembly 33: 2000-sheet dual input (TTM)–tray 4 Asm- Part Units/ Units/ Description Index number option 33—1 40X0963 TTM media tray 4 assembly (this comes assembled) • TTM media tray 4 assembly • Label 40X0721 Tray 4 media guide lock kit includes: •...
Page 800: Assembly 34: 2000-Sheet Dual Input (Ttm)-Feed And Transport
7500-XXX Assembly 34: 2000-sheet dual input (TTM)–feed and transport 7-70 MFP Service Manual...
Page 801 7500-XXX Assembly 34: 2000-sheet dual input (TTM)–feed and transport Asm- Part Units/ Units/ Description Index number option 34—1 40X0729 Switch (TTM media size switch) 40X0581 Media feed unit assembly (this comes assembled) 40X0728 Tray 4 media guide kit includes: • Tray 4 upper media guide •...
Page 802: Assembly 35: 2000-Sheet Dual Input (Ttm)-Feed And Transport
7500-XXX Assembly 35: 2000-sheet dual input (TTM)–feed and transport 7-72 MFP Service Manual...
Page 803 7500-XXX Assembly 35: 2000-sheet dual input (TTM)–feed and transport Asm- Part Units/ Units/ Description Index number option 35—1 40X0692 Sensor (tray 3 feed-out) kit includes: • Sensor (tray 3 feed-out) • Sensor protector 40X0732 Upper vertical turn guide 40X0581 Media feed unit assembly (this comes assembled) 40X0572 Vertical turn guide 40X0695...
Page 804: Assembly 36: 2000-Sheet Dual Input (Ttm)-Media Feed Unit
7500-XXX Assembly 36: 2000-sheet dual input (TTM)–media feed unit Note: Applies to tray 3 and tray 4 7-74 MFP Service Manual...
Page 805 7500-XXX Assembly 36: 2000-sheet dual input (TTM)–media feed unit Asm- Part Units/ Units/ Description Index number option 36—1 40X0581 Media feed unit assembly (this comes assembled) 40X0582 Media feed lift motor 40X0585 Media feed drive gear kit includes: • Media feed unit drive gear 13T •...
Page 806: Assembly 37: 2000-Sheet Dual Input (Ttm)-Left Door
7500-XXX Assembly 37: 2000-sheet dual input (TTM)–left door 7-76 MFP Service Manual...
Page 807 7500-XXX Assembly 37: 2000-sheet dual input (TTM)–left door Asm- Part Units/ Units/ Description Index number option 37—1 40X0733 2TM/TTM left door assembly (this comes assembled) 40X0696 2TM/TTM left door pinch assembly (this comes assembled) 40X0697 2TM/TTM left door support strap 40X0610 Switch (2TM/TTM left door interlock) 7-77...
Page 808: Assembly 38: 2000-Sheet Dual Input (Ttm)-Drive And Electrical
7500-XXX Assembly 38: 2000-sheet dual input (TTM)–drive and electrical 7-78 MFP Service Manual...
Page 809 7500-XXX Assembly 38: 2000-sheet dual input (TTM)–drive and electrical Asm- Part Units/ Units/ Description Index number option 38—1 40X0736 TTM drive gear kit includes: • TTM drive gear 22/40T • TTM drive gear 37T (2 each) • TTM drive gear 32T •...
Page 810: Assembly 39: Duplex Outer
7500-XXX Assembly 39: Duplex outer Note: This assembly includes everything on pages 7-80 and 7-82. 7-80 MFP Service Manual...
Page 811 7500-XXX Assembly 39: Duplex outer Asm- Part Units/ Units/ Description Index number option 39—1 40X0780 Duplex unit assembly (this comes assembled) 40X0788 Duplex cable kit includes: • Duplex sensor cable assembly • Duplex motor cable assembly • Duplex main cable assembly 40X0782 Duplex left door handle kit includes: •...
Page 812: Assembly 40: Duplex Inner
7500-XXX Assembly 40: Duplex inner Note: This assembly includes everything on pages 7-80 and 7-82. 7-82 MFP Service Manual...
Page 813 7500-XXX Assembly 40: Duplex inner Asm- Part Units/ Units/ Description Index number option 40—1 40X0780 Duplex unit assembly (this comes assembled) 40X0792 Duplex media transport pinch roll kit includes: • Duplex media transport pinch roll (10 each) • Spring (10 each) 40X0790 Duplex docking lock (2 each) 40X0791...
Page 814: Assembly 41: Exit 2 Outer
7500-XXX Assembly 41: Exit 2 outer 7-84 MFP Service Manual...
Page 815 7500-XXX Assembly 41: Exit 2 outer Asm- Part Units/ Units/ Description Index number option 41—1 40X0794 Exit 2 unit assembly (this comes assembled) 40X0797 Exit 2 left door support strap 40X0795 Exit 2 left door handle kit includes: • Exit 2 left door handle •...
Page 816: Assembly 42: Exit 2 Inner
7500-XXX Assembly 42: Exit 2 inner Note: This assembly includes everything on pages 7-84 and 7-86. 7-86 MFP Service Manual...
Page 817 7500-XXX Assembly 42: Exit 2 inner Asm- Part Units/ Units/ Description Index number option 42—1 40X0794 Exit 2 unit assembly (this comes assembled) 40X0807 Exit 2 cooling fan 40X0802 Exit 2 docking latch kit includes: • Docking latch (2 each) •...
Page 818: Assembly 43: Electrical Cables
7500-XXX Assembly 43: Electrical cables Part Units/ Units/ kit Description Index number mach or pkg 43—1 40X2368 Fuser AC cable assembly 40X0686 RFID sensor cable assembly 40X2319 Main switch cable assembly 7-88 MFP Service Manual...
Page 819: Assembly 44: Electrical Cables
7500-XXX Assembly 44: Electrical cables Part Units/ Units/ kit Description Index number mach or pkg 44—1 40X0683 Interlock switch cable assembly 40X0673 HCF hookup connector assembly 40X0637 Multi connector cable assembly 1 40X0676 Media size switch cable assembly 40X2318 Multi connector cable assembly 3 Note: Assembly 44 (Index # 5) on page 89 and Assembly 45 (Index #1) on page 90 is a cable bundle that makes up Multi connector cable assembly 3.
Page 820: Assembly 45: Electrical Cables
7500-XXX Assembly 45: Electrical cables Part Units/ Units/ kit Description Index number mach or pkg 45—1 40X2318 Multi connector cable assembly 3 Note: Assembly 44 (Index # 5) on page 89 and Assembly 45 (Index #1) on page 90 is a cable bundle that makes up Multi connector cable assembly 3. 40X0685 Dual drive motor cable assembly 40X0674...
Page 821: Assembly 46: Electrical Cables
7500-XXX Assembly 46: Electrical cables Part Units/ Units/ kit Description Index number mach or pkg 46—1 40X2367 Multi connector cable assembly 2 40X2317 Printhead cable assembly 40X0677 RIP card cable assembly 7-91 Parts catalog...
Page 822: Assembly 47: Electrical Cable
7500-XXX Assembly 47: Electrical cable Part Units/ Units/ kit Description Index number mach or pkg 47—1 40X0679 Exit interface cable assembly 7-92 MFP Service Manual...
Page 823: Assembly 48: Power Cords
7500-XXX Assembly 48: Power cords Part Units/ Units/ kit Description Index number mach or pkg 48—NS 40X0269 Power cord–USA, Canada, Latin America, Asia Pacific LV 8ft right angle 40X0270 Power cord–Japan 15A LV 8ft straight 40X0271 Power cord–United Kingdom 8ft straight 40X0273 Power cord–Chile, Italy, Uruguay HV 8ft straight 40X0277...
Page 824: Assembly 49: Miscellaneous
7500-XXX Assembly 49: Miscellaneous Asm- Part Units/ Units/ kit Description Index number mach or pkg 49—NS 40X0179 Nyogel 744 grease packet 40X0290 RS232C serial interface card 40X0291 Parallel 1284-B interface card 40X0948 Assorted E-clip packet 40X0949 Assorted screw packet 40X1375 MarkNet 8000 Fast Ethernet 40X1376 MarkNet 8020 Gigabit Ethernet...
Page 825 7500-XXX Index Numerics Clear All button component locations 7-94 40X4252 Bar code card assembly cables 7-94 40X4256 PRESCRIBE card assembly 5-14 duplex components 5-15 exit 2 components HVPS accessing service menus LVPS 1-74 acronyms printer boards Asterisk button printer motors and sensors printer switches Backspace button 5-13...
Page 826 7500-XXX 3-31 Sensor Test Dial Pause button diagnostic aids 2-10 down arrow button accessing service menus duty cycle diagnostic information confirm the installation status 2-13 error code messages emulation 2-40 service checks 2-13 error code messages start error codes using service checks 2-40 200.00 sensor (registration) off jam (too long) Diagnostic Menus...
Page 827 7500-XXX 2-146 290.11 sensor (ADF registration) on jam ADF simplex 846.13 switch (platen interlock) open 2-95 2-147 side 847.00 modem failure 2-97 2-148 290.12 sensor (ADF registration) on jam side 847.01 fax failure 2-99 2-148 290.13 sensor (ADF registration) off jam 848.00 modem failure 2-100 2-149...
Page 828 7500-XXX 980.03 duplex controller card assembly communication image quality troubles 2-178 2-224 failure after image 2-225 980.03 exit interface card assembly communication background (fog) 2-178 2-216 failure horizontal band printheads out 2-179 2-220 980.05 engine flicker communication failure horizontal stripes 2-228 997.00 duplex controller card assembly type failure media damage...
Page 829 7500-XXX 7-77 4-105 2000-sheet dual input (TTM)–left door exit 1 media shift assembly 7-75 4-110 2000-sheet dual input (TTM)–media feed unit exit 1 media shift gear 7-67 4-116 2000-sheet dual input (TTM)–tray 3 exit interface card assembly 7-69 4-45 2000-sheet dual input (TTM)–tray 4 feed roll 7-46 4-46...
Page 830 7500-XXX 4-109 4-256 sensor (exit 1 bin full) sensor (pre-feed) 4-108 4-247 sensor (exit 1 media shift) sensor (tray 3 feed-out) 4-103 4-241 sensor (fuser exit) sensor (tray 4 feed-out) 4-90 4-263 sensor (humidity and temperature) separation roll 4-39 4-262 sensor (media level) separation roll one-way friction clutch 4-40...
Page 831 7500-XXX 4-202 4-149 sensor (document tray width 1) sensor (platen length APS 2) 4-203 4-151 sensor (document tray width 2) sensor (scanner HP) 4-204 4-145 sensor (document tray width 3) small platen glass 4-177 4-150 sensor (pick roll position HP) switch (platen interlock) 4-200 4-137...
Page 832 7500-XXX MFP Service Manual...
Page 833: Part Number Index
7500-XXX Part number index Description Page 40X0179 Nyogel 744 grease packet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-94 40X0269 Power cord–USA, Canada, Latin America, Asia Pacific LV 8ft right angle - - - - - - - - - - - - - - - - - - - - -...
Page 834 7500-XXX 7-75 40X0591 Feed roll one-way clutch kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X0593 Separation roll friction clutch kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-75...
Page 835 7500-XXX 7-33 40X0664 Exit interface card asm - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X0673 HCF hookup connector asm - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-33...
Page 836 7500-XXX 7-81 40X0785 Duplex drive motor kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X0786 Duplex controller card assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-81...
Page 837 7500-XXX 7-94 40X1513 Simplified Chinese font card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X1514 Traditional Chinese font card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-94...
Page 838 Printer engine card assembly X850e - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 839 7500-XXX 7-41 40X2320 Sensor (platen length APS 1) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X2320 Sensor (platen length APS 2) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-41...
Page 840 Operator panel bezel (X850e) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 841 7500 MFP Service Manual Operator Panel Hard Drive Deve Bias DC ON +5VDC Deve Bias DC Remote HVPS Fax Card +5VDC +5VDC BCR DC Remote Card ASM SIG-GND BCR AC ON BCR AC Clock LD +5VDC BTR Remote SIG-GND Registration SIG GND BTR SEL Registration SNR(L)+5VDC...
Page 842 7500 MFP Service Manual RIP Card ASM (located in printer) 32 33 41 42 43 32 33 41 42 43 SIG GND SIG GND Pride_ACS_CCD J719 Pride_SDOA Pride_SCKA CCD_BW_LS CCD_CL_LS BW_LS_RTN CL_LS_RTN CCD Card/ SIG GND SIG GND Lens ASM 3.3VDC 3.3VDC PONG...
Page 843 7500 MFP Service Manual TTM/2TM To Printer Engine Card ASM Controller P413 Card Assembly All Lines Common GND Switch (T2M Media Size 2) Switch (Exit 2 Left Size Switch 2 ON(L)+5VDC Door Interlock) Size Switch 2 Signal Switch (2TM/TTM SIG-GND +3.3VDC Left door Interlock) +5VDC...
