Cis Assy (Lower Scanner) Disassembly/Reassembly - Olivetti PR2 PLUS Service Manual

NOTE: for reassembly, reverse the procedure, paying particular
attention to correct fitting of the spring (3).
See the Figure 7 -
Clean the glass of the CIS with a soft cloth.
After completing the re-assembly procedure, carry out
mechanical adjustment and calibration of the scanner
(see the section

CIS assy (lower scanner) disassembly/reassembly

1. Disassembling the casing. See the section
2. Remove the upper mechanical assy. See the section
page 7 - 11.
3. Remove the roller guard (1) removing the related M3 lock-screws (2) and release the cable (3) from the cable
clips (4).
3
1

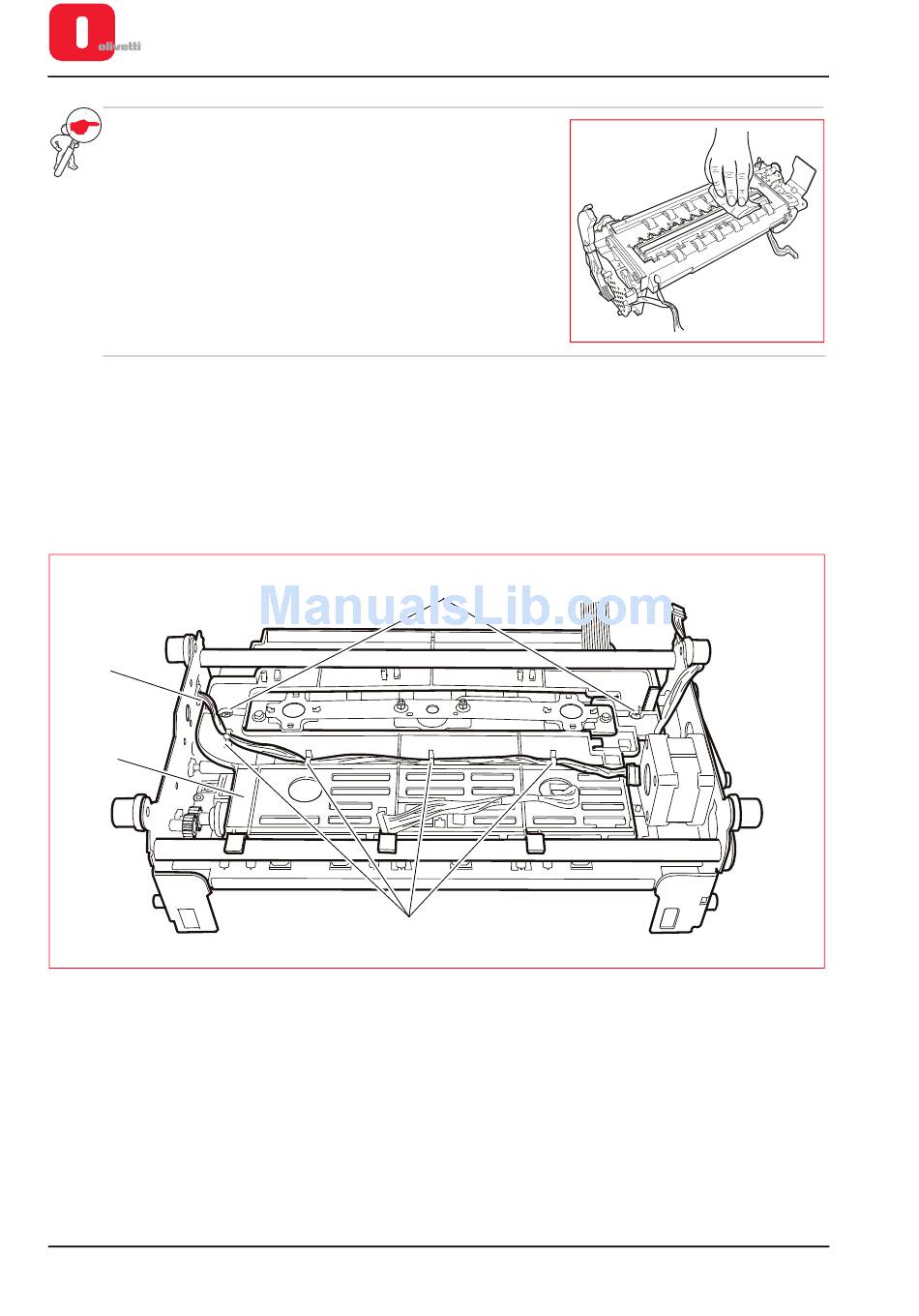

Figure 7 - 49 Disassembling the CIS assy (lower scanner)
7-34
47.
"Calibrating the scanner" on page 4 -
"Casing disassembly/reassembly" on page 7 -
"Upper mechanical assy disassembly/reassembly" on
2
4
Service Manual
28).
4.
XZAC4219-05
