Olivetti PR2 PLUS Service Manual page 143

Disassembling/reassembling the motherboard (printers with serial number 8.xxx.xxx and
1.xxx.xxx)
1. Disassembling the casing. See the section
2. Remove the mechanical assy. See the section
3. Disconnect the power cable (J16 - printers with serial number 8.xxx.xxx) or (J15 - printers with serial number
1.xxx.xxx).
Printers with serial number
Power connector

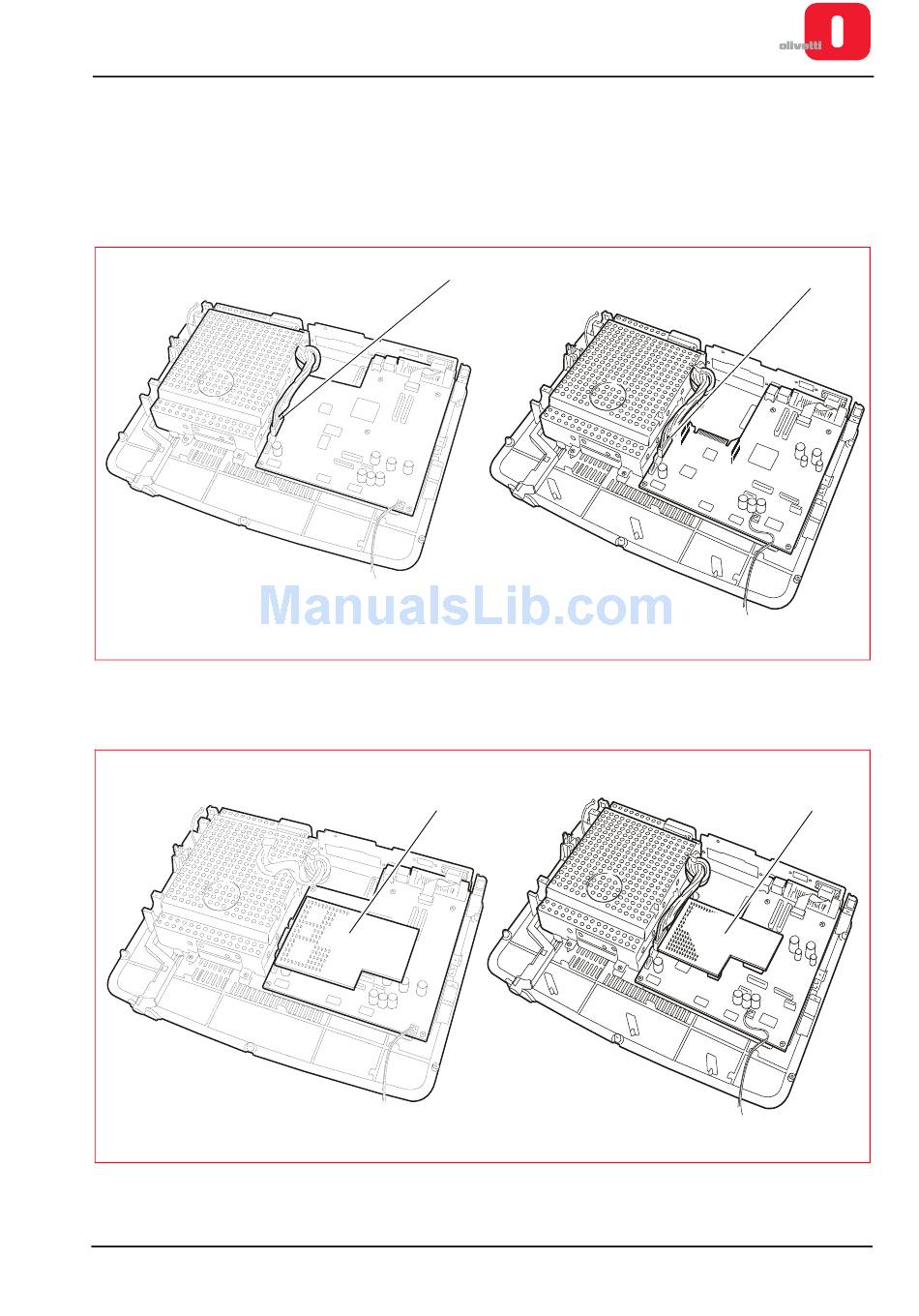

Figure 7 - 29
4. Remove magnetic options option (1).
Printers with serial number
Figure 7 - 30 Removing the magnetic options board
XZAC4219-05
"Casing disassembly/reassembly" on page 7 -
"Mechanical assy disassembly/reassembly" on page 7 -
J16
8.xxx.xxx
1
8.xxx.xxx
Service Manual
Printers with serial number
Printers with serial number
4.
6.
J15
1.xxx.xxx
1
1.xxx.xxx
7-23
