Chapter 4 Installing the IPS 4270-20

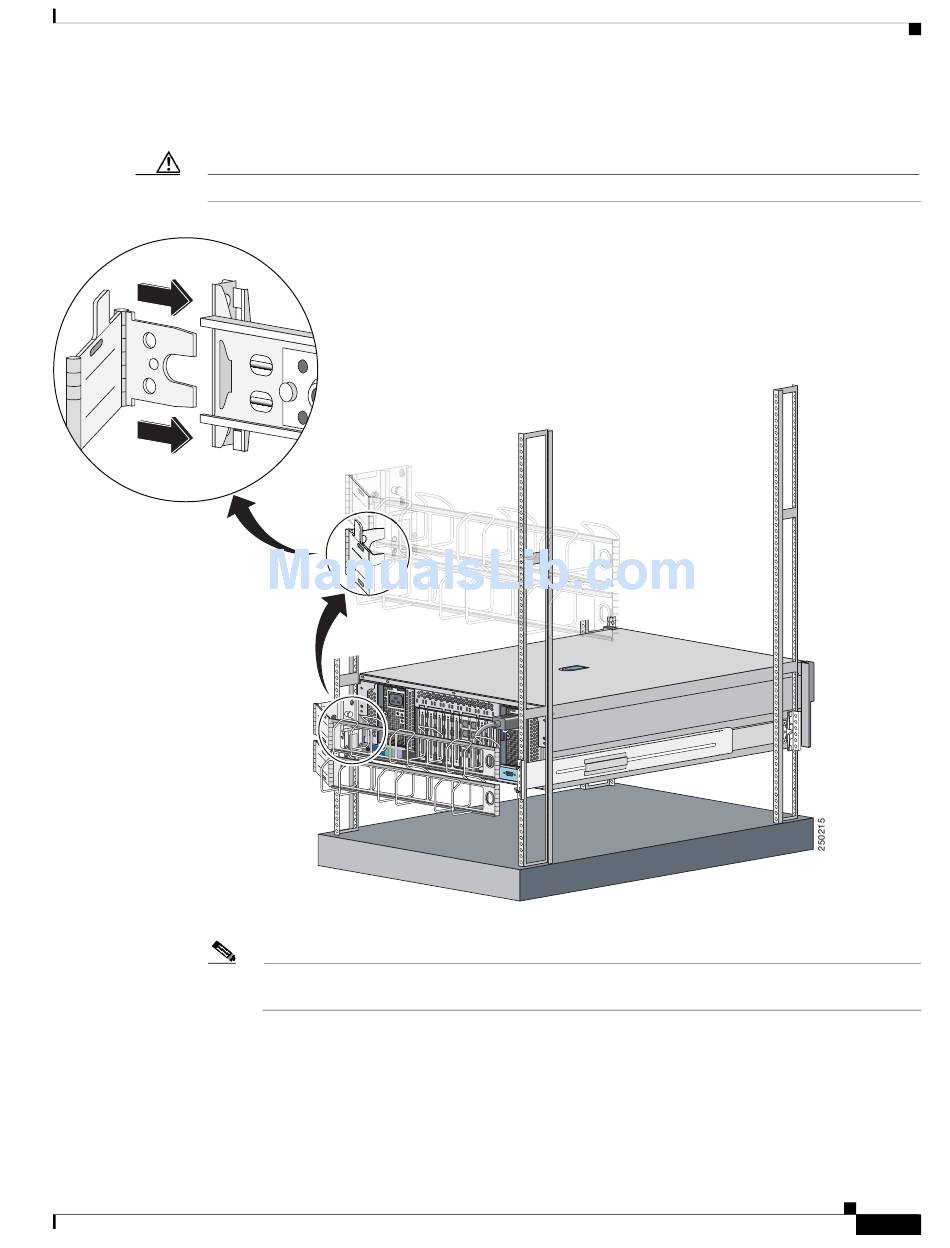

Attach the cable trough to the back of the rack by pushing the lower metal tab on the cable management
Step 2
arm in to the slide assembly, then lifting the spring pin to lock it in to place.
Make sure the metal tab is on the outside of the upper part of the cable management arm.
Caution
Note
OL-18504-01
PS2
PCI -E x4
9 PCI -E x8
8
7
UID
When properly installed, the cable management arm is attached to the IPS 4270-20 and the rack
rail.
